Drivers provided by the framework. More...

Collaboration diagram for Framework Drivers:

Modules
	Unit Test Drivers
	Drivers intended for use with unit test code.

	Simulator Drivers
	Drivers intended for use with simulator applications (run on host machine)

Classes
class	embdrv::ssd1306
	Driver for the SSD1306 Display Driver. More...

class	embdrv::vl53l1x
	ST VL53L1X Time-of-Flight Sensor Driver. More...

Detailed Description

Drivers provided by the framework.

Class Documentation

◆ embdrv::ssd1306

class embdrv::ssd1306

Driver for the SSD1306 Display Driver.

This implementation only supports I2C, though the part supports SPI and Parallel modes To implement that support, please use a state pattern and adjust the i2cWrite function to be a more generic write. This single function can be swapped out for the particular data mode.

The screen size is hard-coded to be 64 x 48 with an offset of 32. Adjustments are needed to make the screen size specification generic.

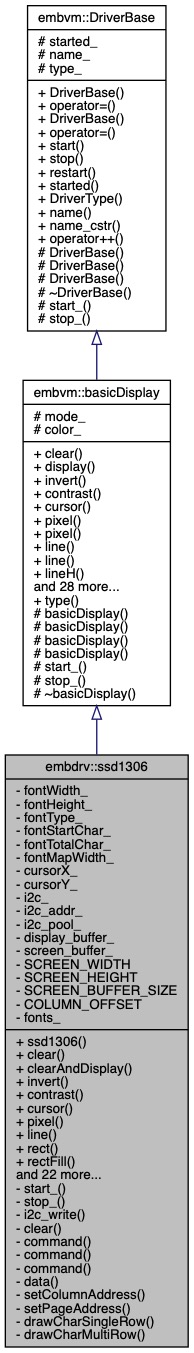

Inheritance diagram for embdrv::ssd1306:

Public Types
enum	invert : uint8_t { invert::normal = 0, invert::invert }
	Display color inversion options. More...

enum	mode : uint8_t { mode::normal = 0, mode::XOR }
	Set the drawing mode, if supported by the driver. More...

enum	color : uint8_t { color::black = 0, color::white }
	Basic displays have two pixel colors: black and white. More...

using	coord_t = uint8_t
	Coordinate representation type. More...

Public Member Functions
	ssd1306 (embvm::i2c::master &i2c, uint8_t i2c_addr=DEFAULT_SSD1306_I2C_ADDR)
	Address is 0x3D if DC pin is set to 1. More...

void	clear () noexcept final
	Clear the screen contents. More...

void	clearAndDisplay () noexcept

void	invert (enum invert inv) noexcept final
	Invert the display color. More...

void	contrast (uint8_t contrast) noexcept final
	Set contrast. More...

void	cursor (coord_t x, coord_t y) noexcept final
	Set the cusor within the screen buffer. More...

void	pixel (coord_t x, coord_t y, color c, mode m) noexcept final
	Draw a pixel with a specific color and mode. More...

void	line (coord_t x0, coord_t y0, coord_t x1, coord_t y1, color c, mode m) noexcept final
	Draw a line with a specific color and mode. More...

void	rect (coord_t x, coord_t y, uint8_t width, uint8_t height, color c, mode m) noexcept final
	Draw a rectangle with a specific color and mode. More...

void	rectFill (coord_t x, coord_t y, uint8_t width, uint8_t height, color c, mode m) noexcept final
	Draw a filled rectangle with a specific color and mode. More...

void	circle (coord_t x, coord_t y, uint8_t radius, color c, mode m) noexcept final
	Draw a circle with a specific color and mode. More...

void	circleFill (coord_t x, coord_t y, uint8_t radius, color c, mode m) noexcept final
	Draw a filled circle with a specific color and mode. More...

void	drawChar (coord_t x, coord_t y, uint8_t character, color c, mode m) noexcept final
	Draw an ASCII character with a specific color and mode. More...

void	drawBitmap (uint8_t *bitmap) noexcept final
	Replace the screen buffer with a bitmap. More...

uint8_t	screenWidth () const noexcept final
	Check the screen width. More...

uint8_t	screenHeight () const noexcept final
	Check the screen height. More...

void	scrollRight (coord_t start, coord_t stop) noexcept final
	Enable right scrolling. More...

void	scrollLeft (coord_t start, coord_t stop) noexcept final
	Enable left scrolling. More...

void	scrollVertRight (coord_t start, coord_t stop) noexcept final

void	scrollVertLeft (coord_t start, coord_t stop) noexcept final

void	scrollStop () noexcept final
	Stop scrolling. More...

void	flipVertical (bool flip) noexcept final
	Vertical flip. More...

void	flipHorizontal (bool flip) noexcept final
	Horizontal flip. More...

void	display () noexcept final
	Flush the screen buffer contents to the hardware display buffer. More...

uint8_t	fontType (uint8_t type) noexcept
	Set the font type. More...

uint8_t	fontType () const noexcept
	Get the current font type. More...

uint8_t	fontWidth () const noexcept
	Get the font width. More...

uint8_t	fontHeight () const noexcept
	Get the font height. More...

uint8_t	totalFonts () const noexcept
	Get the total number of supported fonts. More...

uint8_t	fontStartChar () const noexcept
	Get the starting character for the font. More...

uint8_t	fontTotalChar () const noexcept
	Get the total number of characters supported by the font. More...

void	putchar (uint8_t c) noexcept final
	Print a character on the display. More...

void	pixel (coord_t x, coord_t y) noexcept
	Draw a pixel in the screen buffer. More...

void	line (coord_t x0, coord_t y0, coord_t x1, coord_t y1) noexcept
	Draw a line. More...

void	lineH (coord_t x, coord_t y, uint8_t width) noexcept
	Draw a horizontal line. More...

void	lineH (coord_t x, coord_t y, uint8_t width, color c, mode m) noexcept
	Draw a horizontal line with a specific color and mode. More...

void	lineV (coord_t x, coord_t y, uint8_t height) noexcept
	Draw a vertical line. More...

void	lineV (coord_t x, coord_t y, uint8_t height, color c, mode m) noexcept
	Draw a vertical line with a specific color and mode. More...

void	rect (coord_t x, coord_t y, uint8_t width, uint8_t height) noexcept
	Draw a rectangle. More...

void	rectFill (coord_t x, coord_t y, uint8_t width, uint8_t height) noexcept
	Draw a filled rectangle. More...

void	circle (coord_t x, coord_t y, uint8_t radius) noexcept
	Draw a circle. More...

void	circleFill (coord_t x, coord_t y, uint8_t radius) noexcept
	Draw a filled circle. More...

void	drawChar (coord_t x, coord_t y, uint8_t character) noexcept
	Draw an ASCII character. More...

void	printString (coord_t x, coord_t y, const char *str) noexcept
	Print a string on the display. More...

void	printString (coord_t x, coord_t y, const char *str, size_t length) noexcept
	Print a string on the display. More...

void	drawColor (color c) noexcept
	Set color. More...

virtual void	drawMode (mode m) noexcept
	Set draw mode. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	Basic Display Driver Type ID. More...

Protected Attributes
mode	mode_ = mode::normal
	The current display mode setting. More...

color	color_ = color::black
	The current display color setting. More...

type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Member Functions
void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	i2c_write (const uint8_t *buffer, uint8_t size, const embvm::i2c::master::cb_t &cb) noexcept
	Helper function which performs an I2C write. More...

void	clear (uint8_t c) noexcept
	Clear the display and initialize buffer bytes with the target value. More...

void	command (uint8_t c) noexcept
	Send a command to the display driver hardware. More...

void	command (uint8_t cmd, uint8_t arg1) noexcept
	Send a command with one argument to the display driver hardware. More...

void	command (uint8_t cmd, uint8_t arg1, uint8_t arg2) noexcept
	Send a command with two arguments to the display driver hardware. More...

void	data (uint8_t c) noexcept
	Send a data byte to the display driver hardware. More...

void	setColumnAddress (uint8_t add) noexcept
	Set the column address. More...

void	setPageAddress (uint8_t add) noexcept
	Set the page address. More...

void	drawCharSingleRow (coord_t x, coord_t y, uint8_t character, color c, mode m) noexcept

void	drawCharMultiRow (coord_t x, coord_t y, uint8_t character, color c, mode m) noexcept

Private Attributes
uint8_t	fontWidth_ = 0

uint8_t	fontHeight_ = 0

uint8_t	fontType_ = 0

uint8_t	fontStartChar_ = 0

uint8_t	fontTotalChar_ = 0

uint16_t	fontMapWidth_ = 0

uint8_t	cursorX_ = 0
	X-axies position of the cursor. More...

uint8_t	cursorY_ = 0
	Y-axis position of the cursor. More...

embvm::i2c::master &	i2c_
	The i2c instance this display driver is attached to. More...

uint8_t	i2c_addr_
	The I2C address for this dispaly. More...

etl::variant_pool< 128, uint8_t, uint16_t, uint32_t >	i2c_pool_ {}
	Static memory pool which is used for display I2C transactions. More...

uint8_t	display_buffer_ [SCREEN_BUFFER_SIZE+1] = {0}
	OLED screen buffer. More...

uint8_t *const	screen_buffer_ = &display_buffer_[1]
	Pointer alias to the display_buffer_ which accounts for the single byte reserved for the DATA command value. More...

Static Private Attributes
static constexpr uint8_t	SCREEN_WIDTH = 64
	The width of the scren in pixels. More...

static constexpr uint8_t	SCREEN_HEIGHT = 48
	The height of the screen in pixels. More...

static constexpr size_t	SCREEN_BUFFER_SIZE = ((SCREEN_WIDTH * SCREEN_HEIGHT) / 8)
	The size of the screen buffer We divide by 8 because each byte controls the state of 8 pixels. More...

static constexpr uint8_t	COLUMN_OFFSET = 32
	The number of columns offset into the display where the active display area starts. More...

static const std::array< const uint8_t *, 2 >	fonts_ = {font5x7, font8x16}
	Array of fonts supported by this driver. More...

Member Typedef Documentation

◆ coord_t

using embvm::basicDisplay::coord_t = uint8_t

inherited

Coordinate representation type.

Member Enumeration Documentation

◆ color

enum embvm::basicDisplay::color : uint8_t

stronginherited

Basic displays have two pixel colors: black and white.

Enumerator
black
white

◆ invert

enum embvm::basicDisplay::invert : uint8_t

stronginherited

Display color inversion options.

Enumerator
normal	Use the default display color setting.
invert	Invert the display colors.

◆ mode

enum embvm::basicDisplay::mode : uint8_t

stronginherited

Set the drawing mode, if supported by the driver.

Enumerator
normal	Either sets or clears a pixel as requested, overwriting the value set in the screen buffer.
XOR	The pixel output in the screen buffer will be an XOR of the current value and the input value.

Constructor & Destructor Documentation

◆ ssd1306()

embdrv::ssd1306::ssd1306	(	embvm::i2c::master &	i2c,
		uint8_t	i2c_addr = `DEFAULT_SSD1306_I2C_ADDR`
	)

inlineexplicit

Address is 0x3D if DC pin is set to 1.

References display_buffer_.

Member Function Documentation

◆ circle() [1/2]

void ssd1306::circle	(	coord_t	x,
		coord_t	y,
		uint8_t	radius,
		color	c,
		mode	m
	)

finalvirtualnoexcept

Draw a circle with a specific color and mode.

Draw a circle with center (x,y) and the specified radius using a specific color setting and draw mode in the screen buffer. Only the boundary of the circle will be drawn.

Parameters

x	X-coorindate for the center of the circle.
y	Y-coordinate for the center of the circle.
radius	The radius of the circle.
c	Pixel color.
m	Mode used to update the screen buffer.

Implements embvm::basicDisplay.

◆ circle() [2/2]

void embvm::basicDisplay::circle	(	coord_t	x,
		coord_t	y,
		uint8_t	radius
	)

inlinenoexceptinherited

Draw a circle.

Draw a circle with center (x,y) and the specified radius using the configured color setting and draw mode in the screen buffer. Only the boundary of the circle will be drawn.

Parameters

x	X-coorindate for the center of the circle.
y	Y-coordinate for the center of the circle.
radius	The radius of the circle.

References embvm::basicDisplay::color_, and embvm::basicDisplay::mode_.

◆ circleFill() [1/2]

void ssd1306::circleFill	(	coord_t	x,
		coord_t	y,
		uint8_t	radius,
		color	c,
		mode	m
	)

finalvirtualnoexcept

Draw a filled circle with a specific color and mode.

Draw a filled circle with center (x,y) and the specified radius using a specific color setting and draw mode in the screen buffer. The interior of the circle will be filled with the specified color setting.

Parameters

x	X-coorindate for the center of the circle.
y	Y-coordinate for the center of the circle.
radius	The radius of the circle.
c	Pixel color.
m	Mode used to update the screen buffer.

Implements embvm::basicDisplay.

◆ circleFill() [2/2]

void embvm::basicDisplay::circleFill	(	coord_t	x,
		coord_t	y,
		uint8_t	radius
	)

inlinenoexceptinherited

Draw a filled circle.

Draw a filled circle with center (x,y) and the specified radius using the configured color setting and draw mode in the screen buffer. The interior of the circle will be filled with the specified color setting.

Parameters

x	X-coorindate for the center of the circle.
y	Y-coordinate for the center of the circle.
radius	The radius of the circle.

References embvm::basicDisplay::color_, and embvm::basicDisplay::mode_.

◆ clear() [1/2]

void ssd1306::clear ( )

finalvirtualnoexcept

Clear the screen contents.

Implements embvm::basicDisplay.

Referenced by clearAndDisplay(), and start_().

◆ clear() [2/2]

void ssd1306::clear ( uint8_t c )

privatenoexcept

Clear the display and initialize buffer bytes with the target value.

Parameters

c	The value to initialize the bytes of the screen buffe rwith.

References memset().

◆ clearAndDisplay()

void ssd1306::clearAndDisplay ( )

noexcept

References clear(), and display().

◆ command() [1/3]

void ssd1306::command ( uint8_t c )

privatenoexcept

Send a command to the display driver hardware.

Parameters

c	the command byte.

Referenced by scrollStop(), start_(), and stop_().

◆ command() [2/3]

void ssd1306::command	(	uint8_t	cmd,
		uint8_t	arg1
	)

privatenoexcept

Send a command with one argument to the display driver hardware.

Parameters

cmd	the command byte.
arg1	The argument to send with the command byte.

◆ command() [3/3]

void ssd1306::command	(	uint8_t	cmd,
		uint8_t	arg1,
		uint8_t	arg2
	)

privatenoexcept

Send a command with two arguments to the display driver hardware.

Parameters

cmd	the command byte.
arg1	The first argument to send with the command byte.
arg2	The second argumet to send with the command byte.

◆ contrast()

void ssd1306::contrast ( uint8_t contrast )

finalvirtualnoexcept

Set contrast.

Parameters

contrast Target display contrast value, ranging from 0 to 255.

Implements embvm::basicDisplay.

◆ cursor()

void ssd1306::cursor	(	coord_t	x,
		coord_t	y
	)

finalvirtualnoexcept

Set the cusor within the screen buffer.

Contents in the screen buffer are not modified by setting the cursor position.

Parameters

x	X-coordinate of the cursor.
y	Y-coordinate of the cursor.

Implements embvm::basicDisplay.

Referenced by start_().

◆ data()

void ssd1306::data ( uint8_t c )

privatenoexcept

Send a data byte to the display driver hardware.

Parameters

c	The data byte to send to the display.

◆ display()

void ssd1306::display ( )

finalvirtualnoexcept

Flush the screen buffer contents to the hardware display buffer.

Implements embvm::basicDisplay.

References display_buffer_, i2c_, i2c_addr_, t, and embvm::i2c::write.

Referenced by clearAndDisplay(), and start_().

◆ drawBitmap()

void ssd1306::drawBitmap ( uint8_t * bitmap )

finalvirtualnoexcept

Replace the screen buffer with a bitmap.

Supply a bitmap to write to the screen buffer. If the size of the bitmap is less than the size of the screen buffer, the remainder of the screen buffer will not be modified.

Parameters

bitmap Bitmap array which will be used to overwrite the screen buffer.

Implements embvm::basicDisplay.

References memcpy().

◆ drawChar() [1/2]

void ssd1306::drawChar	(	coord_t	x,
		coord_t	y,
		uint8_t	character,
		color	c,
		mode	m
	)

finalvirtualnoexcept

Draw an ASCII character with a specific color and mode.

Draw an ASCII character using a specific color and draw mode with the upper left corner of the character located at (x,y).

Parameters

x	X-coordinate representing the top-left of the character.
y	Y-coordinate representing the top-left of the character.
character	the ASCII character to draw. Must be present in the font file. If the requested character is not present, nothing will be drawn on the screen buffer.
c	Pixel color.
m	Mode used to update the screen buffer.

Implements embvm::basicDisplay.

References assert.

◆ drawChar() [2/2]

void embvm::basicDisplay::drawChar	(	coord_t	x,
		coord_t	y,
		uint8_t	character
	)

inlinenoexceptinherited

Draw an ASCII character.

Draw an ASCII character using the configured color and draw mode with the upper left corner of the character located at (x,y).

Parameters

x	X-coordinate representing the top-left of the character.
y	Y-coordinate representing the top-left of the character.
character	the ASCII character to draw. Must be present in the font file. If the requested character is not present, nothing will be drawn on the screen buffer.

References embvm::basicDisplay::color_, and embvm::basicDisplay::mode_.

◆ drawCharMultiRow()

void ssd1306::drawCharMultiRow	(	coord_t	x,
		coord_t	y,
		uint8_t	character,
		color	c,
		mode	m
	)

privatenoexcept

◆ drawCharSingleRow()

void ssd1306::drawCharSingleRow	(	coord_t	x,
		coord_t	y,
		uint8_t	character,
		color	c,
		mode	m
	)

privatenoexcept

◆ drawColor()

void embvm::basicDisplay::drawColor ( color c )

inlinenoexceptinherited

Set color.

Set the current draw's color. Only WHITE and BLACK available.

Parameters

c	The desired draw color setting.

References assert, embvm::basicDisplay::black, embvm::basicDisplay::color_, and embvm::basicDisplay::white.

Referenced by start_().

◆ drawMode()

virtual void embvm::basicDisplay::drawMode ( mode m )

inlinevirtualnoexceptinherited

Set draw mode.

Parameters

m	Desired draw mode: NORM or XOR.

References assert, embvm::basicDisplay::mode_, embvm::basicDisplay::normal, and embvm::basicDisplay::XOR.

Referenced by start_().

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ flipHorizontal()

void ssd1306::flipHorizontal ( bool flip )

finalvirtualnoexcept

Horizontal flip.

Flip the graphics on the display horizontally.

Parameters

flip	True enables horizontal flip, false disables horizontal flip.

Implements embvm::basicDisplay.

References x0.

◆ flipVertical()

void ssd1306::flipVertical ( bool flip )

finalvirtualnoexcept

Vertical flip.

Flip the graphics on the display vertically.

Parameters

flip	True enables vertical flip, false disables vertical flip.

Implements embvm::basicDisplay.

◆ fontHeight()

uint8_t embdrv::ssd1306::fontHeight ( ) const

inlinenoexcept

Get the font height.

Returns: the height of the currently selected font in pixels

References fontHeight_.

◆ fontStartChar()

uint8_t embdrv::ssd1306::fontStartChar ( ) const

inlinenoexcept

Get the starting character for the font.

Returns: the starting ASCII character for the currently selected font

References fontStartChar_.

◆ fontTotalChar()

uint8_t embdrv::ssd1306::fontTotalChar ( ) const

inlinenoexcept

Get the total number of characters supported by the font.

Returns: the number of characters supported by the currently selected font

References fontTotalChar_.

◆ fontType() [1/2]

uint8_t ssd1306::fontType ( uint8_t type )

noexcept

Set the font type.

Parameters

type	Index for the font to use

Returns: the currently selected font.

References assert, and type.

◆ fontType() [2/2]

uint8_t embdrv::ssd1306::fontType ( ) const

inlinenoexcept

Get the current font type.

Returns: the currently selected font.

References fontType_.

Referenced by start_().

◆ fontWidth()

uint8_t embdrv::ssd1306::fontWidth ( ) const

inlinenoexcept

Get the font width.

Returns: the width of the currently selected font in pixels

References fontWidth_.

◆ i2c_write()

void ssd1306::i2c_write	(	const uint8_t *	buffer,
		uint8_t	size,
		const embvm::i2c::master::cb_t &	cb
	)

privatenoexcept

Helper function which performs an I2C write.

Parameters

buffer	The transaction buffer.
size	The size of the write.
cb	The callback function to invoke when the write completes.

References t, and embvm::i2c::write.

◆ invert()

void ssd1306::invert ( enum invert inv )

finalvirtualnoexcept

Invert the display color.

The WHITE color of the display will turn to BLACK and the BLACK will turn to WHITE.

Parameters

inv	invert::invert uses color inversion, invert::normal uses the display standard.

Implements embvm::basicDisplay.

References normal.

◆ line() [1/2]

void ssd1306::line	(	coord_t	x0,
		coord_t	y0,
		coord_t	x1,
		coord_t	y1,
		color	c,
		mode	m
	)

finalvirtualnoexcept

Draw a line with a specific color and mode.

Draw line with a specific color setting and draw mode from (x0,y0) to (x1,y1) of the screen buffer.

Parameters

x0	X-coordinate where the line originates.
y0	Y-coordinate where the line originates.
x1	X-coordinate where the line terminates.
y1	Y-coordinate where the line terminates.
c	Pixel color.
m	Mode used to update the screen buffer.

Implements embvm::basicDisplay.

References abs(), swap, and x0.

◆ line() [2/2]

void embvm::basicDisplay::line	(	coord_t	x0,
		coord_t	y0,
		coord_t	x1,
		coord_t	y1
	)

inlinenoexceptinherited

Draw a line.

Draw a line using the configured color setting and draw mode from (x0,y0) to (x1,y1) of the screen buffer.

Parameters

x0	X-coordinate where the line originates.
y0	Y-coordinate where the line originates.
x1	X-coordinate where the line terminates.
y1	Y-coordinate where the line terminates.

References embvm::basicDisplay::color_, embvm::basicDisplay::mode_, and x0.

Referenced by embvm::basicDisplay::lineH(), and embvm::basicDisplay::lineV().

◆ lineH() [1/2]

void embvm::basicDisplay::lineH	(	coord_t	x,
		coord_t	y,
		uint8_t	width
	)

inlinenoexceptinherited

Draw a horizontal line.

Draw a horizontal line using the configured color setting and draw mode from (x,y) to (x+width,y) in the screen buffer.

Parameters

x	X-coordinate where the line originates.
y	Y-coordinate where the line originates.
width	Length of the line, in pixels. The line will terminate at coordinate (x+width, y).

References embvm::basicDisplay::color_, and embvm::basicDisplay::mode_.

◆ lineH() [2/2]

void embvm::basicDisplay::lineH	(	coord_t	x,
		coord_t	y,
		uint8_t	width,
		color	c,
		mode	m
	)

inlinenoexceptinherited

Draw a horizontal line with a specific color and mode.

Draw a horizontal line with a specific color setting and draw mode from (x,y) to (x+width,y) in the screen buffer.

Parameters

x	X-coordinate where the line originates.
y	Y-coordinate where the line originates.
width	Length of the line, in pixels. The line will terminate at coordinate (x+width, y).
c	Pixel color.
m	Mode used to update the screen buffer.

References embvm::basicDisplay::line().

◆ lineV() [1/2]

void embvm::basicDisplay::lineV	(	coord_t	x,
		coord_t	y,
		uint8_t	height
	)

inlinenoexceptinherited

Draw a vertical line.

Draw a vertical line using the configured color setting and draw mode from (x,y) to (x,y+height) in the screen buffer.

Parameters

x	X-coordinate where the line originates.
y	Y-coordinate where the line originates.
height	Length of the line, in pixels. The line will terminate at coordinate (x, y+height).

References embvm::basicDisplay::color_, and embvm::basicDisplay::mode_.

◆ lineV() [2/2]

void embvm::basicDisplay::lineV	(	coord_t	x,
		coord_t	y,
		uint8_t	height,
		color	c,
		mode	m
	)

inlinenoexceptinherited

Draw a vertical line with a specific color and mode.

Draw a vertical line using a specific color setting and draw mode from (x,y) to (x,y+height) in the screen buffer.

Parameters

x	X-coordinate where the line originates.
y	Y-coordinate where the line originates.
height	Length of the line, in pixels. The line will terminate at coordinate (x, y+height).
c	Pixel color.
m	Mode used to update the screen buffer.

References embvm::basicDisplay::line().

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ pixel() [1/2]

void ssd1306::pixel	(	coord_t	x,
		coord_t	y,
		color	c,
		mode	m
	)

finalvirtualnoexcept

Draw a pixel with a specific color and mode.

Draw a pixel at position (x,y) with a specific color setting and draw mode.

Parameters

x	X-coordinate of the pixel.
y	Y-coordinate of the pixel.
c	Pixel color.
m	Mode used to update the screen buffer.

Implements embvm::basicDisplay.

References SET_BIT.

◆ pixel() [2/2]

void embvm::basicDisplay::pixel	(	coord_t	x,
		coord_t	y
	)

inlinenoexceptinherited

Draw a pixel in the screen buffer.

Draw pixel using the configured color setting and draw mode in the screen buffer's x,y position.

Parameters

x	X-coordinate of the pixel.
y	Y-coordinate of the pixel.

References embvm::basicDisplay::color_, and embvm::basicDisplay::mode_.

◆ printString() [1/2]

void embvm::basicDisplay::printString	(	coord_t	x,
		coord_t	y,
		const char *	str
	)

inlinenoexceptinherited

Print a string on the display.

Parameters

x	The x-coordinate to start the string.
y	The y-coordinate to start the string.
str	The string to print to the display.

References strlen().

◆ printString() [2/2]

void embvm::basicDisplay::printString	(	coord_t	x,
		coord_t	y,
		const char *	str,
		size_t	length
	)

inlinenoexceptinherited

Print a string on the display.

Parameters

x	The x-coordinate to start the string.
y	The y-coordinate to start the string.
str	The string to print to the display.
length	The number of characters in str.

References embvm::basicDisplay::cursor(), length, and embvm::basicDisplay::putchar().

◆ putchar()

void ssd1306::putchar ( uint8_t c )

finalvirtualnoexcept

Print a character on the display.

Parameters

c	the character to print to the display

Implements embvm::basicDisplay.

◆ rect() [1/2]

void ssd1306::rect	(	coord_t	x,
		coord_t	y,
		uint8_t	width,
		uint8_t	height,
		color	c,
		mode	m
	)

finalvirtualnoexcept

Draw a rectangle with a specific color and mode.

Draw a rectangle with a specific color setting and draw mode from (x,y) to (x+width,y+height) in the screen buffer. Only the boundary of the rectangle will be drawn.

Parameters

x	X-coordinate where the rectangle originates.
y	Y-coordinate where the rectangle originates.
width	Width of the rectangle, in pixels. The rectangle width spans from x to x+width.
height	Height of the rectangle, in pixels. The rectangle height spans from y + y+height.
c	Pixel color.
m	Mode used to update the screen buffer.

Implements embvm::basicDisplay.

◆ rect() [2/2]

void embvm::basicDisplay::rect	(	coord_t	x,
		coord_t	y,
		uint8_t	width,
		uint8_t	height
	)

inlinenoexceptinherited

Draw a rectangle.

Draw a rectangle using the configured color setting and draw mode from (x,y) to (x+width,y+height) in the screen buffer. Only the boundary of the rectangle will be drawn.

Parameters

x	X-coordinate where the rectangle originates.
y	Y-coordinate where the rectangle originates.
width	Width of the rectangle, in pixels. The rectangle width spans from x to x+width.
height	Height of the rectangle, in pixels. The rectangle height spans from y + y+height.

References embvm::basicDisplay::color_, and embvm::basicDisplay::mode_.

◆ rectFill() [1/2]

void ssd1306::rectFill	(	coord_t	x,
		coord_t	y,
		uint8_t	width,
		uint8_t	height,
		color	c,
		mode	m
	)

finalvirtualnoexcept

Draw a filled rectangle with a specific color and mode.

Draw a filled rectangle using a specific color setting and draw mode from (x,y) to (x+width,y+height) in the screen buffer. The interior of the rectangle will be filled with the specified color setting.

Parameters

x	X-coordinate where the rectangle originates.
y	Y-coordinate where the rectangle originates.
width	Width of the rectangle, in pixels. The rectangle width spans from x to x+width.
height	Height of the rectangle, in pixels. The rectangle height spans from y + y+height.
c	Pixel color.
m	Mode used to update the screen buffer.

Implements embvm::basicDisplay.

◆ rectFill() [2/2]

void embvm::basicDisplay::rectFill	(	coord_t	x,
		coord_t	y,
		uint8_t	width,
		uint8_t	height
	)

inlinenoexceptinherited

Draw a filled rectangle.

Draw a filled rectangle using the configured color setting and draw mode from (x,y) to (x+width,y+height) in the screen buffer. The interior of the rectangle will be filled with the configured color setting.

Parameters

x	X-coordinate where the rectangle originates.
y	Y-coordinate where the rectangle originates.
width	Width of the rectangle, in pixels. The rectangle width spans from x to x+width.
height	Height of the rectangle, in pixels. The rectangle height spans from y + y+height.

References embvm::basicDisplay::color_, and embvm::basicDisplay::mode_.

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ screenHeight()

uint8_t ssd1306::screenHeight ( ) const

finalvirtualnoexcept

Check the screen height.

The drived class must implement this function.

Returns: The height of the screen in pixels.

Implements embvm::basicDisplay.

References SCREEN_HEIGHT.

◆ screenWidth()

uint8_t ssd1306::screenWidth ( ) const

finalvirtualnoexcept

Check the screen width.

The drived class must implement this function.

Returns: The width of the screen in pixels.

Implements embvm::basicDisplay.

References SCREEN_WIDTH.

◆ scrollLeft()

void ssd1306::scrollLeft	(	coord_t	start,
		coord_t	stop
	)

finalvirtualnoexcept

Enable left scrolling.

Set row start to row stop on the display to scroll left.

Parameters

start	The start row index.
stop	The stop row index.

Precondition: Scrolling is not enabled, stop < start.

Postcondition: The display is scrolling to the left.

Implements embvm::basicDisplay.

References assert.

◆ scrollRight()

void ssd1306::scrollRight	(	coord_t	start,
		coord_t	stop
	)

finalvirtualnoexcept

Enable right scrolling.

Set row start to row stop on the display to scroll right.

Parameters

start	The start row index.
stop	The stop row index.

Precondition: Scrolling is not enabled, start < stop.

Postcondition: The display is scrolling to the right.

Implements embvm::basicDisplay.

References assert.

◆ scrollStop()

void ssd1306::scrollStop ( )

finalvirtualnoexcept

Stop scrolling.

Stop the scrolling of graphics on the display.

Implements embvm::basicDisplay.

References command().

◆ scrollVertLeft()

void ssd1306::scrollVertLeft	(	coord_t	start,
		coord_t	stop
	)

finalvirtualnoexcept

Implements embvm::basicDisplay.

References assert.

◆ scrollVertRight()

void ssd1306::scrollVertRight	(	coord_t	start,
		coord_t	stop
	)

finalvirtualnoexcept

Implements embvm::basicDisplay.

References assert.

◆ setColumnAddress()

void embdrv::ssd1306::setColumnAddress ( uint8_t add )

privatenoexcept

Set the column address.

Parameters

add	The address of the column.

◆ setPageAddress()

void embdrv::ssd1306::setPageAddress ( uint8_t add )

privatenoexcept

Set the page address.

Parameters

add	The address of the page.

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void ssd1306::start_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Display init sequence These values were inherited from Sparkfun's example

Implements embvm::basicDisplay.

References clear(), COLUMN_OFFSET, command(), cursor(), display(), embvm::basicDisplay::drawColor(), embvm::basicDisplay::drawMode(), fontType(), embvm::basicDisplay::normal, SCREEN_WIDTH, embvm::basicDisplay::white, and x0.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

void ssd1306::stop_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::basicDisplay.

References command().

◆ totalFonts()

uint8_t ssd1306::totalFonts ( ) const

noexcept

Get the total number of supported fonts.

Returns: the number of supported fonts

◆ type()

static constexpr embvm::DriverType embvm::basicDisplay::type ( )

inlinestaticnoexceptinherited

Basic Display Driver Type ID.

Returns: Basic Display type ID.

References embvm::BASIC_DISPLAY.

Member Data Documentation

◆ color_

color embvm::basicDisplay::color_ = color::black

protectedinherited

The current display color setting.

Referenced by embvm::basicDisplay::circle(), embvm::basicDisplay::circleFill(), embvm::basicDisplay::drawChar(), embvm::basicDisplay::drawColor(), embvm::basicDisplay::line(), embvm::basicDisplay::lineH(), embvm::basicDisplay::lineV(), embvm::basicDisplay::pixel(), embvm::basicDisplay::rect(), and embvm::basicDisplay::rectFill().

◆ COLUMN_OFFSET

constexpr uint8_t embdrv::ssd1306::COLUMN_OFFSET = 32

staticprivate

The number of columns offset into the display where the active display area starts.

Referenced by start_().

◆ cursorX_

uint8_t embdrv::ssd1306::cursorX_ = 0

private

X-axies position of the cursor.

◆ cursorY_

uint8_t embdrv::ssd1306::cursorY_ = 0

private

Y-axis position of the cursor.

◆ display_buffer_

uint8_t embdrv::ssd1306::display_buffer_[SCREEN_BUFFER_SIZE+1] = {0}

private

OLED screen buffer.

Page buffer is required because in SPI and I2C mode, the host cannot read the SSD1306's GDRAM of the controller. This page buffer serves as a scratch RAM for graphical functions. All drawing function will first be drawn on this page buffer, only upon calling display() function will transfer the page buffer to the actual LCD controller's memory.

The additional byte is to represent the data word byte, which allows us to send the entire buffer in one shot

Referenced by display(), and ssd1306().

◆ fontHeight_

uint8_t embdrv::ssd1306::fontHeight_ = 0

private

Referenced by fontHeight().

◆ fontMapWidth_

uint16_t embdrv::ssd1306::fontMapWidth_ = 0

private

◆ fonts_

const std::array< const uint8_t *, 2 > ssd1306::fonts_ = {font5x7, font8x16}

staticprivate

Array of fonts supported by this driver.

NOTE: the SSD1306 DOES NOT WORK WITH A REPEATED START CONDITION There must be no start between the data byte and the data stream.

◆ fontStartChar_

uint8_t embdrv::ssd1306::fontStartChar_ = 0

private

Referenced by fontStartChar().

◆ fontTotalChar_

uint8_t embdrv::ssd1306::fontTotalChar_ = 0

private

Referenced by fontTotalChar().

◆ fontType_

uint8_t embdrv::ssd1306::fontType_ = 0

private

Referenced by fontType().

◆ fontWidth_

uint8_t embdrv::ssd1306::fontWidth_ = 0

private

Referenced by fontWidth().

◆ i2c_

embvm::i2c::master& embdrv::ssd1306::i2c_

private

The i2c instance this display driver is attached to.

Referenced by display().

◆ i2c_addr_

uint8_t embdrv::ssd1306::i2c_addr_

private

The I2C address for this dispaly.

Referenced by display().

◆ i2c_pool_

etl::variant_pool<128, uint8_t, uint16_t, uint32_t> embdrv::ssd1306::i2c_pool_ {}

private

Static memory pool which is used for display I2C transactions.

◆ mode_

mode embvm::basicDisplay::mode_ = mode::normal

protectedinherited

The current display mode setting.

Referenced by embvm::basicDisplay::circle(), embvm::basicDisplay::circleFill(), embvm::basicDisplay::drawChar(), embvm::basicDisplay::drawMode(), embvm::basicDisplay::line(), embvm::basicDisplay::lineH(), embvm::basicDisplay::lineV(), embvm::basicDisplay::pixel(), embvm::basicDisplay::rect(), and embvm::basicDisplay::rectFill().

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ screen_buffer_

uint8_t* const embdrv::ssd1306::screen_buffer_ = &display_buffer_[1]

private

Pointer alias to the display_buffer_ which accounts for the single byte reserved for the DATA command value.

◆ SCREEN_BUFFER_SIZE

constexpr size_t embdrv::ssd1306::SCREEN_BUFFER_SIZE = ((SCREEN_WIDTH * SCREEN_HEIGHT) / 8)

staticprivate

The size of the screen buffer We divide by 8 because each byte controls the state of 8 pixels.

◆ SCREEN_HEIGHT

constexpr uint8_t embdrv::ssd1306::SCREEN_HEIGHT = 48

staticprivate

The height of the screen in pixels.

Referenced by screenHeight().

◆ SCREEN_WIDTH

constexpr uint8_t embdrv::ssd1306::SCREEN_WIDTH = 64

staticprivate

The width of the scren in pixels.

Referenced by screenWidth(), and start_().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

◆ embdrv::vl53l1x

class embdrv::vl53l1x

ST VL53L1X Time-of-Flight Sensor Driver.

This driver is configured to work with I2C. You must initialize the device with an I2C Master.

embdrv::vl53l1x tof0{i2c0, SPARKFUN_VL53L1X_ADDR};

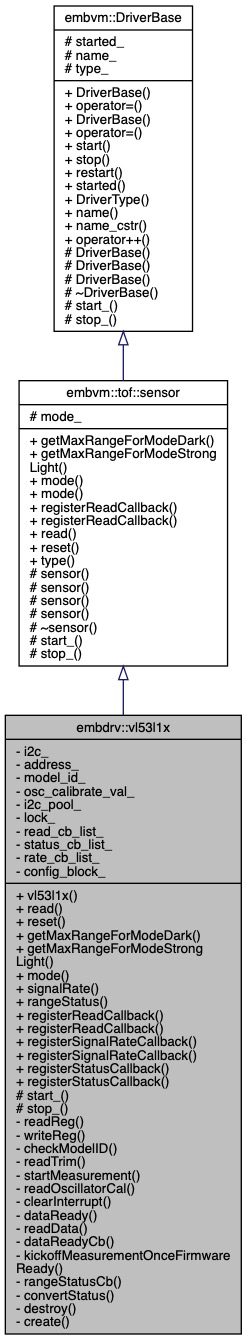

Inheritance diagram for embdrv::vl53l1x:

Public Types
using	rate_cb_t = stdext::inplace_function< void(uint16_t)>
	Alias for signalRate() callback function. More...

using	status_cb_t = stdext::inplace_function< void(embvm::tof::status)>
	Alias for the rangeStatus() callback function. More...

using	read_cb_t = stdext::inplace_function< void(uint16_t)>
	ToF Callback function which retuns distance in mm. More...

Public Member Functions
	vl53l1x (embvm::i2c::master &i2c, uint8_t address=VL53L1X_DEFAULT_I2C_ADDR) noexcept
	Create a VL53L1X device. More...

void	read () noexcept final
	Trigger a sensor read. More...

void	reset () noexcept final
	Reset the ToF sensor. More...

embvm::tof::distance_t	getMaxRangeForModeDark (embvm::tof::mode m) const noexcept final
	Check the maximum range in the dark. More...

embvm::tof::distance_t	getMaxRangeForModeStrongLight (embvm::tof::mode m) const noexcept final
	Check the maximum range in strong light conditions. More...

embvm::tof::mode	mode (embvm::tof::mode m) noexcept final
	Set the ToF ranging mode. More...

void	signalRate () noexcept
	Get the current signal rate. More...

void	rangeStatus () noexcept
	Get the ranging status When called, registered range status callbacks will be invoked with the signal rate. More...

void	registerReadCallback (const read_cb_t &cb) noexcept final
	Register a callback for the read() function. More...

void	registerReadCallback (read_cb_t &&cb) noexcept final
	Register a callback for the read() function. More...

void	registerSignalRateCallback (const rate_cb_t &cb) noexcept
	Register a callback for use with the signalRate() function. More...

void	registerSignalRateCallback (rate_cb_t &&cb) noexcept

void	registerStatusCallback (const status_cb_t &cb) noexcept
	Register a callback for use with the rangeStatus() function. More...

void	registerStatusCallback (status_cb_t &&cb) noexcept

tof::mode	mode () const noexcept
	Get the ToF ranging mode. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	ToF Driver Type ID. More...

Protected Member Functions
void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

Protected Attributes
tof::mode	mode_ = tof::mode::defaultRange
	The configured ranging mode for the ToF sensor. More...

type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Member Functions
void	readReg (const uint16_t reg_buf, uint8_t rx_buffer, size_t rx_size, const embvm::i2c::master::cb_t &cb) noexcept
	Convenience function to read a register from the VL51L1X device. More...

void	writeReg (uint16_t reg, const uint8_t *tx_buffer, size_t tx_size, const embvm::i2c::master::cb_t &cb) noexcept
	Convenience function to write to a register on the VL51L1X device. More...

void	checkModelID () noexcept
	Check the model ID of the VL53L1X sensor. More...

void	readTrim () noexcept
	Read the trim values of the sensor and update the config_block_. More...

void	startMeasurement () noexcept
	Trigger a range measurement. More...

void	readOscillatorCal () noexcept
	Read the oscillator calibration and store it in the private variable osc_calibrate_val_. More...

void	clearInterrupt () noexcept
	Clear the VL53L1X pending interrupt. More...

void	dataReady () noexcept
	Check if the range data is ready. More...

void	readData () noexcept
	Read the range data from the device. More...

void	dataReadyCb (embvm::i2c::op_t op, embvm::i2c::status status) noexcept
	Local driver callback which is invoked when data is ready. More...

void	kickoffMeasurementOnceFirmwareReady () noexcept
	Function that starts the sensor firmware and begins measurements. More...

void	rangeStatusCb (uint8_t status) noexcept
	Private callback function to get the range status. More...

embvm::tof::status	convertStatus (uint8_t status) noexcept
	Convert the raw range status code to the framework ToF statuses. More...

template<typename TData >
void	destroy (const TData *ptr) noexcept

template<typename TData >
TData *	create (TData input=0) noexcept

Private Attributes
embvm::i2c::master &	i2c_
	The I2C master bus that this device is connected to. More...

const uint8_t	address_
	The I2C address for the VL53L1X. More...

uint8_t	model_id_ = 0
	The model ID for the VL53L1X, read from the device during start(). More...

uint16_t	osc_calibrate_val_ = 0

etl::generic_pool< sizeof(uint32_t), alignof(uint32_t), 64 >	i2c_pool_ {}
	Static memory pool used for I2C transactions. More...

std::mutex	lock_ {}

etl::list< read_cb_t, 2 >	read_cb_list_ {}
	List that stores the read() callback functions. More...

etl::list< status_cb_t, 2 >	status_cb_list_ {}
	List that stores the rangeStatus() callback functions. More...

etl::list< rate_cb_t, 2 >	rate_cb_list_ {}
	List that stores the signalRate() callback functions. More...

std::array< uint8_t, 137 >	config_block_
	This is 135 bytes to be written every time to the VL53L1X to initiate a measurement 0x29 is written to memory location 0x01, which is the register for the I2C address which is indeed 0x29. More...

Member Typedef Documentation

◆ rate_cb_t

using embdrv::vl53l1x::rate_cb_t = stdext::inplace_function<void(uint16_t)>

Alias for signalRate() callback function.

◆ read_cb_t

using embvm::tof::sensor::read_cb_t = stdext::inplace_function<void(uint16_t)>

inherited

ToF Callback function which retuns distance in mm.

◆ status_cb_t

using embdrv::vl53l1x::status_cb_t = stdext::inplace_function<void(embvm::tof::status)>

Alias for the rangeStatus() callback function.

Constructor & Destructor Documentation

◆ vl53l1x()

embdrv::vl53l1x::vl53l1x	(	embvm::i2c::master &	i2c,
		uint8_t	address = `VL53L1X_DEFAULT_I2C_ADDR`
	)

inlineexplicitnoexcept

Create a VL53L1X device.

Parameters

i2c	The i2c master driver that this device is connected to.
address	The i2c address of the sensor.

Member Function Documentation

◆ checkModelID()

void vl53l1x::checkModelID ( )

privatenoexcept

Check the model ID of the VL53L1X sensor.

References assert, create(), model_id_, r, and readReg().

Referenced by start_().

◆ clearInterrupt()

void vl53l1x::clearInterrupt ( )

privatenoexcept

Clear the VL53L1X pending interrupt.

References create(), and writeReg().

Referenced by readData().

◆ convertStatus()

embvm::tof::status vl53l1x::convertStatus ( uint8_t status )

privatenoexcept

Convert the raw range status code to the framework ToF statuses.

Parameters

status The raw sensor status code.

Returns: The equivalent framework standard status code.

References embvm::tof::crosstalkSignalError, embvm::tof::hardwareError, embvm::tof::invalidRoi, embvm::tof::noChange, embvm::tof::notReady, embvm::tof::ok, embvm::tof::outOfBoundsError, embvm::tof::processingError, embvm::tof::rangeValidMergedPulse, embvm::tof::rangeValidMinRangeClipped, embvm::tof::sigmaError, and embvm::tof::signalError.

◆ create()

template<typename TData >

TData* embdrv::vl53l1x::create ( TData input = 0 )

inlineprivatenoexcept

References i2c_pool_, r, VL53L1X_LOCK, and VL53L1X_UNLOCK.

Referenced by checkModelID(), clearInterrupt(), dataReady(), kickoffMeasurementOnceFirmwareReady(), rangeStatus(), readData(), readOscillatorCal(), readTrim(), and signalRate().

◆ dataReady()

void vl53l1x::dataReady ( )

privatenoexcept

Check if the range data is ready.

References create(), dataReadyCb(), and readReg().

Referenced by read().

◆ dataReadyCb()

void vl53l1x::dataReadyCb	(	embvm::i2c::op_t	op,
		embvm::i2c::status	status
	)

privatenoexcept

Local driver callback which is invoked when data is ready.

References embvm::i2c::ok.

Referenced by dataReady().

◆ destroy()

template<typename TData >

void embdrv::vl53l1x::destroy ( const TData * ptr )

inlineprivatenoexcept

References i2c_pool_, VL53L1X_LOCK, and VL53L1X_UNLOCK.

Referenced by kickoffMeasurementOnceFirmwareReady(), rangeStatus(), and reset().

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ getMaxRangeForModeDark()

embvm::tof::distance_t vl53l1x::getMaxRangeForModeDark ( embvm::tof::mode m ) const

finalvirtualnoexcept

Check the maximum range in the dark.

Returns: the sensor's maximum distance capability (in mm) in the dark.

Implements embvm::tof::sensor.

References embvm::tof::defaultRange, embvm::tof::INVALID_RANGE, embvm::tof::longRange, embvm::tof::medRange, and embvm::tof::shortRange.

◆ getMaxRangeForModeStrongLight()

embvm::tof::distance_t vl53l1x::getMaxRangeForModeStrongLight ( embvm::tof::mode m ) const

finalvirtualnoexcept

Check the maximum range in strong light conditions.

Returns: the sensor's maximum distance capability (in mm) in strong light.

Implements embvm::tof::sensor.

References embvm::tof::defaultRange, embvm::tof::INVALID_RANGE, embvm::tof::longRange, embvm::tof::medRange, and embvm::tof::shortRange.

◆ kickoffMeasurementOnceFirmwareReady()

void vl53l1x::kickoffMeasurementOnceFirmwareReady ( )

privatenoexcept

Function that starts the sensor firmware and begins measurements.

References create(), destroy(), embvm::i2c::ok, r, readReg(), and startMeasurement().

◆ mode() [1/2]

embvm::tof::mode vl53l1x::mode ( embvm::tof::mode m )

finalvirtualnoexcept

Set the ToF ranging mode.

Parameters

m	The desired ToF ranging mode.

Returns: the active ToF mode.

Implements embvm::tof::sensor.

References embvm::tof::defaultRange, embvm::tof::longRange, embvm::tof::medRange, and embvm::tof::shortRange.

Referenced by FWDemoSimulatorHWPlatform::readAndSetToFMode().

◆ mode() [2/2]

tof::mode embvm::tof::sensor::mode ( ) const

inlinenoexceptinherited

Get the ToF ranging mode.

Returns: the currently configured ToF ranging mode.

References embvm::tof::sensor::mode_.

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ rangeStatus()

void vl53l1x::rangeStatus ( )

noexcept

Get the ranging status When called, registered range status callbacks will be invoked with the signal rate.

To register a callback, use registerStatusCallback().

References create(), destroy(), embvm::i2c::ok, r, rangeStatusCb(), and readReg().

◆ rangeStatusCb()

void vl53l1x::rangeStatusCb ( uint8_t status )

privatenoexcept

Private callback function to get the range status.

References s.

Referenced by rangeStatus().

◆ read()

void vl53l1x::read ( )

finalvirtualnoexcept

Trigger a sensor read.

Trigger an asynchronous read of the ToF sensor. The result will be provided to consumers through a callback function. When the read() operation completes, the callback will be invoked with the result.

Implements embvm::tof::sensor.

References dataReady().

◆ readData()

void vl53l1x::readData ( )

privatenoexcept

Read the range data from the device.

References clearInterrupt(), create(), embvm::i2c::ok, r, read_cb_list_, and readReg().

◆ readOscillatorCal()

void vl53l1x::readOscillatorCal ( )

privatenoexcept

Read the oscillator calibration and store it in the private variable osc_calibrate_val_.

References create(), osc_calibrate_val_, r, and readReg().

Referenced by start_().

◆ readReg()

void vl53l1x::readReg	(	const uint16_t *	reg_buf,
		uint8_t *	rx_buffer,
		size_t	rx_size,
		const embvm::i2c::master::cb_t &	cb
	)

privatenoexcept

Convenience function to read a register from the VL51L1X device.

Parameters

reg_buf	the buffer containing the TX register data.
rx_buffer	The buffer to store the received contents into.
rx_size	the number of expected RX bytes.
cb	The callback function to invoke when the register read completes.

References t, and embvm::i2c::writeRead.

Referenced by checkModelID(), dataReady(), kickoffMeasurementOnceFirmwareReady(), rangeStatus(), readData(), readOscillatorCal(), readTrim(), and signalRate().

◆ readTrim()

void vl53l1x::readTrim ( )

privatenoexcept

Read the trim values of the sensor and update the config_block_.

References embutil::byteswap(), config_block_, create(), r, and readReg().

Referenced by start_().

◆ registerReadCallback() [1/2]

void embdrv::vl53l1x::registerReadCallback ( const read_cb_t & cb )

inlinefinalvirtualnoexcept

Register a callback for the read() function.

The read() function works asynchronously, and the result will be provided to consumers through a callback function. When the read() operation completes, the callback will be invoked with the result.

This function must be implemented by the derived class.

Parameters

cb	The functor which will be called when read() completes.

Implements embvm::tof::sensor.

References read_cb_list_.

◆ registerReadCallback() [2/2]

void embdrv::vl53l1x::registerReadCallback ( read_cb_t && cb )

inlinefinalvirtualnoexcept

Register a callback for the read() function.

The read() function works asynchronously, and the result will be provided to consumers through a callback function. When the read() operation completes, the callback will be invoked with the result.

This function must be implemented by the derived class.

Parameters

cb	The functor which will be called when read() completes.

Implements embvm::tof::sensor.

References read_cb_list_.

◆ registerSignalRateCallback() [1/2]

void embdrv::vl53l1x::registerSignalRateCallback ( const rate_cb_t & cb )

inlinenoexcept

Register a callback for use with the signalRate() function.

Parameters

cb	The callback to invoke hen signalRate() completes.

References rate_cb_list_.

◆ registerSignalRateCallback() [2/2]

void embdrv::vl53l1x::registerSignalRateCallback ( rate_cb_t && cb )

inlinenoexcept

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

References rate_cb_list_.

◆ registerStatusCallback() [1/2]

void embdrv::vl53l1x::registerStatusCallback ( const status_cb_t & cb )

inlinenoexcept

Register a callback for use with the rangeStatus() function.

Parameters

cb	The callback to invoke when rangeStatus() completes.

References status_cb_list_.

◆ registerStatusCallback() [2/2]

void embdrv::vl53l1x::registerStatusCallback ( status_cb_t && cb )

inlinenoexcept

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

References status_cb_list_.

◆ reset()

void vl53l1x::reset ( )

finalvirtualnoexcept

Reset the ToF sensor.

Implements embvm::tof::sensor.

References destroy(), embvm::i2c::ok, UINT8_C, and writeReg().

Referenced by start_().

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ signalRate()

void vl53l1x::signalRate ( )

noexcept

Get the current signal rate.

When called, registered signal rate callbacks will be invoked with the signal rate. To register a callback, use registerSignalRateCallback().

References create(), embvm::i2c::ok, r, rate_cb_list_, and readReg().

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void vl53l1x::start_ ( )

finalprotectedvirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::tof::sensor.

References checkModelID(), i2c_, readOscillatorCal(), readTrim(), reset(), embvm::DriverBase::start(), and embvm::DriverBase::started().

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ startMeasurement()

void vl53l1x::startMeasurement ( )

privatenoexcept

Trigger a range measurement.

References address_, config_block_, i2c_, t, and embvm::i2c::write.

Referenced by kickoffMeasurementOnceFirmwareReady().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

void vl53l1x::stop_ ( )

finalprotectedvirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::tof::sensor.

◆ type()

static constexpr embvm::DriverType embvm::tof::sensor::type ( )

inlinestaticnoexceptinherited

ToF Driver Type ID.

Returns: ToF type ID.

References embvm::TIME_OF_FLIGHT.

◆ writeReg()

void vl53l1x::writeReg	(	uint16_t	reg,
		const uint8_t *	tx_buffer,
		size_t	tx_size,
		const embvm::i2c::master::cb_t &	cb
	)

privatenoexcept

Convenience function to write to a register on the VL51L1X device.

Parameters

reg	The register to write to.
tx_buffer	The buffer containing the tx data to send to the target register.
tx_size	The number of bytes to transmit
cb	The callback function to invoke when the register write completes.

References embutil::byteswap(), t, and embvm::i2c::write.

Referenced by clearInterrupt(), and reset().

Member Data Documentation

◆ address_

const uint8_t embdrv::vl53l1x::address_

private

The I2C address for the VL53L1X.

Referenced by startMeasurement().

◆ config_block_

std::array<uint8_t, 137> embdrv::vl53l1x::config_block_

private

Initial value:

= {
        0x00, 0x00, 0x29, 0x02, 0x10, 0x00, 0x28, 0xBC, 0x7A, 0x81,
        0x80, 0x07, 0x95, 0x00, 0xED, 0xFF, 0xF7, 0xFD,
        0x9E, 0x0E, 0x00, 0x10, 0x01, 0x00, 0x00, 0x00,
        0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x34, 0x00,
        0x28, 0x00, 0x0D, 0x0A, 0x00, 0x00, 0x00, 0x00,
        0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x11,
        0x02, 0x00, 0x02, 0x08, 0x00, 0x08, 0x10, 0x01,
        0x01, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x02,
        0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0x0B, 0x00,
        0x00, 0x02, 0x0A, 0x21, 0x00, 0x00, 0x02, 0x00,
        0x00, 0x00, 0x00, 0xC8, 0x00, 0x00, 0x38, 0xFF,
        0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x91, 0x0F,
        0x00, 0xA5, 0x0D, 0x00, 0x80, 0x00, 0x0C, 0x08,
        0xB8, 0x00, 0x00, 0x00, 0x00, 0x0E, 0x10, 0x00,
        0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x0F,
        0x0D, 0x0E, 0x0E, 0x01, 0x00, 0x02, 0xC7, 0xFF,
        0x8B, 0x00, 0x00, 0x00, 0x01, 0x01, 0x40
    }

This is 135 bytes to be written every time to the VL53L1X to initiate a measurement 0x29 is written to memory location 0x01, which is the register for the I2C address which is indeed 0x29.

So this makes sense. We could evaluate the default register settings of a given device against this set of bytes and write only the ones that are different but it's faster, easier, and perhaps fewer code words to write the config block as is. The block was obtained via inspection of the ST P-NUCLEO-53L1A1 Prepended two bytes to serve as address holding

Referenced by readTrim(), and startMeasurement().

◆ i2c_

embvm::i2c::master& embdrv::vl53l1x::i2c_

private

The I2C master bus that this device is connected to.

Referenced by start_(), and startMeasurement().

◆ i2c_pool_

etl::generic_pool<sizeof(uint32_t), alignof(uint32_t), 64> embdrv::vl53l1x::i2c_pool_ {}

private

Static memory pool used for I2C transactions.

Referenced by create(), and destroy().

◆ lock_

std::mutex embdrv::vl53l1x::lock_ {}

private

◆ mode_

tof::mode embvm::tof::sensor::mode_ = tof::mode::defaultRange

protectedinherited

The configured ranging mode for the ToF sensor.

Referenced by embvm::tof::sensor::mode().

◆ model_id_

uint8_t embdrv::vl53l1x::model_id_ = 0

private

The model ID for the VL53L1X, read from the device during start().

Referenced by checkModelID().

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ osc_calibrate_val_

uint16_t embdrv::vl53l1x::osc_calibrate_val_ = 0

private

Referenced by readOscillatorCal().

◆ rate_cb_list_

etl::list<rate_cb_t, 2> embdrv::vl53l1x::rate_cb_list_ {}

private

List that stores the signalRate() callback functions.

Referenced by registerSignalRateCallback(), and signalRate().

◆ read_cb_list_

etl::list<read_cb_t, 2> embdrv::vl53l1x::read_cb_list_ {}

private

List that stores the read() callback functions.

Referenced by readData(), and registerReadCallback().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ status_cb_list_

etl::list<status_cb_t, 2> embdrv::vl53l1x::status_cb_list_ {}

private

List that stores the rangeStatus() callback functions.

Referenced by registerStatusCallback().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

Modules

Classes

Detailed Description

Class Documentation

◆ embdrv::ssd1306

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Member Typedef Documentation

◆ coord_t

Member Enumeration Documentation

◆ color

◆ invert

◆ mode

Constructor & Destructor Documentation

◆ ssd1306()

Member Function Documentation

◆ circle() [1/2]

◆ circle() [2/2]

◆ circleFill() [1/2]

◆ circleFill() [2/2]

◆ clear() [1/2]

◆ clear() [2/2]

◆ clearAndDisplay()

◆ command() [1/3]

◆ command() [2/3]

◆ command() [3/3]

◆ contrast()

◆ cursor()

◆ data()

◆ display()

◆ drawBitmap()

◆ drawChar() [1/2]

◆ drawChar() [2/2]

◆ drawCharMultiRow()

◆ drawCharSingleRow()

◆ drawColor()

◆ drawMode()

◆ DriverType()

◆ flipHorizontal()

◆ flipVertical()

◆ fontHeight()

◆ fontStartChar()

◆ fontTotalChar()

◆ fontType() [1/2]

◆ fontType() [2/2]

◆ fontWidth()

◆ i2c_write()

◆ invert()

◆ line() [1/2]

◆ line() [2/2]

◆ lineH() [1/2]

◆ lineH() [2/2]

◆ lineV() [1/2]

◆ lineV() [2/2]

◆ name()

◆ name_cstr()

◆ operator++()

◆ pixel() [1/2]

◆ pixel() [2/2]

◆ printString() [1/2]

◆ printString() [2/2]

◆ putchar()

◆ rect() [1/2]

◆ rect() [2/2]

◆ rectFill() [1/2]

◆ rectFill() [2/2]

◆ restart()

◆ screenHeight()

◆ screenWidth()

◆ scrollLeft()

◆ scrollRight()

◆ scrollStop()

◆ scrollVertLeft()

◆ scrollVertRight()

◆ setColumnAddress()
