Drivers intended for use with unit test code. More...

Collaboration diagram for Unit Test Drivers:

Classes
class	test::TestDriverBase
	Test driver that enables testing DriverBase. More...

class	test::UnitTestGPIOInput
	Unit Test GPIO Input Driver. More...

class	test::UnitTestGPIOInputWithPullup
	Unit Test GPIO Input Driver, with a pullup. More...

class	test::i2cTestDriver
	I2C Master Unit Test Driver. More...

class	test::spiTestDriver
	SPI Master Unit Test Driver. More...

Detailed Description

Drivers intended for use with unit test code.

Class Documentation

◆ test::TestDriverBase

class test::TestDriverBase

Test driver that enables testing DriverBase.

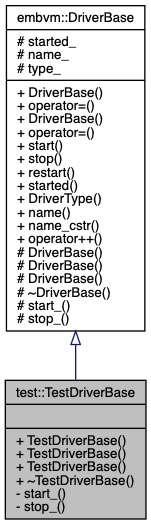

Inheritance diagram for test::TestDriverBase:

Public Member Functions
	TestDriverBase (const char *name, uint32_t c=embvm::DriverType::Undefined) noexcept
	Create a driver base. More...

	TestDriverBase (const std::string &name, uint32_t c=embvm::DriverType::Undefined) noexcept

	TestDriverBase (const std::string_view &name, uint32_t c=embvm::DriverType::Undefined) noexcept

	~TestDriverBase () noexcept final
	Default destructor. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Protected Attributes
type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Member Functions
void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

Constructor & Destructor Documentation

◆ TestDriverBase() [1/3]

test::TestDriverBase::TestDriverBase	(	const char *	name,
		uint32_t	c = `embvm::DriverType::Undefined`
	)

inlinenoexcept

Create a driver base.

Parameters

name	The name of the driver base

Note: DriverBase() uses a std::string_view, so name input smust remain valid

Parameters

c	The type of the driver base

◆ TestDriverBase() [2/3]

test::TestDriverBase::TestDriverBase	(	const std::string &	name,
		uint32_t	c = `embvm::DriverType::Undefined`
	)

inlinenoexcept

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ TestDriverBase() [3/3]

test::TestDriverBase::TestDriverBase	(	const std::string_view &	name,
		uint32_t	c = `embvm::DriverType::Undefined`
	)

inlinenoexcept

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ ~TestDriverBase()

TestDriverBase::~TestDriverBase ( )

finalnoexcept

Default destructor.

Member Function Documentation

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void TestDriverBase::start_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::DriverBase.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

void TestDriverBase::stop_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::DriverBase.

Member Data Documentation

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

◆ test::UnitTestGPIOInput

class test::UnitTestGPIOInput

Unit Test GPIO Input Driver.

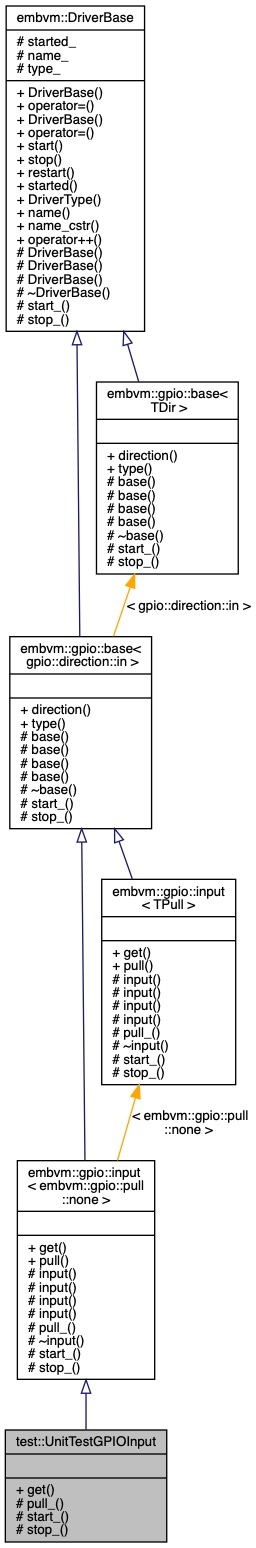

Inheritance diagram for test::UnitTestGPIOInput:

Public Member Functions
bool	get () noexcept final
	Get the current GPIO pin state. More...

gpio::pull	pull () const noexcept
	Get the current pull configuration. More...

gpio::direction	direction () const noexcept
	Check the direction of the GPIO pin. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	GPIO Driver Type ID. More...

Protected Member Functions
embvm::gpio::pull	pull_ (embvm::gpio::pull p) noexcept final
	Set the pull configuration in hardware. More...

void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

Protected Attributes
type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Member Function Documentation

◆ direction()

gpio::direction embvm::gpio::base< TDir >::direction ( ) const

inlinenoexceptinherited

Check the direction of the GPIO pin.

Returns: The configured direction of this GPIO pin.

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ get()

bool UnitTestGPIOInput::get ( )

finalvirtualnoexcept

Get the current GPIO pin state.

Derived classes must implement the get() function.

Returns: true if the GPIO is set (logic 1), false otherwise (logic 0).

Implements embvm::gpio::input< embvm::gpio::pull::none >.

References embvm::gpio::none, embvm::gpio::input< embvm::gpio::pull::none >::pull(), embvm::gpio::pulldown, and embvm::gpio::pullup.

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ pull()

gpio::pull embvm::gpio::input< TPull >::pull ( ) const

inlinenoexceptinherited

Get the current pull configuration.

Returns: The currently configured GPIO pull setting.

◆ pull_()

embvm::gpio::pull UnitTestGPIOInput::pull_ ( embvm::gpio::pull p )

finalprotectedvirtualnoexcept

Set the pull configuration in hardware.

Derived classes must implement the pull_(gpio::pull p) function.

Returns: The currently configured GPIO pull setting.

Implements embvm::gpio::input< embvm::gpio::pull::none >.

References p.

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void UnitTestGPIOInput::start_ ( )

finalprotectedvirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::gpio::input< embvm::gpio::pull::none >.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

void UnitTestGPIOInput::stop_ ( )

finalprotectedvirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::gpio::input< embvm::gpio::pull::none >.

◆ type()

static constexpr embvm::DriverType embvm::gpio::base< TDir >::type ( )

inlinestaticnoexceptinherited

GPIO Driver Type ID.

Returns: GPIO type ID.

Member Data Documentation

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

◆ test::UnitTestGPIOInputWithPullup

class test::UnitTestGPIOInputWithPullup

Unit Test GPIO Input Driver, with a pullup.

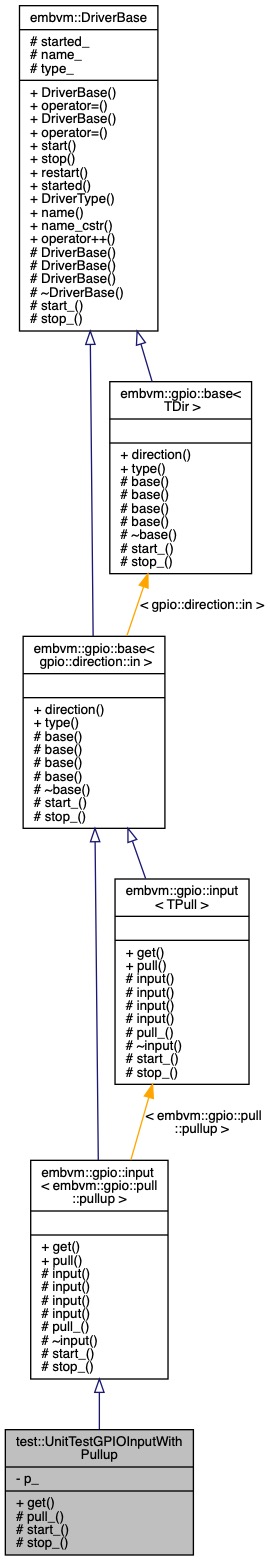

Inheritance diagram for test::UnitTestGPIOInputWithPullup:

Public Member Functions
bool	get () noexcept final
	Get the current GPIO pin state. More...

gpio::pull	pull () const noexcept
	Get the current pull configuration. More...

gpio::direction	direction () const noexcept
	Check the direction of the GPIO pin. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	GPIO Driver Type ID. More...

Protected Member Functions
embvm::gpio::pull	pull_ (embvm::gpio::pull p) noexcept final
	Set the pull configuration in hardware. More...

void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

Protected Attributes
type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Attributes
embvm::gpio::pull	p_ = embvm::gpio::pull::pullup

Member Function Documentation

◆ direction()

gpio::direction embvm::gpio::base< TDir >::direction ( ) const

inlinenoexceptinherited

Check the direction of the GPIO pin.

Returns: The configured direction of this GPIO pin.

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ get()

bool UnitTestGPIOInputWithPullup::get ( )

finalvirtualnoexcept

Get the current GPIO pin state.

Derived classes must implement the get() function.

Returns: true if the GPIO is set (logic 1), false otherwise (logic 0).

Implements embvm::gpio::input< embvm::gpio::pull::pullup >.

References embvm::gpio::none, embvm::gpio::input< embvm::gpio::pull::pullup >::pull(), embvm::gpio::pulldown, and embvm::gpio::pullup.

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ pull()

gpio::pull embvm::gpio::input< TPull >::pull ( ) const

inlinenoexceptinherited

Get the current pull configuration.

Returns: The currently configured GPIO pull setting.

◆ pull_()

embvm::gpio::pull UnitTestGPIOInputWithPullup::pull_ ( embvm::gpio::pull p )

finalprotectedvirtualnoexcept

Set the pull configuration in hardware.

Derived classes must implement the pull_(gpio::pull p) function.

Returns: The currently configured GPIO pull setting.

Implements embvm::gpio::input< embvm::gpio::pull::pullup >.

References p.

Referenced by start_().

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void UnitTestGPIOInputWithPullup::start_ ( )

finalprotectedvirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::gpio::input< embvm::gpio::pull::pullup >.

References p_, pull_(), and embvm::gpio::pullup.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

void UnitTestGPIOInputWithPullup::stop_ ( )

finalprotectedvirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::gpio::input< embvm::gpio::pull::pullup >.

◆ type()

static constexpr embvm::DriverType embvm::gpio::base< TDir >::type ( )

inlinestaticnoexceptinherited

GPIO Driver Type ID.

Returns: GPIO type ID.

Member Data Documentation

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ p_

embvm::gpio::pull test::UnitTestGPIOInputWithPullup::p_ = embvm::gpio::pull::pullup

private

Referenced by start_().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

◆ test::i2cTestDriver

class test::i2cTestDriver

I2C Master Unit Test Driver.

This driver can be used as a "fake" for a unit test.

You can prepare return data for a TX operation:

uint8_t expected[2] = {0xBE, 0xAE};

d.appendToRxBuffer(expected, sizeof(expected));

You can verify the data that was transmitted:

CHECK(true == d.checkTxBuffer(input, sizeof(input)));

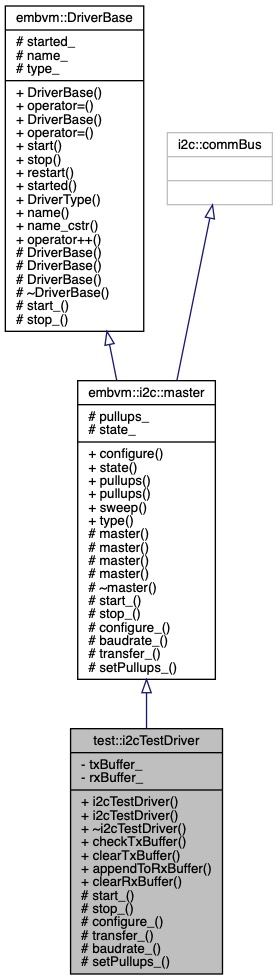

Inheritance diagram for test::i2cTestDriver:

Public Types
using	cb_t = stdext::inplace_function< void(i2c::op_t, i2c::status)>
	Represents the type of the callback operation. More...

using	sweep_list_t = etl::vector< uint8_t, 128 >

using	sweep_cb_t = stdext::inplace_function< void(void)>

Public Member Functions
	i2cTestDriver () noexcept
	Create a generic I2C Master. More...

	i2cTestDriver (const char *name) noexcept
	Create a named I2C master. More...

	~i2cTestDriver () noexcept final
	Default destructor. More...

bool	checkTxBuffer (uint8_t *data, size_t length) noexcept
	Verify that the driver transmitted the correct data. More...

void	clearTxBuffer () noexcept
	Clear the stored TX buffer. More...

void	appendToRxBuffer (uint8_t *data, size_t length) noexcept
	Append data to the RX buffer to be returned with the next read operation. More...

void	clearRxBuffer () noexcept
	Clears the data stored in the RX buffer. More...

virtual void	configure (i2c::baud baud, i2c::pullups pull=i2c::pullups::external) noexcept
	Configure the I2C bus. More...

i2c::state	state () const noexcept
	Check the I2C bus status. More...

i2c::pullups	pullups (i2c::pullups pullups) noexcept
	Configure pull-ups. More...

i2c::pullups	pullups () const noexcept
	Check the pull-up configuration. More...

void	sweep (sweep_list_t &found_list, const sweep_cb_t &cb) noexcept
	Perform an I2C bus sweep to identify active devices. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	I2C Driver Type ID. More...

Protected Member Functions
void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	configure_ (embvm::i2c::pullups) noexcept final
	Configure the I2C bus for operation. More...

embvm::i2c::status	transfer_ (const embvm::i2c::op_t &op, const embvm::i2c::master::cb_t &cb) noexcept final

embvm::i2c::baud	baudrate_ (embvm::i2c::baud baud) noexcept final

embvm::i2c::pullups	setPullups_ (embvm::i2c::pullups pullups) noexcept final
	Configure pull-ups. More...

Protected Attributes
i2c::pullups	pullups_ = i2c::pullups::external
	Tracks the active pull-up configuration. More...

i2c::state	state_ = i2c::state::idle
	Tracks the status of the I2C bus. More...

type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Attributes
std::vector< uint8_t >	txBuffer_
	Storage represnting the tx buffer. More...

std::queue< uint8_t >	rxBuffer_
	Storage representing the rx bufferre. More...

Member Typedef Documentation

◆ cb_t

using embvm::i2c::master::cb_t = stdext::inplace_function<void(i2c::op_t, i2c::status)>

inherited

Represents the type of the callback operation.

◆ sweep_cb_t

using embvm::i2c::master::sweep_cb_t = stdext::inplace_function<void(void)>

inherited

◆ sweep_list_t

using embvm::i2c::master::sweep_list_t = etl::vector<uint8_t, 128>

inherited

Constructor & Destructor Documentation

◆ i2cTestDriver() [1/2]

test::i2cTestDriver::i2cTestDriver ( )

inlinenoexcept

Create a generic I2C Master.

◆ i2cTestDriver() [2/2]

test::i2cTestDriver::i2cTestDriver ( const char * name )

inlineexplicitnoexcept

Create a named I2C master.

Parameters

name	The name of this i2c instance.

◆ ~i2cTestDriver()

i2cTestDriver::~i2cTestDriver ( )

finalnoexcept

Default destructor.

Member Function Documentation

◆ appendToRxBuffer()

void test::i2cTestDriver::appendToRxBuffer	(	uint8_t *	data,
		size_t	length
	)

inlinenoexcept

Append data to the RX buffer to be returned with the next read operation.

Parameters

data	The data to append to the RX buffer
length	the number of bytes to append

References length, and rxBuffer_.

◆ baudrate_()

embvm::i2c::baud i2cTestDriver::baudrate_ ( embvm::i2c::baud baud )

finalprotectedvirtualnoexcept

Implements embvm::i2c::master.

◆ checkTxBuffer()

bool test::i2cTestDriver::checkTxBuffer	(	uint8_t *	data,
		size_t	length
	)

inlinenoexcept

Verify that the driver transmitted the correct data.

Parameters

data	The data buffer to check.
length	The number of bytes in the input buffer to compare.

References length, and txBuffer_.

◆ clearRxBuffer()

void test::i2cTestDriver::clearRxBuffer ( )

inlinenoexcept

Clears the data stored in the RX buffer.

References rxBuffer_, and swap.

◆ clearTxBuffer()

void test::i2cTestDriver::clearTxBuffer ( )

inlinenoexcept

Clear the stored TX buffer.

References txBuffer_.

◆ configure()

virtual void embvm::i2c::master::configure	(	i2c::baud	baud,
		i2c::pullups	pull = `i2c::pullups::external`
	)

inlinevirtualnoexceptinherited

Configure the I2C bus.

Configures the I2C bus for operation and sets the target baud rate and pull-ups.

Derived classes must implement the configure_() function to set up the target hardware.

Parameters

baud	The target baudrate (as an i2c::baud enumeration rather than integral Hz). TODO: Tolerance - allowed relative tolerance for the resulting baudrate
pull	The pullup setting, which defaults to external pull-ups (in hardware).

References embvm::i2c::master::configure_(), and embvm::i2c::master::pullups().

Referenced by embvm::i2c::activeMaster< 128 >::configure_(), and FWDemoSimulatorHWPlatform::init_().

◆ configure_()

void i2cTestDriver::configure_ ( embvm::i2c::pullups pullups )

finalprotectedvirtualnoexcept

Configure the I2C bus for operation.

This function is implemented by the derived class. It is responsible for configuring the target hardware for operation.

Parameters

pullups The target pull-up configuration.

Implements embvm::i2c::master.

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ pullups() [1/2]

i2c::pullups embvm::i2c::master::pullups ( i2c::pullups pullups )

inlinenoexceptinherited

Configure pull-ups.

Parameters

pullups The target pull-up setting.

Returns: The configured pull-up setting.

References embvm::i2c::master::pullups_, and embvm::i2c::master::setPullups_().

Referenced by embvm::i2c::activeMaster< 128 >::setPullups_().

◆ pullups() [2/2]

i2c::pullups embvm::i2c::master::pullups ( ) const

inlinenoexceptinherited

Check the pull-up configuration.

Returns: The configured pull-up setting.

References embvm::i2c::master::pullups_.

Referenced by embvm::i2c::master::configure(), nRF51i2cMaster_Blocking< TTWIIndex, TSclPin, TSdaPin >::setPullups_(), and nRFi2cMaster< NordicTWIM0, nRFPinID< 0, 27 >, nRFPinID< 0, 26 > >::setPullups_().

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ setPullups_()

embvm::i2c::pullups i2cTestDriver::setPullups_ ( embvm::i2c::pullups pullups )

finalprotectedvirtualnoexcept

Configure pull-ups.

This function is implemented by the derived class. It is responsible for configuring the target hardware to use the requested pullup setting.

Parameters

pullups The target pull-up setting.

Returns: The configured pull-up setting.

Implements embvm::i2c::master.

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void i2cTestDriver::start_ ( )

finalprotectedvirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::i2c::master.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ state()

i2c::state embvm::i2c::master::state ( ) const

inlinenoexceptinherited

Check the I2C bus status.

Returns: the status of the I2C bus as an i2c::state enumeration.

References embvm::i2c::master::state_.

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

void i2cTestDriver::stop_ ( )

finalprotectedvirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::i2c::master.

◆ sweep()

void embvm::i2c::master::sweep	(	sweep_list_t &	found_list,
		const sweep_cb_t &	cb
	)

noexceptinherited

Perform an I2C bus sweep to identify active devices.

The sweep function pings all I2C addresses. Devices which ACK are stored in a list and returned via callback.

Parameters

[in,out]	found_list	Caller's memory which will contain the successfully found ping addresses
[in]	cb	The callback which will be called to indicate that the sweep is complete. After the cb is called, found_list is valid and can be used by the caller.

References embvm::i2c::op_t::address, embvm::i2c::busy, I2C_ADDR_MAX, and embvm::i2c::op_t::op.

◆ transfer_()

embvm::i2c::status i2cTestDriver::transfer_	(	const embvm::i2c::op_t &	op,
		const embvm::i2c::master::cb_t &	cb
	)

finalprotectedvirtualnoexcept

Implements embvm::i2c::master.

References embvm::i2c::busy, embvm::i2c::continueWriteNoStop, embvm::i2c::continueWriteStop, embvm::i2c::ok, embvm::i2c::ping, embvm::i2c::read, embvm::i2c::restart, embvm::i2c::stop, embvm::i2c::write, embvm::i2c::writeNoStop, and embvm::i2c::writeRead.

◆ type()

static constexpr embvm::DriverType embvm::i2c::master::type ( )

inlinestaticnoexceptinherited

I2C Driver Type ID.

Returns: I2C type ID.

References embvm::I2C.

Member Data Documentation

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ pullups_

i2c::pullups embvm::i2c::master::pullups_ = i2c::pullups::external

protectedinherited

Tracks the active pull-up configuration.

Referenced by embvm::i2c::master::pullups().

◆ rxBuffer_

std::queue<uint8_t> test::i2cTestDriver::rxBuffer_

private

Storage representing the rx bufferre.

Referenced by appendToRxBuffer(), and clearRxBuffer().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ state_

i2c::state embvm::i2c::master::state_ = i2c::state::idle

protectedinherited

Tracks the status of the I2C bus.

Referenced by embvm::i2c::master::state().

◆ txBuffer_

std::vector<uint8_t> test::i2cTestDriver::txBuffer_

private

Storage represnting the tx buffer.

Referenced by checkTxBuffer(), and clearTxBuffer().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

◆ test::spiTestDriver

class test::spiTestDriver

SPI Master Unit Test Driver.

This driver can be used as a "fake" for a unit test.

You can prepare return data for a TX operation:

uint8_t expected[2] = {0xBE, 0xAE};

d.appendToRxBuffer(expected, sizeof(expected));

You can verify the data that was transmitted:

CHECK(true == d.checkTxBuffer(input, sizeof(input)));

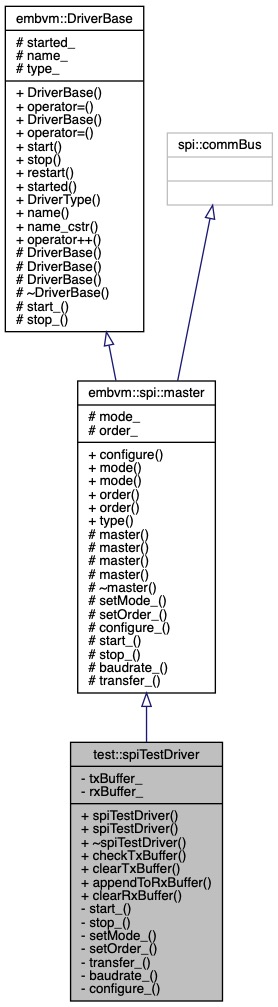

Inheritance diagram for test::spiTestDriver:

Public Member Functions
	spiTestDriver (const embvm::spi::master::DispatcherFunc &dispatcher=nullptr) noexcept
	Create a generic spi driver with a dispatcher. More...

	spiTestDriver (const char *name, const embvm::spi::master::DispatcherFunc &dispatcher=nullptr) noexcept
	Create a named spi driver with a dispatcher. More...

	~spiTestDriver () noexcept final
	Default destructor. More...

bool	checkTxBuffer (uint8_t *data, size_t length) noexcept
	Verify that the driver transmitted the correct data. More...

void	clearTxBuffer () noexcept
	Clear the stored TX buffer. More...

void	appendToRxBuffer (uint8_t *data, size_t length) noexcept
	Append data to the RX buffer to be returned with the next read operation. More...

void	clearRxBuffer () noexcept
	Clears the data stored in the RX buffer. More...

virtual void	configure (spi::baud_t baud) noexcept
	Configure the SPI bus. More...

spi::mode	mode () const noexcept
	Get the current SPI bus mode. More...

spi::mode	mode (spi::mode mode) noexcept
	Set the SPI bus mode. More...

spi::order	order () const noexcept
	Get the current SPI bus byte order. More...

spi::order	order (spi::order order) noexcept
	Set the SPI bus byte order. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	SPI Driver Type ID. More...

Protected Member Functions
embvm::comm::status	transfer_ (const spi::op_t &op, const cb_t &cb) noexcept override=0

Protected Attributes
spi::mode	mode_ = spi::mode::mode0
	Stores the active SPI mode configuration. More...

spi::order	order_ = spi::order::msbFirst
	Stores the active SPI byte ordering. More...

type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Member Functions
void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	setMode_ (embvm::spi::mode mode) noexcept final
	Set the SPI bus mode. More...

void	setOrder_ (embvm::spi::order order) noexcept final
	Set the SPI bus byte order. More...

embvm::comm::status	transfer_ (const embvm::spi::op_t &op, const embvm::spi::master::cb_t &cb) noexcept final

uint32_t	baudrate_ (uint32_t baud) noexcept final

void	configure_ () noexcept final
	Configure the SPI bus for operation. More...

Private Attributes
std::vector< uint8_t >	txBuffer_

std::queue< uint8_t >	rxBuffer_

Constructor & Destructor Documentation

◆ spiTestDriver() [1/2]

test::spiTestDriver::spiTestDriver ( const embvm::spi::master::DispatcherFunc & dispatcher = nullptr )

inlineexplicitnoexcept

Create a generic spi driver with a dispatcher.

Parameters

dispatcher The function to use as a dispatcher for callbacks.

◆ spiTestDriver() [2/2]

test::spiTestDriver::spiTestDriver	(	const char *	name,
		const embvm::spi::master::DispatcherFunc &	dispatcher = `nullptr`
	)

inlineexplicitnoexcept

Create a named spi driver with a dispatcher.

Parameters

name	The name of the SPI driver instance.
dispatcher	The function to use as a dispatcher for callbacks.

◆ ~spiTestDriver()

spiTestDriver::~spiTestDriver ( )

finalnoexcept

Default destructor.

Member Function Documentation

◆ appendToRxBuffer()

void test::spiTestDriver::appendToRxBuffer	(	uint8_t *	data,
		size_t	length
	)

inlinenoexcept

Append data to the RX buffer to be returned with the next read operation.

Parameters

data	The data to append to the RX buffer
length	the number of bytes to append

References length, and rxBuffer_.

◆ baudrate_()

uint32_t spiTestDriver::baudrate_ ( uint32_t baud )

finalprivatevirtualnoexcept

Implements embvm::spi::master.

◆ checkTxBuffer()

bool test::spiTestDriver::checkTxBuffer	(	uint8_t *	data,
		size_t	length
	)

inlinenoexcept

Verify that the driver transmitted the correct data.

Parameters

data	The data buffer to check.
length	The number of bytes in the input buffer to compare.

References length, and txBuffer_.

◆ clearRxBuffer()

void test::spiTestDriver::clearRxBuffer ( )

inlinenoexcept

Clears the data stored in the RX buffer.

References rxBuffer_, and swap.

◆ clearTxBuffer()

void test::spiTestDriver::clearTxBuffer ( )

inlinenoexcept

Clear the stored TX buffer.

References txBuffer_.

◆ configure()

virtual void embvm::spi::master::configure ( spi::baud_t baud )

inlinevirtualnoexceptinherited

Configure the SPI bus.

Configures the SPI bus for operation and sets the target baud rate.

Derived classes must implement the configure_() function to set up the target hardware.

Parameters

baud	The target baudrate, in Hz. TODO: Tolerance - allowed relative tolerance for the resulting baudrate

References embvm::spi::master::configure_().

◆ configure_()

void spiTestDriver::configure_ ( )

finalprivatevirtualnoexcept

Configure the SPI bus for operation.

This function is implemented by the derived class. It is responsible for configuring the target hardware for operation.

Implements embvm::spi::master.

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ mode() [1/2]

spi::mode embvm::spi::master::mode ( ) const

inlinenoexceptinherited

Get the current SPI bus mode.

Returns: The currently configured mode.

References embvm::spi::master::mode_.

Referenced by embvm::spi::master::mode(), and embvm::spi::activeMaster< TQueueSize, TLock, TCond >::setMode_().

◆ mode() [2/2]

spi::mode embvm::spi::master::mode ( spi::mode mode )

inlinenoexceptinherited

Set the SPI bus mode.

Derived classes must implement the setMode_() function, which is reponsible for configuring the target hardware.

Parameters

mode	The desired SPI bus mode.

Returns: The new SPI bus mode.

References embvm::spi::master::mode(), embvm::spi::master::mode_, and embvm::spi::master::setMode_().

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ order() [1/2]

spi::order embvm::spi::master::order ( ) const

inlinenoexceptinherited

Get the current SPI bus byte order.

Returns: The currently configured byte order.

References embvm::spi::master::order_.

Referenced by embvm::spi::master::order(), and embvm::spi::activeMaster< TQueueSize, TLock, TCond >::setOrder_().

◆ order() [2/2]

spi::order embvm::spi::master::order ( spi::order order )

inlinenoexceptinherited

Set the SPI bus byte order.

Derived classes must implement the setOrder_() function, which is reponsible for configuring the target hardware.

Parameters

order The desired byte ordering.

Returns: The new byte ordering.

References embvm::spi::master::order(), embvm::spi::master::order_, and embvm::spi::master::setOrder_().

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ setMode_()

void spiTestDriver::setMode_ ( embvm::spi::mode mode )

finalprivatevirtualnoexcept

Set the SPI bus mode.

This function is implemented by the derived class. It is responsible for configuring the target hardware to use the new mode.

Parameters

mode	The desired byte ordering.

Implements embvm::spi::master.

◆ setOrder_()

void spiTestDriver::setOrder_ ( embvm::spi::order order )

finalprivatevirtualnoexcept

Set the SPI bus byte order.

This function is implemented by the derived class. It is responsible for configuring the target hardware to use the new byte ordering.

Parameters

order The desired byte ordering.

Implements embvm::spi::master.

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void spiTestDriver::start_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::spi::master.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

void spiTestDriver::stop_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::spi::master.

◆ transfer_() [1/2]

embvm::comm::status spiTestDriver::transfer_	(	const embvm::spi::op_t &	op,
		const embvm::spi::master::cb_t &	cb
	)

finalprivatenoexcept

References embvm::comm::ok.

◆ transfer_() [2/2]

embvm::comm::status embvm::spi::master::transfer_	(	const spi::op_t &	op,
		const cb_t &	cb
	)

overrideprotectedpure virtualnoexceptinherited

◆ type()

static constexpr embvm::DriverType embvm::spi::master::type ( )

inlinestaticnoexceptinherited

SPI Driver Type ID.

Returns: SPI type ID.

References embvm::SPI.

Member Data Documentation

◆ mode_

spi::mode embvm::spi::master::mode_ = spi::mode::mode0

protectedinherited

Stores the active SPI mode configuration.

Referenced by embdrv::aardvarkSPIMaster::configure_(), and embvm::spi::master::mode().

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ order_

spi::order embvm::spi::master::order_ = spi::order::msbFirst

protectedinherited

Stores the active SPI byte ordering.

Referenced by embdrv::aardvarkSPIMaster::configure_(), and embvm::spi::master::order().

◆ rxBuffer_

std::queue<uint8_t> test::spiTestDriver::rxBuffer_

private

Referenced by appendToRxBuffer(), and clearRxBuffer().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ txBuffer_

std::vector<uint8_t> test::spiTestDriver::txBuffer_

private

Referenced by checkTxBuffer(), and clearTxBuffer().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

Classes

Detailed Description

Class Documentation

◆ test::TestDriverBase

Public Member Functions

Protected Attributes

Private Member Functions

Constructor & Destructor Documentation

◆ TestDriverBase() [1/3]

◆ TestDriverBase() [2/3]

◆ TestDriverBase() [3/3]

◆ ~TestDriverBase()

Member Function Documentation

◆ DriverType()

◆ name()

◆ name_cstr()

◆ operator++()

◆ restart()

◆ start()

◆ start_()

◆ started()

◆ stop()

◆ stop_()

Member Data Documentation

◆ name_

◆ started_

◆ type_

◆ test::UnitTestGPIOInput

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Member Function Documentation

◆ direction()

◆ DriverType()

◆ get()

◆ name()

◆ name_cstr()

◆ operator++()

◆ pull()

◆ pull_()

◆ restart()

◆ start()

◆ start_()

◆ started()

◆ stop()

◆ stop_()

◆ type()

Member Data Documentation

◆ name_

◆ started_

◆ type_

◆ test::UnitTestGPIOInputWithPullup

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Member Function Documentation

◆ direction()

◆ DriverType()

◆ get()

◆ name()

◆ name_cstr()

◆ operator++()

◆ pull()

◆ pull_()

◆ restart()

◆ start()

◆ start_()

◆ started()

◆ stop()

◆ stop_()

◆ type()

Member Data Documentation

◆ name_

◆ p_

◆ started_

◆ type_

◆ test::i2cTestDriver
