Aardvark Adapter drivers, usable for Simulator applications. More...

Collaboration diagram for Aardvark Adapter Drivers:

Classes
class	embdrv::aardvarkAdapter
	Driver to control the Aardvark Adapter. More...

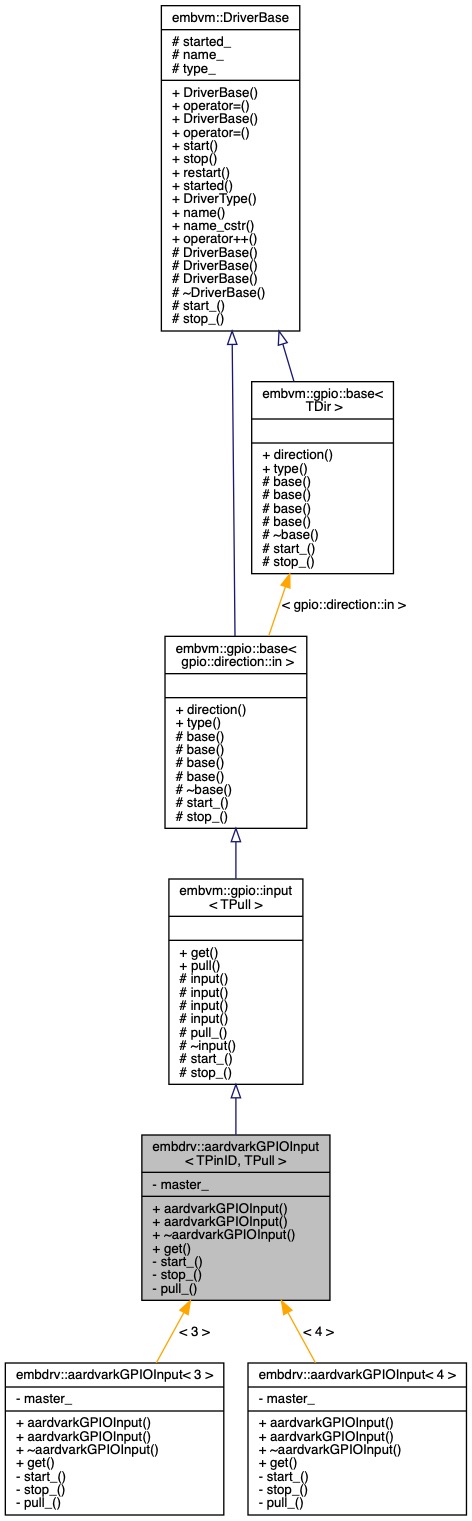

class	embdrv::aardvarkGPIOInput< TPinID, TPull >
	Aardvark GPIO Input driver. More...

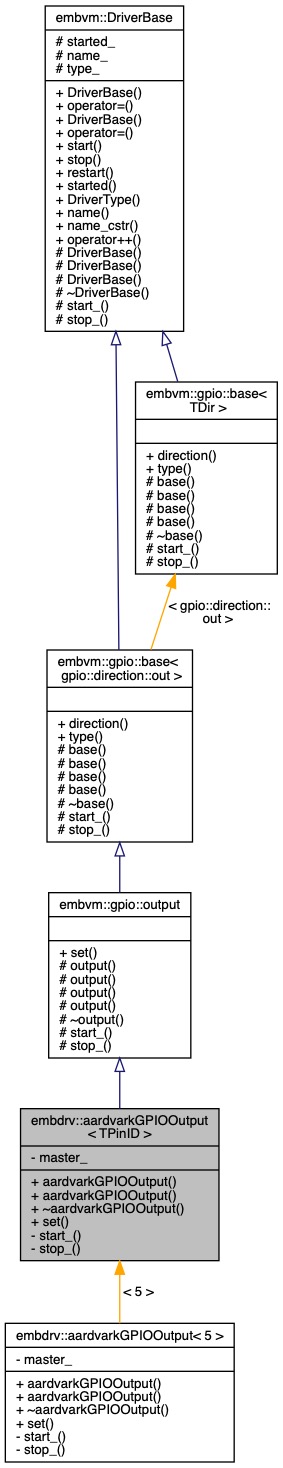

class	embdrv::aardvarkGPIOOutput< TPinID >
	Aardvark GPIO Output driver. More...

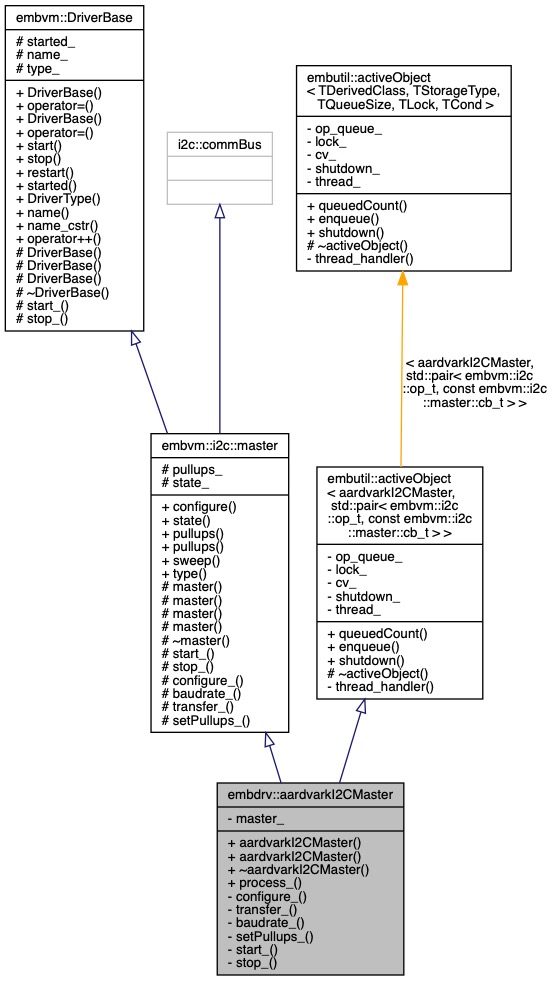

class	embdrv::aardvarkI2CMaster
	Create an Aardvark I2C Master Driver. More...

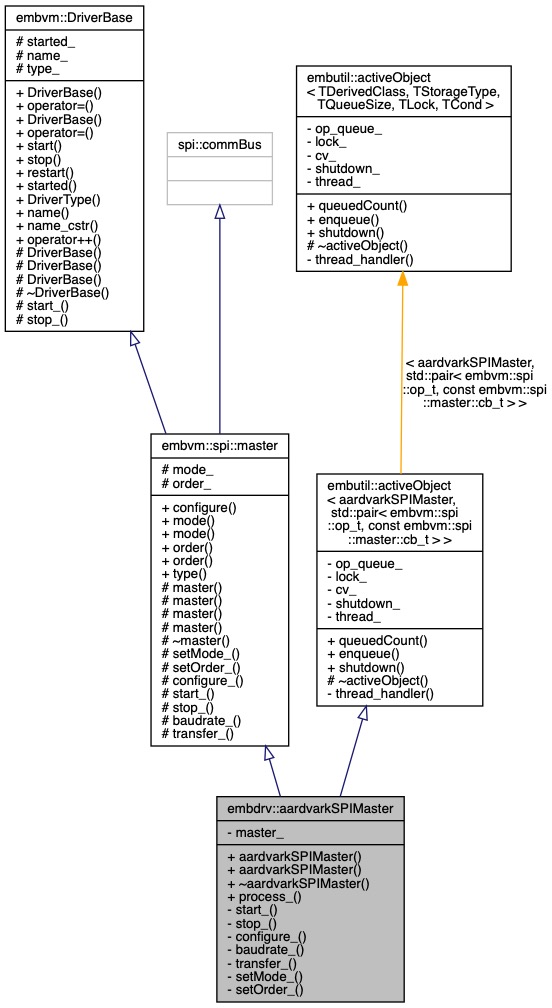

class	embdrv::aardvarkSPIMaster
	Create an Aardvark SPI Master Driver. More...

Enumerations
enum	embdrv::aardvarkMode { embdrv::aardvarkMode::GpioOnly = 0x0, embdrv::aardvarkMode::SpiGpio = 0x01, embdrv::aardvarkMode::GpioI2C = 0x02, embdrv::aardvarkMode::SpiI2C = 0x03, embdrv::aardvarkMode::Query = 0x80 }
	Aardvark master operational modes. More...

Variables
constexpr size_t	embdrv::AARDVARK_IO_COUNT = 6
	The number of IO pins supported by the AARDVARK sensor. More...

static constexpr std::array< uint8_t, AARDVARK_IO_COUNT >	embdrv::aardvarkIO
	aardvark IO pin IDs More...

Detailed Description

Aardvark Adapter drivers, usable for Simulator applications.

Class Documentation

◆ embdrv::aardvarkAdapter

class embdrv::aardvarkAdapter

Driver to control the Aardvark Adapter.

This class must always be declared for use with Aardvark drivers. The aardvarkAdapter is used to set the operational mode and configure the device hardware.

The aardvarkAdapter instance is then passed to the aardvark drivers:

embdrv::aardvarkAdapter aardvark{embdrv::aardvarkMode::GpioI2C};
embdrv::aardvarkI2CMaster i2c0{aardvark};
embdrv::aardvarkGPIOOutput<5> gpio5{aardvark};
embdrv::aardvarkGPIOInput<4> gpio4{aardvark};
embdrv::aardvarkGPIOInput<3> gpio3{aardvark};

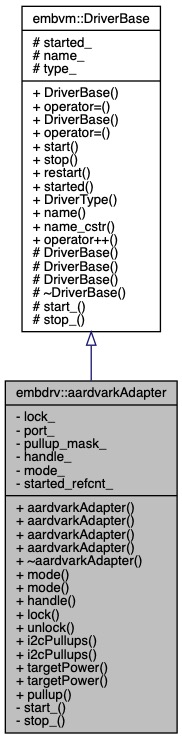

Inheritance diagram for embdrv::aardvarkAdapter:

Public Member Functions
	aardvarkAdapter (aardvarkMode m=aardvarkMode::SpiI2C, uint8_t USBPort=0) noexcept
	Create a generic aardvark Adapter. More...

	aardvarkAdapter (const char *name, aardvarkMode m=aardvarkMode::SpiI2C, uint8_t USBPort=0) noexcept
	Create an aardvarkAdapter with a name. More...

	aardvarkAdapter (const std::string &name, aardvarkMode m=aardvarkMode::SpiI2C, uint8_t USBPort=0) noexcept

	aardvarkAdapter (const std::string_view &name, aardvarkMode m=aardvarkMode::SpiI2C, uint8_t USBPort=0) noexcept

	~aardvarkAdapter () noexcept override=default
	Default destructor. More...

aardvarkMode	mode (aardvarkMode m) noexcept
	Change the Aardvark Adapter's operational mode. More...

aardvarkMode	mode () const noexcept
	Get the current mode setting This function does not query the device, it returns the cached mode. More...

int	handle () const noexcept
	Get the handle for the Aardvark Master The handle is used by related drivers to work with the Aardvark library APIs. More...

void	lock () noexcept
	Lock the Aardvark master - used by other Aardvark driver types to ensure exclusion. More...

void	unlock () noexcept
	Unlock the Aardvark Master. More...

bool	i2cPullups () noexcept
	Query the current i2c pullup setting. More...

bool	i2cPullups (bool en) noexcept
	Enable/Disable the i2c pullup setting. More...

bool	targetPower () noexcept
	Query the current 5V target power setting. More...

bool	targetPower (bool en) noexcept
	Enable/Disable 5V target power output. More...

void	pullup (uint8_t id, bool en) noexcept
	Set a pullup for GPIO. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Protected Attributes
type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Member Functions
void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

Private Attributes
std::mutex	lock_ {}
	The aardvark adapter lock. More...

uint8_t	port_
	The USB port the adapter is connected to. More...

uint8_t	pullup_mask_ = 0
	Mask representing the pullups currently enabled. More...

int	handle_ = 0
	The handle for the aardvark Adapter (provided by the aardvark API). More...

aardvarkMode	mode_
	The currently configured Aardvark Adapter mode. More...

std::atomic< int >	started_refcnt_ = 0
	Reference count for the number of times this driver has been started. More...

Constructor & Destructor Documentation

◆ aardvarkAdapter() [1/4]

embdrv::aardvarkAdapter::aardvarkAdapter	(	aardvarkMode	m = `aardvarkMode::SpiI2C`,
		uint8_t	USBPort = `0`
	)

inlineexplicitnoexcept

Create a generic aardvark Adapter.

Parameters

m	The aardvark adapter mode.
USBPort	The id of the USB port the aardvarkAdapter is connected to.

◆ aardvarkAdapter() [2/4]

embdrv::aardvarkAdapter::aardvarkAdapter	(	const char *	name,
		aardvarkMode	m = `aardvarkMode::SpiI2C`,
		uint8_t	USBPort = `0`
	)

inlineexplicitnoexcept

Create an aardvarkAdapter with a name.

Parameters

name	The name for the aardvarkAdapter driver.
m	The aardvark adapter mode.
USBPort	The id of the USB port the aardvarkAdapter is connected to.

◆ aardvarkAdapter() [3/4]

embdrv::aardvarkAdapter::aardvarkAdapter	(	const std::string &	name,
		aardvarkMode	m = `aardvarkMode::SpiI2C`,
		uint8_t	USBPort = `0`
	)

inlineexplicitnoexcept

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ aardvarkAdapter() [4/4]

embdrv::aardvarkAdapter::aardvarkAdapter	(	const std::string_view &	name,
		aardvarkMode	m = `aardvarkMode::SpiI2C`,
		uint8_t	USBPort = `0`
	)

inlineexplicitnoexcept

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ ~aardvarkAdapter()

embdrv::aardvarkAdapter::~aardvarkAdapter ( )

overridedefaultnoexcept

Default destructor.

Member Function Documentation

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ handle()

int embdrv::aardvarkAdapter::handle ( ) const

inlinenoexcept

Get the handle for the Aardvark Master The handle is used by related drivers to work with the Aardvark library APIs.

Returns: the Aardvark master handle.

References handle_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), and embdrv::aardvarkGPIOOutput< 5 >::start_().

◆ i2cPullups() [1/2]

bool aardvarkAdapter::i2cPullups ( )

noexcept

Query the current i2c pullup setting.

Returns: true if I2C pullups are enabled, false if disabled.

References aa_i2c_pullup(), AA_I2C_PULLUP_QUERY, handle_, lock(), r, and unlock().

Referenced by embdrv::aardvarkGPIOInput< 4 >::start_().

◆ i2cPullups() [2/2]

bool aardvarkAdapter::i2cPullups ( bool en )

noexcept

Enable/Disable the i2c pullup setting.

Parameters

en	True enables I2C pullups, false disables them.

Returns: true if I2C pullups are enabled, false if disabled.

References aa_i2c_pullup(), AA_I2C_PULLUP_BOTH, and AA_I2C_PULLUP_NONE.

◆ lock()

void embdrv::aardvarkAdapter::lock ( )

inlinenoexcept

Lock the Aardvark master - used by other Aardvark driver types to ensure exclusion.

Postcondition: The aardvarkAdapter is locked for the client's exclusive use.

References lock_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), i2cPullups(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::aardvarkGPIOOutput< 5 >::start_(), and targetPower().

◆ mode() [1/2]

aardvarkMode aardvarkAdapter::mode ( aardvarkMode m )

noexcept

Change the Aardvark Adapter's operational mode.

Parameters

m	The desired aardvark operational mode.

Returns: the configured aardvark operational mode.

References aa_configure().

Referenced by embdrv::aardvarkGPIOInput< 4 >::start_().

◆ mode() [2/2]

aardvarkMode embdrv::aardvarkAdapter::mode ( ) const

inlinenoexcept

Get the current mode setting This function does not query the device, it returns the cached mode.

Returns: the configured aardvark operational mode.

References mode_.

Referenced by start_().

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ pullup()

void aardvarkAdapter::pullup	(	uint8_t	id,
		bool	en
	)

noexcept

Set a pullup for GPIO.

Parameters

id	The GPIO Id to enable the pullup for
en	True enables a pullup, false disables it.

References aa_gpio_pullup(), AA_OK, embdrv::aardvarkIO, assert, and r.

Referenced by embdrv::aardvarkGPIOInput< 4 >::pull_().

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void aardvarkAdapter::start_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::DriverBase.

References aa_open(), assert, handle_, mode(), mode_, port_, embvm::DriverBase::started(), and started_refcnt_.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), start_(), and stop_().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

void aardvarkAdapter::stop_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::DriverBase.

References aa_close(), handle_, embvm::DriverBase::started(), and started_refcnt_.

◆ targetPower() [1/2]

bool aardvarkAdapter::targetPower ( )

noexcept

Query the current 5V target power setting.

Returns: true if 5V target power is enabled, false if disabled.

References aa_target_power(), AA_TARGET_POWER_QUERY, handle_, lock(), r, and unlock().

◆ targetPower() [2/2]

bool aardvarkAdapter::targetPower ( bool en )

noexcept

Enable/Disable 5V target power output.

Parameters

en	True enables 5V target power output, false disables it.

Returns: true if 5V target power is enabled, false if disabled.

References aa_i2c_pullup(), AA_TARGET_POWER_BOTH, and AA_TARGET_POWER_NONE.

◆ unlock()

void embdrv::aardvarkAdapter::unlock ( )

inlinenoexcept

Unlock the Aardvark Master.

Precondition: The aardvarkAdapter is locked

Postcondition: The aardvarkAdapter is unlocked

References lock_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), i2cPullups(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::aardvarkGPIOOutput< 5 >::start_(), and targetPower().

Member Data Documentation

◆ handle_

int embdrv::aardvarkAdapter::handle_ = 0

private

The handle for the aardvark Adapter (provided by the aardvark API).

Referenced by handle(), i2cPullups(), start_(), stop_(), and targetPower().

◆ lock_

std::mutex embdrv::aardvarkAdapter::lock_ {}

private

The aardvark adapter lock.

Referenced by lock(), and unlock().

◆ mode_

aardvarkMode embdrv::aardvarkAdapter::mode_

private

The currently configured Aardvark Adapter mode.

Referenced by mode(), and start_().

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ port_

uint8_t embdrv::aardvarkAdapter::port_

private

The USB port the adapter is connected to.

Referenced by start_().

◆ pullup_mask_

uint8_t embdrv::aardvarkAdapter::pullup_mask_ = 0

private

Mask representing the pullups currently enabled.

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ started_refcnt_

std::atomic<int> embdrv::aardvarkAdapter::started_refcnt_ = 0

private

Reference count for the number of times this driver has been started.

Since multiple client drivers can be created, we don't want to stop the aardvarkAdapter base until all client drivers have been stopped.

Referenced by start_(), and stop_().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

◆ embdrv::aardvarkGPIOInput

class embdrv::aardvarkGPIOInput

template<uint8_t TPinID, embvm::gpio::pull TPull = embvm::gpio::pull::none>
class embdrv::aardvarkGPIOInput< TPinID, TPull >

Aardvark GPIO Input driver.

Create a GPIO input driver using the Aardvark adapter.

This driver requires an aardvarkAdapter to work. The aardvark adapter must be configured with aardvarkMode::GpioI2C, aardvarkMode::SpiGpio, or aardvarkMode::GpioOnly.

embdrv::aardvarkAdapter aardvark{embdrv::aardvarkMode::GpioI2C};
embdrv::aardvarkGPIOInput<4> gpio4{aardvark};
embdrv::aardvarkGPIOInput<3> gpio3{aardvark};

Template Parameters

TPinID	The aardvark pin ID to use as a GPIO Input. Must be less than AARDVARK_IO_COUNT.
TPull	The pull setting to use with this GPIO.

Inheritance diagram for embdrv::aardvarkGPIOInput< TPinID, TPull >:

Public Member Functions
	aardvarkGPIOInput (aardvarkAdapter &master) noexcept
	Construct a generic GPIO input. More...

	aardvarkGPIOInput (aardvarkAdapter &master, const char *name) noexcept
	Construct a named GPIO Input. More...

	~aardvarkGPIOInput () noexcept final=default
	Default Destructor. More...

bool	get () noexcept final
	Get the current GPIO pin state. More...

gpio::pull	pull () const noexcept
	Get the current pull configuration. More...

gpio::direction	direction () const noexcept
	Check the direction of the GPIO pin. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	GPIO Driver Type ID. More...

Protected Attributes
type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Member Functions
void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

embvm::gpio::pull	pull_ (embvm::gpio::pull p) noexcept final
	Set the pull configuration in hardware. More...

Private Attributes
aardvarkAdapter &	master_
	The aardvarkAdapter instance associated with this GPIO input. More...

Constructor & Destructor Documentation

◆ aardvarkGPIOInput() [1/2]

template<uint8_t TPinID, embvm::gpio::pull TPull = embvm::gpio::pull::none>

embdrv::aardvarkGPIOInput< TPinID, TPull >::aardvarkGPIOInput ( aardvarkAdapter & master )

inlineexplicitnoexcept

Construct a generic GPIO input.

Parameters

master The aardvarkAdapter instance associated with this GPIO pin.

◆ aardvarkGPIOInput() [2/2]

template<uint8_t TPinID, embvm::gpio::pull TPull = embvm::gpio::pull::none>

embdrv::aardvarkGPIOInput< TPinID, TPull >::aardvarkGPIOInput	(	aardvarkAdapter &	master,
		const char *	name
	)

inlineexplicitnoexcept

Construct a named GPIO Input.

Parameters

master	The aardvarkAdapter instance associated with this GPIO pin.
name	The name of the GPIO pin

◆ ~aardvarkGPIOInput()

template<uint8_t TPinID, embvm::gpio::pull TPull = embvm::gpio::pull::none>

embdrv::aardvarkGPIOInput< TPinID, TPull >::~aardvarkGPIOInput ( )

finaldefaultnoexcept

Default Destructor.

Member Function Documentation

◆ direction()

gpio::direction embvm::gpio::base< TDir >::direction ( ) const

inlinenoexceptinherited

Check the direction of the GPIO pin.

Returns: The configured direction of this GPIO pin.

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ get()

template<uint8_t TPinID, embvm::gpio::pull TPull = embvm::gpio::pull::none>

bool embdrv::aardvarkGPIOInput< TPinID, TPull >::get ( )

inlinefinalvirtualnoexcept

Get the current GPIO pin state.

Derived classes must implement the get() function.

Returns: true if the GPIO is set (logic 1), false otherwise (logic 0).

Implements embvm::gpio::input< TPull >.

Referenced by FWDemoSimulatorHWPlatform::readAndSetToFMode().

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ pull()

template<gpio::pull TPull = gpio::pull::none>

gpio::pull embvm::gpio::input< TPull >::pull ( ) const

inlinenoexceptinherited

Get the current pull configuration.

Returns: The currently configured GPIO pull setting.

◆ pull_()

template<uint8_t TPinID, embvm::gpio::pull TPull = embvm::gpio::pull::none>

embvm::gpio::pull embdrv::aardvarkGPIOInput< TPinID, TPull >::pull_ ( embvm::gpio::pull p )

inlinefinalprivatevirtualnoexcept

Set the pull configuration in hardware.

Derived classes must implement the pull_(gpio::pull p) function.

Returns: The currently configured GPIO pull setting.

Implements embvm::gpio::input< TPull >.

Referenced by embdrv::aardvarkGPIOInput< 4 >::start_().

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

template<uint8_t TPinID, embvm::gpio::pull TPull = embvm::gpio::pull::none>

void embdrv::aardvarkGPIOInput< TPinID, TPull >::start_ ( )

inlinefinalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::gpio::input< TPull >.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

template<uint8_t TPinID, embvm::gpio::pull TPull = embvm::gpio::pull::none>

void embdrv::aardvarkGPIOInput< TPinID, TPull >::stop_ ( )

inlinefinalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::gpio::input< TPull >.

◆ type()

static constexpr embvm::DriverType embvm::gpio::base< TDir >::type ( )

inlinestaticnoexceptinherited

GPIO Driver Type ID.

Returns: GPIO type ID.

Member Data Documentation

◆ master_

template<uint8_t TPinID, embvm::gpio::pull TPull = embvm::gpio::pull::none>

aardvarkAdapter& embdrv::aardvarkGPIOInput< TPinID, TPull >::master_

private

The aardvarkAdapter instance associated with this GPIO input.

Referenced by embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOInput< 4 >::pull_(), embdrv::aardvarkGPIOInput< 4 >::start_(), and embdrv::aardvarkGPIOInput< 4 >::stop_().

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

◆ embdrv::aardvarkGPIOOutput

class embdrv::aardvarkGPIOOutput

template<uint8_t TPinID>
class embdrv::aardvarkGPIOOutput< TPinID >

Aardvark GPIO Output driver.

Create a GPIO output driver using the Aardvark adapter.

This driver requires an aardvarkAdapter to work. The aardvark adapter must be configured with aardvarkMode::GpioI2C, aardvarkMode::SpiGpio, or aardvarkMode::GpioOnly.

embdrv::aardvarkAdapter aardvark{embdrv::aardvarkMode::GpioI2C};

embdrv::aardvarkGPIOOutput<5> gpio5{aardvark};

Template Parameters

TPinID The aardvark pin ID to use as a GPIO output. Must be less than AARDVARK_IO_COUNT.

Inheritance diagram for embdrv::aardvarkGPIOOutput< TPinID >:

Public Member Functions
	aardvarkGPIOOutput (aardvarkAdapter &master) noexcept
	Construct a generic GPIO output. More...

	aardvarkGPIOOutput (aardvarkAdapter &master, const char *name) noexcept
	Construct a named GPIO output. More...

	~aardvarkGPIOOutput () noexcept final=default
	Default destructor. More...

void	set (bool v) noexcept final
	Set the current GPIO pin state. More...

gpio::direction	direction () const noexcept
	Check the direction of the GPIO pin. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	GPIO Driver Type ID. More...

Protected Attributes
type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Member Functions
void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

Private Attributes
aardvarkAdapter &	master_
	The aardvarkAdapter instance associated with this GPIO output. More...

Constructor & Destructor Documentation

◆ aardvarkGPIOOutput() [1/2]

template<uint8_t TPinID>

embdrv::aardvarkGPIOOutput< TPinID >::aardvarkGPIOOutput ( aardvarkAdapter & master )

inlineexplicitnoexcept

Construct a generic GPIO output.

Parameters

master The aardvarkAdapter instance associated with this GPIO pin.

◆ aardvarkGPIOOutput() [2/2]

template<uint8_t TPinID>

embdrv::aardvarkGPIOOutput< TPinID >::aardvarkGPIOOutput	(	aardvarkAdapter &	master,
		const char *	name
	)

inlineexplicitnoexcept

Construct a named GPIO output.

Parameters

master	The aardvarkAdapter instance associated with this GPIO pin.
name	The name of the GPIO pin

◆ ~aardvarkGPIOOutput()

template<uint8_t TPinID>

embdrv::aardvarkGPIOOutput< TPinID >::~aardvarkGPIOOutput ( )

finaldefaultnoexcept

Default destructor.

Member Function Documentation

◆ direction()

gpio::direction embvm::gpio::base< TDir >::direction ( ) const

inlinenoexceptinherited

Check the direction of the GPIO pin.

Returns: The configured direction of this GPIO pin.

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ set()

template<uint8_t TPinID>

void embdrv::aardvarkGPIOOutput< TPinID >::set ( bool v )

inlinefinalvirtualnoexcept

Set the current GPIO pin state.

Derived classes must implement the set() function.

Parameters

v	The desired GPIO state. True for logic 1, false for logic 0.

Implements embvm::gpio::output.

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

template<uint8_t TPinID>

void embdrv::aardvarkGPIOOutput< TPinID >::start_ ( )

inlinefinalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::gpio::output.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

template<uint8_t TPinID>

void embdrv::aardvarkGPIOOutput< TPinID >::stop_ ( )

inlinefinalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::gpio::output.

◆ type()

static constexpr embvm::DriverType embvm::gpio::base< TDir >::type ( )

inlinestaticnoexceptinherited

GPIO Driver Type ID.

Returns: GPIO type ID.

Member Data Documentation

◆ master_

template<uint8_t TPinID>

aardvarkAdapter& embdrv::aardvarkGPIOOutput< TPinID >::master_

private

The aardvarkAdapter instance associated with this GPIO output.

Referenced by embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::aardvarkGPIOOutput< 5 >::start_(), and embdrv::aardvarkGPIOOutput< 5 >::stop_().

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

◆ embdrv::aardvarkI2CMaster

class embdrv::aardvarkI2CMaster

Create an Aardvark I2C Master Driver.

This driver requires an aardvarkAdapter to work. The aardvark adapter must be configured with aardvarkMode::GpioI2C or aardvarkMode::SpiI2C.

This is an active object: it has its own thread of control.

embdrv::aardvarkAdapter aardvark{embdrv::aardvarkMode::GpioI2C};

embdrv::aardvarkI2CMaster i2c0{aardvark};

Inheritance diagram for embdrv::aardvarkI2CMaster:

Public Types
using	cb_t = stdext::inplace_function< void(i2c::op_t, i2c::status)>
	Represents the type of the callback operation. More...

using	sweep_list_t = etl::vector< uint8_t, 128 >

using	sweep_cb_t = stdext::inplace_function< void(void)>

Public Member Functions
	aardvarkI2CMaster (aardvarkAdapter &master) noexcept
	Construct a generic I2C master. More...

	aardvarkI2CMaster (aardvarkAdapter &master, const char *name) noexcept
	Construct a named I2C master. More...

	~aardvarkI2CMaster () noexcept final
	Default destructor. More...

void	process_ (const storagePair_t &op) noexcept
	Active object process function. More...

virtual void	configure (i2c::baud baud, i2c::pullups pull=i2c::pullups::external) noexcept
	Configure the I2C bus. More...

i2c::state	state () const noexcept
	Check the I2C bus status. More...

i2c::pullups	pullups (i2c::pullups pullups) noexcept
	Configure pull-ups. More...

i2c::pullups	pullups () const noexcept
	Check the pull-up configuration. More...

void	sweep (sweep_list_t &found_list, const sweep_cb_t &cb) noexcept
	Perform an I2C bus sweep to identify active devices. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

size_t	queuedCount () const noexcept
	Get the number of operations in the queue. More...

bool	enqueue (std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > t) noexcept
	Add an operation to the queue. More...

void	shutdown () noexcept
	Shutdown the active object. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	I2C Driver Type ID. More...

Protected Attributes
i2c::pullups	pullups_ = i2c::pullups::external
	Tracks the active pull-up configuration. More...

i2c::state	state_ = i2c::state::idle
	Tracks the status of the I2C bus. More...

type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Types
using	storagePair_t = std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t >
	The storage type that the active object stores. More...

Private Member Functions
void	configure_ (embvm::i2c::pullups pullup) noexcept final
	Configure the I2C bus for operation. More...

embvm::i2c::status	transfer_ (const embvm::i2c::op_t &op, const embvm::i2c::master::cb_t &cb) noexcept final

embvm::i2c::baud	baudrate_ (embvm::i2c::baud baud) noexcept final

embvm::i2c::pullups	setPullups_ (embvm::i2c::pullups pullups) noexcept final
	Configure pull-ups. More...

void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

Private Attributes
aardvarkAdapter &	master_
	The aardvarkAdapter instance associated with this driver. More...

Member Typedef Documentation

◆ cb_t

using embvm::i2c::master::cb_t = stdext::inplace_function<void(i2c::op_t, i2c::status)>

inherited

Represents the type of the callback operation.

◆ storagePair_t

using embdrv::aardvarkI2CMaster::storagePair_t = std::pair<embvm::i2c::op_t, const embvm::i2c::master::cb_t>

private

The storage type that the active object stores.

◆ sweep_cb_t

using embvm::i2c::master::sweep_cb_t = stdext::inplace_function<void(void)>

inherited

◆ sweep_list_t

using embvm::i2c::master::sweep_list_t = etl::vector<uint8_t, 128>

inherited

Constructor & Destructor Documentation

◆ aardvarkI2CMaster() [1/2]

embdrv::aardvarkI2CMaster::aardvarkI2CMaster ( aardvarkAdapter & master )

inlineexplicitnoexcept

Construct a generic I2C master.

Parameters

master The aardvarkAdapter instance associated with this driver.

◆ aardvarkI2CMaster() [2/2]

embdrv::aardvarkI2CMaster::aardvarkI2CMaster	(	aardvarkAdapter &	master,
		const char *	name
	)

inlineexplicitnoexcept

Construct a named I2C master.

Parameters

master	The aardvarkAdapter instance associated with this driver.
name	The name of the driver.

◆ ~aardvarkI2CMaster()

aardvarkI2CMaster::~aardvarkI2CMaster ( )

finaldefaultnoexcept

Default destructor.

Member Function Documentation

◆ baudrate_()

embvm::i2c::baud aardvarkI2CMaster::baudrate_ ( embvm::i2c::baud baud )

finalprivatevirtualnoexcept

Implements embvm::i2c::master.

References aa_i2c_bitrate(), assert, and INPUT_BAUDRATE_TO_AARDVARK_CONV_FACTOR.

◆ configure()

virtual void embvm::i2c::master::configure	(	i2c::baud	baud,
		i2c::pullups	pull = `i2c::pullups::external`
	)

inlinevirtualnoexceptinherited

Configure the I2C bus.

Configures the I2C bus for operation and sets the target baud rate and pull-ups.

Derived classes must implement the configure_() function to set up the target hardware.

Parameters

baud	The target baudrate (as an i2c::baud enumeration rather than integral Hz). TODO: Tolerance - allowed relative tolerance for the resulting baudrate
pull	The pullup setting, which defaults to external pull-ups (in hardware).

References embvm::i2c::master::configure_(), and embvm::i2c::master::pullups().

Referenced by embvm::i2c::activeMaster< 128 >::configure_(), and FWDemoSimulatorHWPlatform::init_().

◆ configure_()

void aardvarkI2CMaster::configure_ ( embvm::i2c::pullups pullups )

finalprivatevirtualnoexcept

Configure the I2C bus for operation.

This function is implemented by the derived class. It is responsible for configuring the target hardware for operation.

Parameters

pullups The target pull-up configuration.

Implements embvm::i2c::master.

References aa_i2c_bus_timeout(), assert, and bus_timeout_ms.

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ enqueue()

bool embutil::activeObject< aardvarkI2CMaster , std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > , 0 , std::mutex , std::condition_variable >::enqueue ( std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > t )

inlinenoexceptinherited

Add an operation to the queue.

This function can be called directly, or by functions internal to the activeObject. For example, the "transfer" API enqueues transfer operations.

This function is marked noexcept because we want the program to terminate if an exception results from this call. For example, the underlying queue may throw on push.

Parameters

t	The operation data object to enqueue for later processing.

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ process_()

void aardvarkI2CMaster::process_ ( const storagePair_t & op )

noexcept

◆ pullups() [1/2]

i2c::pullups embvm::i2c::master::pullups ( i2c::pullups pullups )

inlinenoexceptinherited

Configure pull-ups.

Parameters

pullups The target pull-up setting.

Returns: The configured pull-up setting.

References embvm::i2c::master::pullups_, and embvm::i2c::master::setPullups_().

Referenced by embvm::i2c::activeMaster< 128 >::setPullups_().

◆ pullups() [2/2]

i2c::pullups embvm::i2c::master::pullups ( ) const

inlinenoexceptinherited

Check the pull-up configuration.

Returns: The configured pull-up setting.

References embvm::i2c::master::pullups_.

Referenced by embvm::i2c::master::configure(), nRF51i2cMaster_Blocking< TTWIIndex, TSclPin, TSdaPin >::setPullups_(), and nRFi2cMaster< NordicTWIM0, nRFPinID< 0, 27 >, nRFPinID< 0, 26 > >::setPullups_().

◆ queuedCount()

size_t embutil::activeObject< aardvarkI2CMaster , std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > , 0 , std::mutex , std::condition_variable >::queuedCount ( ) const

inlinenoexceptinherited

Get the number of operations in the queue.

Returns: the number of queued operations.

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ setPullups_()

embvm::i2c::pullups aardvarkI2CMaster::setPullups_ ( embvm::i2c::pullups pullups )

finalprivatevirtualnoexcept

Configure pull-ups.

This function is implemented by the derived class. It is responsible for configuring the target hardware to use the requested pullup setting.

Parameters

pullups The target pull-up setting.

Returns: The configured pull-up setting.

Implements embvm::i2c::master.

References assert, and embvm::i2c::external.

◆ shutdown()

void embutil::activeObject< aardvarkI2CMaster , std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > , 0 , std::mutex , std::condition_variable >::shutdown ( )

inlinenoexceptinherited

Shutdown the active object.

Call this function in the parent class destructor to stop the AO thread operation before destroying the parent class. This will prevent memory access problems due to race conidtions during destruction.

This function is marked noexcept because we want the program to terminate if an exception results from this call.

The shutdown process is permanent and cannot be reversed without recreating the object.

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void aardvarkI2CMaster::start_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::i2c::master.

References embvm::DriverBase::start().

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ state()

i2c::state embvm::i2c::master::state ( ) const

inlinenoexceptinherited

Check the I2C bus status.

Returns: the status of the I2C bus as an i2c::state enumeration.

References embvm::i2c::master::state_.

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

void aardvarkI2CMaster::stop_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::i2c::master.

References master_, and embvm::DriverBase::stop().

◆ sweep()

void embvm::i2c::master::sweep	(	sweep_list_t &	found_list,
		const sweep_cb_t &	cb
	)

noexceptinherited

Perform an I2C bus sweep to identify active devices.

The sweep function pings all I2C addresses. Devices which ACK are stored in a list and returned via callback.

Parameters

[in,out]	found_list	Caller's memory which will contain the successfully found ping addresses
[in]	cb	The callback which will be called to indicate that the sweep is complete. After the cb is called, found_list is valid and can be used by the caller.

References embvm::i2c::op_t::address, embvm::i2c::busy, I2C_ADDR_MAX, and embvm::i2c::op_t::op.

◆ transfer_()

embvm::i2c::status aardvarkI2CMaster::transfer_	(	const embvm::i2c::op_t &	op,
		const embvm::i2c::master::cb_t &	cb
	)

finalprivatevirtualnoexcept

Implements embvm::i2c::master.

References embvm::i2c::enqueued.

◆ type()

static constexpr embvm::DriverType embvm::i2c::master::type ( )

inlinestaticnoexceptinherited

I2C Driver Type ID.

Returns: I2C type ID.

References embvm::I2C.

Member Data Documentation

◆ master_

aardvarkAdapter& embdrv::aardvarkI2CMaster::master_

private

The aardvarkAdapter instance associated with this driver.

Referenced by stop_().

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ pullups_

i2c::pullups embvm::i2c::master::pullups_ = i2c::pullups::external

protectedinherited

Tracks the active pull-up configuration.

Referenced by embvm::i2c::master::pullups().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ state_

i2c::state embvm::i2c::master::state_ = i2c::state::idle

protectedinherited

Tracks the status of the I2C bus.

Referenced by embvm::i2c::master::state().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

◆ embdrv::aardvarkSPIMaster

class embdrv::aardvarkSPIMaster

Create an Aardvark SPI Master Driver.

This driver requires an aardvarkAdapter to work. The aardvark adapter must be configured with aardvarkMode::SpiGpio or aardvarkMode::SpiI2C.

This is an active object: it has its own thread of control.

embdrv::aardvarkAdapter aardvark{embdrv::aardvarkMode::SpiI2C};

embdrv::aardvarkSPIMaster spi0{aardvark, "spi0"};

Inheritance diagram for embdrv::aardvarkSPIMaster:

Public Member Functions
	aardvarkSPIMaster (aardvarkAdapter &master) noexcept
	Construct a generic SPI master. More...

	aardvarkSPIMaster (aardvarkAdapter &master, const char *name) noexcept
	Construct a named SPI master. More...

	~aardvarkSPIMaster () noexcept final
	Default destructor. More...

void	process_ (const storagePair_t &op) noexcept
	Active object process function. More...

virtual void	configure (spi::baud_t baud) noexcept
	Configure the SPI bus. More...

spi::mode	mode () const noexcept
	Get the current SPI bus mode. More...

spi::mode	mode (spi::mode mode) noexcept
	Set the SPI bus mode. More...

spi::order	order () const noexcept
	Get the current SPI bus byte order. More...

spi::order	order (spi::order order) noexcept
	Set the SPI bus byte order. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

size_t	queuedCount () const noexcept
	Get the number of operations in the queue. More...

bool	enqueue (std::pair< embvm::spi::op_t, const embvm::spi::master::cb_t > t) noexcept
	Add an operation to the queue. More...

void	shutdown () noexcept
	Shutdown the active object. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	SPI Driver Type ID. More...

Protected Member Functions
embvm::comm::status	transfer_ (const spi::op_t &op, const cb_t &cb) noexcept override=0

Protected Attributes
spi::mode	mode_ = spi::mode::mode0
	Stores the active SPI mode configuration. More...

spi::order	order_ = spi::order::msbFirst
	Stores the active SPI byte ordering. More...

type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Types
using	storagePair_t = std::pair< embvm::spi::op_t, const embvm::spi::master::cb_t >
	The storage type that the active object stores. More...

Private Member Functions
void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	configure_ () noexcept final
	Configure the SPI bus for operation. More...

uint32_t	baudrate_ (uint32_t baud) noexcept final

embvm::comm::status	transfer_ (const embvm::spi::op_t &op, const embvm::spi::master::cb_t &cb) noexcept final

void	setMode_ (embvm::spi::mode mode) noexcept final
	Set the SPI bus mode. More...

void	setOrder_ (embvm::spi::order order) noexcept final
	Set the SPI bus byte order. More...

Private Attributes
aardvarkAdapter &	master_
	The aardvarkAdapter instance associated with this driver. More...

Member Typedef Documentation

◆ storagePair_t

using embdrv::aardvarkSPIMaster::storagePair_t = std::pair<embvm::spi::op_t, const embvm::spi::master::cb_t>

private

The storage type that the active object stores.

Constructor & Destructor Documentation

◆ aardvarkSPIMaster() [1/2]

embdrv::aardvarkSPIMaster::aardvarkSPIMaster ( aardvarkAdapter & master )

inlineexplicitnoexcept

Construct a generic SPI master.

Parameters

master The aardvarkAdapter instance associated with this driver.

◆ aardvarkSPIMaster() [2/2]

embdrv::aardvarkSPIMaster::aardvarkSPIMaster	(	aardvarkAdapter &	master,
		const char *	name
	)

inlineexplicitnoexcept

Construct a named SPI master.

Parameters

master	The aardvarkAdapter instance associated with this driver.
name	The name of the driver.

◆ ~aardvarkSPIMaster()

aardvarkSPIMaster::~aardvarkSPIMaster ( )

finaldefaultnoexcept

Default destructor.

Member Function Documentation

◆ baudrate_()

uint32_t aardvarkSPIMaster::baudrate_ ( uint32_t baud )

finalprivatevirtualnoexcept

Implements embvm::spi::master.

References aa_spi_bitrate(), assert, and INPUT_BAUDRATE_TO_AARDVARK_CONV_FACTOR.

◆ configure()

virtual void embvm::spi::master::configure ( spi::baud_t baud )

inlinevirtualnoexceptinherited

Configure the SPI bus.

Configures the SPI bus for operation and sets the target baud rate.

Derived classes must implement the configure_() function to set up the target hardware.

Parameters

baud	The target baudrate, in Hz. TODO: Tolerance - allowed relative tolerance for the resulting baudrate

References embvm::spi::master::configure_().

◆ configure_()

void aardvarkSPIMaster::configure_ ( )

finalprivatevirtualnoexcept

Configure the SPI bus for operation.

This function is implemented by the derived class. It is responsible for configuring the target hardware for operation.

Implements embvm::spi::master.

References AA_SPI_BITORDER_LSB, AA_SPI_BITORDER_MSB, aa_spi_configure(), embdrv::aardvarkAdapter::handle(), embdrv::aardvarkAdapter::lock(), master_, embvm::spi::master::mode_, embvm::spi::msbFirst, embvm::spi::master::order_, embvm::DriverBase::started(), and embdrv::aardvarkAdapter::unlock().

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ enqueue()

bool embutil::activeObject< aardvarkSPIMaster , std::pair< embvm::spi::op_t, const embvm::spi::master::cb_t > , 0 , std::mutex , std::condition_variable >::enqueue ( std::pair< embvm::spi::op_t, const embvm::spi::master::cb_t > t )

inlinenoexceptinherited

Add an operation to the queue.

This function can be called directly, or by functions internal to the activeObject. For example, the "transfer" API enqueues transfer operations.

This function is marked noexcept because we want the program to terminate if an exception results from this call. For example, the underlying queue may throw on push.

Parameters

t	The operation data object to enqueue for later processing.

◆ mode() [1/2]

spi::mode embvm::spi::master::mode ( ) const

inlinenoexceptinherited

Get the current SPI bus mode.

Returns: The currently configured mode.

References embvm::spi::master::mode_.

Referenced by embvm::spi::master::mode(), and embvm::spi::activeMaster< TQueueSize, TLock, TCond >::setMode_().

◆ mode() [2/2]

spi::mode embvm::spi::master::mode ( spi::mode mode )

inlinenoexceptinherited

Set the SPI bus mode.

Derived classes must implement the setMode_() function, which is reponsible for configuring the target hardware.

Parameters

mode	The desired SPI bus mode.

Returns: The new SPI bus mode.

References embvm::spi::master::mode(), embvm::spi::master::mode_, and embvm::spi::master::setMode_().

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ order() [1/2]

spi::order embvm::spi::master::order ( ) const

inlinenoexceptinherited

Get the current SPI bus byte order.

Returns: The currently configured byte order.

References embvm::spi::master::order_.

Referenced by embvm::spi::master::order(), and embvm::spi::activeMaster< TQueueSize, TLock, TCond >::setOrder_().

◆ order() [2/2]

spi::order embvm::spi::master::order ( spi::order order )

inlinenoexceptinherited

Set the SPI bus byte order.

Derived classes must implement the setOrder_() function, which is reponsible for configuring the target hardware.

Parameters

order The desired byte ordering.

Returns: The new byte ordering.

References embvm::spi::master::order(), embvm::spi::master::order_, and embvm::spi::master::setOrder_().

◆ process_()

void aardvarkSPIMaster::process_ ( const storagePair_t & op )

noexcept

Active object process function.

References AA_OK, AA_SPI_DROPPED_EXCESS_BYTES, AA_SPI_NOT_AVAILABLE, AA_SPI_NOT_ENABLED, AA_SPI_SLAVE_READ_ERROR, AA_SPI_SLAVE_TIMEOUT, aa_spi_write(), AA_SPI_WRITE_ERROR, embvm::comm::busy, embvm::comm::error, embvm::comm::ok, r, and embvm::comm::unknown.

◆ queuedCount()

size_t embutil::activeObject< aardvarkSPIMaster , std::pair< embvm::spi::op_t, const embvm::spi::master::cb_t > , 0 , std::mutex , std::condition_variable >::queuedCount ( ) const

inlinenoexceptinherited

Get the number of operations in the queue.

Returns: the number of queued operations.

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ setMode_()

void aardvarkSPIMaster::setMode_ ( embvm::spi::mode mode )

finalprivatevirtualnoexcept

Set the SPI bus mode.

This function is implemented by the derived class. It is responsible for configuring the target hardware to use the new mode.

Parameters

mode	The desired byte ordering.

Implements embvm::spi::master.

References assert, embvm::spi::mode0, and embvm::spi::mode3.

◆ setOrder_()

void aardvarkSPIMaster::setOrder_ ( embvm::spi::order order )

finalprivatevirtualnoexcept

Set the SPI bus byte order.

This function is implemented by the derived class. It is responsible for configuring the target hardware to use the new byte ordering.

Parameters

order The desired byte ordering.

Implements embvm::spi::master.

◆ shutdown()

void embutil::activeObject< aardvarkSPIMaster , std::pair< embvm::spi::op_t, const embvm::spi::master::cb_t > , 0 , std::mutex , std::condition_variable >::shutdown ( )

inlinenoexceptinherited

Shutdown the active object.

Call this function in the parent class destructor to stop the AO thread operation before destroying the parent class. This will prevent memory access problems due to race conidtions during destruction.

This function is marked noexcept because we want the program to terminate if an exception results from this call.

The shutdown process is permanent and cannot be reversed without recreating the object.

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void aardvarkSPIMaster::start_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::spi::master.

References embvm::DriverBase::start().

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

void aardvarkSPIMaster::stop_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::spi::master.

References master_, and embvm::DriverBase::stop().

◆ transfer_() [1/2]

embvm::comm::status aardvarkSPIMaster::transfer_	(	const embvm::spi::op_t &	op,
		const embvm::spi::master::cb_t &	cb
	)

finalprivatenoexcept

References embvm::comm::enqueued.

◆ transfer_() [2/2]

embvm::comm::status embvm::spi::master::transfer_	(	const spi::op_t &	op,
		const cb_t &	cb
	)

overrideprotectedpure virtualnoexceptinherited

◆ type()

static constexpr embvm::DriverType embvm::spi::master::type ( )

inlinestaticnoexceptinherited

SPI Driver Type ID.

Returns: SPI type ID.

References embvm::SPI.

Member Data Documentation

◆ master_

aardvarkAdapter& embdrv::aardvarkSPIMaster::master_

private

The aardvarkAdapter instance associated with this driver.

Referenced by configure_(), and stop_().

◆ mode_

spi::mode embvm::spi::master::mode_ = spi::mode::mode0

protectedinherited

Stores the active SPI mode configuration.

Referenced by configure_(), and embvm::spi::master::mode().

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ order_

spi::order embvm::spi::master::order_ = spi::order::msbFirst

protectedinherited

Stores the active SPI byte ordering.

Referenced by configure_(), and embvm::spi::master::order().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

Enumeration Type Documentation

◆ aardvarkMode

enum embdrv::aardvarkMode

strong

Aardvark master operational modes.

Enumerator
GpioOnly	Aardvark Device used for GPIO. Enables the full array of GPIO IOs for use.
SpiGpio	Aardvark device used for SPI + GPIO. The Non-SPI pins can be used in GPIO mode.
GpioI2C	Aardvark device used for I2C + GPIO. The non-I2C pins can be used in GPIO mode.
SpiI2C	Aardvark Device used for I2C + SPI. GPIO use is not supported
Query	Query the current mode.

Variable Documentation

◆ AARDVARK_IO_COUNT

constexpr size_t embdrv::AARDVARK_IO_COUNT = 6

inline

The number of IO pins supported by the AARDVARK sensor.

Referenced by embdrv::aardvarkGPIOInput< 4 >::aardvarkGPIOInput(), and embdrv::aardvarkGPIOOutput< 5 >::aardvarkGPIOOutput().

◆ aardvarkIO

constexpr std::array<uint8_t, AARDVARK_IO_COUNT> embdrv::aardvarkIO

inlinestatic

Initial value:

= {

AA_GPIO_SCL, AA_GPIO_SDA, AA_GPIO_MISO, AA_GPIO_SCK, AA_GPIO_MOSI, AA_GPIO_SS}

AA_GPIO_SCK

Definition: aardvark.h:660

AA_GPIO_SS

Definition: aardvark.h:662

AA_GPIO_MISO

Definition: aardvark.h:659

AA_GPIO_SDA

Definition: aardvark.h:658

AA_GPIO_SCL

Definition: aardvark.h:657

AA_GPIO_MOSI

Definition: aardvark.h:661

aardvark IO pin IDs

Referenced by embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkAdapter::pullup(), embdrv::aardvarkGPIOOutput< 5 >::set(), and embdrv::aardvarkGPIOOutput< 5 >::start_().

Classes

Enumerations

Variables

Detailed Description

Class Documentation

◆ embdrv::aardvarkAdapter

Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ aardvarkAdapter() [1/4]

◆ aardvarkAdapter() [2/4]

◆ aardvarkAdapter() [3/4]

◆ aardvarkAdapter() [4/4]

◆ ~aardvarkAdapter()

Member Function Documentation

◆ DriverType()

◆ handle()

◆ i2cPullups() [1/2]

◆ i2cPullups() [2/2]

◆ lock()

◆ mode() [1/2]

◆ mode() [2/2]

◆ name()

◆ name_cstr()

◆ operator++()

◆ pullup()

◆ restart()

◆ start()

◆ start_()

◆ started()

◆ stop()

◆ stop_()

◆ targetPower() [1/2]

◆ targetPower() [2/2]

◆ unlock()

Member Data Documentation

◆ handle_

◆ lock_

◆ mode_

◆ name_

◆ port_

◆ pullup_mask_

◆ started_

◆ started_refcnt_

◆ type_

◆ embdrv::aardvarkGPIOInput

template<uint8_t TPinID, embvm::gpio::pull TPull = embvm::gpio::pull::none> class embdrv::aardvarkGPIOInput< TPinID, TPull >

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ aardvarkGPIOInput() [1/2]

◆ aardvarkGPIOInput() [2/2]

◆ ~aardvarkGPIOInput()

Member Function Documentation

◆ direction()

◆ DriverType()

◆ get()

◆ name()

◆ name_cstr()

◆ operator++()

◆ pull()

◆ pull_()

◆ restart()

◆ start()

◆ start_()

◆ started()

◆ stop()

◆ stop_()

◆ type()

Member Data Documentation

◆ master_

◆ name_

◆ started_

◆ type_

◆ embdrv::aardvarkGPIOOutput

template<uint8_t TPinID, embvm::gpio::pull TPull = embvm::gpio::pull::none>
class embdrv::aardvarkGPIOInput< TPinID, TPull >

template<uint8_t TPinID>
class embdrv::aardvarkGPIOOutput< TPinID >
