#include <nrf52dk_fwdemo_hw_platform.hpp>

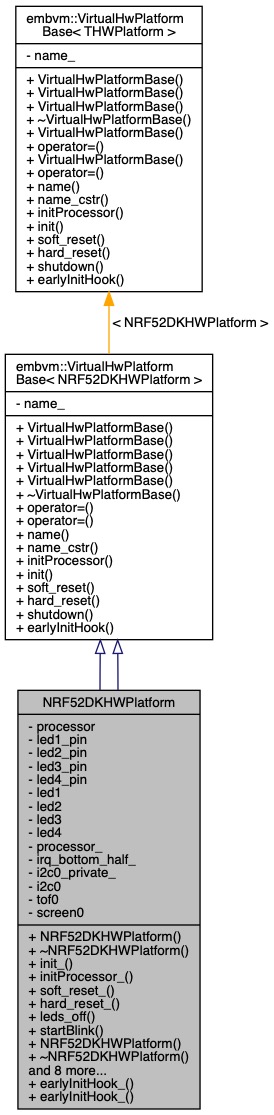

Inheritance diagram for NRF52DKHWPlatform:

Public Member Functions
	NRF52DKHWPlatform () noexcept
	Default constructor. More...

	~NRF52DKHWPlatform () noexcept
	Default destructor. More...

void	init_ () noexcept

void	initProcessor_ () noexcept

void	soft_reset_ () noexcept

void	hard_reset_ () noexcept

void	leds_off () noexcept

void	startBlink () noexcept

	NRF52DKHWPlatform () noexcept
	Default constructor. More...

	~NRF52DKHWPlatform () noexcept
	Default destructor. More...

void	init_ () noexcept

void	initProcessor_ () noexcept

void	soft_reset_ () noexcept

void	hard_reset_ () noexcept

void	leds_off () noexcept

std::array< embvm::led::base *, 4 >	getLEDInstances () noexcept

embvm::tof::sensor &	tof0_inst () noexcept

embvm::basicDisplay &	screen0_inst () noexcept

constexpr const std::string_view &	name () const noexcept
	Returns the Virtual HW Platform's name. More...

constexpr const char *	name_cstr () const noexcept
	Returns the platform name as a cstring for C API compatibility. More...

void	initProcessor () noexcept
	Initialize the processor. More...

void	init () noexcept
	Initialize the hardware platform. More...

void	soft_reset () noexcept
	Perform a soft reset of the system (chip reset) More...

void	hard_reset () noexcept
	Perform a hard reset of the system (power cycle) More...

void	shutdown () noexcept
	Shutdown the system. More...

Static Public Member Functions
static void	earlyInitHook_ () noexcept

static void	earlyInitHook_ () noexcept

static void	earlyInitHook () noexcept
	Perform any special initialization steps. More...

Private Types
using	PlatformBase = embvm::VirtualHwPlatformBase< NRF52DKHWPlatform >

using	PlatformBase = embvm::VirtualHwPlatformBase< NRF52DKHWPlatform >

using	i2c0_t = nRFi2cMaster< NordicTWIM0, nRFPinID< 0, 27 >, nRFPinID< 0, 26 > >

Private Attributes
nRF52840	processor

nRFGPIOOutput< 0, 13 >	led1_pin {}

nRFGPIOOutput< 0, 14 >	led2_pin {}

nRFGPIOOutput< 0, 15 >	led3_pin {}

nRFGPIOOutput< 0, 16 >	led4_pin {}

embvm::led::gpioActiveLow	led1 {led1_pin, "led1"}

embvm::led::gpioActiveLow	led2 {led2_pin, "led2"}

embvm::led::gpioActiveLow	led3 {led3_pin, "led3"}

embvm::led::gpioActiveLow	led4 {led4_pin, "led4"}

nRF52840	processor_

embutil::InterruptQueue< ThumbInterruptLock, 156 >	irq_bottom_half_

i2c0_t	i2c0_private_

embvm::i2c::activeMaster< 128 >	i2c0 {i2c0_private_}

embdrv::vl53l1x	tof0 {i2c0, SPARKFUN_VL53L1X_ADDR}

embdrv::ssd1306	screen0 {i2c0, SPARKFUN_SSD1306_ADDR}

Member Typedef Documentation

◆ i2c0_t

using NRF52DKHWPlatform::i2c0_t = nRFi2cMaster<NordicTWIM0, nRFPinID<0, 27>, nRFPinID<0, 26> >

private

◆ PlatformBase [1/2]

using NRF52DKHWPlatform::PlatformBase = embvm::VirtualHwPlatformBase<NRF52DKHWPlatform>

private

◆ PlatformBase [2/2]

using NRF52DKHWPlatform::PlatformBase = embvm::VirtualHwPlatformBase<NRF52DKHWPlatform>

private

Constructor & Destructor Documentation

◆ NRF52DKHWPlatform() [1/2]

NRF52DKHWPlatform::NRF52DKHWPlatform ( )

inlinenoexcept

Default constructor.

◆ ~NRF52DKHWPlatform() [1/2]

NRF52DKHWPlatform::~NRF52DKHWPlatform ( )

noexcept

Default destructor.

◆ NRF52DKHWPlatform() [2/2]

NRF52DKHWPlatform::NRF52DKHWPlatform ( )

inlinenoexcept

Default constructor.

◆ ~NRF52DKHWPlatform() [2/2]

NRF52DKHWPlatform::~NRF52DKHWPlatform ( )

noexcept

Default destructor.

Member Function Documentation

◆ earlyInitHook()

static void embvm::VirtualHwPlatformBase< NRF52DKHWPlatform >::earlyInitHook ( )

inlinestaticnoexceptinherited

Perform any special initialization steps.

The earlyInitHook_() function must be implemented by the derived class as a static function.

These functions run before the C Run-time setup functions are called, and normal functionality (e.g. OS concepts) are not available.

Early initialization steps represent any super early code that needs to execute. For example, DRAM might need to be initialized before the boot process can relocate memory to its proper location in memory.

These functions are declared static to prevent you from easily using drivers within their confines

◆ earlyInitHook_() [1/2]

void NRF52DKHWPlatform::earlyInitHook_ ( )

staticnoexcept

◆ earlyInitHook_() [2/2]

static void NRF52DKHWPlatform::earlyInitHook_ ( )

staticnoexcept

◆ getLEDInstances()

std::array<embvm::led::base*, 4> NRF52DKHWPlatform::getLEDInstances ( )

inlinenoexcept

References led1, led2, led3, and led4.

Referenced by nRF52DK_FrameworkDemoPlatform::led_blink_thread_().

◆ hard_reset()

void embvm::VirtualHwPlatformBase< NRF52DKHWPlatform >::hard_reset ( )

inlinenoexceptinherited

Perform a hard reset of the system (power cycle)

The hard_reset_() function must be implemented by the derived class.

A hard reset is intended to perform a full power cycle of the system.

Platforms which do not support a hard reset should default to calling soft_reset().

◆ hard_reset_() [1/2]

void NRF52DKHWPlatform::hard_reset_ ( )

noexcept

References soft_reset_().

◆ hard_reset_() [2/2]

void NRF52DKHWPlatform::hard_reset_ ( )

noexcept

◆ init()

void embvm::VirtualHwPlatformBase< NRF52DKHWPlatform >::init ( )

inlinenoexceptinherited

Initialize the hardware platform.

The init_() function must be implemented by the derived class.

Perform any hardware platform initialization steps, such as preparing peripherals for use, setting up callbacks, etc.

◆ init_() [1/2]

void NRF52DKHWPlatform::init_ ( )

noexcept

References led1, led2, led3, led4, and embvm::DriverBase::start().

◆ init_() [2/2]

void NRF52DKHWPlatform::init_ ( )

noexcept

◆ initProcessor()

void embvm::VirtualHwPlatformBase< NRF52DKHWPlatform >::initProcessor ( )

inlinenoexceptinherited

Initialize the processor.

The initProcessor_() function must be implemented by the derived class.

Perform any steps necessary for initializing the processor & processor peripheral devices for use.

Note that this is only intended to be processor initialization. Platform initialization nis handled by the init() function.

This function will likely invoke the VirtualProcessor::init() function, but the order and actual initialization process is left to the derived class.

◆ initProcessor_() [1/2]

void NRF52DKHWPlatform::initProcessor_ ( )

noexcept

◆ initProcessor_() [2/2]

void NRF52DKHWPlatform::initProcessor_ ( )

noexcept

◆ leds_off() [1/2]

void NRF52DKHWPlatform::leds_off ( )

noexcept

References led1, led2, and embvm::led::gpio< TActiveHigh >::off().

◆ leds_off() [2/2]

void NRF52DKHWPlatform::leds_off ( )

noexcept

◆ name()

constexpr const std::string_view& embvm::VirtualHwPlatformBase< NRF52DKHWPlatform >::name ( ) const

inlinenoexceptinherited

Returns the Virtual HW Platform's name.

◆ name_cstr()

constexpr const char* embvm::VirtualHwPlatformBase< NRF52DKHWPlatform >::name_cstr ( ) const

inlinenoexceptinherited

Returns the platform name as a cstring for C API compatibility.

◆ screen0_inst()

embvm::basicDisplay& NRF52DKHWPlatform::screen0_inst ( )

inlinenoexcept

References screen0.

Referenced by nRF52DK_FrameworkDemoPlatform::initHWPlatform_().

◆ shutdown()

void embvm::VirtualHwPlatformBase< NRF52DKHWPlatform >::shutdown ( )

inlinenoexceptinherited

Shutdown the system.

The shutdown_() function must be implemented by the derived class.

If your platform supports shutdown capability, take the proper steps to initiate a shutdown.

If the platform does not support shutdown capability, implement your shutdown_() function as an assert to notify users trying to call this API. You could also leave the shutdown_() function undefined. Anyone who calls the shutdown() function on a platform with an undefined shutdown_() function will encounter a compiler error.

The shutdown function is not expected to return.

◆ soft_reset()

void embvm::VirtualHwPlatformBase< NRF52DKHWPlatform >::soft_reset ( )

inlinenoexceptinherited

Perform a soft reset of the system (chip reset)

The soft_reset_() function must be implemnted by the derived class.

A soft reset is intended to reset the program to the beginning without performing a full power cycle.

A good strategy is to just call virtual processor's reset() function, if one is provided.

◆ soft_reset_() [1/2]

void NRF52DKHWPlatform::soft_reset_ ( )

noexcept

Referenced by hard_reset_().

◆ soft_reset_() [2/2]

void NRF52DKHWPlatform::soft_reset_ ( )

noexcept

◆ startBlink()

void NRF52DKHWPlatform::startBlink ( )

noexcept

References led1, led2, led3, led4, processor, and nRF52840::spin().

◆ tof0_inst()

embvm::tof::sensor& NRF52DKHWPlatform::tof0_inst ( )

inlinenoexcept

References tof0.

Referenced by nRF52DK_FrameworkDemoPlatform::initHWPlatform_().

Member Data Documentation

◆ i2c0

embvm::i2c::activeMaster<128> NRF52DKHWPlatform::i2c0 {i2c0_private_}

private

◆ i2c0_private_

i2c0_t NRF52DKHWPlatform::i2c0_private_

private

◆ irq_bottom_half_

embutil::InterruptQueue<ThumbInterruptLock, 156> NRF52DKHWPlatform::irq_bottom_half_

private

◆ led1

embvm::led::gpioActiveLow NRF52DKHWPlatform::led1 {led1_pin, "led1"}

private

Referenced by getLEDInstances(), init_(), leds_off(), and startBlink().

◆ led1_pin

nRFGPIOOutput< 0, 13 > NRF52DKHWPlatform::led1_pin {}

private

◆ led2

embvm::led::gpioActiveLow NRF52DKHWPlatform::led2 {led2_pin, "led2"}

private

Referenced by getLEDInstances(), init_(), leds_off(), and startBlink().

◆ led2_pin

nRFGPIOOutput< 0, 14 > NRF52DKHWPlatform::led2_pin {}

private

◆ led3

embvm::led::gpioActiveLow NRF52DKHWPlatform::led3 {led3_pin, "led3"}

private

Referenced by getLEDInstances(), init_(), and startBlink().

◆ led3_pin

nRFGPIOOutput< 0, 15 > NRF52DKHWPlatform::led3_pin {}

private

◆ led4

embvm::led::gpioActiveLow NRF52DKHWPlatform::led4 {led4_pin, "led4"}

private

Referenced by getLEDInstances(), init_(), and startBlink().

◆ led4_pin

nRFGPIOOutput< 0, 16 > NRF52DKHWPlatform::led4_pin {}

private

◆ processor

nRF52840 NRF52DKHWPlatform::processor

private

Referenced by startBlink().

◆ processor_

nRF52840 NRF52DKHWPlatform::processor_

private

◆ screen0

embdrv::ssd1306 NRF52DKHWPlatform::screen0 {i2c0, SPARKFUN_SSD1306_ADDR}

private

Referenced by screen0_inst().

◆ tof0

embdrv::vl53l1x NRF52DKHWPlatform::tof0 {i2c0, SPARKFUN_VL53L1X_ADDR}

private

Referenced by tof0_inst().

The documentation for this class was generated from the following files:

src/hw_platforms/nordic/nrf52dk_blinky/nrf52dk_blinky_hw_platform.hpp
src/hw_platforms/nordic/nrf52dk_fwdemo/nrf52dk_fwdemo_hw_platform.hpp
src/hw_platforms/nordic/nrf52dk_blinky/nrf52dk_blinky_hw_platform.cpp
src/hw_platforms/nordic/nrf52dk_fwdemo/nrf52dk_fwdemo_hw_platform.cpp
