This class provides LED interface definitions. More...

#include <led.hpp>

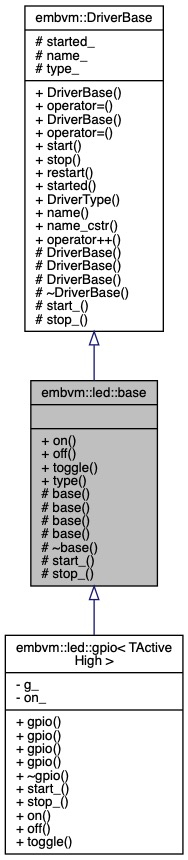

Inheritance diagram for embvm::led::base:

Public Member Functions
virtual void	on () noexcept=0
	Turn on the LED. More...

virtual void	off () noexcept=0
	Turn off the LED. More...

virtual void	toggle () noexcept=0
	Toggle the LED state. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	LED Driver Type ID. More...

Protected Member Functions
	base () noexcept
	Default constructor. More...

	base (const char *name) noexcept
	Construct an led::base with a C-string name. More...

	base (const std::string &name) noexcept
	Construct an led::base with a std::string name. More...

	base (const std::string_view &name) noexcept
	Construct an led::base with a std::string_view name. More...

	~base () noexcept override
	Default destructor. More...

void	start_ () noexcept override=0
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept override=0
	Derived classes override the start_ method to control driver-specific startup behavior. More...

Protected Attributes
type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Detailed Description

This class provides LED interface definitions.

The led::base class defines the common interfaces for LED drivers. This class can be inherited to provide specific LED implementations, such as GPIO, port-pin, LED IC, etc.

Define an LED driver

To create a specialized LED interface, derive from the led::base object:

class gpio final : public base

{ ... };

Derived classes must implement the following interfaces:

Derived classes must also implement pure virtual embvm::DriverBase functions:

Using an LED driver

The primary means of working with LED driver types is the on(), off(), and toggle() functions.

Any configuration needed for LED driver specializations should be handled in the derived classes (preferably in the start_() and stop_() functions). The generic interface has no knowledge of configuration requirements.

Constructor & Destructor Documentation

◆ base() [1/4]

embvm::led::base::base ( )

inlineprotectednoexcept

Default constructor.

Initializes the led::base instance with a generic name.

◆ base() [2/4]

embvm::led::base::base ( const char * name )

inlineexplicitprotectednoexcept

Construct an led::base with a C-string name.

Initializes the led::base instance with a name.

Parameters

name	The name of the LED instance.

◆ base() [3/4]

embvm::led::base::base ( const std::string & name )

inlineexplicitprotectednoexcept

Construct an led::base with a std::string name.

Initializes the led::base instance with a name.

Parameters

name	The name of the LED instance. led::base() uses a std::string_view, so the std::string must remain valid

◆ base() [4/4]

embvm::led::base::base ( const std::string_view & name )

inlineexplicitprotectednoexcept

Construct an led::base with a std::string_view name.

Initializes the led::base instance with a name.

Parameters

name	The name of the LED instance.

◆ ~base()

embvm::led::base::~base ( )

overrideprotecteddefaultnoexcept

Default destructor.

Member Function Documentation

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ off()

virtual void embvm::led::base::off ( )

pure virtualnoexcept

Turn off the LED.

Postcondition: LED is turned off.

Implemented in embvm::led::gpio< TActiveHigh >.

Referenced by embvm::led::gpio< TActiveHigh >::start_(), and embvm::led::gpio< TActiveHigh >::toggle().

◆ on()

virtual void embvm::led::base::on ( )

pure virtualnoexcept

Turn on the LED.

Postcondition: LED is turned on.

Implemented in embvm::led::gpio< TActiveHigh >.

Referenced by embvm::led::gpio< TActiveHigh >::toggle().

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void embvm::led::base::start_ ( )

overrideprotectedpure virtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::DriverBase.

Implemented in embvm::led::gpio< TActiveHigh >.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

void embvm::led::base::stop_ ( )

overrideprotectedpure virtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::DriverBase.

Implemented in embvm::led::gpio< TActiveHigh >.

◆ toggle()

virtual void embvm::led::base::toggle ( )

pure virtualnoexcept

Toggle the LED state.

If the LED is on, turn it off. If the LED is off, turn it on. The logic for implementing toggle is left to the base class, as there may be efficient options that depend on the specific implementation.

Derived classes must implement the toggle() function.

Postcondition: If the LED was off, the LED is now on. If the LED was on, LED is now off.

Implemented in embvm::led::gpio< TActiveHigh >.

◆ type()

static constexpr embvm::DriverType embvm::led::base::type ( )

inlinestaticnoexcept

LED Driver Type ID.

Returns: LED type ID.

References embvm::LED.

Member Data Documentation

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

The documentation for this class was generated from the following files:

src/core/driver/led.hpp
src/core/driver/internal/led.cpp
