embvm::spi::activeMaster< TQueueSize, TLock, TCond > Class Template Reference

#include <active_spi.hpp>

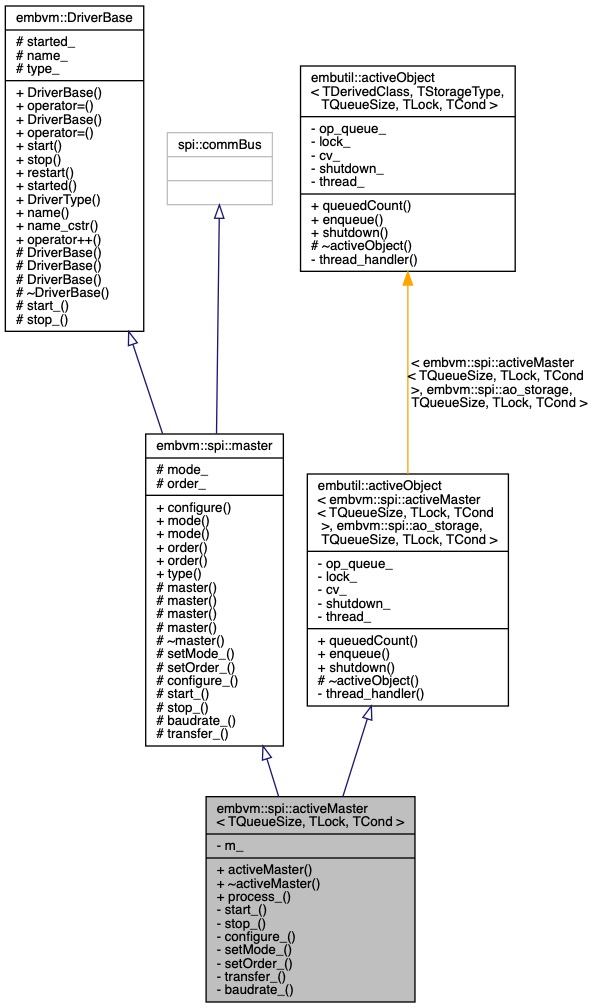

Inheritance diagram for embvm::spi::activeMaster< TQueueSize, TLock, TCond >:

Public Member Functions
	activeMaster (embvm::spi::master &m) noexcept
	~activeMaster ()=default
void	process_ (ao_storage pair) noexcept
virtual void	configure (spi::baud_t baud) noexcept
	Configure the SPI bus. More...
spi::mode	mode () const noexcept
	Get the current SPI bus mode. More...
spi::mode	mode (spi::mode mode) noexcept
	Set the SPI bus mode. More...
spi::order	order () const noexcept
	Get the current SPI bus byte order. More...
spi::order	order (spi::order order) noexcept
	Set the SPI bus byte order. More...
void	start () noexcept
	Start the driver. More...
void	stop () noexcept
	Stop the driver. More...
void	restart () noexcept
	Restart the driver. More...
type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...
constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...
constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...
constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...
virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...
size_t	queuedCount () const noexcept
	Get the number of operations in the queue. More...
bool	enqueue (embvm::spi::ao_storage t) noexcept
	Add an operation to the queue. More...
void	shutdown () noexcept
	Shutdown the active object. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	SPI Driver Type ID. More...

Protected Member Functions
embvm::comm::status	transfer_ (const spi::op_t &op, const cb_t &cb) noexcept override=0

Protected Attributes
spi::mode	mode_ = spi::mode::mode0
	Stores the active SPI mode configuration. More...
spi::order	order_ = spi::order::msbFirst
	Stores the active SPI byte ordering. More...
type_safe::boolean	started_ = false
	Tracks the driver state. More...
const std::string_view	name_
	Name of the driver instance. More...
const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Types
using	ao_base = embutil::activeObject< activeMaster, ao_storage, TQueueSize, TLock, TCond >

Private Member Functions
void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...
void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...
void	configure_ () noexcept final
	Configure the SPI bus for operation. More...
void	setMode_ (embvm::spi::mode mode) noexcept final
	Set the SPI bus mode. More...
void	setOrder_ (embvm::spi::order order) noexcept final
	Set the SPI bus byte order. More...
embvm::spi::status	transfer_ (const embvm::spi::op_t &op, const embvm::spi::master::cb_t &cb) noexcept final
embvm::spi::baud_t	baudrate_ (embvm::spi::baud_t baud) noexcept final

Private Attributes
embvm::spi::master &	m_

Member Typedef Documentation

ao_base

template<size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

using embvm::spi::activeMaster< TQueueSize, TLock, TCond >::ao_base = embutil::activeObject<activeMaster, ao_storage, TQueueSize, TLock, TCond>

private

Constructor & Destructor Documentation

activeMaster()

template<size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

embvm::spi::activeMaster< TQueueSize, TLock, TCond >::activeMaster ( embvm::spi::master &  m )

inlineexplicitnoexcept

~activeMaster()

template<size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

embvm::spi::activeMaster< TQueueSize, TLock, TCond >::~activeMaster ( )

default

Member Function Documentation

baudrate_()

template<size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

embvm::spi::baud_t embvm::spi::activeMaster< TQueueSize, TLock, TCond >::baudrate_ ( embvm::spi::baud_t  baud )

inlinefinalprivatevirtualnoexcept

Implements embvm::spi::master.

References embvm::spi::activeMaster< TQueueSize, TLock, TCond >::m_.

configure()

virtual void embvm::spi::master::configure ( spi::baud_t  baud )

inlinevirtualnoexceptinherited

Configure the SPI bus.

Configures the SPI bus for operation and sets the target baud rate.

Derived classes must implement the configure_() function to set up the target hardware.

Parameters

baud	The target baudrate, in Hz. TODO: Tolerance - allowed relative tolerance for the resulting baudrate

References embvm::spi::master::configure_().

configure_()

template<size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

void embvm::spi::activeMaster< TQueueSize, TLock, TCond >::configure_ ( )

inlinefinalprivatevirtualnoexcept

Configure the SPI bus for operation.

This function is implemented by the derived class. It is responsible for configuring the target hardware for operation.

Implements embvm::spi::master.

DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns

the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

enqueue()

bool embutil::activeObject< embvm::spi::activeMaster< TQueueSize, TLock, TCond > , embvm::spi::ao_storage , TQueueSize, TLock, TCond >::enqueue ( embvm::spi::ao_storage  t )

inlinenoexceptinherited

Add an operation to the queue.

This function can be called directly, or by functions internal to the activeObject. For example, the "transfer" API enqueues transfer operations.

This function is marked noexcept because we want the program to terminate if an exception results from this call. For example, the underlying queue may throw on push.

Parameters

t	The operation data object to enqueue for later processing.

mode() [1/2]

spi::mode embvm::spi::master::mode ( ) const

inlinenoexceptinherited

Get the current SPI bus mode.

Returns

The currently configured mode.

References embvm::spi::master::mode_.

Referenced by embvm::spi::master::mode(), and embvm::spi::activeMaster< TQueueSize, TLock, TCond >::setMode_().

mode() [2/2]

spi::mode embvm::spi::master::mode ( spi::mode  mode )

inlinenoexceptinherited

Set the SPI bus mode.

Derived classes must implement the setMode_() function, which is reponsible for configuring the target hardware.

Parameters

mode	The desired SPI bus mode.

Returns

The new SPI bus mode.

References embvm::spi::master::mode(), embvm::spi::master::mode_, and embvm::spi::master::setMode_().

name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns

std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns

c-string containing the driver name

References embvm::DriverBase::name_.

operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

order() [1/2]

spi::order embvm::spi::master::order ( ) const

inlinenoexceptinherited

Get the current SPI bus byte order.

Returns

The currently configured byte order.

References embvm::spi::master::order_.

Referenced by embvm::spi::master::order(), and embvm::spi::activeMaster< TQueueSize, TLock, TCond >::setOrder_().

order() [2/2]

spi::order embvm::spi::master::order ( spi::order  order )

inlinenoexceptinherited

Set the SPI bus byte order.

Derived classes must implement the setOrder_() function, which is reponsible for configuring the target hardware.

Parameters

order

The desired byte ordering.

Returns

The new byte ordering.

References embvm::spi::master::order(), embvm::spi::master::order_, and embvm::spi::master::setOrder_().

process_()

template<size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

void embvm::spi::activeMaster< TQueueSize, TLock, TCond >::process_ ( ao_storage  pair )

inlinenoexcept

References embvm::spi::activeMaster< TQueueSize, TLock, TCond >::m_, r, and embvm::this_thread::sleep_for().

queuedCount()

size_t embutil::activeObject< embvm::spi::activeMaster< TQueueSize, TLock, TCond > , embvm::spi::ao_storage , TQueueSize, TLock, TCond >::queuedCount ( ) const

inlinenoexceptinherited

Get the number of operations in the queue.

Returns

the number of queued operations.

restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

setMode_()

template<size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

void embvm::spi::activeMaster< TQueueSize, TLock, TCond >::setMode_ ( embvm::spi::mode  mode )

inlinefinalprivatevirtualnoexcept

Set the SPI bus mode.

This function is implemented by the derived class. It is responsible for configuring the target hardware to use the new mode.

Parameters

mode	The desired byte ordering.

Implements embvm::spi::master.

References embvm::spi::activeMaster< TQueueSize, TLock, TCond >::m_, and embvm::spi::master::mode().

setOrder_()

template<size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

void embvm::spi::activeMaster< TQueueSize, TLock, TCond >::setOrder_ ( embvm::spi::order  order )

inlinefinalprivatevirtualnoexcept

Set the SPI bus byte order.

This function is implemented by the derived class. It is responsible for configuring the target hardware to use the new byte ordering.

Parameters

order

The desired byte ordering.

Implements embvm::spi::master.

References embvm::spi::activeMaster< TQueueSize, TLock, TCond >::m_, and embvm::spi::master::order().

shutdown()

void embutil::activeObject< embvm::spi::activeMaster< TQueueSize, TLock, TCond > , embvm::spi::ao_storage , TQueueSize, TLock, TCond >::shutdown ( )

inlinenoexceptinherited

Shutdown the active object.

Call this function in the parent class destructor to stop the AO thread operation before destroying the parent class. This will prevent memory access problems due to race conidtions during destruction.

This function is marked noexcept because we want the program to terminate if an exception results from this call.

The shutdown process is permanent and cannot be reversed without recreating the object.

start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

start_()

template<size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

void embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_ ( )

inlinefinalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::spi::master.

References embvm::spi::activeMaster< TQueueSize, TLock, TCond >::m_, and embvm::DriverBase::start().

started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns

true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

stop_()

template<size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

void embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_ ( )

inlinefinalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::spi::master.

References embvm::spi::activeMaster< TQueueSize, TLock, TCond >::m_, and embvm::DriverBase::stop().

transfer_() [1/2]

template<size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

embvm::spi::status embvm::spi::activeMaster< TQueueSize, TLock, TCond >::transfer_ ( const embvm::spi::op_t &  op, const embvm::spi::master::cb_t &  cb  )

inlinefinalprivatenoexcept

References embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond >::enqueue().

transfer_() [2/2]

embvm::comm::status embvm::spi::master::transfer_ ( const spi::op_t &  op, const cb_t &  cb  )

overrideprotectedpure virtualnoexceptinherited

type()

static constexpr embvm::DriverType embvm::spi::master::type ( )

inlinestaticnoexceptinherited

SPI Driver Type ID.

Returns

SPI type ID.

References embvm::SPI.

Member Data Documentation

m_

template<size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

embvm::spi::master& embvm::spi::activeMaster< TQueueSize, TLock, TCond >::m_

private

Referenced by embvm::spi::activeMaster< TQueueSize, TLock, TCond >::baudrate_(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::process_(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::setMode_(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::setOrder_(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), and embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_().

mode_

spi::mode embvm::spi::master::mode_ = spi::mode::mode0

protectedinherited

Stores the active SPI mode configuration.

Referenced by embdrv::aardvarkSPIMaster::configure_(), and embvm::spi::master::mode().

name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

order_

spi::order embvm::spi::master::order_ = spi::order::msbFirst

protectedinherited

Stores the active SPI byte ordering.

Referenced by embdrv::aardvarkSPIMaster::configure_(), and embvm::spi::master::order().

started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

---

The documentation for this class was generated from the following file:

• src/core/driver/active_spi.hpp
