Drivers intended for use with simulator applications (run on host machine) More...

Collaboration diagram for Simulator Drivers:

Modules
	Aardvark Adapter Drivers
	Aardvark Adapter drivers, usable for Simulator applications.

Classes
class	embdrv::SimulatorSystemClock
	Simulator system clock driver. More...

class	embdrv::SimulatorTimer
	Simulator timer driver. More...

Detailed Description

Drivers intended for use with simulator applications (run on host machine)

Class Documentation

◆ embdrv::SimulatorSystemClock

class embdrv::SimulatorSystemClock

Simulator system clock driver.

This driver uses the std::chrono::steady_clock to represent a SystemClock driver for simulator applications.

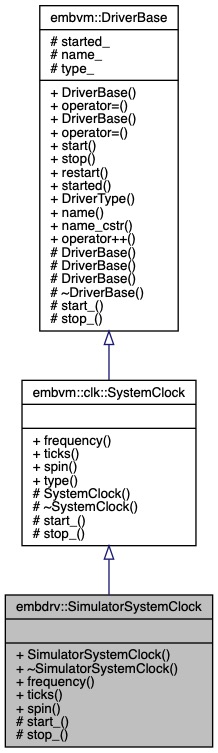

Inheritance diagram for embdrv::SimulatorSystemClock:

Public Types
using	spin_duration_t = std::chrono::duration< uint32_t, std::micro >
	Default spin increment is microseconds. More...

using	tick_duration_t = std::chrono::duration< uint64_t, std::micro >

Public Member Functions
	SimulatorSystemClock () noexcept
	Create a generic simulator system clock. More...

	~SimulatorSystemClock () noexcept final
	Default destructor. More...

embvm::clk::freq_hz_t::rep	frequency () const noexcept final
	Get the frequency of the system clock. More...

tick_duration_t::rep	ticks () const noexcept final
	Check the ticks elapsed since boot. More...

void	spin (spin_duration_t::rep count) noexcept final
	Spin the processor for the specified number of ticks. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	SystemClock Driver Type ID. More...

Protected Member Functions
void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

Protected Attributes
type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Member Typedef Documentation

◆ spin_duration_t

using embvm::clk::SystemClock::spin_duration_t = std::chrono::duration<uint32_t, std::micro>

inherited

Default spin increment is microseconds.

◆ tick_duration_t

using embvm::clk::SystemClock::tick_duration_t = std::chrono::duration<uint64_t, std::micro>

inherited

Constructor & Destructor Documentation

◆ SimulatorSystemClock()

embdrv::SimulatorSystemClock::SimulatorSystemClock ( )

inlinenoexcept

Create a generic simulator system clock.

◆ ~SimulatorSystemClock()

SimulatorSystemClock::~SimulatorSystemClock ( )

finalnoexcept

Default destructor.

Member Function Documentation

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ frequency()

embvm::clk::freq_hz_t::rep embdrv::SimulatorSystemClock::frequency ( ) const

inlinefinalvirtualnoexcept

Get the frequency of the system clock.

Returns: the frequency of the system clock, in Hz.

Implements embvm::clk::SystemClock.

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ spin()

void embdrv::SimulatorSystemClock::spin ( spin_duration_t::rep count )

inlinefinalvirtualnoexcept

Spin the processor for the specified number of ticks.

Derived classes must implement the spin() function.

Parameters

count The number of ticks to spin the processor for.

Implements embvm::clk::SystemClock.

References embvm::this_thread::sleep_for().

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void embdrv::SimulatorSystemClock::start_ ( )

inlinefinalprotectedvirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::clk::SystemClock.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

void embdrv::SimulatorSystemClock::stop_ ( )

inlinefinalprotectedvirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::clk::SystemClock.

◆ ticks()

tick_duration_t::rep embdrv::SimulatorSystemClock::ticks ( ) const

inlinefinalvirtualnoexcept

Check the ticks elapsed since boot.

Derived classes must implement the ticks() function.

Returns: ticks elapsed since boot.

Implements embvm::clk::SystemClock.

◆ type()

static constexpr embvm::DriverType embvm::clk::SystemClock::type ( )

inlinestaticnoexceptinherited

SystemClock Driver Type ID.

Returns: SystemClock type ID.

References embvm::SYSTEM_CLOCK.

Member Data Documentation

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

◆ embdrv::SimulatorTimer

class embdrv::SimulatorTimer

Simulator timer driver.

This driver uses a thread object to simulate a timer with a callback.

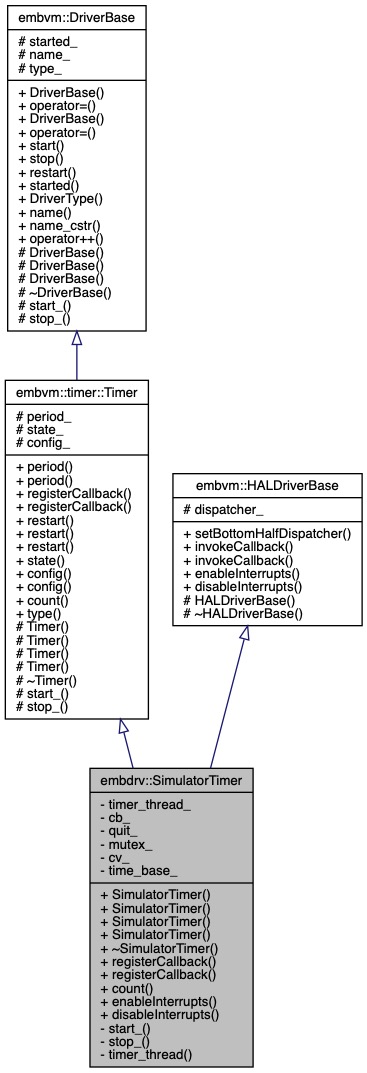

Inheritance diagram for embdrv::SimulatorTimer:

Public Member Functions
	SimulatorTimer () noexcept
	Create a simulator timer with default options. More...

	SimulatorTimer (embvm::timer::timer_period_t period, embvm::timer::config config=embvm::timer::config::oneshot) noexcept
	Create a timer and set configuration options. More...

	SimulatorTimer (embvm::timer::timer_period_t period, embvm::timer::cb_t cb, embvm::timer::config config=embvm::timer::config::oneshot) noexcept
	Create a timer and set configuration options and callback. More...

	SimulatorTimer (embvm::timer::timer_period_t period, embvm::timer::cb_t &&cb, embvm::timer::config config=embvm::timer::config::oneshot) noexcept
	Create a timer and set configuration options and callback. More...

	~SimulatorTimer () noexcept final
	Destructor, which cleans up the timer thread. More...

void	registerCallback (const embvm::timer::cb_t &cb) noexcept final
	Register a timer callback. More...

void	registerCallback (embvm::timer::cb_t &&cb) noexcept final
	Register a timer callback. More...

embvm::timer::timer_period_t	count () const noexcept final
	Read the current timer count. More...

void	enableInterrupts () noexcept final

void	disableInterrupts () noexcept final

timer_period_t	period () const noexcept
	Get the current timer period. More...

timer_period_t	period (timer_period_t period) noexcept
	Set the timer period. More...

virtual void	restart (const timer_period_t period) noexcept
	Restart the timer with a specific period. More...

void	restart (const timer_period_t::rep period) noexcept
	Restart the timer with a specific period. More...

void	restart () noexcept
	Restart the timer with the currently configured period. More...

virtual timer::state	state () const noexcept
	Check the state of the timer. More...

virtual timer::config	config () const noexcept
	Check the configuration of the timer. More...

virtual timer::config	config (timer::config c) noexcept
	Set the timer configuration. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

void	setBottomHalfDispatcher (const embutil::IRQDispatcherFunc_t &dispatcher) noexcept

template<typename TCallback >
void	invokeCallback (TCallback &cb) noexcept

template<typename TCallback , typename... TArgs>
void	invokeCallback (TCallback &cb, TArgs &... args) noexcept

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	Timer Driver Type ID. More...

Protected Attributes
timer_period_t	period_ {0}
	The configured timer period. More...

timer::state	state_ = timer::state::stopped
	The current state of the timer. More...

timer::config	config_ = timer::config::oneshot
	The timer configuratoin. More...

type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

embutil::IRQDispatcherFunc_t	dispatcher_

Private Member Functions
void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	timer_thread () noexcept
	Thread which simulates a timer. More...

Private Attributes
std::thread	timer_thread_

embvm::timer::cb_t	cb_

std::atomic< bool >	quit_ = false

std::mutex	mutex_

std::condition_variable	cv_

embvm::timer::timer_period_t	time_base_ {0}

Constructor & Destructor Documentation

◆ SimulatorTimer() [1/4]

embdrv::SimulatorTimer::SimulatorTimer ( )

inlinenoexcept

Create a simulator timer with default options.

References embvm::timer::Timer::config_, embvm::timer::oneshot, and embvm::timer::Timer::period_.

◆ SimulatorTimer() [2/4]

embdrv::SimulatorTimer::SimulatorTimer	(	embvm::timer::timer_period_t	period,
		embvm::timer::config	config = `embvm::timer::config::oneshot`
	)

inlineexplicitnoexcept

Create a timer and set configuration options.

Parameters

period	The desired timer period.
config	The desired timer configuration (oneshot or periodic).

References embvm::timer::Timer::config(), embvm::timer::Timer::config_, embvm::timer::Timer::period(), and embvm::timer::Timer::period_.

◆ SimulatorTimer() [3/4]

embdrv::SimulatorTimer::SimulatorTimer	(	embvm::timer::timer_period_t	period,
		embvm::timer::cb_t	cb,
		embvm::timer::config	config = `embvm::timer::config::oneshot`
	)

inlineexplicitnoexcept

Create a timer and set configuration options and callback.

Parameters

period	The desired timer period.
cb	The callback function to invoke when the timer expires.
config	The desired timer configuration (oneshot or periodic).

References embvm::timer::Timer::config(), embvm::timer::Timer::config_, embvm::timer::Timer::period(), and embvm::timer::Timer::period_.

◆ SimulatorTimer() [4/4]

embdrv::SimulatorTimer::SimulatorTimer	(	embvm::timer::timer_period_t	period,
		embvm::timer::cb_t &&	cb,
		embvm::timer::config	config = `embvm::timer::config::oneshot`
	)

inlineexplicitnoexcept

Create a timer and set configuration options and callback.

Parameters

period	The desired timer period.
cb	The callback function to invoke when the timer expires.
config	The desired timer configuration (oneshot or periodic).

References embvm::timer::Timer::config(), embvm::timer::Timer::config_, embvm::timer::Timer::period(), and embvm::timer::Timer::period_.

◆ ~SimulatorTimer()

SimulatorTimer::~SimulatorTimer ( )

finalnoexcept

Destructor, which cleans up the timer thread.

References embvm::this_thread::sleep_for(), and embvm::DriverBase::stop().

Member Function Documentation

◆ config() [1/2]

virtual timer::config embvm::timer::Timer::config ( ) const

inlinevirtualnoexceptinherited

Check the configuration of the timer.

Returns: the current timer configuration.

References embvm::timer::Timer::config_.

Referenced by SimulatorTimer().

◆ config() [2/2]

virtual timer::config embvm::timer::Timer::config ( timer::config c )

inlinevirtualnoexceptinherited

Set the timer configuration.

Parameters

c	The desired timer configuration (periodic or oneshot).

Returns: the current timer configuration.

References embvm::timer::Timer::config_.

◆ count()

embvm::timer::timer_period_t embdrv::SimulatorTimer::count ( ) const

inlinefinalvirtualnoexcept

Read the current timer count.

Returns: the current count of the timer

Implements embvm::timer::Timer.

References time_base_.

◆ disableInterrupts()

void SimulatorTimer::disableInterrupts ( )

finalvirtualnoexcept

Implements embvm::HALDriverBase.

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ enableInterrupts()

void SimulatorTimer::enableInterrupts ( )

finalvirtualnoexcept

Implements embvm::HALDriverBase.

◆ invokeCallback() [1/2]

template<typename TCallback >

void embvm::HALDriverBase::invokeCallback ( TCallback & cb )

inlinenoexceptinherited

References embvm::HALDriverBase::dispatcher_.

Referenced by timer_thread(), and nRFi2cMaster< NordicTWIM0, nRFPinID< 0, 27 >, nRFPinID< 0, 26 > >::twim_callback_().

◆ invokeCallback() [2/2]

template<typename TCallback , typename... TArgs>

void embvm::HALDriverBase::invokeCallback	(	TCallback &	cb,
		TArgs &...	args
	)

inlinenoexceptinherited

References embvm::HALDriverBase::dispatcher_.

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ period() [1/2]

timer_period_t embvm::timer::Timer::period ( ) const

inlinenoexceptinherited

Get the current timer period.

Returns: the currently configured timer period.

References embvm::timer::Timer::period_.

Referenced by embvm::timer::Timer::period(), embvm::timer::Timer::restart(), and SimulatorTimer().

◆ period() [2/2]

timer_period_t embvm::timer::Timer::period ( timer_period_t period )

inlinenoexceptinherited

Set the timer period.

If the timer is currently running, this call has no effect. Use restart() instead.

Parameters

period the desired timer period.

Returns: the currently configured timer period.

References embvm::timer::Timer::period(), and embvm::timer::Timer::period_.

◆ registerCallback() [1/2]

void embdrv::SimulatorTimer::registerCallback ( const embvm::timer::cb_t & cb )

inlinefinalvirtualnoexcept

Register a timer callback.

The timer callback function is called whenever the timer expires.

Derived classes must implement this function. Derived classes can choose to support either a single callback or multiple callbacks.

Parameters

cb	A callback to invoke when the timer expires.

Implements embvm::timer::Timer.

References cb_.

◆ registerCallback() [2/2]

void embdrv::SimulatorTimer::registerCallback ( embvm::timer::cb_t && cb )

inlinefinalvirtualnoexcept

Register a timer callback.

The timer callback function is called whenever the timer expires.

Derived classes must implement this function. Derived classes can choose to support either a single callback or multiple callbacks.

Parameters

cb	A callback to invoke when the timer expires.

Implements embvm::timer::Timer.

References cb_.

◆ restart() [1/3]

virtual void embvm::timer::Timer::restart ( const timer_period_t period )

inlinevirtualnoexceptinherited

Restart the timer with a specific period.

Parameters

period The desired timer period to reset the timer to use. Accepts a std::chrono value.

References embvm::timer::Timer::period(), embvm::timer::Timer::period_, embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ restart() [2/3]

void embvm::timer::Timer::restart ( const timer_period_t::rep period )

inlinenoexceptinherited

Restart the timer with a specific period.

Parameters

period The desired timer period to reset the timer to use. Accepts an integral count representing the period in microseonds.

References embvm::timer::Timer::period(), and embvm::timer::Timer::restart().

◆ restart() [3/3]

void embvm::timer::Timer::restart ( )

inlinenoexceptinherited

Restart the timer with the currently configured period.

References embvm::timer::Timer::period_.

Referenced by embvm::timer::Timer::restart().

◆ setBottomHalfDispatcher()

void embvm::HALDriverBase::setBottomHalfDispatcher ( const embutil::IRQDispatcherFunc_t & dispatcher )

inlinenoexceptinherited

References embvm::HALDriverBase::dispatcher_.

Referenced by BlinkySimulatorHWPlatform::init_(), and FWDemoSimulatorHWPlatform::init_().

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void SimulatorTimer::start_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::timer::Timer.

References embvm::timer::armed, mutex_, quit_, embvm::timer::Timer::state_, time_base_, timer_thread(), and timer_thread_.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ state()

virtual timer::state embvm::timer::Timer::state ( ) const

inlinevirtualnoexceptinherited

Check the state of the timer.

Returns: the current timer state.

References embvm::timer::Timer::state_.

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and ~SimulatorTimer().

◆ stop_()

void SimulatorTimer::stop_ ( )

finalprivatevirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::timer::Timer.

References cv_, mutex_, quit_, embvm::timer::Timer::state_, embvm::timer::stopped, and timer_thread_.

◆ timer_thread()

void SimulatorTimer::timer_thread ( )

privatenoexcept

Thread which simulates a timer.

We sleep the thread for the requested period using a std::condition_variable::wait_for(). When the timer expires, we call the callback. We can also be notified early to cancel the timer.

References cb_, embvm::timer::Timer::config_, cv_, embvm::timer::expired, embvm::HALDriverBase::invokeCallback(), mutex_, embvm::timer::Timer::period_, embvm::timer::periodic, quit_, and embvm::timer::Timer::state_.

Referenced by start_().

◆ type()

static constexpr embvm::DriverType embvm::timer::Timer::type ( )

inlinestaticnoexceptinherited

Timer Driver Type ID.

Returns: Timer type ID.

References embvm::TIMER.

Member Data Documentation

◆ cb_

embvm::timer::cb_t embdrv::SimulatorTimer::cb_

private

Referenced by registerCallback(), and timer_thread().

◆ config_

timer::config embvm::timer::Timer::config_ = timer::config::oneshot

protectedinherited

The timer configuratoin.

Referenced by embvm::timer::Timer::config(), SimulatorTimer(), and timer_thread().

◆ cv_

std::condition_variable embdrv::SimulatorTimer::cv_

private

Referenced by stop_(), and timer_thread().

◆ dispatcher_

embutil::IRQDispatcherFunc_t embvm::HALDriverBase::dispatcher_

protectedinherited

Referenced by embvm::HALDriverBase::invokeCallback(), and embvm::HALDriverBase::setBottomHalfDispatcher().

◆ mutex_

std::mutex embdrv::SimulatorTimer::mutex_

private

Referenced by start_(), stop_(), and timer_thread().

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ period_

timer_period_t embvm::timer::Timer::period_ {0}

protectedinherited

The configured timer period.

Referenced by embvm::timer::Timer::period(), embvm::timer::Timer::restart(), SimulatorTimer(), and timer_thread().

◆ quit_

std::atomic<bool> embdrv::SimulatorTimer::quit_ = false

private

Referenced by start_(), stop_(), and timer_thread().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ state_

timer::state embvm::timer::Timer::state_ = timer::state::stopped

protectedinherited

The current state of the timer.

Referenced by start_(), embvm::timer::Timer::state(), stop_(), and timer_thread().

◆ time_base_

embvm::timer::timer_period_t embdrv::SimulatorTimer::time_base_ {0}

private

Referenced by count(), and start_().

◆ timer_thread_

std::thread embdrv::SimulatorTimer::timer_thread_

private

Referenced by start_(), and stop_().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

Modules

Classes

Detailed Description

Class Documentation

◆ embdrv::SimulatorSystemClock

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Member Typedef Documentation

◆ spin_duration_t

◆ tick_duration_t

Constructor & Destructor Documentation

◆ SimulatorSystemClock()

◆ ~SimulatorSystemClock()

Member Function Documentation

◆ DriverType()

◆ frequency()

◆ name()

◆ name_cstr()

◆ operator++()

◆ restart()

◆ spin()

◆ start()

◆ start_()

◆ started()

◆ stop()

◆ stop_()

◆ ticks()

◆ type()

Member Data Documentation

◆ name_

◆ started_

◆ type_

◆ embdrv::SimulatorTimer

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ SimulatorTimer() [1/4]

◆ SimulatorTimer() [2/4]

◆ SimulatorTimer() [3/4]

◆ SimulatorTimer() [4/4]

◆ ~SimulatorTimer()

Member Function Documentation

◆ config() [1/2]

◆ config() [2/2]

◆ count()

◆ disableInterrupts()

◆ DriverType()

◆ enableInterrupts()

◆ invokeCallback() [1/2]

◆ invokeCallback() [2/2]

◆ name()

◆ name_cstr()

◆ operator++()

◆ period() [1/2]

◆ period() [2/2]

◆ registerCallback() [1/2]

◆ registerCallback() [2/2]

◆ restart() [1/3]

◆ restart() [2/3]

◆ restart() [3/3]

◆ setBottomHalfDispatcher()

◆ start()

◆ start_()

◆ started()

◆ state()

◆ stop()

◆ stop_()

◆ timer_thread()

◆ type()

Member Data Documentation

◆ cb_

◆ config_

◆ cv_

◆ dispatcher_
