embvm::HALDriverBase Class Reference

#include <hal_driver.hpp>

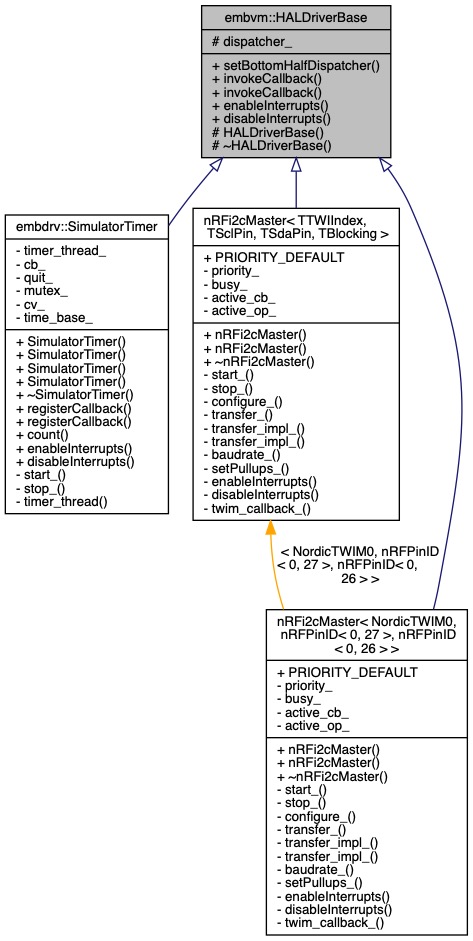

Inheritance diagram for embvm::HALDriverBase:

Public Member Functions
void	setBottomHalfDispatcher (const embutil::IRQDispatcherFunc_t &dispatcher) noexcept
template<typename TCallback >
void	invokeCallback (TCallback &cb) noexcept
template<typename TCallback , typename... TArgs>
void	invokeCallback (TCallback &cb, TArgs &... args) noexcept
virtual void	enableInterrupts () noexcept=0
virtual void	disableInterrupts () noexcept=0

Protected Member Functions
	HALDriverBase ()=default
virtual	~HALDriverBase ()=default

Protected Attributes
embutil::IRQDispatcherFunc_t	dispatcher_

Constructor & Destructor Documentation

HALDriverBase()

embvm::HALDriverBase::HALDriverBase ( )

protecteddefault

~HALDriverBase()

virtual embvm::HALDriverBase::~HALDriverBase ( )

protectedvirtualdefault

Member Function Documentation

disableInterrupts()

virtual void embvm::HALDriverBase::disableInterrupts ( )

pure virtualnoexcept

Implemented in nRFi2cMaster< TTWIIndex, TSclPin, TSdaPin, TBlocking >, nRFi2cMaster< NordicTWIM0, nRFPinID< 0, 27 >, nRFPinID< 0, 26 > >, and embdrv::SimulatorTimer.

enableInterrupts()

virtual void embvm::HALDriverBase::enableInterrupts ( )

pure virtualnoexcept

Implemented in nRFi2cMaster< TTWIIndex, TSclPin, TSdaPin, TBlocking >, nRFi2cMaster< NordicTWIM0, nRFPinID< 0, 27 >, nRFPinID< 0, 26 > >, and embdrv::SimulatorTimer.

invokeCallback() [1/2]

template<typename TCallback >

void embvm::HALDriverBase::invokeCallback ( TCallback &  cb )

inlinenoexcept

References dispatcher_.

Referenced by embdrv::SimulatorTimer::timer_thread(), and nRFi2cMaster< NordicTWIM0, nRFPinID< 0, 27 >, nRFPinID< 0, 26 > >::twim_callback_().

invokeCallback() [2/2]

template<typename TCallback , typename... TArgs>

void embvm::HALDriverBase::invokeCallback ( TCallback &  cb, TArgs &...  args  )

inlinenoexcept

References dispatcher_.

setBottomHalfDispatcher()

void embvm::HALDriverBase::setBottomHalfDispatcher ( const embutil::IRQDispatcherFunc_t &  dispatcher )

inlinenoexcept

References dispatcher_.

Referenced by BlinkySimulatorHWPlatform::init_(), and FWDemoSimulatorHWPlatform::init_().

Member Data Documentation

dispatcher_

embutil::IRQDispatcherFunc_t embvm::HALDriverBase::dispatcher_

protected

Referenced by invokeCallback(), and setBottomHalfDispatcher().

---

The documentation for this class was generated from the following file:

• src/core/driver/hal_driver.hpp
