Framework Demo Simulator Hardware Platform. More...

#include <fwdemo_simulator_hw_platform.hpp>

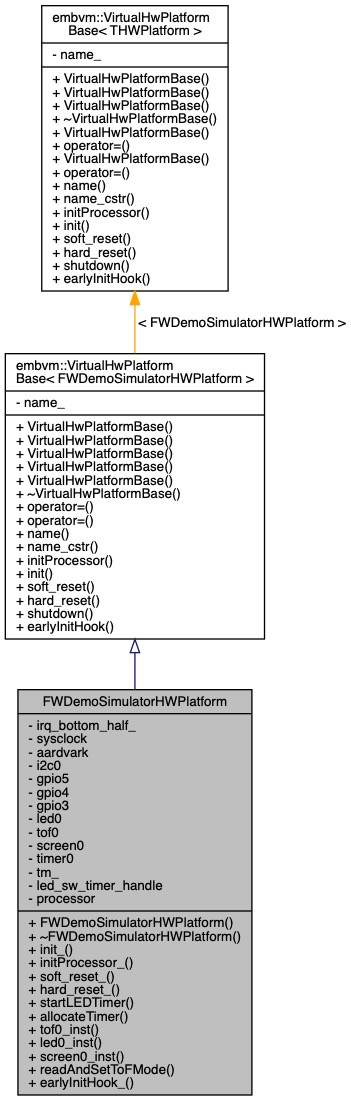

Inheritance diagram for FWDemoSimulatorHWPlatform:

Public Types
using	TimerHandle_t = TimerManager_t::TimerHandle

Public Member Functions
	FWDemoSimulatorHWPlatform () noexcept
	Default constructor. More...

	~FWDemoSimulatorHWPlatform () noexcept
	Default destructor. More...

void	init_ () noexcept

void	initProcessor_ () noexcept

void	soft_reset_ () noexcept

void	hard_reset_ () noexcept

void	startLEDTimer () noexcept
	Start the LED timer. More...

TimerHandle_t	allocateTimer () noexcept
	Allocate a software timer. More...

embvm::tof::sensor &	tof0_inst () noexcept
	Get the tof0 Instance. More...

embvm::led::base &	led0_inst () noexcept
	Get the led0 Instance. More...

embvm::basicDisplay &	screen0_inst () noexcept
	Get the screen0 Instance. More...

embvm::tof::mode	readAndSetToFMode () noexcept
	Sets the ToF mode based on GPIO input. More...

constexpr const std::string_view &	name () const noexcept
	Returns the Virtual HW Platform's name. More...

constexpr const char *	name_cstr () const noexcept
	Returns the platform name as a cstring for C API compatibility. More...

void	initProcessor () noexcept
	Initialize the processor. More...

void	init () noexcept
	Initialize the hardware platform. More...

void	soft_reset () noexcept
	Perform a soft reset of the system (chip reset) More...

void	hard_reset () noexcept
	Perform a hard reset of the system (power cycle) More...

void	shutdown () noexcept
	Shutdown the system. More...

Static Public Member Functions
static void	earlyInitHook_ () noexcept

static void	earlyInitHook () noexcept
	Perform any special initialization steps. More...

Private Types
using	PlatformBase = embvm::VirtualHwPlatformBase< FWDemoSimulatorHWPlatform >

using	TimerManager_t = embvm::TimerManager< 0, std::mutex >

Detailed Description

Framework Demo Simulator Hardware Platform.

This implements an OSX-based hardware platform which provides the functionality needed for our framework demo.

I2C support is provided using an aardvark adapter. Higher-level device drivers utilize the Aardvark I2C interface, enabling them to work on a host machine.

To the application layer, this hardware is just as good as embedded hardware!

Our configuration sports:

A system clock (sysclock)
An i2c port (i2c0)
1 GPIO output (gpio5)
2 GPIO inputs (gpio4, gpio3)
An LED (led0), connected to gpio5
A VL53L1X embvm::tof::sensor sensor (connected to i2c0)
An SSD1306 OLED display (connected to i2c0)
Two timers (timer0, timer1)

The hardware platform also provides a timer manager (using timer1), which provides any number of software timers to be derived from it.

Member Typedef Documentation

◆ PlatformBase

using FWDemoSimulatorHWPlatform::PlatformBase = embvm::VirtualHwPlatformBase<FWDemoSimulatorHWPlatform>

private

◆ TimerHandle_t

using FWDemoSimulatorHWPlatform::TimerHandle_t = TimerManager_t::TimerHandle

◆ TimerManager_t

using FWDemoSimulatorHWPlatform::TimerManager_t = embvm::TimerManager<0, std::mutex>

private

Constructor & Destructor Documentation

◆ FWDemoSimulatorHWPlatform()

FWDemoSimulatorHWPlatform::FWDemoSimulatorHWPlatform ( )

inlinenoexcept

Default constructor.

◆ ~FWDemoSimulatorHWPlatform()

FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform ( )

noexcept

Default destructor.

Turn off the screen & led before exiting the program

References screen0, and embvm::DriverBase::stop().

Member Function Documentation

◆ allocateTimer()

TimerHandle_t FWDemoSimulatorHWPlatform::allocateTimer ( )

inlinenoexcept

Allocate a software timer.

Allocates a software timer from the underlying timer manager. A handle is returned, which the user can use to configure the timer according to their wishes.

Returns: handle to a software timer object

References embvm::TimerManager< TMaxTimers, TLock, TTimeUnit, TTimeoutCallback, TTimerDevice >::allocate(), and tm_.

Referenced by FrameworkDemoSimPlatform::startBlink().

◆ earlyInitHook()

static void embvm::VirtualHwPlatformBase< FWDemoSimulatorHWPlatform >::earlyInitHook ( )

inlinestaticnoexceptinherited

Perform any special initialization steps.

The earlyInitHook_() function must be implemented by the derived class as a static function.

These functions run before the C Run-time setup functions are called, and normal functionality (e.g. OS concepts) are not available.

Early initialization steps represent any super early code that needs to execute. For example, DRAM might need to be initialized before the boot process can relocate memory to its proper location in memory.

These functions are declared static to prevent you from easily using drivers within their confines

◆ earlyInitHook_()

static void FWDemoSimulatorHWPlatform::earlyInitHook_ ( )

inlinestaticnoexcept

◆ hard_reset()

void embvm::VirtualHwPlatformBase< FWDemoSimulatorHWPlatform >::hard_reset ( )

inlinenoexceptinherited

Perform a hard reset of the system (power cycle)

The hard_reset_() function must be implemented by the derived class.

A hard reset is intended to perform a full power cycle of the system.

Platforms which do not support a hard reset should default to calling soft_reset().

◆ hard_reset_()

void FWDemoSimulatorHWPlatform::hard_reset_ ( )

noexcept

References soft_reset_().

◆ init()

void embvm::VirtualHwPlatformBase< FWDemoSimulatorHWPlatform >::init ( )

inlinenoexceptinherited

Initialize the hardware platform.

The init_() function must be implemented by the derived class.

Perform any hardware platform initialization steps, such as preparing peripherals for use, setting up callbacks, etc.

◆ init_()

void FWDemoSimulatorHWPlatform::init_ ( )

noexcept

References embvm::i2c::master::configure(), embvm::i2c::external, embutil::InterruptQueue< TLockType, TSize >::getBoundDispatch(), gpio3, gpio4, i2c0, irq_bottom_half_, led0, screen0, embvm::HALDriverBase::setBottomHalfDispatcher(), embvm::i2c::standard, embvm::DriverBase::start(), and timer0.

◆ initProcessor()

void embvm::VirtualHwPlatformBase< FWDemoSimulatorHWPlatform >::initProcessor ( )

inlinenoexceptinherited

Initialize the processor.

The initProcessor_() function must be implemented by the derived class.

Perform any steps necessary for initializing the processor & processor peripheral devices for use.

Note that this is only intended to be processor initialization. Platform initialization nis handled by the init() function.

This function will likely invoke the VirtualProcessor::init() function, but the order and actual initialization process is left to the derived class.

◆ initProcessor_()

void FWDemoSimulatorHWPlatform::initProcessor_ ( )

noexcept

References embvm::VirtualProcessorBase< TProcessor >::init(), and processor.

◆ led0_inst()

embvm::led::base& FWDemoSimulatorHWPlatform::led0_inst ( )

inlinenoexcept

Get the led0 Instance.

You don't always need find_driver() in the DriverRegistry. You can directly return a base-class reference from the hardware platform. This saves time from doing a lookup.

It is important to return the base class, since that is how we keep our applications decoupled from the underlying hardware. Returning the actual ToF sensor class will enable coupling to the underlying harware.

Returns: a reference to the led0 instance, as the base class type.

References led0.

Referenced by FrameworkDemoSimPlatform::startBlink().

◆ name()

constexpr const std::string_view& embvm::VirtualHwPlatformBase< FWDemoSimulatorHWPlatform >::name ( ) const

inlinenoexceptinherited

Returns the Virtual HW Platform's name.

◆ name_cstr()

constexpr const char* embvm::VirtualHwPlatformBase< FWDemoSimulatorHWPlatform >::name_cstr ( ) const

inlinenoexceptinherited

Returns the platform name as a cstring for C API compatibility.

◆ readAndSetToFMode()

embvm::tof::mode FWDemoSimulatorHWPlatform::readAndSetToFMode ( )

noexcept

Sets the ToF mode based on GPIO input.

Reads the mode GPIO and updates the ToF mode based on the setting.

Returns: the ToF mode setting read from HW

References embdrv::aardvarkGPIOInput< TPinID, TPull >::get(), gpio3, gpio4, logdebug, embdrv::vl53l1x::mode(), and tof0.

Referenced by FrameworkDemoSimPlatform::updateToFMode().

◆ screen0_inst()

embvm::basicDisplay& FWDemoSimulatorHWPlatform::screen0_inst ( )

inlinenoexcept

Get the screen0 Instance.

You don't always need find_driver() in the DriverRegistry. You can directly return a base-class reference from the hardware platform. This saves time from doing a lookup.

It is important to return the base class, since that is how we keep our applications decoupled from the underlying hardware. Returning the actual ToF sensor class will enable coupling to the underlying harware.

Returns: a reference to the screen0 instance, as the base class type.

References screen0.

Referenced by FrameworkDemoSimPlatform::initHWPlatform_().

◆ shutdown()

void embvm::VirtualHwPlatformBase< FWDemoSimulatorHWPlatform >::shutdown ( )

inlinenoexceptinherited

Shutdown the system.

The shutdown_() function must be implemented by the derived class.

If your platform supports shutdown capability, take the proper steps to initiate a shutdown.

If the platform does not support shutdown capability, implement your shutdown_() function as an assert to notify users trying to call this API. You could also leave the shutdown_() function undefined. Anyone who calls the shutdown() function on a platform with an undefined shutdown_() function will encounter a compiler error.

The shutdown function is not expected to return.

◆ soft_reset()

void embvm::VirtualHwPlatformBase< FWDemoSimulatorHWPlatform >::soft_reset ( )

inlinenoexceptinherited

Perform a soft reset of the system (chip reset)

The soft_reset_() function must be implemnted by the derived class.

A soft reset is intended to reset the program to the beginning without performing a full power cycle.

A good strategy is to just call virtual processor's reset() function, if one is provided.

◆ soft_reset_()

void FWDemoSimulatorHWPlatform::soft_reset_ ( )

inlinenoexcept

Referenced by hard_reset_().

◆ startLEDTimer()

void FWDemoSimulatorHWPlatform::startLEDTimer ( )

inlinenoexcept

Start the LED timer.

References embvm::DriverBase::start(), and timer0.

Referenced by FrameworkDemoSimPlatform::startBlink().

◆ tof0_inst()

embvm::tof::sensor& FWDemoSimulatorHWPlatform::tof0_inst ( )

inlinenoexcept

Get the tof0 Instance.

You don't always need find_driver() in the DriverRegistry. You can directly return a base-class reference from the hardware platform. This saves time from doing a lookup.

It is important to return the base class, since that is how we keep our applications decoupled from the underlying hardware. Returning the actual ToF sensor class will enable coupling to the underlying harware.

Returns: a reference to the tof0 instance, as the base class type.

References tof0.

Referenced by FrameworkDemoSimPlatform::init_(), and FrameworkDemoSimPlatform::initHWPlatform_().

Member Data Documentation

◆ aardvark

embdrv::aardvarkAdapter FWDemoSimulatorHWPlatform::aardvark {embdrv::aardvarkMode::GpioI2C}

private

◆ gpio3

embdrv::aardvarkGPIOInput<3> FWDemoSimulatorHWPlatform::gpio3 {aardvark}

private

Referenced by init_(), and readAndSetToFMode().

◆ gpio4

embdrv::aardvarkGPIOInput<4> FWDemoSimulatorHWPlatform::gpio4 {aardvark}

private

Referenced by init_(), and readAndSetToFMode().

◆ gpio5

embdrv::aardvarkGPIOOutput<5> FWDemoSimulatorHWPlatform::gpio5 {aardvark}

private

◆ i2c0

embdrv::aardvarkI2CMaster FWDemoSimulatorHWPlatform::i2c0 {aardvark}

private

Referenced by init_().

◆ irq_bottom_half_

embutil::InterruptQueue<std::mutex> FWDemoSimulatorHWPlatform::irq_bottom_half_

private

Referenced by init_().

◆ led0

embvm::led::gpioActiveHigh FWDemoSimulatorHWPlatform::led0 {gpio5}

private

Referenced by init_(), and led0_inst().

◆ led_sw_timer_handle

TimerHandle_t FWDemoSimulatorHWPlatform::led_sw_timer_handle

private

◆ processor

SimulatorProcessor FWDemoSimulatorHWPlatform::processor

private

Referenced by initProcessor_().

◆ screen0

embdrv::ssd1306 FWDemoSimulatorHWPlatform::screen0 {i2c0, SPARKFUN_SSD1306_ADDR}

private

Referenced by init_(), screen0_inst(), and ~FWDemoSimulatorHWPlatform().

◆ sysclock

embdrv::SimulatorSystemClock FWDemoSimulatorHWPlatform::sysclock

private

◆ timer0

embdrv::SimulatorTimer FWDemoSimulatorHWPlatform::timer0

private

Referenced by init_(), and startLEDTimer().

◆ tm_

TimerManager_t FWDemoSimulatorHWPlatform::tm_ {timer0}

private

Referenced by allocateTimer().

◆ tof0

embdrv::vl53l1x FWDemoSimulatorHWPlatform::tof0 {i2c0, SPARKFUN_VL53L1X_ADDR}

private

Referenced by readAndSetToFMode(), and tof0_inst().

The documentation for this class was generated from the following files:

src/hw_platforms/fwdemo_simulator/fwdemo_simulator_hw_platform.hpp
src/hw_platforms/fwdemo_simulator/fwdemo_simulator_hw_platform.cpp

Private Attributes
embutil::InterruptQueue< std::mutex >	irq_bottom_half_

embdrv::SimulatorSystemClock	sysclock

embdrv::aardvarkAdapter	aardvark {embdrv::aardvarkMode::GpioI2C}

embdrv::aardvarkI2CMaster	i2c0 {aardvark}

embdrv::aardvarkGPIOOutput< 5 >	gpio5 {aardvark}

embdrv::aardvarkGPIOInput< 4 >	gpio4 {aardvark}

embdrv::aardvarkGPIOInput< 3 >	gpio3 {aardvark}

embvm::led::gpioActiveHigh	led0 {gpio5}

embdrv::vl53l1x	tof0 {i2c0, SPARKFUN_VL53L1X_ADDR}

embdrv::ssd1306	screen0 {i2c0, SPARKFUN_SSD1306_ADDR}

embdrv::SimulatorTimer	timer0

TimerManager_t	tm_ {timer0}

TimerHandle_t	led_sw_timer_handle

SimulatorProcessor	processor

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

◆ PlatformBase

◆ TimerHandle_t

◆ TimerManager_t

Constructor & Destructor Documentation

◆ FWDemoSimulatorHWPlatform()

◆ ~FWDemoSimulatorHWPlatform()

Member Function Documentation

◆ allocateTimer()

◆ earlyInitHook()

◆ earlyInitHook_()

◆ hard_reset()

◆ hard_reset_()

◆ init()

◆ init_()

◆ initProcessor()

◆ initProcessor_()

◆ led0_inst()

◆ name()

◆ name_cstr()

◆ readAndSetToFMode()

◆ screen0_inst()

◆ shutdown()

◆ soft_reset()

◆ soft_reset_()

◆ startLEDTimer()

◆ tof0_inst()

Member Data Documentation

◆ aardvark

◆ gpio3

◆ gpio4

◆ gpio5

◆ i2c0

◆ irq_bottom_half_

◆ led0

◆ led_sw_timer_handle

◆ processor

◆ screen0

◆ sysclock

◆ timer0

◆ tm_

◆ tof0
