SimulatorProcessor Class Reference

#include <simulator_processor.hpp>

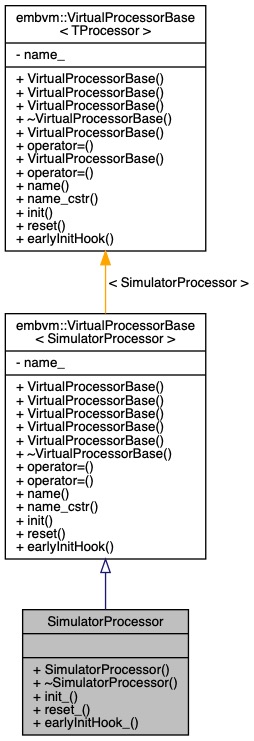

Inheritance diagram for SimulatorProcessor:

Public Member Functions
	SimulatorProcessor ()
	Default constructor. More...
	~SimulatorProcessor ()
	Default destructor. More...
void	init_ ()
void	reset_ ()
constexpr const std::string_view &	name () const noexcept
	Returns the Virtual HW Platform's name. More...
constexpr const char *	name_cstr () const noexcept
	Returns the platform name as a cstring for C API compatibility. More...
void	init () noexcept
	Initialize the processor. More...
void	reset () noexcept
	Reset the chip. More...

Static Public Member Functions
static void	earlyInitHook_ ()
static void	earlyInitHook () noexcept
	Perform any special initialization steps. More...

Private Types
using	ProcessorBase = embvm::VirtualProcessorBase< SimulatorProcessor >

Member Typedef Documentation

ProcessorBase

using SimulatorProcessor::ProcessorBase = embvm::VirtualProcessorBase<SimulatorProcessor>

private

Constructor & Destructor Documentation

SimulatorProcessor()

SimulatorProcessor::SimulatorProcessor ( )

inline

Default constructor.

~SimulatorProcessor()

SimulatorProcessor::~SimulatorProcessor

(

)

Default destructor.

Member Function Documentation

earlyInitHook()

static void embvm::VirtualProcessorBase< SimulatorProcessor >::earlyInitHook ( )

inlinestaticnoexceptinherited

Perform any special initialization steps.

The earlyInitHook_() function must be implemented by the derived class as a static function.

These functions run before the C Run-time setup functions are called, and normal functionality (e.g. OS concepts) are not available.

Early initialization steps represent any super early code that needs to execute. For example, DRAM might need to be initialized before the boot process can relocate memory to its proper location in memory.

These functions are declared static to prevent you from easily using drivers within their confines

earlyInitHook_()

static void SimulatorProcessor::earlyInitHook_ ( )

inlinestatic

init()

void embvm::VirtualProcessorBase< SimulatorProcessor >::init ( )

inlinenoexceptinherited

Initialize the processor.

The initProcessor_() function must be implemented by the derived class.

Perform any steps necessary for initializing the processor & processor peripheral devices for use.

Note that this is only intended to be processor initialization. Platform initialization nis handled by the init() function.

This function will likely invoke the VirtualProcessor::init() function, but the order and actual initialization process is left to the derived class.

init_()

void SimulatorProcessor::init_

(

)

name()

constexpr const std::string_view& embvm::VirtualProcessorBase< SimulatorProcessor >::name ( ) const

inlinenoexceptinherited

Returns the Virtual HW Platform's name.

name_cstr()

constexpr const char* embvm::VirtualProcessorBase< SimulatorProcessor >::name_cstr ( ) const

inlinenoexceptinherited

Returns the platform name as a cstring for C API compatibility.

reset()

void embvm::VirtualProcessorBase< SimulatorProcessor >::reset ( )

inlinenoexceptinherited

Reset the chip.

The reset_() function must be implemnted by the derived class.

A soft reset is intended to reset the program to the beginning without performing a full power cycle.

reset_()

void SimulatorProcessor::reset_ ( )

inline

---

The documentation for this class was generated from the following files:

• src/processors/simulator/simulator_processor.hpp
• src/processors/simulator/simulator_processor.cpp
