Subsystem which provides logging support. More...

Collaboration diagram for Logging Subsystem:

Namespaces
	embvm::logger
	Log definitions.

Classes
class	embvm::CircularLogBufferLogger< TBufferSize, TLock >
	Circular log buffer. More...

class	embvm::LoggerBase< TLock >
	Base class for logger implementations. More...

class	embvm::PlatformLogger_t< TLogger >
	Declare a static platform logger instance. More...

Macros
#define	LOG_LEVEL LOG_LEVEL_DEBUG
	Default maximum log level. More...

#define	LOG_EN_DEFAULT true
	Whether the logging module is enabled automatically on boot. More...

#define	LOG_ECHO_EN_DEFAULT false
	Indicates that log statements should be echoed to the console If true, log statements will be echoed. More...

#define	LOG_LEVEL_NAMES
	Users can override these default names with a compiler definition. More...

#define	LOG_LEVEL_SHORT_NAMES
	Users can override these default short names with a compiler definition. More...

Log Level Definitions
#define	LOG_LEVEL_OFF 0
	Logging is disabled. More...

#define	LOG_LEVEL_CRITICAL 1
	Indicates the system is unusable, or an error that is unrecoverable. More...

#define	LOG_LEVEL_ERROR 2
	Indicates an error condition. More...

#define	LOG_LEVEL_WARN 3
	Indicates a warning condition. More...

#define	LOG_LEVEL_INFO 4
	Informational messages. More...

#define	LOG_LEVEL_DEBUG 5
	Debug-level messages. More...

#define	LOG_LEVEL_VERBOSE 6
	Extra super verbose messages. More...

#define	LOG_LEVEL_MAX LOG_LEVEL_VERBOSE
	The maximum log level that can be set. More...

#define	LOG_LEVEL_COUNT (LOG_LEVEL_MAX + 1)
	The number of possible log levels. More...

Log Level Prefixes
#define	LOG_LEVEL_CRITICAL_PREFIX "!"

#define	LOG_LEVEL_ERROR_PREFIX "E"

#define	LOG_LEVEL_WARNING_PREFIX "W"

#define	LOG_LEVEL_INFO_PREFIX "I"

#define	LOG_LEVEL_DEBUG_PREFIX "D"

#define	LOG_LEVEL_VERBOSE_PREFIX "V"

#define	LOG_LEVEL_INTERRUPT_PREFIX "I"

Logging Macros
The log macros can be overridden by defining them in your platform_logger.hpp file For more information see docs/development/ExtendingTheFramework/customizing_log_macros.md
#define	logcritical(...) PlatformLogger::inst().log(embvm::logger::level::critical, __VA_ARGS__)

#define	logerror(...) PlatformLogger::inst().log(embvm::logger::level::error, __VA_ARGS__)

#define	logwarn(...) PlatformLogger::inst().log(embvm::logger::level::warn, __VA_ARGS__)

#define	loginfo(...) PlatformLogger::inst().log(embvm::logger::level::info, __VA_ARGS__)

#define	logdebug(...) PlatformLogger::inst().log(embvm::logger::level::debug, __VA_ARGS__)

#define	logverbose(...) PlatformLogger::inst().log(embvm::logger::level::verbose, __VA_ARGS__)

Detailed Description

Subsystem which provides logging support.

Class Documentation

◆ embvm::CircularLogBufferLogger

class embvm::CircularLogBufferLogger

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>
class embvm::CircularLogBufferLogger< TBufferSize, TLock >

Circular log buffer.

A circular log buffer manages a memoroy buffer as if it were neverending. When the capacity of the buffer is reached, insertions will wrap around to the beginning of the buffer and overwrite old data. This enables seemingly "infinite" memory with a fixed capacity, preferring the newest data be kept.

Template Parameters

TBufferSize Defines the size of the circular log buffer. Set to 0 to disable logging completely (for memory constrained systems).

Note: Size requirement: power-of-2 for optimized queue logic.

Template Parameters

TLock

the type of lock to use with the LoggerBase. Locking is disabled by default (with the use of embutil::nop_lock). You can enable locking by declaring this class with a functional lock type.

using PlatformLogger =

embvm::PlatformLogger_t<embvm::CircularLogBufferLogger<8 * 1024>, std::mutex>;

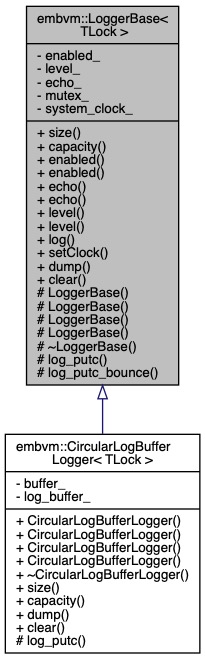

Inheritance diagram for embvm::CircularLogBufferLogger< TBufferSize, TLock >:

Public Member Functions
	CircularLogBufferLogger ()
	Default constructor. More...

	CircularLogBufferLogger (embvm::clk::SystemClock &clk) noexcept
	Initialize the circular log buffer with a system clock for timestamp support. More...

	CircularLogBufferLogger (bool enable, logger::level l=logger::LOG_LEVEL_LIMIT, bool echo=LOG_ECHO_EN_DEFAULT) noexcept
	Initialize the circular log buffer with options. More...

	CircularLogBufferLogger (embvm::clk::SystemClock &clk, bool enable, logger::level l=logger::LOG_LEVEL_LIMIT, bool echo=LOG_ECHO_EN_DEFAULT) noexcept
	Initialize the circular log buffer with options and a system clock for timestamp support. More...

	~CircularLogBufferLogger () noexcept=default
	Default destructor. More...

size_t	size () const noexcept final
	Get the current log buffer size. More...

size_t	capacity () const noexcept final
	Get the log buffer capacity. More...

void	dump () noexcept final
	Print the contents of the log buffer in the console. More...

void	clear () noexcept final
	Clear the contents of the log buffer. More...

bool	enabled () const noexcept
	Check if the log is enabled. More...

bool	enabled (bool en) noexcept
	Enable/disable logging. More...

bool	echo () const noexcept
	Check the echo setting. More...

bool	echo (bool en) noexcept
	Enable/disable echo to console. More...

logger::level	level () const noexcept
	Get the maximum log level (filtering) More...

logger::level	level (logger::level l) noexcept
	Set the maximum log level (filtering) More...

template<typename... Args>
void	log (logger::level l, const char *fmt, const Args &... args) noexcept
	Add data to the log buffer. More...

void	setClock (embvm::clk::SystemClock &clk) noexcept
	Set the system clock. More...

Protected Member Functions
void	log_putc (char c) noexcept final
	Log buffer putc function. More...

Static Protected Member Functions
static void	log_putc_bounce (char c, void *this_ptr)
	putc bounce function More...

Private Attributes
char	buffer_ [TBufferSize] = {0}

stdext::ring_span< char >	log_buffer_ {buffer_, buffer_ + TBufferSize}

Constructor & Destructor Documentation

◆ CircularLogBufferLogger() [1/4]

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>

embvm::CircularLogBufferLogger< TBufferSize, TLock >::CircularLogBufferLogger ( )

inline

Default constructor.

◆ CircularLogBufferLogger() [2/4]

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>

embvm::CircularLogBufferLogger< TBufferSize, TLock >::CircularLogBufferLogger ( embvm::clk::SystemClock & clk )

inlineexplicitnoexcept

Initialize the circular log buffer with a system clock for timestamp support.

If a system clock instance is provided to the logger, timestamps will be appended to each log statement.

Parameters

clk	The system clock instance to use for timestamping.

◆ CircularLogBufferLogger() [3/4]

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>

embvm::CircularLogBufferLogger< TBufferSize, TLock >::CircularLogBufferLogger	(	bool	enable,
		logger::level	l = `logger::LOG_LEVEL_LIMIT`,
		bool	echo = `LOG_ECHO_EN_DEFAULT`
	)

inlineexplicitnoexcept

Initialize the circular log buffer with options.

Parameters

enable	If true, log statements will be output to the log buffer. If false, logging will be disabled and log statements will not be output to the log buffer.
l	Runtime log filtering level. Levels greater than the target will not be output to the log buffer.
echo	If true, log statements will be logged and printed to the console with printf(). If false, log statements will only be added to the log buffer.

◆ CircularLogBufferLogger() [4/4]

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>

embvm::CircularLogBufferLogger< TBufferSize, TLock >::CircularLogBufferLogger	(	embvm::clk::SystemClock &	clk,
		bool	enable,
		logger::level	l = `logger::LOG_LEVEL_LIMIT`,
		bool	echo = `LOG_ECHO_EN_DEFAULT`
	)

inlineexplicitnoexcept

Initialize the circular log buffer with options and a system clock for timestamp support.

If a system clock instance is provided to the logger, timestamps will be appended to each log statement.

Parameters

clk	The system clock instance to use for timestamping.
enable	If true, log statements will be output to the log buffer. If false, logging will be disabled and log statements will not be output to the log buffer.
l	Runtime log filtering level. Levels greater than the target will not be output to the log buffer.
echo	If true, log statements will be logged and printed to the console with printf(). If false, log statements will only be added to the log buffer.

◆ ~CircularLogBufferLogger()

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>

embvm::CircularLogBufferLogger< TBufferSize, TLock >::~CircularLogBufferLogger ( )

defaultnoexcept

Default destructor.

Member Function Documentation

◆ capacity()

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>

size_t embvm::CircularLogBufferLogger< TBufferSize, TLock >::capacity ( ) const

inlinefinalvirtualnoexcept

Get the log buffer capacity.

Derived classes must implement this function.

Returns: The total capacity of the log buffer, in bytes.

Implements embvm::LoggerBase< TLock >.

References embvm::CircularLogBufferLogger< TBufferSize, TLock >::log_buffer_.

◆ clear()

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>

void embvm::CircularLogBufferLogger< TBufferSize, TLock >::clear ( )

inlinefinalvirtualnoexcept

Clear the contents of the log buffer.

Reset the log buffer to an empty state.

Postcondition: The log buffer will be empty.

Implements embvm::LoggerBase< TLock >.

References embvm::CircularLogBufferLogger< TBufferSize, TLock >::log_buffer_.

◆ dump()

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>

void embvm::CircularLogBufferLogger< TBufferSize, TLock >::dump ( )

inlinefinalvirtualnoexcept

Print the contents of the log buffer in the console.

When called, the contents of the log buffer will be echo'd to the console through printf. The entire log buffer will be displayed.

Derived classes must implement this function.

Implements embvm::LoggerBase< TLock >.

References _putchar(), embvm::CircularLogBufferLogger< TBufferSize, TLock >::log_buffer_, and t.

◆ echo() [1/2]

template<typename TLock >

bool embvm::LoggerBase< TLock >::echo ( ) const

inlinenoexceptinherited

Check the echo setting.

Returns: true if echo to console is enabled, false if disabled.

References embvm::LoggerBase< TLock >::echo_.

◆ echo() [2/2]

template<typename TLock >

bool embvm::LoggerBase< TLock >::echo ( bool en )

inlinenoexceptinherited

Enable/disable echo to console.

Parameters

en	Echo switch. If true, log statements will also be echo'd to the console through printf(). If false, log statements will only go to the log buffer.

Returns: true if echo to console is enabled, false if disabled.

References embvm::LoggerBase< TLock >::echo_.

◆ enabled() [1/2]

template<typename TLock >

bool embvm::LoggerBase< TLock >::enabled ( ) const

inlinenoexceptinherited

Check if the log is enabled.

Returns: true if log output is enabled, false if it is disabled.

References embvm::LoggerBase< TLock >::enabled_.

◆ enabled() [2/2]

template<typename TLock >

bool embvm::LoggerBase< TLock >::enabled ( bool en )

inlinenoexceptinherited

Enable/disable logging.

Parameters

en	Enable switch. If true, logging is enabled. If false, logging is disabled.

Returns: true if log output is enabled, false if it is disabled.

References embvm::LoggerBase< TLock >::enabled_.

◆ level() [1/2]

template<typename TLock >

logger::level embvm::LoggerBase< TLock >::level ( ) const

inlinenoexceptinherited

Get the maximum log level (filtering)

Returns: the current log level maximum.

References embvm::LoggerBase< TLock >::level_.

◆ level() [2/2]

template<typename TLock >

logger::level embvm::LoggerBase< TLock >::level ( logger::level l )

inlinenoexceptinherited

Set the maximum log level (filtering)

Parameters

l	The maximum log level. Levels grater than `l` will not be added to the log buffer.

Returns: the current log level maximum.

References embvm::LoggerBase< TLock >::level_, and embvm::logger::LOG_LEVEL_LIMIT.

◆ log()

template<typename TLock >

template<typename... Args>

void embvm::LoggerBase< TLock >::log	(	logger::level	l,
		const char *	fmt,
		const Args &...	args
	)

inlinenoexceptinherited

Add data to the log buffer.

Template Parameters

Args	Variadic template args. Will be deduced by the compiler. Enables support for a variadic function template.

Parameters

l	The log level associated with this statement.
fmt	The log format string.
args	The variadic arguments that are associated with the format string.

References embvm::LoggerBase< TLock >::echo_, embvm::LoggerBase< TLock >::enabled_, fctprintf(), embvm::LoggerBase< TLock >::level_, embvm::LoggerBase< TLock >::log_putc_bounce(), embvm::LoggerBase< TLock >::mutex_, printf, embvm::LoggerBase< TLock >::system_clock_, embvm::clk::SystemClock::ticks(), and embvm::logger::to_short_c_str().

◆ log_putc()

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>

void embvm::CircularLogBufferLogger< TBufferSize, TLock >::log_putc ( char c )

inlinefinalprotectedvirtualnoexcept

Log buffer putc function.

This function adds a character to the underlying log buffer.

This function is used with the fctprintf() interface to output to the log buffer. This enables the framework to reuse the same print formatting for both logging and printf().

Derived classes must implement this function.

Parameters

c	The character to insert into the log buffer.

Implements embvm::LoggerBase< TLock >.

References embvm::CircularLogBufferLogger< TBufferSize, TLock >::log_buffer_.

◆ log_putc_bounce()

template<typename TLock >

static void embvm::LoggerBase< TLock >::log_putc_bounce	(	char	c,
		void *	this_ptr
	)

inlinestaticprotectedinherited

putc bounce function

This is a bounce function which registers with the C printf API. We use the private parameter to store the this pointer so we can get back to our logger's putc instance.

Parameters

c	The character to log.
this_ptr	The this pointer of the logger instance. Used to invoke log_putc() on the correct instance.

Referenced by embvm::LoggerBase< TLock >::log().

◆ setClock()

template<typename TLock >

void embvm::LoggerBase< TLock >::setClock ( embvm::clk::SystemClock & clk )

inlinenoexceptinherited

Set the system clock.

Parameters

clk	The system clock instance to use for timestamping.

References embvm::LoggerBase< TLock >::system_clock_.

◆ size()

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>

size_t embvm::CircularLogBufferLogger< TBufferSize, TLock >::size ( ) const

inlinefinalvirtualnoexcept

Get the current log buffer size.

Derived classes must implement this function.

Returns: The current size of the log buffer, in bytes.

Implements embvm::LoggerBase< TLock >.

References embvm::CircularLogBufferLogger< TBufferSize, TLock >::log_buffer_.

Member Data Documentation

◆ buffer_

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>

char embvm::CircularLogBufferLogger< TBufferSize, TLock >::buffer_[TBufferSize] = {0}

private

◆ log_buffer_

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>

stdext::ring_span<char> embvm::CircularLogBufferLogger< TBufferSize, TLock >::log_buffer_ {buffer_, buffer_ + TBufferSize}

private

Referenced by embvm::CircularLogBufferLogger< TBufferSize, TLock >::capacity(), embvm::CircularLogBufferLogger< TBufferSize, TLock >::clear(), embvm::CircularLogBufferLogger< TBufferSize, TLock >::dump(), embvm::CircularLogBufferLogger< TBufferSize, TLock >::log_putc(), and embvm::CircularLogBufferLogger< TBufferSize, TLock >::size().

◆ embvm::LoggerBase

class embvm::LoggerBase

template<typename TLock>
class embvm::LoggerBase< TLock >

Base class for logger implementations.

This class provides the interface for loggers, as well as implements basic operations. To create a logger, you can derive from this class and fill in the missing operations.

For an example logger implementation, see the CircularLogBufferLogger in circular_buffer_logger.hpp.

Using a Logger

The primary method for interacting with a logger is through the log() interface. Macros are provided for convenient logging at different levels (loginfo(), logdebug(), logerror(), etc).

The full contents of the log buffer can be dumped to the console using the dump() API.

Defining a Logger

Do declare your own logger type, inherit from this base class:

class CircularLogBufferLogger final : public LoggerBase

This derived class is used to declare the actual log bufer storage and handle the log buffer implementation.

Derived classes must implement the following functions to control specific log behavior:

Template Parameters

TLock the type of lock to use with the LoggerBase. Locking can be disabled by using the embutil::nop_lock type.

Inheritance diagram for embvm::LoggerBase< TLock >:

Public Member Functions
virtual size_t	size () const noexcept=0
	Get the current log buffer size. More...

virtual size_t	capacity () const noexcept=0
	Get the log buffer capacity. More...

bool	enabled () const noexcept
	Check if the log is enabled. More...

bool	enabled (bool en) noexcept
	Enable/disable logging. More...

bool	echo () const noexcept
	Check the echo setting. More...

bool	echo (bool en) noexcept
	Enable/disable echo to console. More...

logger::level	level () const noexcept
	Get the maximum log level (filtering) More...

logger::level	level (logger::level l) noexcept
	Set the maximum log level (filtering) More...

template<typename... Args>
void	log (logger::level l, const char *fmt, const Args &... args) noexcept
	Add data to the log buffer. More...

void	setClock (embvm::clk::SystemClock &clk) noexcept
	Set the system clock. More...

virtual void	dump () noexcept=0
	Print the contents of the log buffer in the console. More...

virtual void	clear () noexcept=0
	Clear the contents of the log buffer. More...

Protected Member Functions
	LoggerBase ()=default
	Default constructor. More...

	LoggerBase (embvm::clk::SystemClock &clk) noexcept
	Initialize the logger with a system clock for timestamp support. More...

	LoggerBase (bool enable, logger::level l=logger::LOG_LEVEL_LIMIT, bool echo=LOG_ECHO_EN_DEFAULT) noexcept
	Initialize the logger with options. More...

	LoggerBase (embvm::clk::SystemClock &clk, bool enable, logger::level l=logger::LOG_LEVEL_LIMIT, bool echo=LOG_ECHO_EN_DEFAULT)
	Initialize the logger with options and a system clock for timestamp support. More...

virtual	~LoggerBase ()=default
	Default destructor. More...

virtual void	log_putc (char c)=0
	Log buffer putc function. More...

Static Protected Member Functions
static void	log_putc_bounce (char c, void *this_ptr)
	putc bounce function More...

Private Attributes
bool	enabled_ = LOG_EN_DEFAULT
	Indicates whether logging is currently enabled. More...

logger::level	level_ = logger::LOG_LEVEL_LIMIT
	The current log level. More...

bool	echo_ = LOG_ECHO_EN_DEFAULT
	Console echoing. More...

TLock	mutex_
	Mutex which protects the log buffer. More...

embvm::clk::SystemClock *	system_clock_ = nullptr
	The system clock instance, used for timestamping. More...

Constructor & Destructor Documentation

◆ LoggerBase() [1/4]

template<typename TLock >

embvm::LoggerBase< TLock >::LoggerBase ( )

protecteddefault

Default constructor.

◆ LoggerBase() [2/4]

template<typename TLock >

embvm::LoggerBase< TLock >::LoggerBase ( embvm::clk::SystemClock & clk )

inlineexplicitprotectednoexcept

Initialize the logger with a system clock for timestamp support.

If a system clock instance is provided to the logger, timestamps will be appended to each log statement.

Parameters

clk	The system clock instance to use for timestamping.

◆ LoggerBase() [3/4]

template<typename TLock >

embvm::LoggerBase< TLock >::LoggerBase	(	bool	enable,
		logger::level	l = `logger::LOG_LEVEL_LIMIT`,
		bool	echo = `LOG_ECHO_EN_DEFAULT`
	)

inlineexplicitprotectednoexcept

Initialize the logger with options.

Parameters

enable	If true, log statements will be output to the log buffer. If false, logging will be disabled and log statements will not be output to the log buffer.
l	Runtime log filtering level. Levels greater than the target will not be output to the log buffer.
echo	If true, log statements will be logged and printed to the console with printf(). If false, log statements will only be added to the log buffer.

◆ LoggerBase() [4/4]

template<typename TLock >

embvm::LoggerBase< TLock >::LoggerBase	(	embvm::clk::SystemClock &	clk,
		bool	enable,
		logger::level	l = `logger::LOG_LEVEL_LIMIT`,
		bool	echo = `LOG_ECHO_EN_DEFAULT`
	)

inlineexplicitprotected

Initialize the logger with options and a system clock for timestamp support.

If a system clock instance is provided to the logger, timestamps will be appended to each log statement.

Parameters

clk	The system clock instance to use for timestamping.
enable	If true, log statements will be output to the log buffer. If false, logging will be disabled and log statements will not be output to the log buffer.
l	Runtime log filtering level. Levels greater than the target will not be output to the log buffer.
echo	If true, log statements will be logged and printed to the console with printf(). If false, log statements will only be added to the log buffer.

◆ ~LoggerBase()

template<typename TLock >

virtual embvm::LoggerBase< TLock >::~LoggerBase ( )

protectedvirtualdefault

Default destructor.

Member Function Documentation

◆ capacity()

template<typename TLock >

virtual size_t embvm::LoggerBase< TLock >::capacity ( ) const

pure virtualnoexcept

Get the log buffer capacity.

Derived classes must implement this function.

Returns: The total capacity of the log buffer, in bytes.

Implemented in embvm::CircularLogBufferLogger< TBufferSize, TLock >.

◆ clear()

template<typename TLock >

virtual void embvm::LoggerBase< TLock >::clear ( )

pure virtualnoexcept

Clear the contents of the log buffer.

Reset the log buffer to an empty state.

Postcondition: The log buffer will be empty.

Implemented in embvm::CircularLogBufferLogger< TBufferSize, TLock >.

◆ dump()

template<typename TLock >

virtual void embvm::LoggerBase< TLock >::dump ( )

pure virtualnoexcept

Print the contents of the log buffer in the console.

When called, the contents of the log buffer will be echo'd to the console through printf. The entire log buffer will be displayed.

Derived classes must implement this function.

Implemented in embvm::CircularLogBufferLogger< TBufferSize, TLock >.

◆ echo() [1/2]

template<typename TLock >

bool embvm::LoggerBase< TLock >::echo ( ) const

inlinenoexcept

Check the echo setting.

Returns: true if echo to console is enabled, false if disabled.

References embvm::LoggerBase< TLock >::echo_.

◆ echo() [2/2]

template<typename TLock >

bool embvm::LoggerBase< TLock >::echo ( bool en )

inlinenoexcept

Enable/disable echo to console.

Parameters

en	Echo switch. If true, log statements will also be echo'd to the console through printf(). If false, log statements will only go to the log buffer.

Returns: true if echo to console is enabled, false if disabled.

References embvm::LoggerBase< TLock >::echo_.

◆ enabled() [1/2]

template<typename TLock >

bool embvm::LoggerBase< TLock >::enabled ( ) const

inlinenoexcept

Check if the log is enabled.

Returns: true if log output is enabled, false if it is disabled.

References embvm::LoggerBase< TLock >::enabled_.

◆ enabled() [2/2]

template<typename TLock >

bool embvm::LoggerBase< TLock >::enabled ( bool en )

inlinenoexcept

Enable/disable logging.

Parameters

en	Enable switch. If true, logging is enabled. If false, logging is disabled.

Returns: true if log output is enabled, false if it is disabled.

References embvm::LoggerBase< TLock >::enabled_.

◆ level() [1/2]

template<typename TLock >

logger::level embvm::LoggerBase< TLock >::level ( ) const

inlinenoexcept

Get the maximum log level (filtering)

Returns: the current log level maximum.

References embvm::LoggerBase< TLock >::level_.

◆ level() [2/2]

template<typename TLock >

logger::level embvm::LoggerBase< TLock >::level ( logger::level l )

inlinenoexcept

Set the maximum log level (filtering)

Parameters

l	The maximum log level. Levels grater than `l` will not be added to the log buffer.

Returns: the current log level maximum.

References embvm::LoggerBase< TLock >::level_, and embvm::logger::LOG_LEVEL_LIMIT.

◆ log()

template<typename TLock >

template<typename... Args>

void embvm::LoggerBase< TLock >::log	(	logger::level	l,
		const char *	fmt,
		const Args &...	args
	)

inlinenoexcept

Add data to the log buffer.

Template Parameters

Args	Variadic template args. Will be deduced by the compiler. Enables support for a variadic function template.

Parameters

l	The log level associated with this statement.
fmt	The log format string.
args	The variadic arguments that are associated with the format string.

References embvm::LoggerBase< TLock >::echo_, embvm::LoggerBase< TLock >::enabled_, fctprintf(), embvm::LoggerBase< TLock >::level_, embvm::LoggerBase< TLock >::log_putc_bounce(), embvm::LoggerBase< TLock >::mutex_, printf, embvm::LoggerBase< TLock >::system_clock_, embvm::clk::SystemClock::ticks(), and embvm::logger::to_short_c_str().

◆ log_putc()

template<typename TLock >

virtual void embvm::LoggerBase< TLock >::log_putc ( char c )

protectedpure virtual

Log buffer putc function.

This function adds a character to the underlying log buffer.

This function is used with the fctprintf() interface to output to the log buffer. This enables the framework to reuse the same print formatting for both logging and printf().

Derived classes must implement this function.

Parameters

c	The character to insert into the log buffer.

Implemented in embvm::CircularLogBufferLogger< TBufferSize, TLock >.

◆ log_putc_bounce()

template<typename TLock >

static void embvm::LoggerBase< TLock >::log_putc_bounce	(	char	c,
		void *	this_ptr
	)

inlinestaticprotected

putc bounce function

This is a bounce function which registers with the C printf API. We use the private parameter to store the this pointer so we can get back to our logger's putc instance.

Parameters

c	The character to log.
this_ptr	The this pointer of the logger instance. Used to invoke log_putc() on the correct instance.

Referenced by embvm::LoggerBase< TLock >::log().

◆ setClock()

template<typename TLock >

void embvm::LoggerBase< TLock >::setClock ( embvm::clk::SystemClock & clk )

inlinenoexcept

Set the system clock.

Parameters

clk	The system clock instance to use for timestamping.

References embvm::LoggerBase< TLock >::system_clock_.

◆ size()

template<typename TLock >

virtual size_t embvm::LoggerBase< TLock >::size ( ) const

pure virtualnoexcept

Get the current log buffer size.

Derived classes must implement this function.

Returns: The current size of the log buffer, in bytes.

Implemented in embvm::CircularLogBufferLogger< TBufferSize, TLock >.

Member Data Documentation

◆ echo_

template<typename TLock >

bool embvm::LoggerBase< TLock >::echo_ = LOG_ECHO_EN_DEFAULT

private

Console echoing.

If true, log statements will be printed to the console through printf().

Referenced by embvm::LoggerBase< TLock >::echo(), and embvm::LoggerBase< TLock >::log().

◆ enabled_

template<typename TLock >

bool embvm::LoggerBase< TLock >::enabled_ = LOG_EN_DEFAULT

private

Indicates whether logging is currently enabled.

Referenced by embvm::LoggerBase< TLock >::enabled(), and embvm::LoggerBase< TLock >::log().

◆ level_

template<typename TLock >

logger::level embvm::LoggerBase< TLock >::level_ = logger::LOG_LEVEL_LIMIT

private

The current log level.

Levels greater than the current setting will be filtered out.

Referenced by embvm::LoggerBase< TLock >::level(), and embvm::LoggerBase< TLock >::log().

◆ mutex_

template<typename TLock >

TLock embvm::LoggerBase< TLock >::mutex_

private

Mutex which protects the log buffer.

Referenced by embvm::LoggerBase< TLock >::log().

◆ system_clock_

template<typename TLock >

embvm::clk::SystemClock* embvm::LoggerBase< TLock >::system_clock_ = nullptr

private

The system clock instance, used for timestamping.

Referenced by embvm::LoggerBase< TLock >::log(), and embvm::LoggerBase< TLock >::setClock().

◆ embvm::PlatformLogger_t

class embvm::PlatformLogger_t

template<class TLogger>
class embvm::PlatformLogger_t< TLogger >

Declare a static platform logger instance.

This class is used to declare a static platform logger instance.

Define a platform logger which is templated on the log type:

using PlatformLogger = PlatformLogger_t<CircularLogBufferLogger<8 * 1024>>;

This PlatformLogger type will then work with the logging macros (loginfo(), etc.).

The instance can also be grabbed manually:

PlatformLogger::inst().setClock(clk.value());

PlatformLogger::inst().dump();

Public Member Functions
	PlatformLogger_t ()=default

	~PlatformLogger_t ()=default

Static Public Member Functions
static TLogger &	inst ()

Constructor & Destructor Documentation

◆ PlatformLogger_t()

template<class TLogger>

embvm::PlatformLogger_t< TLogger >::PlatformLogger_t ( )

default

◆ ~PlatformLogger_t()

template<class TLogger>

embvm::PlatformLogger_t< TLogger >::~PlatformLogger_t ( )

default

Member Function Documentation

◆ inst()

template<class TLogger>

static TLogger& embvm::PlatformLogger_t< TLogger >::inst ( )

inlinestatic

Referenced by nRF52DK_FrameworkDemoPlatform::echoLogBufferToConsole(), FrameworkDemoSimPlatform::echoLogBufferToConsole(), nRF52DK_FrameworkDemoPlatform::init_(), and FrameworkDemoSimPlatform::init_().

Macro Definition Documentation

◆ LOG_ECHO_EN_DEFAULT

#define LOG_ECHO_EN_DEFAULT false

Indicates that log statements should be echoed to the console If true, log statements will be echoed.

If false, log statements will only go to the log.

◆ LOG_EN_DEFAULT

#define LOG_EN_DEFAULT true

Whether the logging module is enabled automatically on boot.

◆ LOG_LEVEL

#define LOG_LEVEL LOG_LEVEL_DEBUG

Default maximum log level.

This is the maximum log level that will be compiled in. To set a custom log level, define the LOG_LEVEL before including this header (e.g., as a compiler definition)

◆ LOG_LEVEL_COUNT

#define LOG_LEVEL_COUNT (LOG_LEVEL_MAX + 1)

The number of possible log levels.

◆ LOG_LEVEL_CRITICAL

#define LOG_LEVEL_CRITICAL 1

Indicates the system is unusable, or an error that is unrecoverable.

◆ LOG_LEVEL_CRITICAL_PREFIX

#define LOG_LEVEL_CRITICAL_PREFIX "!"

◆ LOG_LEVEL_DEBUG

#define LOG_LEVEL_DEBUG 5

Debug-level messages.

◆ LOG_LEVEL_DEBUG_PREFIX

#define LOG_LEVEL_DEBUG_PREFIX "D"

◆ LOG_LEVEL_ERROR

#define LOG_LEVEL_ERROR 2

Indicates an error condition.

◆ LOG_LEVEL_ERROR_PREFIX

#define LOG_LEVEL_ERROR_PREFIX "E"

◆ LOG_LEVEL_INFO

#define LOG_LEVEL_INFO 4

Informational messages.

◆ LOG_LEVEL_INFO_PREFIX

#define LOG_LEVEL_INFO_PREFIX "I"

◆ LOG_LEVEL_INTERRUPT_PREFIX

#define LOG_LEVEL_INTERRUPT_PREFIX "I"

◆ LOG_LEVEL_MAX

#define LOG_LEVEL_MAX LOG_LEVEL_VERBOSE

The maximum log level that can be set.

◆ LOG_LEVEL_NAMES

#define LOG_LEVEL_NAMES

Value:

{                                                                     \
        "off", "critical", "error", "warning", "info", "debug", "verbose" \
    }

Users can override these default names with a compiler definition.

◆ LOG_LEVEL_OFF

#define LOG_LEVEL_OFF 0

Logging is disabled.

◆ LOG_LEVEL_SHORT_NAMES

#define LOG_LEVEL_SHORT_NAMES

Value:

{                                                                                     \
        "O", LOG_LEVEL_CRITICAL_PREFIX, LOG_LEVEL_ERROR_PREFIX, LOG_LEVEL_WARNING_PREFIX, \
            LOG_LEVEL_INFO_PREFIX, LOG_LEVEL_DEBUG_PREFIX, LOG_LEVEL_VERBOSE_PREFIX       \
    }

Users can override these default short names with a compiler definition.

◆ LOG_LEVEL_VERBOSE

#define LOG_LEVEL_VERBOSE 6

Extra super verbose messages.

◆ LOG_LEVEL_VERBOSE_PREFIX

#define LOG_LEVEL_VERBOSE_PREFIX "V"

◆ LOG_LEVEL_WARN

#define LOG_LEVEL_WARN 3

Indicates a warning condition.

◆ LOG_LEVEL_WARNING_PREFIX

#define LOG_LEVEL_WARNING_PREFIX "W"

◆ logcritical

#define logcritical ( ... ) PlatformLogger::inst().log(embvm::logger::level::critical, __VA_ARGS__)

◆ logdebug

#define logdebug ( ... ) PlatformLogger::inst().log(embvm::logger::level::debug, __VA_ARGS__)

◆ logerror

#define logerror ( ... ) PlatformLogger::inst().log(embvm::logger::level::error, __VA_ARGS__)

◆ loginfo

#define loginfo ( ... ) PlatformLogger::inst().log(embvm::logger::level::info, __VA_ARGS__)

◆ logverbose

#define logverbose ( ... ) PlatformLogger::inst().log(embvm::logger::level::verbose, __VA_ARGS__)

◆ logwarn

#define logwarn ( ... ) PlatformLogger::inst().log(embvm::logger::level::warn, __VA_ARGS__)

Namespaces

Classes

Macros

Log Level Definitions

Log Level Prefixes

Logging Macros

Detailed Description

Class Documentation

◆ embvm::CircularLogBufferLogger

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock> class embvm::CircularLogBufferLogger< TBufferSize, TLock >

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ CircularLogBufferLogger() [1/4]

◆ CircularLogBufferLogger() [2/4]

◆ CircularLogBufferLogger() [3/4]

◆ CircularLogBufferLogger() [4/4]

◆ ~CircularLogBufferLogger()

Member Function Documentation

◆ capacity()

◆ clear()

◆ dump()

◆ echo() [1/2]

◆ echo() [2/2]

◆ enabled() [1/2]

◆ enabled() [2/2]

◆ level() [1/2]

◆ level() [2/2]

◆ log()

◆ log_putc()

◆ log_putc_bounce()

◆ setClock()

◆ size()

Member Data Documentation

◆ buffer_

◆ log_buffer_

◆ embvm::LoggerBase

template<typename TLock> class embvm::LoggerBase< TLock >

Using a Logger

Defining a Logger

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ LoggerBase() [1/4]

◆ LoggerBase() [2/4]

◆ LoggerBase() [3/4]

◆ LoggerBase() [4/4]

◆ ~LoggerBase()

Member Function Documentation

◆ capacity()

◆ clear()

◆ dump()

◆ echo() [1/2]

◆ echo() [2/2]

◆ enabled() [1/2]

◆ enabled() [2/2]

◆ level() [1/2]

◆ level() [2/2]

◆ log()

◆ log_putc()

◆ log_putc_bounce()

◆ setClock()

◆ size()

Member Data Documentation

◆ echo_

◆ enabled_

◆ level_

◆ mutex_

◆ system_clock_

◆ embvm::PlatformLogger_t

template<class TLogger> class embvm::PlatformLogger_t< TLogger >

Public Member Functions

Static Public Member Functions

Constructor & Destructor Documentation

◆ PlatformLogger_t()

◆ ~PlatformLogger_t()

template<size_t TBufferSize = (8 * 1024), typename TLock = embutil::nop_lock>
class embvm::CircularLogBufferLogger< TBufferSize, TLock >

template<typename TLock>
class embvm::LoggerBase< TLock >

template<class TLogger>
class embvm::PlatformLogger_t< TLogger >
