#include <platform.hpp>

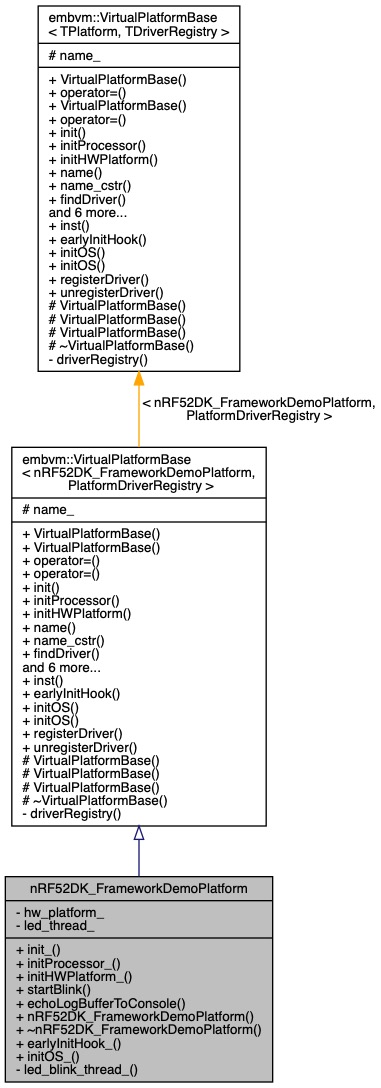

Inheritance diagram for nRF52DK_FrameworkDemoPlatform:

Public Member Functions
void	init_ () noexcept

void	initProcessor_ () noexcept

void	initHWPlatform_ () noexcept

void	startBlink () noexcept

void	echoLogBufferToConsole () noexcept

	nRF52DK_FrameworkDemoPlatform () noexcept
	Default constructor supplies a default name for the simulator platform. More...

	~nRF52DK_FrameworkDemoPlatform ()=default

void	init () noexcept
	Initialize the platform. More...

void	initProcessor () noexcept
	Initialize the processor. More...

void	initHWPlatform () noexcept
	Initialize the hardware platform. More...

constexpr const std::string_view &	name () const noexcept
	Access the platform's name. More...

constexpr const char *	name_cstr () const noexcept
	Access the platform name as a cstring for C API compatibility. More...

auto	findDriver (const std::string_view &name) noexcept
	Access a device driver in the registry by name. More...

auto	findDriver (embvm::DriverType_t type) noexcept
	Access a device driver in the registry by type. More...

auto	findDriver () noexcept
	Access a device driver in the registry by type, cast as the appropriate base class. More...

auto	findDriver (const std::string_view &name) noexcept
	Access a device driver in the registry by name, cast as the appropriate base class. More...

auto	findAllDrivers (embvm::DriverType_t type) noexcept
	Get a list of all device drivers in the registry by type. More...

auto	findAllDrivers () noexcept
	Get a list of all device drivers in the registry by type, cast as the appropriate base class. More...

size_t	driverCount () const noexcept
	Get the count of drivers registered with the platform. More...

Static Public Member Functions
static void	earlyInitHook_ () noexcept

static void	initOS_ (void(*main_thread)()) noexcept

static nRF52DK_FrameworkDemoPlatform &	inst () noexcept
	Get the global platform instance. More...

static void	earlyInitHook () noexcept
	Call early-initialization code. More...

static void	initOS () noexcept
	Initialize the OS. More...

static void	initOS (void(*main_thread)()) noexcept
	Initialize the with a function to use as the main thread. More...

static void	registerDriver (const std::string_view &name, embvm::DriverBase *driver) noexcept
	Platform-level API for registering a new device driver. More...

static void	unregisterDriver (const std::string_view &name, embvm::DriverBase *driver) noexcept
	Platform-level API for unregistering a new device driver. More...

Protected Attributes
const std::string_view	name_

Private Types
using	PlatformBase = embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform, PlatformDriverRegistry >

Private Member Functions
void	led_blink_thread_ () noexcept

Private Attributes
NRF52DKHWPlatform	hw_platform_

embvm::VirtualThread *	led_thread_ = nullptr
	Thread handle for the created-during-runtime LED thread. More...

Member Typedef Documentation

◆ PlatformBase

using nRF52DK_FrameworkDemoPlatform::PlatformBase = embvm::VirtualPlatformBase<nRF52DK_FrameworkDemoPlatform, PlatformDriverRegistry>

private

Constructor & Destructor Documentation

◆ nRF52DK_FrameworkDemoPlatform()

nRF52DK_FrameworkDemoPlatform::nRF52DK_FrameworkDemoPlatform ( )

inlinenoexcept

Default constructor supplies a default name for the simulator platform.

◆ ~nRF52DK_FrameworkDemoPlatform()

nRF52DK_FrameworkDemoPlatform::~nRF52DK_FrameworkDemoPlatform ( )

default

Member Function Documentation

◆ driverCount()

size_t embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::driverCount ( ) const

inlinenoexceptinherited

Get the count of drivers registered with the platform.

returns Number of drivers currently registered with the platform DriverRegistry.

◆ earlyInitHook()

static void embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::earlyInitHook ( )

inlinestaticnoexceptinherited

Call early-initialization code.

Call early initialization code, which is to be run before C runtime initialization, memory relocations, OS initialization, etc. This call is used to handle early setup code that the rest of the initialization process might depend on, such as DRAM initialization.

This function forwards the call to the derived class for the actual implementation.

◆ earlyInitHook_()

void nRF52DK_FrameworkDemoPlatform::earlyInitHook_ ( )

staticnoexcept

References __HeapBase, __HeapLimit, and malloc_addblock().

◆ echoLogBufferToConsole()

void nRF52DK_FrameworkDemoPlatform::echoLogBufferToConsole ( )

noexcept

References embvm::PlatformLogger_t< TLogger >::inst().

◆ findAllDrivers() [1/2]

auto embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::findAllDrivers ( embvm::DriverType_t type )

inlinenoexceptinherited

Get a list of all device drivers in the registry by type.

The type will be returned as the appropriate base class (instead of embvm::DriverBase).

This call forwards the information to the DriverRegistry instance.

Parameters

type	The type of driver being requested (embvm::i2c::master, SystemClock).

Returns: A list of embvm::DriverBase instances. If no matching types are found, an empty list will be returned. The caller must cast to the appropriate type.

◆ findAllDrivers() [2/2]

auto embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::findAllDrivers ( )

inlinenoexceptinherited

Get a list of all device drivers in the registry by type, cast as the appropriate base class.

The type will be returned as the appropriate base class (instead of embvm::DriverBase).

This call forwards the information to the DriverRegistry instance.

Template Parameters

TDriverClass The class of driver being requested (embvm::i2c::master, SystemClock).

Returns: A list of driver instances cast as TDriverClass types. If no matching types are found, an empty list will be returned.

◆ findDriver() [1/4]

auto embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::findDriver ( const std::string_view & name )

inlinenoexceptinherited

Access a device driver in the registry by name.

Find a driver by name.

This call forwards the information to the DriverRegistry instance.

Returns: An optional_ref to the embvm::DriverBase instance. If no instance is found, the optional reference will be invalid. The caller must cast to the appropriate type.

◆ findDriver() [2/4]

auto embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::findDriver ( embvm::DriverType_t type )

inlinenoexceptinherited

Access a device driver in the registry by type.

Find a driver by type. If multiple drivers are found for a type, the first one found will be returned.

This call forwards the information to the DriverRegistry instance.

Returns: An optional_ref to the embvm::DriverBase instance. If no instance is found, the optional reference will be invalid. The caller must cast to the appropriate type.

◆ findDriver() [3/4]

auto embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::findDriver ( )

inlinenoexceptinherited

Access a device driver in the registry by type, cast as the appropriate base class.

If multiple drivers are found for a type, the first one found will be returned. The type will be returned as the appropriate base class (instead of embvm::DriverBase).

This call forwards the information to the DriverRegistry instance.

Template Parameters

TDriverClass The class of driver being requested (embvm::i2c::master, SystemClock).

Returns: an type_safe::optional_ref cast to the TDriverClass type. If the driver was not found, the optional_ref will be empty.

◆ findDriver() [4/4]

auto embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::findDriver ( const std::string_view & name )

inlinenoexceptinherited

Access a device driver in the registry by name, cast as the appropriate base class.

The type will be returned as the appropriate base class (instead of embvm::DriverBase).

This call forwards the information to the DriverRegistry instance.

Template Parameters

TDriverClass The class of driver being requested (embvm::i2c::master, SystemClock).

Returns: an type_safe::optional_ref cast to the TDriverClass type. If the driver was not found, the optional_ref will be empty.

◆ init()

void embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::init ( )

inlinenoexceptinherited

Initialize the platform.

This function is responsible for initializing the platform.

This function forwards the call to the derived class for the actual implementation.

◆ init_()

void nRF52DK_FrameworkDemoPlatform::init_ ( )

noexcept

References embvm::PlatformLogger_t< TLogger >::inst(), and logdebug.

◆ initHWPlatform()

void embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::initHWPlatform ( )

inlinenoexceptinherited

Initialize the hardware platform.

Performs steps necessary to initialize the hardware platform for use by the platform. In many cases, this call should just invoke the hardware platform's init() function. Control of this function is placed in the platform layer to allow for platform-specific customization & initialization of the hardware platform in situations where non-default values are used.

This function forwards the call to the derived class for the actual implementation.

◆ initHWPlatform_()

void nRF52DK_FrameworkDemoPlatform::initHWPlatform_ ( )

noexcept

References hw_platform_, embvm::VirtualHwPlatformBase< THWPlatform >::init(), NRF52DKHWPlatform::screen0_inst(), snprintf, and NRF52DKHWPlatform::tof0_inst().

◆ initOS() [1/2]

static void embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::initOS ( )

inlinestaticnoexceptinherited

Initialize the OS.

Performs steps necessary to initialize the OS for use by the platform. Control of this function is placed in the platform layer to allow for platform-specific customization & initialization of the OS, since each OS has different startup requirements

This function forwards the call to the derived class for the actual implementation.

◆ initOS() [2/2]

static void embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::initOS ( void(*)() main_thread )

inlinestaticnoexceptinherited

Initialize the with a function to use as the main thread.

Performs steps necessary to initialize the OS for use by the platform. Control of this function is placed in the platform layer to allow for platform-specific customization & initialization of the OS, since each OS has different startup requirements

This function forwards the call to the derived class for the actual implementation.

Parameters

main_thread a function pointer to use as the main thread routine. This version of initOS should be used for OSes such as FreeRTOS which kill execution of the current thread when the scheduler is started.

◆ initOS_()

void nRF52DK_FrameworkDemoPlatform::initOS_ ( void(*)() main_thread )

staticnoexcept

References embvm::VirtualOSFactory< TFactory >::createThread(), main_thread_func(), embvm::thread::normal, and os::freertos::startScheduler().

◆ initProcessor()

void embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::initProcessor ( )

inlinenoexceptinherited

Initialize the processor.

Performs steps necessary to initialize the processor for use by the platform. In many cases, this call should just invoke the processor's init() function. Control of this function is placed in the platform layer to allow for platform-specific customization & initialization of the processor in situations where non-default values are used.

This function forwards the call to the derived class for the actual implementation.

◆ initProcessor_()

void nRF52DK_FrameworkDemoPlatform::initProcessor_ ( )

noexcept

References hw_platform_, and embvm::VirtualHwPlatformBase< THWPlatform >::initProcessor().

◆ inst()

static nRF52DK_FrameworkDemoPlatform & embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::inst ( )

inlinestaticnoexceptinherited

Get the global platform instance.

Static declaration of the VirtualPlatformBase instance. We use this function to avoid the static initializatio order 'fiasco'. See more: https://isocpp.org/wiki/faq/ctors#static-init-order

◆ led_blink_thread_()

void nRF52DK_FrameworkDemoPlatform::led_blink_thread_ ( )

privatenoexcept

References NRF52DKHWPlatform::getLEDInstances(), hw_platform_, and embvm::this_thread::sleep_for().

Referenced by startBlink().

◆ name()

constexpr const std::string_view& embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::name ( ) const

inlinenoexceptinherited

Access the platform's name.

Returns: Platform name std::string_view reference.

◆ name_cstr()

constexpr const char* embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::name_cstr ( ) const

inlinenoexceptinherited

Access the platform name as a cstring for C API compatibility.

Returns: Platform name as a C-string.

◆ registerDriver()

static void embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::registerDriver	(	const std::string_view &	name,
		embvm::DriverBase *	driver
	)

inlinestaticnoexceptinherited

Platform-level API for registering a new device driver.

Register a device driver with the platform's driver registry.

This call forwards the information to the DriverRegistry instance.

Parameters

name	The name (used as a key) the driver will be registered under.
driver	Pointer to the embvm::DriverBase object. A pointer is used because there are any number of potential derived classes which will be tracked. To prevent slicing, a pointer to the base class is stored.

◆ startBlink()

void nRF52DK_FrameworkDemoPlatform::startBlink ( )

noexcept

References assert, BOUNCE, embvm::VirtualOSFactory< TFactory >::createThread(), led_blink_thread_(), led_thread_, and embvm::thread::low.

◆ unregisterDriver()

static void embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::unregisterDriver	(	const std::string_view &	name,
		embvm::DriverBase *	driver
	)

inlinestaticnoexceptinherited

Platform-level API for unregistering a new device driver.

Unregister a device driver with the platform's driver registry.

This call forwards the information to the DriverRegistry instance.

Parameters

name	The name of the driver to remove.
driver	Pointer to the embvm::DriverBase object being removed.

Member Data Documentation

◆ hw_platform_

NRF52DKHWPlatform nRF52DK_FrameworkDemoPlatform::hw_platform_

private

Referenced by initHWPlatform_(), initProcessor_(), and led_blink_thread_().

◆ led_thread_

embvm::VirtualThread* nRF52DK_FrameworkDemoPlatform::led_thread_ = nullptr

private

Thread handle for the created-during-runtime LED thread.

We defer initialization of the LED thread so that we can can start the blinking process at a time of our choosing, rather than during the construction process.

This is just one approach at handling startBlink() for this platform. Another approach would be to create the thread statically and use a variable to wake the thread when we are ready for blinking to start.

Referenced by startBlink().

◆ name_

const std::string_view embvm::VirtualPlatformBase< nRF52DK_FrameworkDemoPlatform , PlatformDriverRegistry >::name_

protectedinherited

The documentation for this class was generated from the following files:

src/platforms/fwdemo/fwdemo_nrf52dk/platform.hpp
src/platforms/fwdemo/fwdemo_nrf52dk/platform.cpp

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Member Typedef Documentation

◆ PlatformBase

Constructor & Destructor Documentation

◆ nRF52DK_FrameworkDemoPlatform()

◆ ~nRF52DK_FrameworkDemoPlatform()

Member Function Documentation

◆ driverCount()

◆ earlyInitHook()

◆ earlyInitHook_()

◆ echoLogBufferToConsole()

◆ findAllDrivers() [1/2]

◆ findAllDrivers() [2/2]

◆ findDriver() [1/4]

◆ findDriver() [2/4]

◆ findDriver() [3/4]

◆ findDriver() [4/4]

◆ init()

◆ init_()

◆ initHWPlatform()

◆ initHWPlatform_()

◆ initOS() [1/2]

◆ initOS() [2/2]

◆ initOS_()

◆ initProcessor()

◆ initProcessor_()

◆ inst()

◆ led_blink_thread_()

◆ name()

◆ name_cstr()

◆ registerDriver()

◆ startBlink()

◆ unregisterDriver()

Member Data Documentation

◆ hw_platform_

◆ led_thread_

◆ name_
