malloc.h File Reference

#include <stdlib.h>

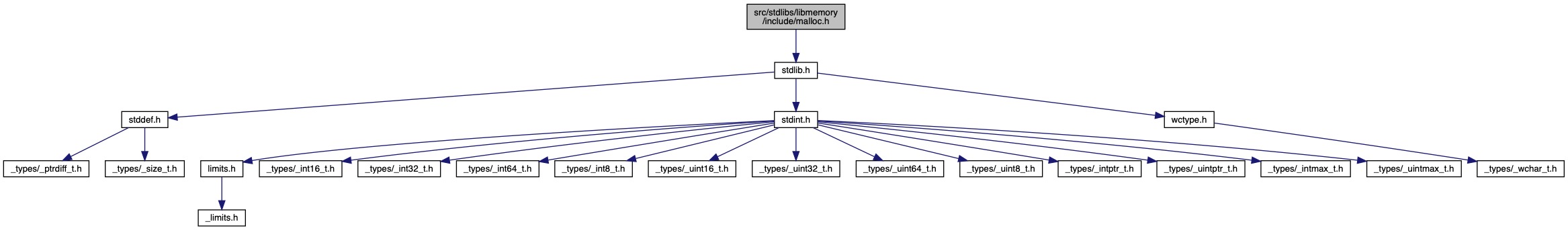

Include dependency graph for malloc.h:

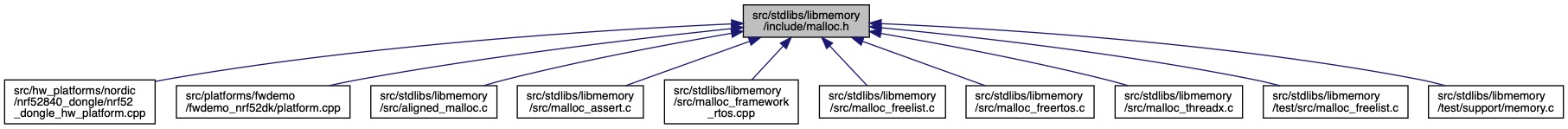

This graph shows which files directly or indirectly include this file:

Functions
void	malloc_addblock (void *addr, size_t size)
	Assign blocks of memory for use by malloc(). More...
void	malloc_init (void)
	Initialize Malloc. More...

Function Documentation

malloc_addblock()

void malloc_addblock	(	void *	addr,
		size_t	size
	)

Assign blocks of memory for use by malloc().

Initializes the malloc() backend with a memory address and memory pool size. This memory is assumed to be owned by malloc() and is vended out when memory is requested. Multiple blocks can be added.

NOTE: This API must be called before malloc() can be used. If you call malloc() before allocating memory, malloc() will return NULL because there is no available memory to provide to the user.

Parameters

addr	Pointer to the memory block address that you are providing to malloc()
size	Size of the memory block that you are providing to malloc()

Assign blocks of memory for use by malloc().

In this FreeRTOS implementation, malloc() calls will block until memory has been allocated

Assign blocks of memory for use by malloc().

In this ThreadX implementation, malloc() calls will block until memory has been allocated

References embvm::VirtualHeap< THeapImpl >::addBlock(), align_up, ALLOC_HEADER_SZ, assert, heap_region_cnt, heap_region_max, heap_regions, initialized_, list_add(), malloc_pool_, alloc_node_t::node, r, alloc_node_t::size, tx_byte_pool_create, and TX_SUCCESS.

Referenced by allocate_memory(), NRF52DongleHWPlatform::earlyInitHook_(), and nRF52DK_FrameworkDemoPlatform::earlyInitHook_().

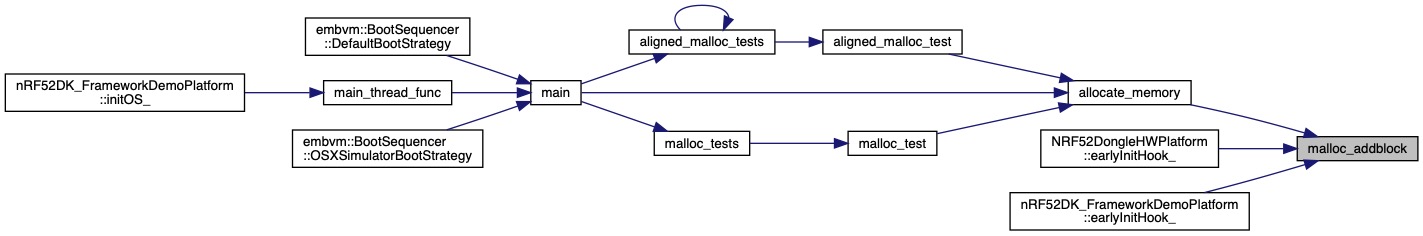

Here is the caller graph for this function:

malloc_init()

void malloc_init

(

void

)

Initialize Malloc.

Weakly linked, can be overridden based on your needs. Each malloc implementation contains a different set of initialization requirements
