NRF52DongleHWPlatform Class Reference

#include <nrf52_dongle_hw_platform.hpp>

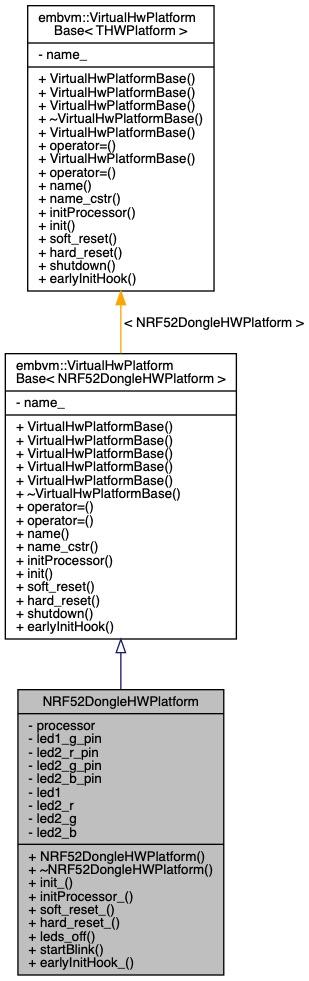

Inheritance diagram for NRF52DongleHWPlatform:

Public Member Functions
	NRF52DongleHWPlatform ()
	Default constructor. More...
	~NRF52DongleHWPlatform ()
	Default destructor. More...
void	init_ () noexcept
void	initProcessor_ () noexcept
void	soft_reset_ () noexcept
void	hard_reset_ () noexcept
void	leds_off () noexcept
void	startBlink () noexcept
constexpr const std::string_view &	name () const noexcept
	Returns the Virtual HW Platform's name. More...
constexpr const char *	name_cstr () const noexcept
	Returns the platform name as a cstring for C API compatibility. More...
void	initProcessor () noexcept
	Initialize the processor. More...
void	init () noexcept
	Initialize the hardware platform. More...
void	soft_reset () noexcept
	Perform a soft reset of the system (chip reset) More...
void	hard_reset () noexcept
	Perform a hard reset of the system (power cycle) More...
void	shutdown () noexcept
	Shutdown the system. More...

Static Public Member Functions
static void	earlyInitHook_ () noexcept
static void	earlyInitHook () noexcept
	Perform any special initialization steps. More...

Private Types
using	PlatformBase = embvm::VirtualHwPlatformBase< NRF52DongleHWPlatform >

Private Attributes
nRF52840	processor
nRFGPIOOutput< 0, 6 >	led1_g_pin {}
nRFGPIOOutput< 0, 8 >	led2_r_pin {}
nRFGPIOOutput< 1, 9 >	led2_g_pin {}
nRFGPIOOutput< 0, 12 >	led2_b_pin {}
embvm::led::gpioActiveLow	led1 {led1_g_pin, "led1"}
embvm::led::gpioActiveLow	led2_r {led2_r_pin, "led2r"}
embvm::led::gpioActiveLow	led2_g {led2_g_pin, "led2g"}
embvm::led::gpioActiveLow	led2_b {led2_b_pin, "led2b"}

Member Typedef Documentation

PlatformBase

using NRF52DongleHWPlatform::PlatformBase = embvm::VirtualHwPlatformBase<NRF52DongleHWPlatform>

private

Constructor & Destructor Documentation

NRF52DongleHWPlatform()

NRF52DongleHWPlatform::NRF52DongleHWPlatform ( )

inline

Default constructor.

~NRF52DongleHWPlatform()

NRF52DongleHWPlatform::~NRF52DongleHWPlatform ( )

noexcept

Default destructor.

Member Function Documentation

earlyInitHook()

static void embvm::VirtualHwPlatformBase< NRF52DongleHWPlatform >::earlyInitHook ( )

inlinestaticnoexceptinherited

Perform any special initialization steps.

The earlyInitHook_() function must be implemented by the derived class as a static function.

These functions run before the C Run-time setup functions are called, and normal functionality (e.g. OS concepts) are not available.

Early initialization steps represent any super early code that needs to execute. For example, DRAM might need to be initialized before the boot process can relocate memory to its proper location in memory.

These functions are declared static to prevent you from easily using drivers within their confines

earlyInitHook_()

void NRF52DongleHWPlatform::earlyInitHook_ ( )

staticnoexcept

References __HeapBase, __HeapLimit, and malloc_addblock().

hard_reset()

void embvm::VirtualHwPlatformBase< NRF52DongleHWPlatform >::hard_reset ( )

inlinenoexceptinherited

Perform a hard reset of the system (power cycle)

The hard_reset_() function must be implemented by the derived class.

A hard reset is intended to perform a full power cycle of the system.

Platforms which do not support a hard reset should default to calling soft_reset().

hard_reset_()

void NRF52DongleHWPlatform::hard_reset_ ( )

inlinenoexcept

References soft_reset_().

init()

void embvm::VirtualHwPlatformBase< NRF52DongleHWPlatform >::init ( )

inlinenoexceptinherited

Initialize the hardware platform.

The init_() function must be implemented by the derived class.

Perform any hardware platform initialization steps, such as preparing peripherals for use, setting up callbacks, etc.

init_()

void NRF52DongleHWPlatform::init_ ( )

noexcept

References nRF52840::highVoltageMode(), led1, led2_b, led2_g, led2_r, processor, and embvm::DriverBase::start().

initProcessor()

void embvm::VirtualHwPlatformBase< NRF52DongleHWPlatform >::initProcessor ( )

inlinenoexceptinherited

Initialize the processor.

The initProcessor_() function must be implemented by the derived class.

Perform any steps necessary for initializing the processor & processor peripheral devices for use.

Note that this is only intended to be processor initialization. Platform initialization nis handled by the init() function.

This function will likely invoke the VirtualProcessor::init() function, but the order and actual initialization process is left to the derived class.

initProcessor_()

void NRF52DongleHWPlatform::initProcessor_ ( )

inlinenoexcept

leds_off()

void NRF52DongleHWPlatform::leds_off ( )

inlinenoexcept

References led1, led2_b, led2_g, led2_r, and embvm::led::gpio< TActiveHigh >::off().

name()

constexpr const std::string_view& embvm::VirtualHwPlatformBase< NRF52DongleHWPlatform >::name ( ) const

inlinenoexceptinherited

Returns the Virtual HW Platform's name.

name_cstr()

constexpr const char* embvm::VirtualHwPlatformBase< NRF52DongleHWPlatform >::name_cstr ( ) const

inlinenoexceptinherited

Returns the platform name as a cstring for C API compatibility.

shutdown()

void embvm::VirtualHwPlatformBase< NRF52DongleHWPlatform >::shutdown ( )

inlinenoexceptinherited

Shutdown the system.

The shutdown_() function must be implemented by the derived class.

If your platform supports shutdown capability, take the proper steps to initiate a shutdown.

If the platform does not support shutdown capability, implement your shutdown_() function as an assert to notify users trying to call this API. You could also leave the shutdown_() function undefined. Anyone who calls the shutdown() function on a platform with an undefined shutdown_() function will encounter a compiler error.

The shutdown function is not expected to return.

soft_reset()

void embvm::VirtualHwPlatformBase< NRF52DongleHWPlatform >::soft_reset ( )

inlinenoexceptinherited

Perform a soft reset of the system (chip reset)

The soft_reset_() function must be implemnted by the derived class.

A soft reset is intended to reset the program to the beginning without performing a full power cycle.

A good strategy is to just call virtual processor's reset() function, if one is provided.

soft_reset_()

void NRF52DongleHWPlatform::soft_reset_ ( )

inlinenoexcept

Referenced by hard_reset_().

startBlink()

void NRF52DongleHWPlatform::startBlink ( )

inlinenoexcept

References led1, led2_b, led2_g, led2_r, processor, and nRF52840::spin().

Member Data Documentation

led1

embvm::led::gpioActiveLow NRF52DongleHWPlatform::led1 {led1_g_pin, "led1"}

private

Referenced by init_(), leds_off(), and startBlink().

led1_g_pin

nRFGPIOOutput<0, 6> NRF52DongleHWPlatform::led1_g_pin {}

private

led2_b

embvm::led::gpioActiveLow NRF52DongleHWPlatform::led2_b {led2_b_pin, "led2b"}

private

Referenced by init_(), leds_off(), and startBlink().

led2_b_pin

nRFGPIOOutput<0, 12> NRF52DongleHWPlatform::led2_b_pin {}

private

led2_g

embvm::led::gpioActiveLow NRF52DongleHWPlatform::led2_g {led2_g_pin, "led2g"}

private

Referenced by init_(), leds_off(), and startBlink().

led2_g_pin

nRFGPIOOutput<1, 9> NRF52DongleHWPlatform::led2_g_pin {}

private

led2_r

embvm::led::gpioActiveLow NRF52DongleHWPlatform::led2_r {led2_r_pin, "led2r"}

private

Referenced by init_(), leds_off(), and startBlink().

led2_r_pin

nRFGPIOOutput<0, 8> NRF52DongleHWPlatform::led2_r_pin {}

private

processor

nRF52840 NRF52DongleHWPlatform::processor

private

Referenced by init_(), and startBlink().

---

The documentation for this class was generated from the following files:

• src/hw_platforms/nordic/nrf52840_dongle/nrf52_dongle_hw_platform.hpp
• src/hw_platforms/nordic/nrf52840_dongle/nrf52_dongle_hw_platform.cpp
