This class manages a GPIO object which is attached to an LED. More...

#include <led.hpp>

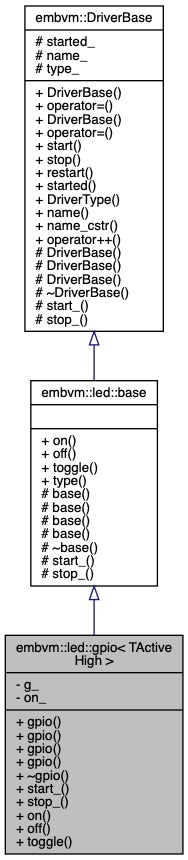

Inheritance diagram for embvm::led::gpio< TActiveHigh >:

Public Member Functions
	gpio (embvm::gpio::output &g) noexcept
	Default constructor. More...

	gpio (embvm::gpio::output &g, const char *name) noexcept
	Construct an led::gpio() with a C-string name. More...

	gpio (embvm::gpio::output &g, const std::string &name) noexcept
	Construct an led::gpio() with a std::string name. More...

	gpio (embvm::gpio::output &g, const std::string_view &name) noexcept
	Construct an led::gpio() with a std::string_view name. More...

	~gpio () final=default
	Default destructor. More...

void	start_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept final
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	on () noexcept final
	Turn on the LED. More...

void	off () noexcept final
	Turn off the LED. More...

void	toggle () noexcept final
	Toggle the LED state. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	LED Driver Type ID. More...

Protected Attributes
type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Attributes
embvm::gpio::output &	g_
	The GPIO output object which this LED driver is managing. More...

bool	on_ = false
	State of the LED, required to implement toggle(). More...

Detailed Description

template<bool TActiveHigh = true>
class embvm::led::gpio< TActiveHigh >

This class manages a GPIO object which is attached to an LED.

This class provides a specialization of the led::base() object. The led::gpio() class manages a embvm::gpio::output object that is connected to an LED in hardware. All interactions with the LED are forwarded to the embvm::gpio::output.

This class is used in the same way as led::base(). The only additonal requirement is that it must be initialized with a embvm::gpio::output object. This driver assumes that is is the sole owner of the embvm::gpio::output object after creation. If other code messes with the embvm::gpio::output state outside of this interface, proper functioning is no longer guaranteed.

Template Parameters

TActiveHigh If true, the LED turns on when the GPIO is set high. If false, the LED turns on when the GPIO is set low.

Constructor & Destructor Documentation

◆ gpio() [1/4]

template<bool TActiveHigh = true>

embvm::led::gpio< TActiveHigh >::gpio ( embvm::gpio< TActiveHigh >::output & g )

inlineexplicitnoexcept

Default constructor.

Initializes the led::gpio() instance with a GPIO output object to manage.

Parameters

g	The embvm::gpio::output object which the LED driver will manage.

◆ gpio() [2/4]

template<bool TActiveHigh = true>

embvm::led::gpio< TActiveHigh >::gpio	(	embvm::gpio< TActiveHigh >::output &	g,
		const char *	name
	)

inlineexplicitnoexcept

Construct an led::gpio() with a C-string name.

Initializes the led::gpio() instance with a GPIO output object to manage and uses the specified name.

Parameters

g	The embvm::gpio::output object which the LED driver will manage.
name	The name of the LED instance.

◆ gpio() [3/4]

template<bool TActiveHigh = true>

embvm::led::gpio< TActiveHigh >::gpio	(	embvm::gpio< TActiveHigh >::output &	g,
		const std::string &	name
	)

inlineexplicitnoexcept

Construct an led::gpio() with a std::string name.

Initializes the led::gpio() instance with a GPIO output object to manage and uses the specified name.

Parameters

g	The embvm::gpio::output object which the LED driver will manage.
name	The name of the LED instance.

◆ gpio() [4/4]

template<bool TActiveHigh = true>

embvm::led::gpio< TActiveHigh >::gpio	(	embvm::gpio< TActiveHigh >::output &	g,
		const std::string_view &	name
	)

inlineexplicitnoexcept

Construct an led::gpio() with a std::string_view name.

Initializes the led::gpio() instance with a GPIO output object to manage and uses the specified name.

Parameters

g	The embvm::gpio::output object which the LED driver will manage.
name	The name of the LED instance. led::base() uses a std::string_view, so the std::string must remain valid

◆ ~gpio()

template<bool TActiveHigh = true>

embvm::led::gpio< TActiveHigh >::~gpio ( )

finaldefault

Default destructor.

Member Function Documentation

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ off()

template<bool TActiveHigh = true>

void embvm::led::gpio< TActiveHigh >::off ( )

inlinefinalvirtualnoexcept

Turn off the LED.

Postcondition: LED is turned off.

Implements embvm::led::base.

Referenced by NRF52DKHWPlatform::leds_off(), and NRF52DongleHWPlatform::leds_off().

◆ on()

template<bool TActiveHigh = true>

void embvm::led::gpio< TActiveHigh >::on ( )

inlinefinalvirtualnoexcept

Turn on the LED.

Postcondition: LED is turned on.

Implements embvm::led::base.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

template<bool TActiveHigh = true>

void embvm::led::gpio< TActiveHigh >::start_ ( )

inlinefinalvirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::led::base.

References embvm::led::base::off().

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

template<bool TActiveHigh = true>

void embvm::led::gpio< TActiveHigh >::stop_ ( )

inlinefinalvirtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::led::base.

◆ toggle()

template<bool TActiveHigh = true>

void embvm::led::gpio< TActiveHigh >::toggle ( )

inlinefinalvirtualnoexcept

Toggle the LED state.

If the LED is on, turn it off. If the LED is off, turn it on. The logic for implementing toggle is left to the base class, as there may be efficient options that depend on the specific implementation.

Derived classes must implement the toggle() function.

Postcondition: If the LED was off, the LED is now on. If the LED was on, LED is now off.

Implements embvm::led::base.

References embvm::led::base::off(), and embvm::led::base::on().

Referenced by BlinkySimulatorHWPlatform::init_().

◆ type()

static constexpr embvm::DriverType embvm::led::base::type ( )

inlinestaticnoexceptinherited

LED Driver Type ID.

Returns: LED type ID.

References embvm::LED.

Member Data Documentation

◆ g_

template<bool TActiveHigh = true>

embvm::gpio::output& embvm::led::gpio< TActiveHigh >::g_

private

The GPIO output object which this LED driver is managing.

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ on_

template<bool TActiveHigh = true>

bool embvm::led::gpio< TActiveHigh >::on_ = false

private

State of the LED, required to implement toggle().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

The documentation for this class was generated from the following file:

src/core/driver/led.hpp
