This class provides generic Timer interface definitions. More...

#include <timer.hpp>

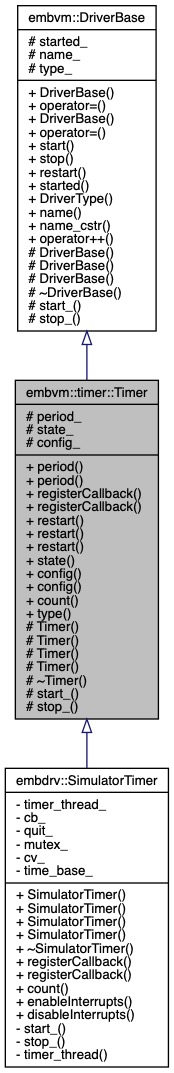

Inheritance diagram for embvm::timer::Timer:

Public Member Functions
timer_period_t	period () const noexcept
	Get the current timer period. More...

timer_period_t	period (timer_period_t period) noexcept
	Set the timer period. More...

virtual void	registerCallback (const timer::cb_t &cb) noexcept=0
	Register a timer callback. More...

virtual void	registerCallback (timer::cb_t &&cb) noexcept=0
	Register a timer callback. More...

virtual void	restart (const timer_period_t period) noexcept
	Restart the timer with a specific period. More...

void	restart (const timer_period_t::rep period) noexcept
	Restart the timer with a specific period. More...

void	restart () noexcept
	Restart the timer with the currently configured period. More...

virtual timer::state	state () const noexcept
	Check the state of the timer. More...

virtual timer::config	config () const noexcept
	Check the configuration of the timer. More...

virtual timer::config	config (timer::config c) noexcept
	Set the timer configuration. More...

virtual timer_period_t	count () const noexcept=0
	Read the current timer count. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	Timer Driver Type ID. More...

Protected Member Functions
	Timer () noexcept
	Default constructor. More...

	Timer (const char *name) noexcept
	Construct an Timer with a C-string name. More...

	Timer (const std::string &name) noexcept
	Construct an Timer with a std::string name. More...

	Timer (const std::string_view &name) noexcept
	Construct an Timer with a std::string_view name. More...

	~Timer () noexcept override
	Default destructor. More...

void	start_ () noexcept override=0
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept override=0
	Derived classes override the start_ method to control driver-specific startup behavior. More...

Protected Attributes
timer_period_t	period_ {0}
	The configured timer period. More...

timer::state	state_ = timer::state::stopped
	The current state of the timer. More...

timer::config	config_ = timer::config::oneshot
	The timer configuratoin. More...

type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Detailed Description

This class provides generic Timer interface definitions.

The Timer class defines the common interfaces for Timer drivers. This class can be inherited to provide specific Timer implementations.

Timers can be used with the embvm::TimerManager<> class to provide software timer support.

Define a Timer driver

To create a specialized Timer driver, derive from the Timer object:

class SimulatorTimer final : public timer::Timer

{ ... };

Derived classes must implement the following interfaces:

registerCallback()

Derived classes must also implement pure virtual embvm::DriverBase functions:

The start_() function must implement the steps for starting the timer hardware. The stop_() function is responsible for stopping the timer hardware.

Using a Timer driver

Timers should be configured with a period(). If the default one-shot configuration is not desired, the config() can be used to change the timer operational mode.

A callback should be registered with the registerCallback() function. When the timer expires, the callback will be invoked. If the timer is configured as a one-shot, the timer will remain expired until start() or restart() is called. If a timer is configured as periodic, the timer will reload the period and re-arm itself.

A timer can be restarted (even while running) using the existing period or with a new period.

Timers can be stopped while they are running using the stop() function.

Software Timers with embvm::TimerManager<>

Timers can be used with the embvm::TimerManager<> class to provide software timer support.

SimulatorTimer timer;

embvm::TimerManager tm(timer);

The embvm::TimerManager will use the timer hardware driver as a master timer, enabling multiple software timers to be created and used while consuming only a single hardware resource.

Constructor & Destructor Documentation

◆ Timer() [1/4]

embvm::timer::Timer::Timer ( )

inlineprotectednoexcept

Default constructor.

Initializes the Timer instance with a generic name.

◆ Timer() [2/4]

embvm::timer::Timer::Timer ( const char * name )

inlineexplicitprotectednoexcept

Construct an Timer with a C-string name.

Initializes the Timer instance with a name.

Parameters

name	The name of the Timer instance.

◆ Timer() [3/4]

embvm::timer::Timer::Timer ( const std::string & name )

inlineexplicitprotectednoexcept

Construct an Timer with a std::string name.

Initializes the Timer instance with a name.

Parameters

name	The name of the Timer instance. Timer() uses a std::string_view, so the std::string must remain valid

◆ Timer() [4/4]

embvm::timer::Timer::Timer ( const std::string_view & name )

inlineexplicitprotectednoexcept

Construct an Timer with a std::string_view name.

Initializes the Timer instance with a name.

Parameters

name	The name of the Timer instance.

◆ ~Timer()

Timer::~Timer ( )

overrideprotecteddefaultnoexcept

Default destructor.

Member Function Documentation

◆ config() [1/2]

virtual timer::config embvm::timer::Timer::config ( ) const

inlinevirtualnoexcept

Check the configuration of the timer.

Returns: the current timer configuration.

References config_.

Referenced by embdrv::SimulatorTimer::SimulatorTimer().

◆ config() [2/2]

virtual timer::config embvm::timer::Timer::config ( timer::config c )

inlinevirtualnoexcept

Set the timer configuration.

Parameters

c	The desired timer configuration (periodic or oneshot).

Returns: the current timer configuration.

References config_.

◆ count()

virtual timer_period_t embvm::timer::Timer::count ( ) const

pure virtualnoexcept

Read the current timer count.

Returns: the current count of the timer

Implemented in embdrv::SimulatorTimer.

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ period() [1/2]

timer_period_t embvm::timer::Timer::period ( ) const

inlinenoexcept

Get the current timer period.

Returns: the currently configured timer period.

References period_.

Referenced by period(), restart(), and embdrv::SimulatorTimer::SimulatorTimer().

◆ period() [2/2]

timer_period_t embvm::timer::Timer::period ( timer_period_t period )

inlinenoexcept

Set the timer period.

If the timer is currently running, this call has no effect. Use restart() instead.

Parameters

period the desired timer period.

Returns: the currently configured timer period.

References period(), and period_.

◆ registerCallback() [1/2]

virtual void embvm::timer::Timer::registerCallback ( const timer::cb_t & cb )

pure virtualnoexcept

Register a timer callback.

The timer callback function is called whenever the timer expires.

Derived classes must implement this function. Derived classes can choose to support either a single callback or multiple callbacks.

Parameters

cb	A callback to invoke when the timer expires.

Implemented in embdrv::SimulatorTimer.

◆ registerCallback() [2/2]

virtual void embvm::timer::Timer::registerCallback ( timer::cb_t && cb )

pure virtualnoexcept

Register a timer callback.

The timer callback function is called whenever the timer expires.

Derived classes must implement this function. Derived classes can choose to support either a single callback or multiple callbacks.

Parameters

cb	A callback to invoke when the timer expires.

Implemented in embdrv::SimulatorTimer.

◆ restart() [1/3]

virtual void embvm::timer::Timer::restart ( const timer_period_t period )

inlinevirtualnoexcept

Restart the timer with a specific period.

Parameters

period The desired timer period to reset the timer to use. Accepts a std::chrono value.

References period(), period_, embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ restart() [2/3]

void embvm::timer::Timer::restart ( const timer_period_t::rep period )

inlinenoexcept

Restart the timer with a specific period.

Parameters

period The desired timer period to reset the timer to use. Accepts an integral count representing the period in microseonds.

References period(), and restart().

◆ restart() [3/3]

void embvm::timer::Timer::restart ( )

inlinenoexcept

Restart the timer with the currently configured period.

References period_.

Referenced by restart().

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

void embvm::timer::Timer::start_ ( )

overrideprotectedpure virtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::DriverBase.

Implemented in embdrv::SimulatorTimer.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ state()

virtual timer::state embvm::timer::Timer::state ( ) const

inlinevirtualnoexcept

Check the state of the timer.

Returns: the current timer state.

References state_.

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

void embvm::timer::Timer::stop_ ( )

overrideprotectedpure virtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::DriverBase.

Implemented in embdrv::SimulatorTimer.

◆ type()

static constexpr embvm::DriverType embvm::timer::Timer::type ( )

inlinestaticnoexcept

Timer Driver Type ID.

Returns: Timer type ID.

References embvm::TIMER.

Member Data Documentation

◆ config_

timer::config embvm::timer::Timer::config_ = timer::config::oneshot

protected

The timer configuratoin.

Referenced by config(), embdrv::SimulatorTimer::SimulatorTimer(), and embdrv::SimulatorTimer::timer_thread().

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ period_

timer_period_t embvm::timer::Timer::period_ {0}

protected

The configured timer period.

Referenced by period(), restart(), embdrv::SimulatorTimer::SimulatorTimer(), and embdrv::SimulatorTimer::timer_thread().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ state_

timer::state embvm::timer::Timer::state_ = timer::state::stopped

protected

The current state of the timer.

Referenced by embdrv::SimulatorTimer::start_(), state(), embdrv::SimulatorTimer::stop_(), and embdrv::SimulatorTimer::timer_thread().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

The documentation for this class was generated from the following files:

src/core/driver/timer.hpp
src/core/driver/internal/timer.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Define a Timer driver

Using a Timer driver

Software Timers with embvm::TimerManager<>

Constructor & Destructor Documentation

◆ Timer() [1/4]

◆ Timer() [2/4]

◆ Timer() [3/4]

◆ Timer() [4/4]

◆ ~Timer()

Member Function Documentation

◆ config() [1/2]

◆ config() [2/2]

◆ count()

◆ DriverType()

◆ name()

◆ name_cstr()

◆ operator++()

◆ period() [1/2]

◆ period() [2/2]

◆ registerCallback() [1/2]

◆ registerCallback() [2/2]

◆ restart() [1/3]

◆ restart() [2/3]

◆ restart() [3/3]

◆ start()

◆ start_()

◆ started()

◆ state()

◆ stop()

◆ stop_()

◆ type()

Member Data Documentation

◆ config_

◆ name_

◆ period_

◆ started_

◆ state_

◆ type_
