nRF52840 Class Reference

#include <nrf52840.hpp>

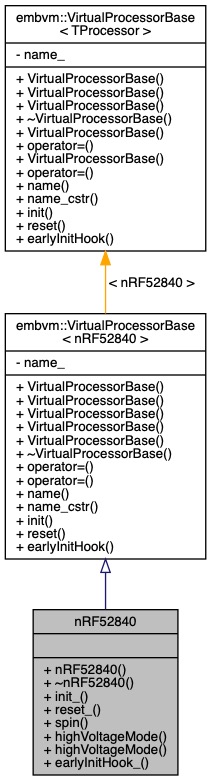

Inheritance diagram for nRF52840:

Public Member Functions
	nRF52840 () noexcept
	Default constructor. More...
	~nRF52840 ()
	Default destructor. More...
void	init_ () noexcept
void	reset_ () noexcept
void	spin (unsigned int usecs) noexcept
bool	highVoltageMode () noexcept
bool	highVoltageMode (bool en) noexcept
	Function for configuring UICR_REGOUT0 register to set GPIO output voltage to 3.0V. More...
constexpr const std::string_view &	name () const noexcept
	Returns the Virtual HW Platform's name. More...
constexpr const char *	name_cstr () const noexcept
	Returns the platform name as a cstring for C API compatibility. More...
void	init () noexcept
	Initialize the processor. More...
void	reset () noexcept
	Reset the chip. More...

Static Public Member Functions
static void	earlyInitHook_ () noexcept
static void	earlyInitHook () noexcept
	Perform any special initialization steps. More...

Private Types
using	ProcessorBase = embvm::VirtualProcessorBase< nRF52840 >

Member Typedef Documentation

ProcessorBase

using nRF52840::ProcessorBase = embvm::VirtualProcessorBase<nRF52840>

private

Constructor & Destructor Documentation

nRF52840()

nRF52840::nRF52840 ( )

inlinenoexcept

Default constructor.

~nRF52840()

nRF52840::~nRF52840

(

)

Default destructor.

Member Function Documentation

earlyInitHook()

static void embvm::VirtualProcessorBase< nRF52840 >::earlyInitHook ( )

inlinestaticnoexceptinherited

Perform any special initialization steps.

The earlyInitHook_() function must be implemented by the derived class as a static function.

These functions run before the C Run-time setup functions are called, and normal functionality (e.g. OS concepts) are not available.

Early initialization steps represent any super early code that needs to execute. For example, DRAM might need to be initialized before the boot process can relocate memory to its proper location in memory.

These functions are declared static to prevent you from easily using drivers within their confines

earlyInitHook_()

static void nRF52840::earlyInitHook_ ( )

inlinestaticnoexcept

highVoltageMode() [1/2]

bool nRF52840::highVoltageMode ( )

noexcept

Referenced by NRF52DongleHWPlatform::init_().

highVoltageMode() [2/2]

bool nRF52840::highVoltageMode ( bool  en )

noexcept

Function for configuring UICR_REGOUT0 register to set GPIO output voltage to 3.0V.

This function will reset the microcontroller if the requested setting was applied. The UICR registers require this.

References checkVOUT(), and setVOUT().

init()

void embvm::VirtualProcessorBase< nRF52840 >::init ( )

inlinenoexceptinherited

Initialize the processor.

The initProcessor_() function must be implemented by the derived class.

Perform any steps necessary for initializing the processor & processor peripheral devices for use.

Note that this is only intended to be processor initialization. Platform initialization nis handled by the init() function.

This function will likely invoke the VirtualProcessor::init() function, but the order and actual initialization process is left to the derived class.

init_()

void nRF52840::init_ ( )

noexcept

name()

constexpr const std::string_view& embvm::VirtualProcessorBase< nRF52840 >::name ( ) const

inlinenoexceptinherited

Returns the Virtual HW Platform's name.

name_cstr()

constexpr const char* embvm::VirtualProcessorBase< nRF52840 >::name_cstr ( ) const

inlinenoexceptinherited

Returns the platform name as a cstring for C API compatibility.

reset()

void embvm::VirtualProcessorBase< nRF52840 >::reset ( )

inlinenoexceptinherited

Reset the chip.

The reset_() function must be implemnted by the derived class.

A soft reset is intended to reset the program to the beginning without performing a full power cycle.

reset_()

void nRF52840::reset_ ( )

noexcept

References ARMCommonArch::systemReset().

spin()

void nRF52840::spin ( unsigned int  usecs )

noexcept

References CPU_FREQ_MHZ.

Referenced by NRF52DKHWPlatform::startBlink(), and NRF52DongleHWPlatform::startBlink().

---

The documentation for this class was generated from the following files:

• src/processors/arm/nordic/nrf52840/nrf52840.hpp
• src/processors/arm/nordic/nrf52840/nrf52840.cpp
