Classes
class	os::freertos::EventFlag
	FreeRTOS Event Flag Implementation. More...

class	os::freertos::MessageQueue< TType >
	FreeRTOS Message Queue implementation for OSX. More...

class	os::freertos::Mutex
	FreeRTOS Mutex Implementation. More...

class	os::freertos::Semaphore
	Create a FreeRTOS semaphore (OSX variant) More...

class	os::freertos::Thread
	Create a FreeRTOS thread. More...

class	os::freertos::Heap

class	os::freertos::freertosOSFactory_impl
	Implementation of the FreeRTOS OS Factory For API documentation, see embvm::embvm::VirtualOSFactory. More...

Typedefs
using	os::freertos::thread_exit_t = void()(void )

Functions
void	os::freertos::register_threadexit_func (thread_exit_t atexit) noexcept

void	os::freertos::startScheduler () noexcept
	Call this function to start the FreeRTOS scheduler. More...

Variables
static constexpr size_t	os::freertos::FREERTOS_STACK_MIN = (1 * 1024)

Detailed Description

Class Documentation

◆ os::freertos::EventFlag

class os::freertos::EventFlag

FreeRTOS Event Flag Implementation.

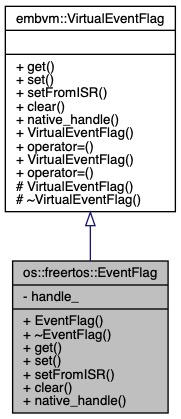

Inheritance diagram for os::freertos::EventFlag:

Public Member Functions
	EventFlag () noexcept
	Create an event flag group. More...

	~EventFlag () noexcept
	Default destructor which cleans up the event flag group. More...

embvm::eventflag::flag_t	get (embvm::eventflag::flag_t bits_wait, embvm::eventflag::option opt=embvm::eventflag::option::OR, bool clearOnExit=true, const embvm::os_timeout_t &timeout=embvm::OS_WAIT_FOREVER) noexcept final
	Get (or wait for) event flags. More...

void	set (embvm::eventflag::flag_t bits) noexcept final
	Set event flags. More...

void	setFromISR (embvm::eventflag::flag_t bits) noexcept final
	Set event flags from an ISR. More...

void	clear () noexcept final
	Clear all event flag bits. More...

embvm::eventflag::handle_t	native_handle () const noexcept final
	Get the native handle for the event flags group object. More...

Private Attributes
embvm::eventflag::handle_t	handle_

Constructor & Destructor Documentation

◆ EventFlag()

EventFlag::EventFlag ( )

explicitnoexcept

Create an event flag group.

References assert, buf, handle_, and static_event_pool_.

◆ ~EventFlag()

EventFlag::~EventFlag ( )

noexcept

Default destructor which cleans up the event flag group.

References handle_, and static_event_pool_.

Member Function Documentation

◆ clear()

void EventFlag::clear ( )

finalvirtualnoexcept

Clear all event flag bits.

Postcondition: Event flag group value is reset to '0'.

Implements embvm::VirtualEventFlag.

References handle_.

◆ get()

embvm::eventflag::flag_t EventFlag::get	(	embvm::eventflag::flag_t	bits_wait,
		embvm::eventflag::option	opt = `embvm::eventflag::option::OR`,
		bool	clearOnExit = `true`,
		const embvm::os_timeout_t &	timeout = `embvm::OS_WAIT_FOREVER`
	)

finalvirtualnoexcept

Get (or wait for) event flags.

Get the event flag bits. If the required event flags are not set, this function will block the calling thread until the flags are set or the timeout expires.

To see all bits currently set, set bits_wait to ~0 and timeout_t to the minimal value (timeout_t(1)).

Parameters

bits_wait	A bitmask of bits to wait for in the event flags group.
opt	The wait option, which is combined with bits_wait to control the behavior of get(). embvm::eventflag::option::OR will return once any of the bits specified in bits_wait are set in the event flag group. embvm::eventflag::option::AND will only return once ALL of the bits specified in bits_wait are set in the event flag group.
clearOnExit	If true, all event flags that were specified in bits_wait and set in the event flag group will be set to 0. If false, event flag bits will not be modified.
timeout	Specify a timeout for the get operation. If OS_WAIT_FOREVER is supplied, this call will block until the event flags are set. Otherwise, the function will timeout after the elapsed time if flags are not set.

Returns: 0 if timeout, or flags that were currently set according to bits_wait

Implements embvm::VirtualEventFlag.

References embvm::eventflag::AND, assert, and os::freertos::frameworkTimeoutToTicks().

◆ native_handle()

embvm::eventflag::handle_t os::freertos::EventFlag::native_handle ( ) const

inlinefinalvirtualnoexcept

Get the native handle for the event flags group object.

Returns: the native handle for this event flags object. The handle will always return the handle_t and it must be cast to the native handle type by the user.

Implements embvm::VirtualEventFlag.

References handle_.

◆ set()

void EventFlag::set ( embvm::eventflag::flag_t bits )

finalvirtualnoexcept

Set event flags.

Set event flags from a threaded context. Threads waiting on event flags (via get()) will be notified.

Parameters

bits	A bitmask representing the bits to set in the event flag group.

Implements embvm::VirtualEventFlag.

References assert.

◆ setFromISR()

void EventFlag::setFromISR ( embvm::eventflag::flag_t bits )

finalvirtualnoexcept

Set event flags from an ISR.

Set event flags from an interrupt context. This call must not use a lock. Threads waiting on event flags (via get()) will be notified.

Parameters

bits	A bitmask representing the bits to set in the event flag group.

Implements embvm::VirtualEventFlag.

References assert, portYIELD_FROM_ISR, and r.

Member Data Documentation

◆ handle_

embvm::eventflag::handle_t os::freertos::EventFlag::handle_

private

Referenced by clear(), EventFlag(), native_handle(), and ~EventFlag().

◆ os::freertos::MessageQueue

class os::freertos::MessageQueue

template<typename TType>
class os::freertos::MessageQueue< TType >

FreeRTOS Message Queue implementation for OSX.

Template Parameters

TType The type of data to be stored in the message queue

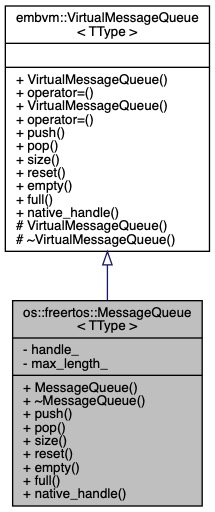

Inheritance diagram for os::freertos::MessageQueue< TType >:

Public Member Functions
	MessageQueue (size_t queue_length) noexcept
	Construct a message queue. More...

	~MessageQueue () noexcept
	Default destructor, cleans up the message queue. More...

bool	push (TType val, embvm::os_timeout_t timeout=embvm::OS_WAIT_FOREVER) noexcept final
	Post a message to the queue. More...

std::optional< TType >	pop (embvm::os_timeout_t timeout=embvm::OS_WAIT_FOREVER) noexcept final
	Retrieve a message from the queue. More...

size_t	size () const noexcept final
	Get the current size of the message queue. More...

void	reset () noexcept final
	Reset the message queue to an empty state. More...

bool	empty () const noexcept final
	Check if the message queue is empty. More...

bool	full () const noexcept final
	Check if the message queue is full. More...

embvm::msgqueue::handle_t	native_handle () const noexcept final
	Get the native handle for the message queue object. More...

Private Attributes
embvm::msgqueue::handle_t	handle_

size_t	max_length_

Constructor & Destructor Documentation

◆ MessageQueue()

template<typename TType >

os::freertos::MessageQueue< TType >::MessageQueue ( size_t queue_length )

inlineexplicitnoexcept

Construct a message queue.

Parameters

queue_length The maximum size of the message queue.

References assert, os::freertos::details::MessageQueueMediator::create(), and os::freertos::MessageQueue< TType >::handle_.

◆ ~MessageQueue()

template<typename TType >

os::freertos::MessageQueue< TType >::~MessageQueue ( )

inlinenoexcept

Default destructor, cleans up the message queue.

References os::freertos::details::MessageQueueMediator::destroy(), and os::freertos::MessageQueue< TType >::handle_.

Member Function Documentation

◆ empty()

template<typename TType >

bool os::freertos::MessageQueue< TType >::empty ( ) const

inlinefinalvirtualnoexcept

Check if the message queue is empty.

Returns: true if the queue is empty, false otherwise.

Implements embvm::VirtualMessageQueue< TType >.

References os::freertos::details::MessageQueueMediator::empty(), and os::freertos::MessageQueue< TType >::handle_.

◆ full()

template<typename TType >

bool os::freertos::MessageQueue< TType >::full ( ) const

inlinefinalvirtualnoexcept

Check if the message queue is full.

Returns: true if the queue is full, false otherwise.

Implements embvm::VirtualMessageQueue< TType >.

References os::freertos::details::MessageQueueMediator::full(), os::freertos::MessageQueue< TType >::handle_, and os::freertos::MessageQueue< TType >::max_length_.

◆ native_handle()

template<typename TType >

embvm::msgqueue::handle_t os::freertos::MessageQueue< TType >::native_handle ( ) const

inlinefinalvirtualnoexcept

Get the native handle for the message queue object.

Returns: the native handle for this message queue object. The handle will always return the handle_t and it must be cast to the native handle type by the user.

Implements embvm::VirtualMessageQueue< TType >.

References os::freertos::MessageQueue< TType >::handle_.

◆ pop()

template<typename TType >

std::optional<TType> os::freertos::MessageQueue< TType >::pop ( embvm::os_timeout_t timeout = embvm::OS_WAIT_FOREVER )

inlinefinalvirtualnoexcept

Retrieve a message from the queue.

Retrieve a message from the queue. This function blocks the calling thread until a message is received (if OS_WAIT_FOREVER is specified as a timeout), or until the timeout expires.

Parameters

timeout The time to wait for a new message. A value of OS_WAIT_FOREVER indicates that the thread should block until a new message is posted.

Returns: an optional value. Use has_value() member function to determine if the value is valid. A valid value is only returned on success.

Implements embvm::VirtualMessageQueue< TType >.

References os::freertos::MessageQueue< TType >::handle_, and os::freertos::details::MessageQueueMediator::pop().

◆ push()

template<typename TType >

bool os::freertos::MessageQueue< TType >::push	(	TType	val,
		embvm::os_timeout_t	timeout = `embvm::OS_WAIT_FOREVER`
	)

inlinefinalvirtualnoexcept

Post a message to the queue.

Post a message to the queue. This function blocks the calling thread until there is an available slot (if OS_WAIT_FOREVER is specified as a timeout), or until the timeout expires.

Posting a message to the queue will notify all threads waiting on a new message (via pop()).

Parameters

val	The data value to post to the queue.
timeout	The time to wait for a new message. A value of OS_WAIT_FOREVER indicates that the thread should block until a new message is posted.

Returns: true if the message was successfully posted, false otherwise.

Implements embvm::VirtualMessageQueue< TType >.

References os::freertos::MessageQueue< TType >::handle_, and os::freertos::details::MessageQueueMediator::push().

◆ reset()

template<typename TType >

void os::freertos::MessageQueue< TType >::reset ( )

inlinefinalvirtualnoexcept

Reset the message queue to an empty state.

Postcondition: The message queue is emptied, with size 0.

Implements embvm::VirtualMessageQueue< TType >.

References os::freertos::MessageQueue< TType >::handle_, and os::freertos::details::MessageQueueMediator::reset().

◆ size()

template<typename TType >

size_t os::freertos::MessageQueue< TType >::size ( ) const

inlinefinalvirtualnoexcept

Get the current size of the message queue.

Size represents the number of elements stored, rather than the maximum size (aka capacity).

Returns: the current number of elements stored in the message queue.

Implements embvm::VirtualMessageQueue< TType >.

References os::freertos::MessageQueue< TType >::handle_, and os::freertos::details::MessageQueueMediator::size().

Member Data Documentation

◆ handle_

template<typename TType >

embvm::msgqueue::handle_t os::freertos::MessageQueue< TType >::handle_

private

Referenced by os::freertos::MessageQueue< TType >::empty(), os::freertos::MessageQueue< TType >::full(), os::freertos::MessageQueue< TType >::MessageQueue(), os::freertos::MessageQueue< TType >::native_handle(), os::freertos::MessageQueue< TType >::pop(), os::freertos::MessageQueue< TType >::push(), os::freertos::MessageQueue< TType >::reset(), os::freertos::MessageQueue< TType >::size(), and os::freertos::MessageQueue< TType >::~MessageQueue().

◆ max_length_

template<typename TType >

size_t os::freertos::MessageQueue< TType >::max_length_

private

Referenced by os::freertos::MessageQueue< TType >::full().

◆ os::freertos::Mutex

class os::freertos::Mutex

FreeRTOS Mutex Implementation.

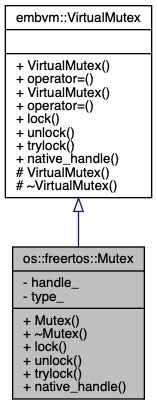

Inheritance diagram for os::freertos::Mutex:

Public Member Functions
	Mutex (embvm::mutex::type type=embvm::mutex::type::defaultType, embvm::mutex::mode mode=embvm::mutex::mode::defaultMode) noexcept
	Construct a FreeRTOS mutex. More...

	~Mutex () noexcept
	Default destructor. More...

void	lock () noexcept final
	Lock the mutex. More...

void	unlock () noexcept final
	Unlock the mutex. More...

bool	trylock () noexcept final
	Try to lock the mutex. More...

embvm::mutex::handle_t	native_handle () const noexcept final

Private Attributes
embvm::mutex::handle_t	handle_

embvm::mutex::type	type_

Constructor & Destructor Documentation

◆ Mutex()

Mutex::Mutex	(	embvm::mutex::type	type = `embvm::mutex::type::defaultType`,
		embvm::mutex::mode	mode = `embvm::mutex::mode::defaultMode`
	)

explicitnoexcept

Construct a FreeRTOS mutex.

Parameters

type	The mutex type to create (normal, recursive)
mode	The mutex poperating mode, which controls priority inheritance behaviors.

References embvm::mutex::normal, embvm::mutex::recursive, and type.

◆ ~Mutex()

Mutex::~Mutex ( )

noexcept

Default destructor.

References handle_, and static_mutex_pool_.

Member Function Documentation

◆ lock()

void Mutex::lock ( )

finalvirtualnoexcept

Lock the mutex.

Attempts to lock the mutex. If successful, the function returns with the calling thread owning the lock. If the lock is already owned, the calling thread will block until the lock is available.

Postcondition: The mutex is locked and owned by the calling thread.

Implements embvm::VirtualMutex.

References assert, handle_, portMAX_DELAY, r, embvm::mutex::recursive, and type_.

◆ native_handle()

embvm::mutex::handle_t os::freertos::Mutex::native_handle ( ) const

inlinefinalvirtualnoexcept

Implements embvm::VirtualMutex.

References handle_.

◆ trylock()

bool Mutex::trylock ( )

finalvirtualnoexcept

Try to lock the mutex.

Try to lock the mutex, but don't block the thread if the mutex is already owned.

Postcondition: If the mutex is unowned, the mutex will be locked and owned by the calling thread.

Returns: true if the mutex is successfully locked, false if another thread owns the mutex.

Implements embvm::VirtualMutex.

References handle_, r, embvm::mutex::recursive, and type_.

◆ unlock()

void Mutex::unlock ( )

finalvirtualnoexcept

Unlock the mutex.

Precondition: The mutex is locked and owned by the calling thread.

Postcondition: The mutex is unlocked.

Implements embvm::VirtualMutex.

References handle_, embvm::mutex::recursive, and type_.

Member Data Documentation

◆ handle_

embvm::mutex::handle_t os::freertos::Mutex::handle_

private

Referenced by lock(), native_handle(), trylock(), unlock(), and ~Mutex().

◆ type_

embvm::mutex::type os::freertos::Mutex::type_

private

Referenced by lock(), trylock(), and unlock().

◆ os::freertos::Semaphore

class os::freertos::Semaphore

Create a FreeRTOS semaphore (OSX variant)

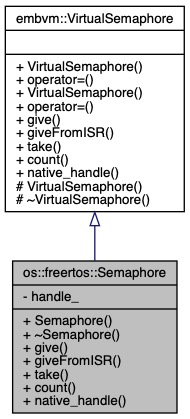

Inheritance diagram for os::freertos::Semaphore:

Public Member Functions
	Semaphore (embvm::semaphore::mode mode=embvm::semaphore::mode::counting, embvm::semaphore::count_t ceiling=1, embvm::semaphore::count_t initial_count=-1) noexcept
	Create a FreeRTOS sempahore. More...

	~Semaphore () noexcept
	Default destructor, cleans up after semaphore on destruction. More...

void	give () noexcept final
	Increment count Return a resource to the semaphore, incrementing the count. More...

void	giveFromISR () noexcept final
	Increment count from an ISR Return a resource to the semaphore, incrementing the count. More...

bool	take (const embvm::os_timeout_t &timeout=embvm::OS_WAIT_FOREVER) noexcept final
	Decrement count Take a resource from the semaphore, decrementing the count. More...

embvm::semaphore::count_t	count () const noexcept final
	Check the count of the semaphore. More...

embvm::semaphore::handle_t	native_handle () const noexcept final

Private Attributes
embvm::semaphore::handle_t	handle_

Constructor & Destructor Documentation

◆ Semaphore()

Semaphore::Semaphore	(	embvm::semaphore::mode	mode = `embvm::semaphore::mode::counting`,
		embvm::semaphore::count_t	ceiling = `1`,
		embvm::semaphore::count_t	initial_count = `-1`
	)

explicitnoexcept

Create a FreeRTOS sempahore.

Parameters

mode	The semaphore mode (binary, counting).
ceiling	The maximum count of the semaphore
initial_count	The starting count of the semaphore. Can be used to indicate that resources are in use at hte itme of creation.

References assert, embvm::semaphore::binary, embvm::semaphore::counting, and embvm::semaphore::defaultMode.

◆ ~Semaphore()

Semaphore::~Semaphore ( )

noexcept

Default destructor, cleans up after semaphore on destruction.

References handle_, and static_sem_pool_.

Member Function Documentation

◆ count()

embvm::semaphore::count_t Semaphore::count ( ) const

finalvirtualnoexcept

Check the count of the semaphore.

Returns: The current semaphore count.

Implements embvm::VirtualSemaphore.

References handle_.

◆ give()

void Semaphore::give ( )

finalvirtualnoexcept

Increment count Return a resource to the semaphore, incrementing the count.

Implements embvm::VirtualSemaphore.

References assert, handle_, and r.

Referenced by os::freertos::ConditionVariable::broadcast(), and os::freertos::ConditionVariable::signal().

◆ giveFromISR()

void Semaphore::giveFromISR ( )

finalvirtualnoexcept

Increment count from an ISR Return a resource to the semaphore, incrementing the count.

This function variant is safe to call from an interrupt routine. No locking can be used inside this variant.

Implements embvm::VirtualSemaphore.

References handle_, and portYIELD_FROM_ISR.

◆ native_handle()

embvm::semaphore::handle_t os::freertos::Semaphore::native_handle ( ) const

inlinefinalvirtualnoexcept

Implements embvm::VirtualSemaphore.

References handle_.

Referenced by os::freertos::ConditionVariable::native_handle().

◆ take()

bool Semaphore::take ( const embvm::os_timeout_t & timeout = embvm::OS_WAIT_FOREVER )

finalvirtualnoexcept

Decrement count Take a resource from the semaphore, decrementing the count.

Parameters

timeout The time to wait for a semaphore resource. A value of WAIT_FOREVER indicates that the thread should block until the semaphore can be acquired.

Returns: true if take was successful, false if a timeout occurred.

Implements embvm::VirtualSemaphore.

References r.

Referenced by os::freertos::ConditionVariable::broadcast(), and os::freertos::ConditionVariable::signal().

Member Data Documentation

◆ handle_

embvm::semaphore::handle_t os::freertos::Semaphore::handle_

private

Referenced by count(), give(), giveFromISR(), native_handle(), and ~Semaphore().

◆ os::freertos::Thread

class os::freertos::Thread

Create a FreeRTOS thread.

Your FreeRTOS port must define task priorities for the framework. We recommend that you keep this definition in FreeRTOSConfig.h.

For example, with a max priority of 32:

enum freertos_port_priorities
{
 panic = 31,
 interrupt = 31,
 realtime = 30,
 veryHigh = 25,
 high = 20,
 aboveNormal = 15,
 normal = 10,
 belowNormal = 5,
 low = 3,
 lowest = 1,
 idle = 0
};

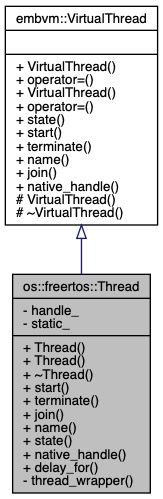

Inheritance diagram for os::freertos::Thread:

Public Member Functions
	Thread ()

	Thread (std::string_view name, embvm::thread::func_t func, embvm::thread::input_t arg, embvm::thread::priority p=embvm::thread::priority::normal, size_t stack_size=FREERTOS_STACK_MIN, void *stack_ptr=nullptr) noexcept
	Construct a FreeRTOS thread. More...

	~Thread () noexcept
	Default destructor, cleans up thread on deletion. More...

void	start () noexcept final
	Start the thread, if it is not auto-started. More...

void	terminate () noexcept final
	Terminate a running thread. More...

void	join () noexcept final
	Join a running thread. More...

std::string_view	name () const noexcept final
	View the thread's name. More...

embvm::thread::state	state () const noexcept final
	Get the thread state. More...

embvm::thread::handle_t	native_handle () const noexcept final
	Get the native handle for the thread. More...

Static Public Member Functions
static void	delay_for (uint32_t ticks) noexcept

Private Member Functions
void	thread_wrapper (embvm::thread::input_t arg) noexcept

Private Attributes
embvm::thread::handle_t	handle_ = 0
	The FreeRTOS thread handle. More...

bool	static_ = false

Constructor & Destructor Documentation

◆ Thread() [1/2]

os::freertos::Thread::Thread ( )

inline

◆ Thread() [2/2]

Thread::Thread	(	std::string_view	name,
		embvm::thread::func_t	func,
		embvm::thread::input_t	arg,
		embvm::thread::priority	p = `embvm::thread::priority::normal`,
		size_t	stack_size = `FREERTOS_STACK_MIN`,
		void *	stack_ptr = `nullptr`
	)

explicitnoexcept

Construct a FreeRTOS thread.

Parameters

name	The name associated with the mutex.

Note: A std::string input must remain valid for the lifetime of this object, since std::string_view is used to store the name.

Parameters

func	The thread function to execute; can be any functor type.
arg	The thread's optional input argument. This value is passed to the thread when it is created.
p	The thread priority setting.
stack_size	The thread stack size.
stack_ptr	The thread stack pointer. If stack_ptr is nullptr, then memory will be allocated by the pthread library.

References assert, freertos_priority(), p, and r.

◆ ~Thread()

Thread::~Thread ( )

noexcept

Default destructor, cleans up thread on deletion.

References terminate().

Member Function Documentation

◆ delay_for()

void Thread::delay_for ( uint32_t ticks )

staticnoexcept

Referenced by embvm::this_thread::sleep_for(), and embvm::this_thread::yield().

◆ join()

void Thread::join ( )

finalvirtualnoexcept

Join a running thread.

Joins a running thread, blocking the calling thread until the joined thread completes.

Precondition: The thread has not exited.

Postcondition: The thread has exited.

Implements embvm::VirtualThread.

References embvm::thread::completed, handle_, state(), and embvm::thread::terminated.

◆ name()

std::string_view Thread::name ( ) const

finalvirtualnoexcept

View the thread's name.

Storage for the thread name is implementation defined. For example, the name may be stored in the RTOS memory, or it may require internal object storage.

Returns: The thread object's name.

Implements embvm::VirtualThread.

References handle_.

◆ native_handle()

embvm::thread::handle_t os::freertos::Thread::native_handle ( ) const

inlinefinalvirtualnoexcept

Get the native handle for the thread.

If custom extensions or behaviors are needed, the thread handle can be retrieved and manipulated directly.

Returns: the native thread object handle as a void*. The user must cast appropriately.

Implements embvm::VirtualThread.

References handle_.

◆ start()

void Thread::start ( )

finalvirtualnoexcept

Start the thread, if it is not auto-started.

Implements embvm::VirtualThread.

◆ state()

embvm::thread::state Thread::state ( ) const

finalvirtualnoexcept

Get the thread state.

Returns: The state of the thread.

Implements embvm::VirtualThread.

References embvm::thread::completed, embvm::thread::executing, handle_, embvm::thread::ready, s, and embvm::thread::suspended.

Referenced by join().

◆ terminate()

void Thread::terminate ( )

finalvirtualnoexcept

Terminate a running thread.

Precondition: The thread is running.

Postcondition: The thread is aborted.

Grab our TLS handle before we destroy the thread

Implements embvm::VirtualThread.

References exit_func_, handle_, NULL, and static_.

Referenced by ~Thread().

◆ thread_wrapper()

void os::freertos::Thread::thread_wrapper ( embvm::thread::input_t arg )

privatenoexcept

Member Data Documentation

◆ handle_

embvm::thread::handle_t os::freertos::Thread::handle_ = 0

private

The FreeRTOS thread handle.

Referenced by join(), name(), native_handle(), state(), and terminate().

◆ static_

bool os::freertos::Thread::static_ = false

private

Referenced by terminate().

◆ os::freertos::Heap

class os::freertos::Heap

Static Public Member Functions
static void	addBlock (void *addr, size_t size) noexcept

static void	init () noexcept

static void *	alloc (size_t size) noexcept

static void	free (void *addr) noexcept

Member Function Documentation

◆ addBlock()

void os::freertos::Heap::addBlock	(	void *	addr,
		size_t	size
	)

staticnoexcept

References assert, heap_region_cnt, heap_region_max, and heap_regions.

◆ alloc()

void * os::freertos::Heap::alloc ( size_t size )

staticnoexcept

◆ free()

void os::freertos::Heap::free ( void * addr )

staticnoexcept

◆ init()

void os::freertos::Heap::init ( )

staticnoexcept

References assert, cmp_heap(), heap_region_cnt, heap_regions, and qsort().

◆ os::freertos::freertosOSFactory_impl

class os::freertos::freertosOSFactory_impl

Implementation of the FreeRTOS OS Factory For API documentation, see embvm::embvm::VirtualOSFactory.

Public Member Functions
	freertosOSFactory_impl ()=default

	~freertosOSFactory_impl ()=default

Static Public Member Functions
static embvm::VirtualConditionVariable *	createConditionVariable_impl () noexcept

static embvm::VirtualThread *	createThread_impl (std::string_view name, embvm::thread::func_t f, embvm::thread::input_t input, embvm::thread::priority p, size_t stack_size, void *stack_ptr) noexcept

static embvm::VirtualMutex *	createMutex_impl (embvm::mutex::type type=embvm::mutex::type::defaultType, embvm::mutex::mode mode=embvm::mutex::mode::defaultMode) noexcept

static embvm::VirtualSemaphore *	createSemaphore_impl (embvm::semaphore::mode mode, embvm::semaphore::count_t ceiling, embvm::semaphore::count_t initial_count) noexcept

template<typename TType >
static embvm::VirtualMessageQueue< TType > *	createMessageQueue_impl (size_t queue_length) noexcept

static embvm::VirtualEventFlag *	createEventFlag_impl () noexcept

static void	destroy_impl (embvm::VirtualConditionVariable *item) noexcept

static void	destroy_impl (embvm::VirtualThread *item) noexcept

static void	destroy_impl (embvm::VirtualMutex *item) noexcept

static void	destroy_impl (embvm::VirtualSemaphore *item) noexcept

static void	destroy_impl (embvm::VirtualEventFlag *item) noexcept

Constructor & Destructor Documentation

◆ freertosOSFactory_impl()

os::freertos::freertosOSFactory_impl::freertosOSFactory_impl ( )

default

◆ ~freertosOSFactory_impl()

os::freertos::freertosOSFactory_impl::~freertosOSFactory_impl ( )

default

Member Function Documentation

◆ createConditionVariable_impl()

embvm::VirtualConditionVariable * freertosOSFactory_impl::createConditionVariable_impl ( )

staticnoexcept

◆ createEventFlag_impl()

embvm::VirtualEventFlag * freertosOSFactory_impl::createEventFlag_impl ( )

staticnoexcept

◆ createMessageQueue_impl()

template<typename TType >

static embvm::VirtualMessageQueue<TType>* os::freertos::freertosOSFactory_impl::createMessageQueue_impl ( size_t queue_length )

inlinestaticnoexcept

◆ createMutex_impl()

embvm::VirtualMutex * freertosOSFactory_impl::createMutex_impl	(	embvm::mutex::type	type = `embvm::mutex::type::defaultType`,
		embvm::mutex::mode	mode = `embvm::mutex::mode::defaultMode`
	)

staticnoexcept

References type.

◆ createSemaphore_impl()

embvm::VirtualSemaphore * freertosOSFactory_impl::createSemaphore_impl	(	embvm::semaphore::mode	mode,
		embvm::semaphore::count_t	ceiling,
		embvm::semaphore::count_t	initial_count
	)

staticnoexcept

◆ createThread_impl()

embvm::VirtualThread * freertosOSFactory_impl::createThread_impl	(	std::string_view	name,
		embvm::thread::func_t	f,
		embvm::thread::input_t	input,
		embvm::thread::priority	p,
		size_t	stack_size,
		void *	stack_ptr
	)

staticnoexcept

References p.

◆ destroy_impl() [1/5]

void freertosOSFactory_impl::destroy_impl ( embvm::VirtualConditionVariable * item )

staticnoexcept

References assert.

◆ destroy_impl() [2/5]

void freertosOSFactory_impl::destroy_impl ( embvm::VirtualThread * item )

staticnoexcept

References assert.

◆ destroy_impl() [3/5]

void freertosOSFactory_impl::destroy_impl ( embvm::VirtualMutex * item )

staticnoexcept

References assert.

◆ destroy_impl() [4/5]

void freertosOSFactory_impl::destroy_impl ( embvm::VirtualSemaphore * item )

staticnoexcept

References assert.

◆ destroy_impl() [5/5]

void freertosOSFactory_impl::destroy_impl ( embvm::VirtualEventFlag * item )

staticnoexcept

References assert.

Typedef Documentation

◆ thread_exit_t

using os::freertos::thread_exit_t = typedef void (*)(void*)

Function Documentation

◆ register_threadexit_func()

void os::freertos::register_threadexit_func ( thread_exit_t atexit )

noexcept

References assert, atexit(), and exit_func_.

◆ startScheduler()

void os::freertos::startScheduler ( )

noexcept

Call this function to start the FreeRTOS scheduler.

We recommend placing this in the platform init() function.

Referenced by nRF52DK_FrameworkDemoPlatform::initOS_().

Variable Documentation

◆ FREERTOS_STACK_MIN

constexpr size_t os::freertos::FREERTOS_STACK_MIN = (1 * 1024)

inlinestatic

Classes

Typedefs

Functions

Variables

Detailed Description

Class Documentation

◆ os::freertos::EventFlag

Public Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ EventFlag()

◆ ~EventFlag()

Member Function Documentation

◆ clear()

◆ get()

◆ native_handle()

◆ set()

◆ setFromISR()

Member Data Documentation

◆ handle_

◆ os::freertos::MessageQueue

template<typename TType> class os::freertos::MessageQueue< TType >

Public Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ MessageQueue()

◆ ~MessageQueue()

Member Function Documentation

◆ empty()

◆ full()

◆ native_handle()

◆ pop()

◆ push()

◆ reset()

◆ size()

Member Data Documentation

◆ handle_

◆ max_length_

◆ os::freertos::Mutex

Public Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ Mutex()

◆ ~Mutex()

Member Function Documentation

◆ lock()

◆ native_handle()

◆ trylock()

◆ unlock()

Member Data Documentation

◆ handle_

◆ type_

◆ os::freertos::Semaphore

Public Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ Semaphore()

◆ ~Semaphore()

Member Function Documentation

◆ count()

◆ give()

◆ giveFromISR()

◆ native_handle()

◆ take()

Member Data Documentation

◆ handle_

◆ os::freertos::Thread

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ Thread() [1/2]

◆ Thread() [2/2]

◆ ~Thread()

Member Function Documentation

◆ delay_for()

◆ join()

◆ name()

◆ native_handle()

template<typename TType>
class os::freertos::MessageQueue< TType >
