heap.cpp File Reference

#include "heap.hpp"
#include <FreeRTOS.h>
#include <cstdint>
#include <cstdlib>
#include <task.h>

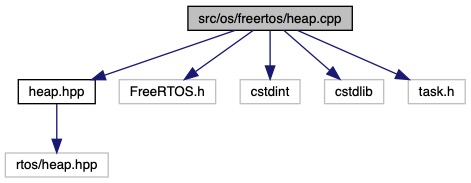

Include dependency graph for heap.cpp:

Macros
#define	FREERTOS_HEAP_REGION_CNT   2
	NOTE: This FreeRTOS malloc implementation requires heap_5.c. More...

Functions
static int	cmp_heap (const void *a, const void *b) noexcept

Variables
static const uint8_t	heap_region_max = FREERTOS_HEAP_REGION_CNT
	Maximum number of heap regions that can be specified. More...
static volatile uint8_t	heap_region_cnt = 0
	Current number of allocated heap regions. More...
static HeapRegion_t	heap_regions [FREERTOS_HEAP_REGION_CNT+1]
	FreeRTOS internal memory pool stucture when using heap_5.c. More...

Macro Definition Documentation

FREERTOS_HEAP_REGION_CNT

#define FREERTOS_HEAP_REGION_CNT   2

NOTE: This FreeRTOS malloc implementation requires heap_5.c.

Please define the correct heap_region for your project.Your application can define this macro to increase the number of heap regions

Function Documentation

cmp_heap()

static int cmp_heap ( const void *  a, const void *  b  )

staticnoexcept

References a, and b.

Referenced by os::freertos::Heap::init().

Variable Documentation

heap_region_cnt

volatile uint8_t heap_region_cnt = 0

static

Current number of allocated heap regions.

Referenced by os::freertos::Heap::addBlock(), and os::freertos::Heap::init().

heap_region_max

const uint8_t heap_region_max = FREERTOS_HEAP_REGION_CNT

static

Maximum number of heap regions that can be specified.

Referenced by os::freertos::Heap::addBlock().

heap_regions

HeapRegion_t heap_regions[FREERTOS_HEAP_REGION_CNT+1]

static

FreeRTOS internal memory pool stucture when using heap_5.c.

The block with the lowest starting address should appear first in the array

An additional block is allocated to serve as a NULL terminator

Referenced by os::freertos::Heap::addBlock(), and os::freertos::Heap::init().
