Interfaces and components for building a virtual platform. More...

Collaboration diagram for Framework Platform Infrastructure:

Classes
class	embvm::EventBase
	Base class for events. More...

class	embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle
	Handle for an event subscription. More...

class	embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >
	Global Event Manager class. More...

class	embvm::EventQueue< TEvent, TQueueSize >
	Keep a queue of events. More...

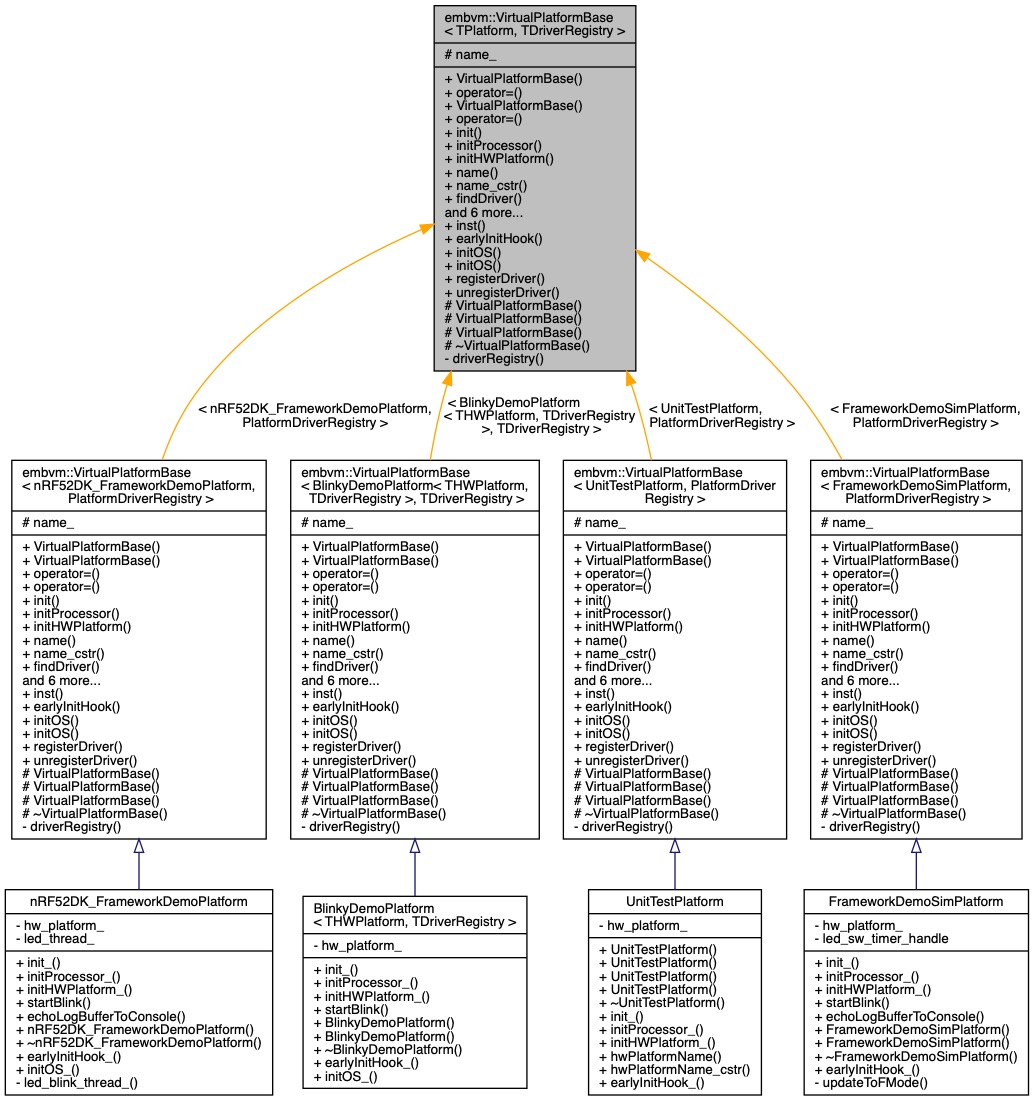

class	embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >
	Base class for Platform definitions. More...

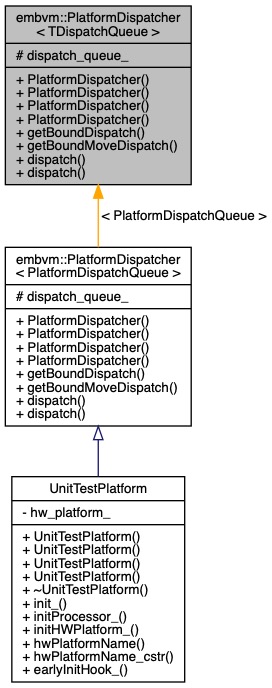

class	embvm::PlatformDispatcher< TDispatchQueue >
	Add a dispatch queue to the VirtualPlatform through inheritance. More...

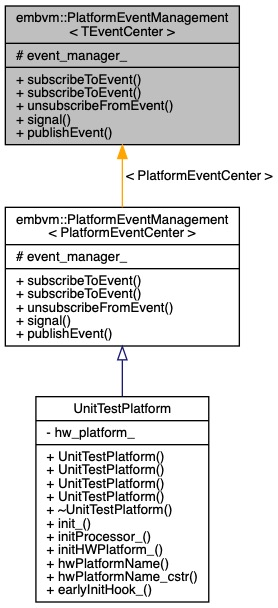

class	embvm::PlatformEventManagement< TEventCenter >
	Add an event manager to the VirtualPlatform through inheritance. More...

Typedefs
using	embvm::Signal_t = uint32_t
	Signal type which is used for function inputs. More...

template<const size_t TSize, const size_t TThreadCnt = 1, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>
using	embvm::StaticEventQueue = embutil::StaticDispatchQueue< TSize, TThreadCnt, TFunc >
	This alias represents a static dispatch queue which can be used with the event manager Primarily this alias is used to prevent users from needing to declare a long type declaration just because of the need to increase inplace_function<>'s size. More...

using	embvm::DynamicEventCenter = EventCenter< 0, 0 >
	Declare an EventCenter that uses dynamic memory allocation. More...

template<const size_t TMaxEvents = 16, const size_t TMaxSubscribersPerEvent = 4>
using	embvm::StaticEventCenter = EventCenter< TMaxEvents, TMaxSubscribersPerEvent >
	Declare a DriverRegistry that uses static memory allocation. More...

Enumerations
enum	embvm::Signal { embvm::Event_Invalid = 0, embvm::Event_ProcessorInitd, embvm::Event_HwPlatformInitd, embvm::Event_PlatformInitd, embvm::Event_EXTENSION_START }
	Default framework event signal definitions. More...

Variables
static constexpr size_t	embvm::EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE = (sizeof(void) 8)
	Maximum size of the Event center callback functor object. More...

Detailed Description

Interfaces and components for building a virtual platform.

Class Documentation

◆ embvm::EventBase

class embvm::EventBase

Base class for events.

The EventBase class represents a signal with no associated data Templated to allow use of any signal definition type within the framework

You can define custom events with data by inheriting from this class:

class TestEventWithData : public EventBase<MySignal_t>
{
 public:
 TestEventWithData() : EventBase<MySignal_t>(eventWithData) {}
 bool data = false;
};

You can then transform event base objects to your class (as long as the types match!)

void passEventWithDataCb(EventBase e)
{
   assert(e.sig == eventWithData);
       TestEventWithData* event = static_cast<TestEventWithData*>(&e);
   eventUpdate = event->data;
}

Public Member Functions
	EventBase (Signal_t s=Event_Invalid) noexcept
	Default constructor. More...

type_safe::boolean	safeToFree () const noexcept
	Check whether this event is safe to free. More...

Public Attributes
Signal_t	sig = Event_Invalid
	Signal ID for this event. More...

Private Member Functions
	EventBase (Signal_t s, bool d) noexcept

Private Attributes
type_safe::boolean	dynamic_ = false
	nullptr indicates this is statically allocated and should not be freed More...

Constructor & Destructor Documentation

◆ EventBase() [1/2]

embvm::EventBase::EventBase ( Signal_t s = Event_Invalid )

inlineexplicitnoexcept

Default constructor.

Creates a static event base (e.g. on the stack)

Parameters

s	The signal which corresponds to this event

◆ EventBase() [2/2]

embvm::EventBase::EventBase	(	Signal_t	s,
		bool	d
	)

inlineprivatenoexcept

Member Function Documentation

◆ safeToFree()

type_safe::boolean embvm::EventBase::safeToFree ( ) const

inlinenoexcept

Check whether this event is safe to free.

Returns: true if the event was dynamically allocated, false if statically allocated (can't free)

References dynamic_.

Member Data Documentation

◆ dynamic_

type_safe::boolean embvm::EventBase::dynamic_ = false

private

nullptr indicates this is statically allocated and should not be freed

Referenced by safeToFree().

◆ sig

Signal_t embvm::EventBase::sig = Event_Invalid

Signal ID for this event.

◆ embvm::EventCenter::EventHandle

class embvm::EventCenter::EventHandle

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>
class embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle

Handle for an event subscription.

EventHandle represents a handle to an event registration. EventHandles are created during the subscribe() process. The lifetime of the EventHandle controls the lifetime of the subscription: if the handle leaves scope, the subscription will be automatically revoked.

Template parameters simply match those in the original EventCenter declaration, since EventHandle is a class member.

Public Member Functions
EventHandle &	operator= (EventHandle &&rhs) noexcept
	Move assignment operator. More...

	EventHandle (const EventHandle &)=delete
	Delete the copy constructor. More...

const EventHandle &	operator= (const EventHandle &)=delete
	Delete the copy assignment operator. More...

	~EventHandle () noexcept
	EventHandle destructor. More...

	operator bool () const noexcept
	Boolean operator returns true if the handle is valid, false otherwise. More...

const Signal_t &	sig () const noexcept
	Check the signal this subscription corresponds to. More...

void	reset () noexcept
	Unregister the callback and invalidate the handle. More...

Private Types
using	TEventHandle = typename decltype(events_)::mapped_type::iterator
	Convenience declaration: our handle is an iterator to the mapped type. More...

Private Member Functions
	EventHandle (EventCenter *owner, Signal_t sig, TEventHandle iter) noexcept
	EventHandle constructor. More...

	EventHandle (EventHandle &&rhs) noexcept
	Move constructor. More...

TEventHandle	get () const noexcept
	Get the underlying handle. More...

Private Attributes
Signal_t	sig_

TEventHandle	handle_

bool	is_valid_

EventCenter *	mgr_

Friends
class	EventCenter
	Event Center is able to invoke private EventHandle functions. More...

Member Typedef Documentation

◆ TEventHandle

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

using embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::TEventHandle = typename decltype(events_)::mapped_type::iterator

private

Convenience declaration: our handle is an iterator to the mapped type.

Constructor & Destructor Documentation

◆ EventHandle() [1/3]

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::EventHandle ( const EventHandle & )

delete

Delete the copy constructor.

◆ ~EventHandle()

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::~EventHandle ( )

inlinenoexcept

EventHandle destructor.

On destruction, the handle will automatically unsubscribe itself from the event.

◆ EventHandle() [2/3]

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::EventHandle	(	EventCenter *	owner,
		Signal_t	sig,
		TEventHandle	iter
	)

inlineexplicitprivatenoexcept

EventHandle constructor.

Parameters

owner	The EventCenter which owns this EventHandle
sig	The signal which the subscriber is interested in
iter	The handle object

◆ EventHandle() [3/3]

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::EventHandle ( EventHandle && rhs )

inlineprivatenoexcept

Move constructor.

Member Function Documentation

◆ get()

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

TEventHandle embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::get ( ) const

inlineprivatenoexcept

Get the underlying handle.

Returns: The underlying handle storage object

◆ operator bool()

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::operator bool ( ) const

inlinenoexcept

Boolean operator returns true if the handle is valid, false otherwise.

◆ operator=() [1/2]

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

EventHandle& embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::operator= ( EventHandle && rhs )

inlinenoexcept

Move assignment operator.

References embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::handle_.

◆ operator=() [2/2]

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

const EventHandle& embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::operator= ( const EventHandle & )

delete

Delete the copy assignment operator.

◆ reset()

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

void embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::reset ( )

inlinenoexcept

Unregister the callback and invalidate the handle.

◆ sig()

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

const Signal_t& embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::sig ( ) const

inlinenoexcept

Check the signal this subscription corresponds to.

Returns: the signal object which matches this handle

Friends And Related Function Documentation

◆ EventCenter

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

friend class EventCenter

friend

Event Center is able to invoke private EventHandle functions.

Member Data Documentation

◆ handle_

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

TEventHandle embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::handle_

private

Referenced by embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::operator=().

◆ is_valid_

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

bool embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::is_valid_

private

◆ mgr_

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

EventCenter* embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::mgr_

private

◆ sig_

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

Signal_t embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle::sig_

private

◆ embvm::EventCenter

class embvm::EventCenter

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>
class embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >

Global Event Manager class.

Allows you to subscribe and unsubscribe to/from events. Allows you to post signals and events. Calls are dispatched. You must keep your handle alive when you register for a callback. Handles will be automatically cleaned up when they go out of scope!

Allowed: publishing and signaling from an interrupt. Not allowed: subscribing or unsubscribing from an interrupt.

This class provides support for both dynamic memory allocation and static memory allocation. The default TMaxEvents and TMaxSubscribersPerEvent settings (0) indicate dynamic memory.

Note: Total static memory usage is (TMaxEvents * TMaxSubscribersPerEvent * sizeof(event))

Template Parameters

TMaxEvents	The maximum number of events to store in the queue. 0 indicates dynamic memory allocation will be used; all other numbers use static memory.
TMaxSubscribersPerEvent	The maximum number of subscribers that can register for each event. 0 indicates dynamic memory allocation will be used; all other numbers use static memory.
TFunc	The function object type for the DispatcherFunc.

Public Types
using	sig_t = Signal_t
	Underlying signal type. More...

using	cb_t = stdext::inplace_function< void(embvm::EventBase)>
	Callback type. More...

Public Member Functions
	EventCenter () noexcept
	Default EventCenter constructor. More...

	EventCenter (const DispatcherFunc &dispatcher) noexcept
	Construct EventCenter with a dispatcher. More...

	~EventCenter ()=default
	Default destructor. More...

	EventCenter (const EventCenter &)=delete
	Deleted copy constructor. More...

const EventCenter &	operator= (const EventCenter &)=delete
	Deleted copy assignment operator. More...

	EventCenter (EventCenter &&)=delete
	Deleted move constructor. More...

EventCenter &	operator= (EventCenter &&)=delete
	Deleted move assignment operator. More...

embvm::EventBase	createSignal (Signal_t sig=Signal::Event_Invalid) noexcept
	Create an event on the stack. More...

size_t	numSubscribedEvents () noexcept
	Check how many event types are registered. More...

size_t	numSubscribers (Signal_t sig) noexcept
	Check how many subscribers are listening to a specific event. More...

EventCenter::EventHandle	subscribe (Signal_t sig, const cb_t &cb) noexcept
	Subscribe to an event. More...

EventCenter::EventHandle	subscribe (Signal_t sig, cb_t &&cb) noexcept
	Subscribe to an event. More...

void	unsubscribe (EventCenter::EventHandle &handle) noexcept
	Unsubscribe from listening for an event. More...

void	signal (Signal_t sig) noexcept
	Signal an event. More...

void	publish (embvm::EventBase event) noexcept
	Publish an event. More...

Private Types
using	DispatcherFunc = stdext::inplace_function< void(const TFunc &)>
	The function prototype for the Dispatcher. More...

typedef std::conditional<(TMaxSubscribersPerEvent==0), std::list< cb_t >, etl::list< cb_t, TMaxSubscribersPerEvent > >::type	TListType
	Type for storing lists of event subscribers. More...

typedef std::conditional<(TMaxEvents==0), std::map< Signal_t, TListType >, etl::map< Signal_t, TListType, TMaxEvents > >::type	TMapType
	Type for storing event subscription lists. More...

Private Member Functions
void	EventCenterDispatch (const TFunc &op) noexcept
	EventCenter Default Dispatch Function. More...

Private Attributes
TMapType	events_
	The map which stores event subscriptions. More...

std::mutex	mutex_
	Mutex which protects. More...

const DispatcherFunc	dispatcher_
	Dispatcher function which will handle callbacks. More...

Member Typedef Documentation

◆ cb_t

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

using embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::cb_t = stdext::inplace_function<void(embvm::EventBase)>

Callback type.

◆ DispatcherFunc

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

using embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::DispatcherFunc = stdext::inplace_function<void(const TFunc&)>

private

The function prototype for the Dispatcher.

The dispacher uses inplace_function regardless of static or dynamic memory allocation.

◆ sig_t

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

using embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::sig_t = Signal_t

Underlying signal type.

◆ TListType

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

typedef std::conditional<(TMaxSubscribersPerEvent == 0), std::list<cb_t>, etl::list<cb_t, TMaxSubscribersPerEvent> >::type embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::TListType

private

Type for storing lists of event subscribers.

TListType is either std::list or etl::list depending on static or dynamic memory allocations. For static allocations, TListType is capped at TMaxSubscribersPerEvent.

◆ TMapType

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

typedef std::conditional<(TMaxEvents == 0), std::map<Signal_t, TListType>, etl::map<Signal_t, TListType, TMaxEvents> >::type embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::TMapType

private

Type for storing event subscription lists.

TMapType is either std::map or etl::map depending on static or dynamic memory allocations. For static allocations, TMapType is capped at TMaxEvents. The map key is the signal ID.

Constructor & Destructor Documentation

◆ EventCenter() [1/4]

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventCenter ( )

inlinenoexcept

Default EventCenter constructor.

Creating an EventCenter without a dispatcher will result in the manager invoking the functions.

◆ EventCenter() [2/4]

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventCenter ( const DispatcherFunc & dispatcher )

inlineexplicitnoexcept

Construct EventCenter with a dispatcher.

Specify a function to dispatch all of the event callbacks to. Used with a dispatch queue, or other type of system event queue.

◆ ~EventCenter()

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::~EventCenter ( )

default

Default destructor.

◆ EventCenter() [3/4]

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventCenter ( const EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc > & )

delete

Deleted copy constructor.

◆ EventCenter() [4/4]

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventCenter ( EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc > && )

delete

Deleted move constructor.

Member Function Documentation

◆ createSignal()

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

embvm::EventBase embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::createSignal ( Signal_t sig = Signal::Event_Invalid )

inlinenoexcept

Create an event on the stack.

Returns: A stack allocated event with the specified signal ID

◆ EventCenterDispatch()

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

void embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventCenterDispatch ( const TFunc & op )

inlineprivatenoexcept

EventCenter Default Dispatch Function.

If no external dispatcher is provided, event center has one which just executes the operation by default.

◆ numSubscribedEvents()

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

size_t embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::numSubscribedEvents ( )

inlinenoexcept

Check how many event types are registered.

Returns: The count of event types which have been subscribed to by listeners.

References embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::events_.

◆ numSubscribers()

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

size_t embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::numSubscribers ( Signal_t sig )

inlinenoexcept

Check how many subscribers are listening to a specific event.

Parameters

sig	The type of event to check.

Returns: The number of subscribers listening for the specified event.

References embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::events_.

◆ operator=() [1/2]

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

const EventCenter& embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::operator= ( const EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc > & )

delete

Deleted copy assignment operator.

◆ operator=() [2/2]

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

EventCenter& embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::operator= ( EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc > && )

delete

Deleted move assignment operator.

◆ publish()

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

void embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::publish ( embvm::EventBase event )

inlinenoexcept

Publish an event.

Signals to the system that an event has occurred. All subscribers will have their callback function invoked and will be passed the input event.

Parameters

event The event object that will be shared with the subscribers

References embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::dispatcher_, and embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::events_.

◆ signal()

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

void embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::signal ( Signal_t sig )

inlinenoexcept

Signal an event.

Signals to the system that an event has occurred. All subscribers will have their callback function invoked.

Parameters

sig	The event type to signal

References embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::dispatcher_, and embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::events_.

◆ subscribe() [1/2]

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

EventCenter::EventHandle embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::subscribe	(	Signal_t	sig,
		const cb_t &	cb
	)

inlinenoexcept

Subscribe to an event.

Subscribes to an event with a callback function. The callback will be invoked whenever an event of the specified type is signalled.

Parameters

sig	The type of event to listen for.
cb	The function which will be called when the event occurs.

Returns: Handle representing event subscription. The user must keep the handle within scope. Once the handle goes out of scope, the subscription will be automatically unregistered.

References assert, embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::events_, and embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::mutex_.

◆ subscribe() [2/2]

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

EventCenter::EventHandle embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::subscribe	(	Signal_t	sig,
		cb_t &&	cb
	)

inlinenoexcept

Subscribe to an event.

Subscribes to an event with a callback function. The callback will be invoked whenever an event of the specified type is signalled.

Parameters

sig	The type of event to listen for.
cb	The function which will be called when the event occurs.

Returns: Handle representing event subscription. The user must keep the handle within scope. Once the handle goes out of scope, the subscription will be automatically unregistered.

References assert, embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::events_, and embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::mutex_.

◆ unsubscribe()

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

void embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::unsubscribe ( EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle & handle )

inlinenoexcept

Unsubscribe from listening for an event.

Removes the subscription to the event. An unsubscribe request uses the EventHandle which was returned by subscribe(). Unsubscribe also happens automatically when the EventHandle goes out of scope.

Parameters

handle The handle to the subscription, which was returned by subscribe()

References embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::events_, and embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::mutex_.

Member Data Documentation

◆ dispatcher_

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

const DispatcherFunc embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::dispatcher_

private

Dispatcher function which will handle callbacks.

Referenced by embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::publish(), and embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::signal().

◆ events_

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

TMapType embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::events_

private

The map which stores event subscriptions.

Referenced by embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::numSubscribedEvents(), embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::numSubscribers(), embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::publish(), embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::signal(), embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::subscribe(), and embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::unsubscribe().

◆ mutex_

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

std::mutex embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::mutex_

private

Mutex which protects.

Referenced by embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::subscribe(), and embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::unsubscribe().

◆ embvm::EventQueue

class embvm::EventQueue

template<typename TEvent, size_t TQueueSize = 0>
class embvm::EventQueue< TEvent, TQueueSize >

Keep a queue of events.

Manage a queue of events of a specified type. The EventQueue can utilize both static and dynamic memory allocation strategies.

Template Parameters

TEvent	The event type which this queue manages. Can be embvm::EventBase, or a derived event with data.
TQueueSize	The maximum size of the event queue. Size 0 indicates dynamic memory will be used. All other sizes will enable static memory allocation.

Public Member Functions
	EventQueue ()=default
	Default constructor. More...

	~EventQueue ()=default
	Default destructor. More...

	EventQueue (const EventQueue &)=delete
	Deleted copy constructor. More...

const EventQueue &	operator= (const EventQueue &)=delete
	Deleted copy assignment operator. More...

	EventQueue (EventQueue &&)=default
	Default move constructor. More...

EventQueue &	operator= (EventQueue &&)=default
	Default move assignment operator. More...

bool	empty () const noexcept
	Check if the queue is empty. More...

size_t	size () const noexcept
	Check the size of the queue. More...

void	push (TEvent e) noexcept
	Add an event to the queue. More...

TEvent &	front () const noexcept
	Get the front element of the queue, without popping. More...

TEvent	pop () noexcept
	Pop the front element from the queue. More...

Private Types
using	TQueueType = typename std::conditional<(TQueueSize==0), std::queue< TEvent >, etl::queue< TEvent, TQueueSize > >::type
	The type of the underlying queue. More...

Private Attributes
TQueueType	q_
	The underlying event queue storage. More...

Member Typedef Documentation

◆ TQueueType

template<typename TEvent , size_t TQueueSize = 0>

using embvm::EventQueue< TEvent, TQueueSize >::TQueueType = typename std::conditional<(TQueueSize == 0), std::queue<TEvent>, etl::queue<TEvent, TQueueSize> >::type

private

The type of the underlying queue.

Size 0 indicates dynamic memory usage (std::queue), other sizes indicate static memory.

Constructor & Destructor Documentation

◆ EventQueue() [1/3]

template<typename TEvent , size_t TQueueSize = 0>

embvm::EventQueue< TEvent, TQueueSize >::EventQueue ( )

default

Default constructor.

◆ ~EventQueue()

template<typename TEvent , size_t TQueueSize = 0>

embvm::EventQueue< TEvent, TQueueSize >::~EventQueue ( )

default

Default destructor.

◆ EventQueue() [2/3]

template<typename TEvent , size_t TQueueSize = 0>

embvm::EventQueue< TEvent, TQueueSize >::EventQueue ( const EventQueue< TEvent, TQueueSize > & )

delete

Deleted copy constructor.

◆ EventQueue() [3/3]

template<typename TEvent , size_t TQueueSize = 0>

embvm::EventQueue< TEvent, TQueueSize >::EventQueue ( EventQueue< TEvent, TQueueSize > && )

default

Default move constructor.

Member Function Documentation

◆ empty()

template<typename TEvent , size_t TQueueSize = 0>

bool embvm::EventQueue< TEvent, TQueueSize >::empty ( ) const

inlinenoexcept

Check if the queue is empty.

Returns: true if the queue is empty, false if it has data.

References embvm::EventQueue< TEvent, TQueueSize >::q_.

◆ front()

template<typename TEvent , size_t TQueueSize = 0>

TEvent& embvm::EventQueue< TEvent, TQueueSize >::front ( ) const

inlinenoexcept

Get the front element of the queue, without popping.

Returns: a reference to the front element.

References embvm::EventQueue< TEvent, TQueueSize >::q_.

◆ operator=() [1/2]

template<typename TEvent , size_t TQueueSize = 0>

const EventQueue& embvm::EventQueue< TEvent, TQueueSize >::operator= ( const EventQueue< TEvent, TQueueSize > & )

delete

Deleted copy assignment operator.

◆ operator=() [2/2]

template<typename TEvent , size_t TQueueSize = 0>

EventQueue& embvm::EventQueue< TEvent, TQueueSize >::operator= ( EventQueue< TEvent, TQueueSize > && )

default

Default move assignment operator.

◆ pop()

template<typename TEvent , size_t TQueueSize = 0>

TEvent embvm::EventQueue< TEvent, TQueueSize >::pop ( )

inlinenoexcept

Pop the front element from the queue.

Returns: the front element from the queue.

Postcondition: The element has been removed from the queue.

References embvm::EventQueue< TEvent, TQueueSize >::q_.

◆ push()

template<typename TEvent , size_t TQueueSize = 0>

void embvm::EventQueue< TEvent, TQueueSize >::push ( TEvent e )

inlinenoexcept

Add an event to the queue.

Parameters

e	The event to add to the queue for processing.

References embvm::EventQueue< TEvent, TQueueSize >::q_.

◆ size()

template<typename TEvent , size_t TQueueSize = 0>

size_t embvm::EventQueue< TEvent, TQueueSize >::size ( ) const

inlinenoexcept

Check the size of the queue.

Returns: the number of events currently enqueued.

References embvm::EventQueue< TEvent, TQueueSize >::q_.

Member Data Documentation

◆ q_

template<typename TEvent , size_t TQueueSize = 0>

TQueueType embvm::EventQueue< TEvent, TQueueSize >::q_

private

The underlying event queue storage.

Referenced by embvm::EventQueue< TEvent, TQueueSize >::empty(), embvm::EventQueue< TEvent, TQueueSize >::front(), embvm::EventQueue< TEvent, TQueueSize >::pop(), embvm::EventQueue< TEvent, TQueueSize >::push(), and embvm::EventQueue< TEvent, TQueueSize >::size().

◆ embvm::VirtualPlatformBase

class embvm::VirtualPlatformBase

template<typename TPlatform, class TDriverRegistry>
class embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >

Base class for Platform definitions.

Platforms should derive from this base class, and optionally from other platform base classes which provide optional functionality (see embvm::PlatformEventManagement<>, embvm::PlatformDispatcher<>).

The platform base is templated off of the driver registry type, in order to Allow users to utilize their custom driver types with the platform.

Template Parameters

TPlatform	The derived CRTP class which defines the consumer's platform.
TDriverRegistry	The type of the platform's DriverRegistry. DriverRegistry type is specified to enable consumers to use custom driver types.

Inheritance diagram for embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >:

Public Member Functions
	VirtualPlatformBase (const VirtualPlatformBase &)=delete
	Deleted copy constructor. More...

const VirtualPlatformBase &	operator= (const VirtualPlatformBase &)=delete
	Deleted copy assignment operator. More...

	VirtualPlatformBase (VirtualPlatformBase &&)=delete
	Deleted move constructor. More...

VirtualPlatformBase &	operator= (VirtualPlatformBase &&)=delete
	Deleted move assignment operator. More...

void	init () noexcept
	Initialize the platform. More...

void	initProcessor () noexcept
	Initialize the processor. More...

void	initHWPlatform () noexcept
	Initialize the hardware platform. More...

constexpr const std::string_view &	name () const noexcept
	Access the platform's name. More...

constexpr const char *	name_cstr () const noexcept
	Access the platform name as a cstring for C API compatibility. More...

auto	findDriver (const std::string_view &name) noexcept
	Access a device driver in the registry by name. More...

auto	findDriver (embvm::DriverType_t type) noexcept
	Access a device driver in the registry by type. More...

template<class TDriverClass >
auto	findDriver () noexcept
	Access a device driver in the registry by type, cast as the appropriate base class. More...

template<class TDriverClass >
auto	findDriver (const std::string_view &name) noexcept
	Access a device driver in the registry by name, cast as the appropriate base class. More...

auto	findAllDrivers (embvm::DriverType_t type) noexcept
	Get a list of all device drivers in the registry by type. More...

template<class TDriverClass >
auto	findAllDrivers () noexcept
	Get a list of all device drivers in the registry by type, cast as the appropriate base class. More...

size_t	driverCount () const noexcept
	Get the count of drivers registered with the platform. More...

Static Public Member Functions
static TPlatform &	inst () noexcept
	Get the global platform instance. More...

static void	earlyInitHook () noexcept
	Call early-initialization code. More...

static void	initOS () noexcept
	Initialize the OS. More...

static void	initOS (void(*main_thread)()) noexcept
	Initialize the with a function to use as the main thread. More...

static void	registerDriver (const std::string_view &name, embvm::DriverBase *driver) noexcept
	Platform-level API for registering a new device driver. More...

static void	unregisterDriver (const std::string_view &name, embvm::DriverBase *driver) noexcept
	Platform-level API for unregistering a new device driver. More...

Protected Member Functions
	VirtualPlatformBase (const char *name) noexcept
	Create a virtual platform base using a C-string. More...

	VirtualPlatformBase (const std::string &name) noexcept
	Create a virtual platform base using a std::string name. More...

	VirtualPlatformBase (const std::string_view &name) noexcept
	Create a virtual platform base using a std::string_view name. More...

	~VirtualPlatformBase ()=default
	Default destructor. More...

Protected Attributes
const std::string_view	name_

Static Private Member Functions
static TDriverRegistry &	driverRegistry () noexcept
	Access the platform DriverRegistry instance. More...

Constructor & Destructor Documentation

◆ VirtualPlatformBase() [1/5]

template<typename TPlatform, class TDriverRegistry>

embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::VirtualPlatformBase ( const VirtualPlatformBase< TPlatform, TDriverRegistry > & )

delete

Deleted copy constructor.

◆ VirtualPlatformBase() [2/5]

template<typename TPlatform, class TDriverRegistry>

embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::VirtualPlatformBase ( VirtualPlatformBase< TPlatform, TDriverRegistry > && )

delete

Deleted move constructor.

◆ VirtualPlatformBase() [3/5]

template<typename TPlatform, class TDriverRegistry>

embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::VirtualPlatformBase ( const char * name )

inlineexplicitprotectednoexcept

Create a virtual platform base using a C-string.

Parameters

name The name of the platform.

◆ VirtualPlatformBase() [4/5]

template<typename TPlatform, class TDriverRegistry>

embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::VirtualPlatformBase ( const std::string & name )

inlineexplicitprotectednoexcept

Create a virtual platform base using a std::string name.

Parameters

name	The name of the platform. Note: VirtualPlatformBase() uses a std::string_view, so the std::string must remain valid

◆ VirtualPlatformBase() [5/5]

template<typename TPlatform, class TDriverRegistry>

embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::VirtualPlatformBase ( const std::string_view & name )

inlineexplicitprotectednoexcept

Create a virtual platform base using a std::string_view name.

Parameters

name	The name of the platform.

◆ ~VirtualPlatformBase()

template<typename TPlatform, class TDriverRegistry>

embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::~VirtualPlatformBase ( )

protecteddefault

Default destructor.

Member Function Documentation

◆ driverCount()

template<typename TPlatform, class TDriverRegistry>

size_t embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::driverCount ( ) const

inlinenoexcept

Get the count of drivers registered with the platform.

returns Number of drivers currently registered with the platform DriverRegistry.

◆ driverRegistry()

template<typename TPlatform, class TDriverRegistry>

static TDriverRegistry& embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::driverRegistry ( )

inlinestaticprivatenoexcept

Access the platform DriverRegistry instance.

Static declaration of the DriverRegistry for the platform. We use this function to avoid the static initializatio order 'fiasco'. See more: https://isocpp.org/wiki/faq/ctors#static-init-order

Referenced by embvm::VirtualPlatformBase< FrameworkDemoSimPlatform, PlatformDriverRegistry >::driverCount(), embvm::VirtualPlatformBase< FrameworkDemoSimPlatform, PlatformDriverRegistry >::findAllDrivers(), embvm::VirtualPlatformBase< FrameworkDemoSimPlatform, PlatformDriverRegistry >::findDriver(), embvm::VirtualPlatformBase< FrameworkDemoSimPlatform, PlatformDriverRegistry >::registerDriver(), and embvm::VirtualPlatformBase< FrameworkDemoSimPlatform, PlatformDriverRegistry >::unregisterDriver().

◆ earlyInitHook()

template<typename TPlatform, class TDriverRegistry>

static void embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::earlyInitHook ( )

inlinestaticnoexcept

Call early-initialization code.

Call early initialization code, which is to be run before C runtime initialization, memory relocations, OS initialization, etc. This call is used to handle early setup code that the rest of the initialization process might depend on, such as DRAM initialization.

This function forwards the call to the derived class for the actual implementation.

◆ findAllDrivers() [1/2]

template<typename TPlatform, class TDriverRegistry>

auto embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::findAllDrivers ( embvm::DriverType_t type )

inlinenoexcept

Get a list of all device drivers in the registry by type.

The type will be returned as the appropriate base class (instead of embvm::DriverBase).

This call forwards the information to the DriverRegistry instance.

Parameters

type	The type of driver being requested (embvm::i2c::master, SystemClock).

Returns: A list of embvm::DriverBase instances. If no matching types are found, an empty list will be returned. The caller must cast to the appropriate type.

◆ findAllDrivers() [2/2]

template<typename TPlatform, class TDriverRegistry>

template<class TDriverClass >

auto embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::findAllDrivers ( )

inlinenoexcept

Get a list of all device drivers in the registry by type, cast as the appropriate base class.

The type will be returned as the appropriate base class (instead of embvm::DriverBase).

This call forwards the information to the DriverRegistry instance.

Template Parameters

TDriverClass The class of driver being requested (embvm::i2c::master, SystemClock).

Returns: A list of driver instances cast as TDriverClass types. If no matching types are found, an empty list will be returned.

◆ findDriver() [1/4]

template<typename TPlatform, class TDriverRegistry>

auto embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::findDriver ( const std::string_view & name )

inlinenoexcept

Access a device driver in the registry by name.

Find a driver by name.

This call forwards the information to the DriverRegistry instance.

Returns: An optional_ref to the embvm::DriverBase instance. If no instance is found, the optional reference will be invalid. The caller must cast to the appropriate type.

◆ findDriver() [2/4]

template<typename TPlatform, class TDriverRegistry>

auto embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::findDriver ( embvm::DriverType_t type )

inlinenoexcept

Access a device driver in the registry by type.

Find a driver by type. If multiple drivers are found for a type, the first one found will be returned.

This call forwards the information to the DriverRegistry instance.

Returns: An optional_ref to the embvm::DriverBase instance. If no instance is found, the optional reference will be invalid. The caller must cast to the appropriate type.

◆ findDriver() [3/4]

template<typename TPlatform, class TDriverRegistry>

template<class TDriverClass >

auto embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::findDriver ( )

inlinenoexcept

Access a device driver in the registry by type, cast as the appropriate base class.

If multiple drivers are found for a type, the first one found will be returned. The type will be returned as the appropriate base class (instead of embvm::DriverBase).

This call forwards the information to the DriverRegistry instance.

Template Parameters

TDriverClass The class of driver being requested (embvm::i2c::master, SystemClock).

Returns: an type_safe::optional_ref cast to the TDriverClass type. If the driver was not found, the optional_ref will be empty.

◆ findDriver() [4/4]

template<typename TPlatform, class TDriverRegistry>

template<class TDriverClass >

auto embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::findDriver ( const std::string_view & name )

inlinenoexcept

Access a device driver in the registry by name, cast as the appropriate base class.

The type will be returned as the appropriate base class (instead of embvm::DriverBase).

This call forwards the information to the DriverRegistry instance.

Template Parameters

TDriverClass The class of driver being requested (embvm::i2c::master, SystemClock).

Returns: an type_safe::optional_ref cast to the TDriverClass type. If the driver was not found, the optional_ref will be empty.

◆ init()

template<typename TPlatform, class TDriverRegistry>

void embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::init ( )

inlinenoexcept

Initialize the platform.

This function is responsible for initializing the platform.

This function forwards the call to the derived class for the actual implementation.

◆ initHWPlatform()

template<typename TPlatform, class TDriverRegistry>

void embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::initHWPlatform ( )

inlinenoexcept

Initialize the hardware platform.

Performs steps necessary to initialize the hardware platform for use by the platform. In many cases, this call should just invoke the hardware platform's init() function. Control of this function is placed in the platform layer to allow for platform-specific customization & initialization of the hardware platform in situations where non-default values are used.

This function forwards the call to the derived class for the actual implementation.

◆ initOS() [1/2]

template<typename TPlatform, class TDriverRegistry>

static void embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::initOS ( )

inlinestaticnoexcept

Initialize the OS.

Performs steps necessary to initialize the OS for use by the platform. Control of this function is placed in the platform layer to allow for platform-specific customization & initialization of the OS, since each OS has different startup requirements

This function forwards the call to the derived class for the actual implementation.

◆ initOS() [2/2]

template<typename TPlatform, class TDriverRegistry>

static void embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::initOS ( void(*)() main_thread )

inlinestaticnoexcept

Initialize the with a function to use as the main thread.

Performs steps necessary to initialize the OS for use by the platform. Control of this function is placed in the platform layer to allow for platform-specific customization & initialization of the OS, since each OS has different startup requirements

This function forwards the call to the derived class for the actual implementation.

Parameters

main_thread a function pointer to use as the main thread routine. This version of initOS should be used for OSes such as FreeRTOS which kill execution of the current thread when the scheduler is started.

◆ initProcessor()

template<typename TPlatform, class TDriverRegistry>

void embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::initProcessor ( )

inlinenoexcept

Initialize the processor.

Performs steps necessary to initialize the processor for use by the platform. In many cases, this call should just invoke the processor's init() function. Control of this function is placed in the platform layer to allow for platform-specific customization & initialization of the processor in situations where non-default values are used.

This function forwards the call to the derived class for the actual implementation.

◆ inst()

template<typename TPlatform, class TDriverRegistry>

static TPlatform& embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::inst ( )

inlinestaticnoexcept

Get the global platform instance.

Static declaration of the VirtualPlatformBase instance. We use this function to avoid the static initializatio order 'fiasco'. See more: https://isocpp.org/wiki/faq/ctors#static-init-order

◆ name()

template<typename TPlatform, class TDriverRegistry>

constexpr const std::string_view& embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::name ( ) const

inlinenoexcept

Access the platform's name.

Returns: Platform name std::string_view reference.

Referenced by embvm::VirtualPlatformBase< FrameworkDemoSimPlatform, PlatformDriverRegistry >::findDriver(), embvm::VirtualPlatformBase< FrameworkDemoSimPlatform, PlatformDriverRegistry >::registerDriver(), and embvm::VirtualPlatformBase< FrameworkDemoSimPlatform, PlatformDriverRegistry >::unregisterDriver().

◆ name_cstr()

template<typename TPlatform, class TDriverRegistry>

constexpr const char* embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::name_cstr ( ) const

inlinenoexcept

Access the platform name as a cstring for C API compatibility.

Returns: Platform name as a C-string.

◆ operator=() [1/2]

template<typename TPlatform, class TDriverRegistry>

const VirtualPlatformBase& embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::operator= ( const VirtualPlatformBase< TPlatform, TDriverRegistry > & )

delete

Deleted copy assignment operator.

◆ operator=() [2/2]

template<typename TPlatform, class TDriverRegistry>

VirtualPlatformBase& embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::operator= ( VirtualPlatformBase< TPlatform, TDriverRegistry > && )

delete

Deleted move assignment operator.

◆ registerDriver()

template<typename TPlatform, class TDriverRegistry>

static void embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::registerDriver	(	const std::string_view &	name,
		embvm::DriverBase *	driver
	)

inlinestaticnoexcept

Platform-level API for registering a new device driver.

Register a device driver with the platform's driver registry.

This call forwards the information to the DriverRegistry instance.

Parameters

name	The name (used as a key) the driver will be registered under.
driver	Pointer to the embvm::DriverBase object. A pointer is used because there are any number of potential derived classes which will be tracked. To prevent slicing, a pointer to the base class is stored.

◆ unregisterDriver()

template<typename TPlatform, class TDriverRegistry>

static void embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::unregisterDriver	(	const std::string_view &	name,
		embvm::DriverBase *	driver
	)

inlinestaticnoexcept

Platform-level API for unregistering a new device driver.

Unregister a device driver with the platform's driver registry.

This call forwards the information to the DriverRegistry instance.

Parameters

name	The name of the driver to remove.
driver	Pointer to the embvm::DriverBase object being removed.

Member Data Documentation

◆ name_

template<typename TPlatform, class TDriverRegistry>

const std::string_view embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >::name_

protected

Referenced by embvm::VirtualPlatformBase< FrameworkDemoSimPlatform, PlatformDriverRegistry >::name(), and embvm::VirtualPlatformBase< FrameworkDemoSimPlatform, PlatformDriverRegistry >::name_cstr().

◆ embvm::PlatformDispatcher

class embvm::PlatformDispatcher

template<class TDispatchQueue>
class embvm::PlatformDispatcher< TDispatchQueue >

Add a dispatch queue to the VirtualPlatform through inheritance.

Your platform can inherit from this class to add dispatching APIs a the platform level. This template is specialized based on the class of Dispatch Queue you want to create.

Example declaration:

   using PlatformDispatchQueue = embutil::DynamicDispatchQueue<>;
class UnitTestPlatform : public VirtualPlatform, public
   PlatformDispatcher<PlatformDispatchQueue>
{...}

Template Parameters

TDispatchQueue The type declaration for the underlying dispatch queue. This is user specified because each platform will have its own specific dispatch queue configuration.

Inheritance diagram for embvm::PlatformDispatcher< TDispatchQueue >:

Public Member Functions
	PlatformDispatcher (size_t threads=1) noexcept
	Construct a platform dispatcher. More...

	PlatformDispatcher (const char *name, size_t threads=1) noexcept
	Construct a platform dispatcher with a C-string name. More...

	PlatformDispatcher (const std::string &name, size_t threads=1) noexcept
	Construct a platform dispatcher with a C-string name. More...

	PlatformDispatcher (const std::string_view &name, size_t threads=1) noexcept
	Construct a platform dispatcher with a std::string_views name. More...

auto	getBoundDispatch () noexcept
	Get std::bind object corresponding dispatch(const&) function. More...

auto	getBoundMoveDispatch () noexcept
	Get std::bind object corresponding dispatch(&&) function. More...

void	dispatch (const TFunc &op) noexcept
	Dispatch an operation. More...

void	dispatch (TFunc &&op) noexcept
	Dispatch an operation. More...

Protected Attributes
TDispatchQueue	dispatch_queue_

Private Types
using	TFunc = typename TDispatchQueue::DispatchFunc_t

Member Typedef Documentation

◆ TFunc

template<class TDispatchQueue>

using embvm::PlatformDispatcher< TDispatchQueue >::TFunc = typename TDispatchQueue::DispatchFunc_t

private

Constructor & Destructor Documentation

◆ PlatformDispatcher() [1/4]

template<class TDispatchQueue>

embvm::PlatformDispatcher< TDispatchQueue >::PlatformDispatcher ( size_t threads = 1 )

inlineexplicitnoexcept

Construct a platform dispatcher.

Parameters

threads The number of threads the dispatch queue will use.

◆ PlatformDispatcher() [2/4]

template<class TDispatchQueue>

embvm::PlatformDispatcher< TDispatchQueue >::PlatformDispatcher	(	const char *	name,
		size_t	threads = `1`
	)

inlineexplicitnoexcept

Construct a platform dispatcher with a C-string name.

Parameters

name	The name for the dispatch queue.
threads	The number of threads the dispatch queue will use.

◆ PlatformDispatcher() [3/4]

template<class TDispatchQueue>

embvm::PlatformDispatcher< TDispatchQueue >::PlatformDispatcher	(	const std::string &	name,
		size_t	threads = `1`
	)

inlineexplicitnoexcept

Construct a platform dispatcher with a C-string name.

Parameters

name	The name for the dispatch queue.
threads	The number of threads the dispatch queue will use

◆ PlatformDispatcher() [4/4]

template<class TDispatchQueue>

embvm::PlatformDispatcher< TDispatchQueue >::PlatformDispatcher	(	const std::string_view &	name,
		size_t	threads = `1`
	)

inlineexplicitnoexcept

Construct a platform dispatcher with a std::string_views name.

Parameters

name	The name for the dispatch queue.
threads	The number of threads the dispatch queue will use

Member Function Documentation

◆ dispatch() [1/2]

template<class TDispatchQueue>

void embvm::PlatformDispatcher< TDispatchQueue >::dispatch ( const TFunc & op )

inlinenoexcept

Dispatch an operation.

Dispatch an operation to the queue. Forwards the function object to the underlying dispatch queue.

Parameters

op	The function object containing the operation that will be dispatched to the queue.

◆ dispatch() [2/2]

template<class TDispatchQueue>

void embvm::PlatformDispatcher< TDispatchQueue >::dispatch ( TFunc && op )

inlinenoexcept

Dispatch an operation.

Dispatch an operation to the queue. Forwards the function object to the underlying dispatch queue.

Parameters

op	The function object containing the operation that will be dispatched to the queue.

◆ getBoundDispatch()

template<class TDispatchQueue>

auto embvm::PlatformDispatcher< TDispatchQueue >::getBoundDispatch ( )

inlinenoexcept

Get std::bind object corresponding dispatch(const&) function.

If you need to get the function dispatch(const&) variant for use with another class, (e.g., passing dispatch() as a callback), use this function.

Returns: A std::bind object corresponding to the dispatch(const&) function.

◆ getBoundMoveDispatch()

template<class TDispatchQueue>

auto embvm::PlatformDispatcher< TDispatchQueue >::getBoundMoveDispatch ( )

inlinenoexcept

Get std::bind object corresponding dispatch(&&) function.

If you need to get the function dispatch(&&) variant for use with another class, (e.g., passing dispatch() as a callback), use this function.

Returns: A std::bind object corresponding to the dispatch(&&) function.

Member Data Documentation

◆ dispatch_queue_

template<class TDispatchQueue>

TDispatchQueue embvm::PlatformDispatcher< TDispatchQueue >::dispatch_queue_

protected

Referenced by embvm::PlatformDispatcher< PlatformDispatchQueue >::dispatch(), embvm::PlatformDispatcher< PlatformDispatchQueue >::getBoundDispatch(), and embvm::PlatformDispatcher< PlatformDispatchQueue >::getBoundMoveDispatch().

◆ embvm::PlatformEventManagement

class embvm::PlatformEventManagement

template<class TEventCenter>
class embvm::PlatformEventManagement< TEventCenter >

Add an event manager to the VirtualPlatform through inheritance.

Your platform can inherit from this class to add event APIs a the platform level This template is specialized based on the class of EventCenter you want to create

Example declaration:

using PlatformEventCenter = DynamicEventCenter;
class UnitTestPlatform : public VirtualPlatform,
   public PlatformEventManagement<PlatformEventCenter>`

Template Parameters

TEventCenter The class of EventCenter you want to use with the Platform Event Manager.

Inheritance diagram for embvm::PlatformEventManagement< TEventCenter >:

Public Member Functions
auto	subscribeToEvent (event_sig_t sig, const event_cb_t &cb) noexcept
	Subscribe to an event. More...

auto	subscribeToEvent (event_sig_t sig, event_cb_t &&cb) noexcept

void	unsubscribeFromEvent (typename TEventCenter::EventHandle &handle) noexcept
	Unsubscribe from an event. More...

void	signal (event_sig_t sig) noexcept
	Forwards a signal to the event manager. More...

void	publishEvent (EventBase event) noexcept
	Forwards an event to the event manager. More...

Protected Attributes
TEventCenter	event_manager_
	The instance of the event manager that belongs to the platform. More...

Private Types
using	event_sig_t = typename TEventCenter::sig_t
	Convenience alias for the signal type. More...

using	event_cb_t = typename TEventCenter::cb_t
	Convenience alias for the callback type. More...

Member Typedef Documentation

◆ event_cb_t

template<class TEventCenter>

using embvm::PlatformEventManagement< TEventCenter >::event_cb_t = typename TEventCenter::cb_t

private

Convenience alias for the callback type.

◆ event_sig_t

template<class TEventCenter>

using embvm::PlatformEventManagement< TEventCenter >::event_sig_t = typename TEventCenter::sig_t

private

Convenience alias for the signal type.

Member Function Documentation

◆ publishEvent()

template<class TEventCenter>

void embvm::PlatformEventManagement< TEventCenter >::publishEvent ( EventBase event )

inlinenoexcept

Forwards an event to the event manager.

Parameters

event The event to publish to the platform event manager.

◆ signal()

template<class TEventCenter>

void embvm::PlatformEventManagement< TEventCenter >::signal ( event_sig_t sig )

inlinenoexcept

Forwards a signal to the event manager.

Parameters

sig	The signal to raise to the platform event manager.

◆ subscribeToEvent() [1/2]

template<class TEventCenter>

auto embvm::PlatformEventManagement< TEventCenter >::subscribeToEvent	(	event_sig_t	sig,
		const event_cb_t &	cb
	)

inlinenoexcept

Subscribe to an event.

Parameters

sig	The signal to subscribe to.
cb	The callback function to invoke when the signal is raised.

Returns: A handle to the event subscription. The handle must remain within scope for the subscription to be valid. Whent he handle leaves scope, the

◆ subscribeToEvent() [2/2]

template<class TEventCenter>

auto embvm::PlatformEventManagement< TEventCenter >::subscribeToEvent	(	event_sig_t	sig,
		event_cb_t &&	cb
	)

inlinenoexcept

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ unsubscribeFromEvent()

template<class TEventCenter>

void embvm::PlatformEventManagement< TEventCenter >::unsubscribeFromEvent ( typename TEventCenter::EventHandle & handle )

inlinenoexcept

Unsubscribe from an event.

Parameters

handle The event handle to unsubscribe.

Member Data Documentation

◆ event_manager_

template<class TEventCenter>

TEventCenter embvm::PlatformEventManagement< TEventCenter >::event_manager_

protected

The instance of the event manager that belongs to the platform.

Referenced by embvm::PlatformEventManagement< PlatformEventCenter >::publishEvent(), embvm::PlatformEventManagement< PlatformEventCenter >::signal(), embvm::PlatformEventManagement< PlatformEventCenter >::subscribeToEvent(), and embvm::PlatformEventManagement< PlatformEventCenter >::unsubscribeFromEvent().

Typedef Documentation

◆ DynamicEventCenter

using embvm::DynamicEventCenter = typedef EventCenter<0, 0>

Declare an EventCenter that uses dynamic memory allocation.

A EventCenter utilizes dynamic memory allocation and can grow to the limit that memory allows. This type is useful for host-based simulation platforms, as well as embedded platforms which allow dynamic memory allocation.

◆ Signal_t

using embvm::Signal_t = typedef uint32_t

Signal type which is used for function inputs.

This type is preferred because users are able to define their own signal types.

◆ StaticEventCenter

template<const size_t TMaxEvents = 16, const size_t TMaxSubscribersPerEvent = 4>

using embvm::StaticEventCenter = typedef EventCenter<TMaxEvents, TMaxSubscribersPerEvent>

Declare a DriverRegistry that uses static memory allocation.

The size and memory allocation of the StaticDriverRegistry is known at compile-time. No dynamic memory allocations are used.

Template Parameters

TMaxEvents	The maximum number of events to store in the queue. 0 indicates dynamic memory allocation will be used; all other numbers use static memory.
TMaxSubscribersPerEvent	The maximum number of subscribers that can register for each event. 0 indicates dynamic memory allocation will be used; all other numbers use static memory.

◆ StaticEventQueue

template<const size_t TSize, const size_t TThreadCnt = 1, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>

using embvm::StaticEventQueue = typedef embutil::StaticDispatchQueue<TSize, TThreadCnt, TFunc>

This alias represents a static dispatch queue which can be used with the event manager Primarily this alias is used to prevent users from needing to declare a long type declaration just because of the need to increase inplace_function<>'s size.

Template Parameters

TSize	the maximum number of entries in the dispatch queue
TThreadCnt	the number of threads to use in the dispatch queue
TFunc	the function object that will be stored in the queue

Enumeration Type Documentation

◆ Signal

enum embvm::Signal

Default framework event signal definitions.

These default signals carry no data.

To add your own event types, create an enum in your project code and use Event_EXTENSION_START as the first value.

Enumerator
Event_Invalid
Event_ProcessorInitd
Event_HwPlatformInitd
Event_PlatformInitd
Event_EXTENSION_START

Variable Documentation

◆ EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE

constexpr size_t embvm::EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE = (sizeof(void*) * 8)

static

Maximum size of the Event center callback functor object.

Classes

Typedefs

Enumerations

Variables

Detailed Description

Class Documentation

◆ embvm::EventBase

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ EventBase() [1/2]

◆ EventBase() [2/2]

Member Function Documentation

◆ safeToFree()

Member Data Documentation

◆ dynamic_

◆ sig

◆ embvm::EventCenter::EventHandle

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>> class embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Member Typedef Documentation

◆ TEventHandle

Constructor & Destructor Documentation

◆ EventHandle() [1/3]

◆ ~EventHandle()

◆ EventHandle() [2/3]

◆ EventHandle() [3/3]

Member Function Documentation

◆ get()

◆ operator bool()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ reset()

◆ sig()

Friends And Related Function Documentation

◆ EventCenter

Member Data Documentation

◆ handle_

◆ is_valid_

◆ mgr_

◆ sig_

◆ embvm::EventCenter

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>> class embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >

Public Types

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Member Typedef Documentation

◆ cb_t

◆ DispatcherFunc

◆ sig_t

◆ TListType

◆ TMapType

Constructor & Destructor Documentation

◆ EventCenter() [1/4]

◆ EventCenter() [2/4]

◆ ~EventCenter()

◆ EventCenter() [3/4]

◆ EventCenter() [4/4]

Member Function Documentation

◆ createSignal()

◆ EventCenterDispatch()

◆ numSubscribedEvents()

◆ numSubscribers()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ publish()

◆ signal()

◆ subscribe() [1/2]

◆ subscribe() [2/2]

◆ unsubscribe()

Member Data Documentation

◆ dispatcher_

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>
class embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >::EventHandle

template<const size_t TMaxEvents = 0, const size_t TMaxSubscribersPerEvent = 0, typename TFunc = stdext::inplace_function<void(), EVENT_CENTER_REQD_STATIC_FUNCTION_SIZE>>
class embvm::EventCenter< TMaxEvents, TMaxSubscribersPerEvent, TFunc >

template<typename TEvent, size_t TQueueSize = 0>
class embvm::EventQueue< TEvent, TQueueSize >

template<typename TPlatform, class TDriverRegistry>
class embvm::VirtualPlatformBase< TPlatform, TDriverRegistry >

template<class TDispatchQueue>
class embvm::PlatformDispatcher< TDispatchQueue >
