This platform exists for use in the framework unit tests. More...

#include <platform.hpp>

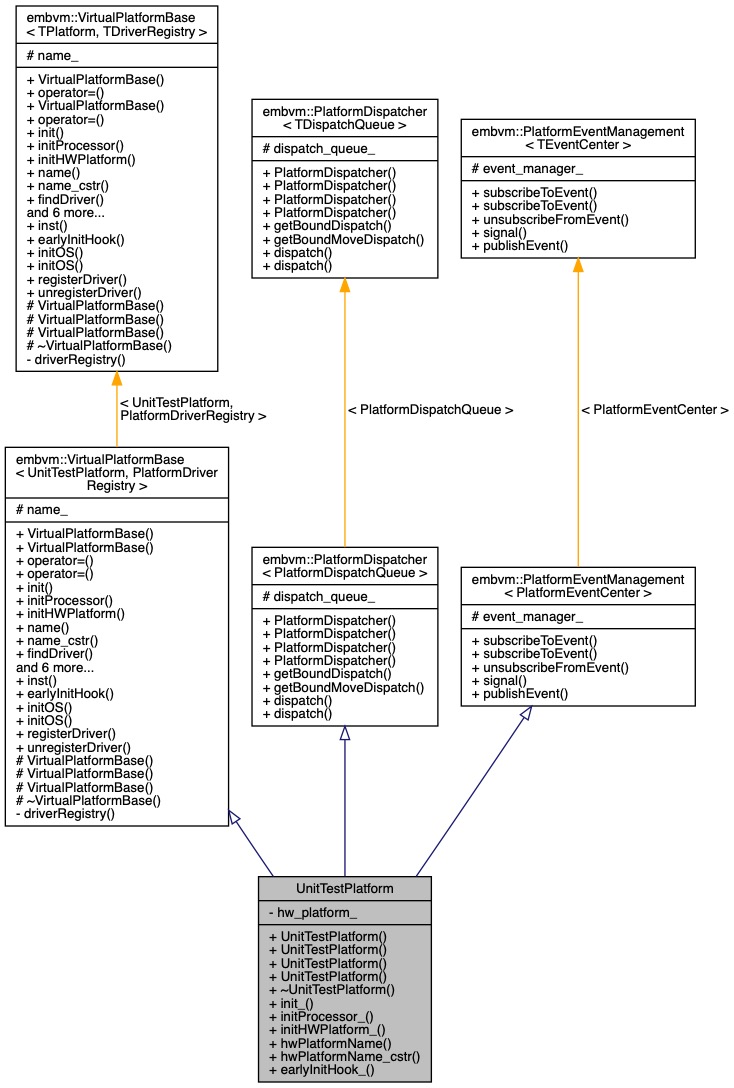

Inheritance diagram for UnitTestPlatform:

Public Member Functions
	UnitTestPlatform () noexcept
	Default constructor with a supplied platform name. More...

	UnitTestPlatform (const char *name) noexcept
	Specify unit test platform by const char* to test the platform base APIs. More...

	UnitTestPlatform (const std::string &name) noexcept
	Specify unit test platform by std::string to test the platform base APIs. More...

	UnitTestPlatform (const std::string_view &name) noexcept
	Specify unit test platform by std::string_view to test the platform base APIs. More...

	~UnitTestPlatform ()=default

void	init_ () noexcept

void	initProcessor_ () noexcept

void	initHWPlatform_ () noexcept

auto	hwPlatformName () noexcept

auto	hwPlatformName_cstr () noexcept

void	init () noexcept
	Initialize the platform. More...

void	initProcessor () noexcept
	Initialize the processor. More...

void	initHWPlatform () noexcept
	Initialize the hardware platform. More...

constexpr const std::string_view &	name () const noexcept
	Access the platform's name. More...

constexpr const char *	name_cstr () const noexcept
	Access the platform name as a cstring for C API compatibility. More...

auto	findDriver (const std::string_view &name) noexcept
	Access a device driver in the registry by name. More...

auto	findDriver (embvm::DriverType_t type) noexcept
	Access a device driver in the registry by type. More...

auto	findDriver () noexcept
	Access a device driver in the registry by type, cast as the appropriate base class. More...

auto	findDriver (const std::string_view &name) noexcept
	Access a device driver in the registry by name, cast as the appropriate base class. More...

auto	findAllDrivers (embvm::DriverType_t type) noexcept
	Get a list of all device drivers in the registry by type. More...

auto	findAllDrivers () noexcept
	Get a list of all device drivers in the registry by type, cast as the appropriate base class. More...

size_t	driverCount () const noexcept
	Get the count of drivers registered with the platform. More...

auto	getBoundDispatch () noexcept
	Get std::bind object corresponding dispatch(const&) function. More...

auto	getBoundMoveDispatch () noexcept
	Get std::bind object corresponding dispatch(&&) function. More...

void	dispatch (const TFunc &op) noexcept
	Dispatch an operation. More...

void	dispatch (TFunc &&op) noexcept
	Dispatch an operation. More...

auto	subscribeToEvent (event_sig_t sig, const event_cb_t &cb) noexcept
	Subscribe to an event. More...

auto	subscribeToEvent (event_sig_t sig, event_cb_t &&cb) noexcept

void	unsubscribeFromEvent (typename PlatformEventCenter ::EventHandle &handle) noexcept
	Unsubscribe from an event. More...

void	signal (event_sig_t sig) noexcept
	Forwards a signal to the event manager. More...

void	publishEvent (EventBase event) noexcept
	Forwards an event to the event manager. More...

Static Public Member Functions
static void	earlyInitHook_ () noexcept

static UnitTestPlatform &	inst () noexcept
	Get the global platform instance. More...

static void	earlyInitHook () noexcept
	Call early-initialization code. More...

static void	initOS () noexcept
	Initialize the OS. More...

static void	initOS (void(*main_thread)()) noexcept
	Initialize the with a function to use as the main thread. More...

static void	registerDriver (const std::string_view &name, embvm::DriverBase *driver) noexcept
	Platform-level API for registering a new device driver. More...

static void	unregisterDriver (const std::string_view &name, embvm::DriverBase *driver) noexcept
	Platform-level API for unregistering a new device driver. More...

Protected Attributes
const std::string_view	name_

PlatformDispatchQueue	dispatch_queue_

PlatformEventCenter	event_manager_
	The instance of the event manager that belongs to the platform. More...

Private Types
using	VirtualPlatform = embvm::VirtualPlatformBase< UnitTestPlatform, PlatformDriverRegistry >

Private Attributes
UnitTestHWPlatform	hw_platform_

Detailed Description

This platform exists for use in the framework unit tests.

Member Typedef Documentation

◆ VirtualPlatform

using UnitTestPlatform::VirtualPlatform = embvm::VirtualPlatformBase<UnitTestPlatform, PlatformDriverRegistry>

private

Constructor & Destructor Documentation

◆ UnitTestPlatform() [1/4]

UnitTestPlatform::UnitTestPlatform ( )

inlinenoexcept

Default constructor with a supplied platform name.

◆ UnitTestPlatform() [2/4]

UnitTestPlatform::UnitTestPlatform ( const char * name )

inlineexplicitnoexcept

Specify unit test platform by const char* to test the platform base APIs.

◆ UnitTestPlatform() [3/4]

UnitTestPlatform::UnitTestPlatform ( const std::string & name )

inlineexplicitnoexcept

Specify unit test platform by std::string to test the platform base APIs.

◆ UnitTestPlatform() [4/4]

UnitTestPlatform::UnitTestPlatform ( const std::string_view & name )

inlineexplicitnoexcept

Specify unit test platform by std::string_view to test the platform base APIs.

◆ ~UnitTestPlatform()

UnitTestPlatform::~UnitTestPlatform ( )

default

Member Function Documentation

◆ dispatch() [1/2]

void embvm::PlatformDispatcher< PlatformDispatchQueue >::dispatch ( const TFunc & op )

inlinenoexceptinherited

Dispatch an operation.

Dispatch an operation to the queue. Forwards the function object to the underlying dispatch queue.

Parameters

op	The function object containing the operation that will be dispatched to the queue.

◆ dispatch() [2/2]

void embvm::PlatformDispatcher< PlatformDispatchQueue >::dispatch ( TFunc && op )

inlinenoexceptinherited

Dispatch an operation.

Dispatch an operation to the queue. Forwards the function object to the underlying dispatch queue.

Parameters

op	The function object containing the operation that will be dispatched to the queue.

◆ driverCount()

size_t embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::driverCount ( ) const

inlinenoexceptinherited

Get the count of drivers registered with the platform.

returns Number of drivers currently registered with the platform DriverRegistry.

◆ earlyInitHook()

static void embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::earlyInitHook ( )

inlinestaticnoexceptinherited

Call early-initialization code.

Call early initialization code, which is to be run before C runtime initialization, memory relocations, OS initialization, etc. This call is used to handle early setup code that the rest of the initialization process might depend on, such as DRAM initialization.

This function forwards the call to the derived class for the actual implementation.

◆ earlyInitHook_()

static void UnitTestPlatform::earlyInitHook_ ( )

inlinestaticnoexcept

References embvm::VirtualHwPlatformBase< UnitTestHWPlatform >::earlyInitHook().

◆ findAllDrivers() [1/2]

auto embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::findAllDrivers ( embvm::DriverType_t type )

inlinenoexceptinherited

Get a list of all device drivers in the registry by type.

The type will be returned as the appropriate base class (instead of embvm::DriverBase).

This call forwards the information to the DriverRegistry instance.

Parameters

type	The type of driver being requested (embvm::i2c::master, SystemClock).

Returns: A list of embvm::DriverBase instances. If no matching types are found, an empty list will be returned. The caller must cast to the appropriate type.

◆ findAllDrivers() [2/2]

auto embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::findAllDrivers ( )

inlinenoexceptinherited

Get a list of all device drivers in the registry by type, cast as the appropriate base class.

The type will be returned as the appropriate base class (instead of embvm::DriverBase).

This call forwards the information to the DriverRegistry instance.

Template Parameters

TDriverClass The class of driver being requested (embvm::i2c::master, SystemClock).

Returns: A list of driver instances cast as TDriverClass types. If no matching types are found, an empty list will be returned.

◆ findDriver() [1/4]

auto embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::findDriver ( const std::string_view & name )

inlinenoexceptinherited

Access a device driver in the registry by name.

Find a driver by name.

This call forwards the information to the DriverRegistry instance.

Returns: An optional_ref to the embvm::DriverBase instance. If no instance is found, the optional reference will be invalid. The caller must cast to the appropriate type.

◆ findDriver() [2/4]

auto embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::findDriver ( embvm::DriverType_t type )

inlinenoexceptinherited

Access a device driver in the registry by type.

Find a driver by type. If multiple drivers are found for a type, the first one found will be returned.

This call forwards the information to the DriverRegistry instance.

Returns: An optional_ref to the embvm::DriverBase instance. If no instance is found, the optional reference will be invalid. The caller must cast to the appropriate type.

◆ findDriver() [3/4]

auto embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::findDriver ( )

inlinenoexceptinherited

Access a device driver in the registry by type, cast as the appropriate base class.

If multiple drivers are found for a type, the first one found will be returned. The type will be returned as the appropriate base class (instead of embvm::DriverBase).

This call forwards the information to the DriverRegistry instance.

Template Parameters

TDriverClass The class of driver being requested (embvm::i2c::master, SystemClock).

Returns: an type_safe::optional_ref cast to the TDriverClass type. If the driver was not found, the optional_ref will be empty.

◆ findDriver() [4/4]

auto embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::findDriver ( const std::string_view & name )

inlinenoexceptinherited

Access a device driver in the registry by name, cast as the appropriate base class.

The type will be returned as the appropriate base class (instead of embvm::DriverBase).

This call forwards the information to the DriverRegistry instance.

Template Parameters

TDriverClass The class of driver being requested (embvm::i2c::master, SystemClock).

Returns: an type_safe::optional_ref cast to the TDriverClass type. If the driver was not found, the optional_ref will be empty.

◆ getBoundDispatch()

auto embvm::PlatformDispatcher< PlatformDispatchQueue >::getBoundDispatch ( )

inlinenoexceptinherited

Get std::bind object corresponding dispatch(const&) function.

If you need to get the function dispatch(const&) variant for use with another class, (e.g., passing dispatch() as a callback), use this function.

Returns: A std::bind object corresponding to the dispatch(const&) function.

◆ getBoundMoveDispatch()

auto embvm::PlatformDispatcher< PlatformDispatchQueue >::getBoundMoveDispatch ( )

inlinenoexceptinherited

Get std::bind object corresponding dispatch(&&) function.

If you need to get the function dispatch(&&) variant for use with another class, (e.g., passing dispatch() as a callback), use this function.

Returns: A std::bind object corresponding to the dispatch(&&) function.

◆ hwPlatformName()

auto UnitTestPlatform::hwPlatformName ( )

inlinenoexcept

References hw_platform_, and embvm::VirtualHwPlatformBase< THWPlatform >::name().

◆ hwPlatformName_cstr()

auto UnitTestPlatform::hwPlatformName_cstr ( )

inlinenoexcept

References hw_platform_, and embvm::VirtualHwPlatformBase< THWPlatform >::name_cstr().

◆ init()

void embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::init ( )

inlinenoexceptinherited

Initialize the platform.

This function is responsible for initializing the platform.

This function forwards the call to the derived class for the actual implementation.

◆ init_()

void UnitTestPlatform::init_ ( )

inlinenoexcept

◆ initHWPlatform()

void embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::initHWPlatform ( )

inlinenoexceptinherited

Initialize the hardware platform.

Performs steps necessary to initialize the hardware platform for use by the platform. In many cases, this call should just invoke the hardware platform's init() function. Control of this function is placed in the platform layer to allow for platform-specific customization & initialization of the hardware platform in situations where non-default values are used.

This function forwards the call to the derived class for the actual implementation.

◆ initHWPlatform_()

void UnitTestPlatform::initHWPlatform_ ( )

inlinenoexcept

References hw_platform_, and embvm::VirtualHwPlatformBase< THWPlatform >::init().

◆ initOS() [1/2]

static void embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::initOS ( )

inlinestaticnoexceptinherited

Initialize the OS.

Performs steps necessary to initialize the OS for use by the platform. Control of this function is placed in the platform layer to allow for platform-specific customization & initialization of the OS, since each OS has different startup requirements

This function forwards the call to the derived class for the actual implementation.

◆ initOS() [2/2]

static void embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::initOS ( void(*)() main_thread )

inlinestaticnoexceptinherited

Initialize the with a function to use as the main thread.

Performs steps necessary to initialize the OS for use by the platform. Control of this function is placed in the platform layer to allow for platform-specific customization & initialization of the OS, since each OS has different startup requirements

This function forwards the call to the derived class for the actual implementation.

Parameters

main_thread a function pointer to use as the main thread routine. This version of initOS should be used for OSes such as FreeRTOS which kill execution of the current thread when the scheduler is started.

◆ initProcessor()

void embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::initProcessor ( )

inlinenoexceptinherited

Initialize the processor.

Performs steps necessary to initialize the processor for use by the platform. In many cases, this call should just invoke the processor's init() function. Control of this function is placed in the platform layer to allow for platform-specific customization & initialization of the processor in situations where non-default values are used.

This function forwards the call to the derived class for the actual implementation.

◆ initProcessor_()

void UnitTestPlatform::initProcessor_ ( )

inlinenoexcept

References hw_platform_, and embvm::VirtualHwPlatformBase< THWPlatform >::initProcessor().

◆ inst()

static UnitTestPlatform & embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::inst ( )

inlinestaticnoexceptinherited

Get the global platform instance.

Static declaration of the VirtualPlatformBase instance. We use this function to avoid the static initializatio order 'fiasco'. See more: https://isocpp.org/wiki/faq/ctors#static-init-order

◆ name()

constexpr const std::string_view& embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::name ( ) const

inlinenoexceptinherited

Access the platform's name.

Returns: Platform name std::string_view reference.

◆ name_cstr()

constexpr const char* embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::name_cstr ( ) const

inlinenoexceptinherited

Access the platform name as a cstring for C API compatibility.

Returns: Platform name as a C-string.

◆ publishEvent()

void embvm::PlatformEventManagement< PlatformEventCenter >::publishEvent ( EventBase event )

inlinenoexceptinherited

Forwards an event to the event manager.

Parameters

event The event to publish to the platform event manager.

◆ registerDriver()

static void embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::registerDriver	(	const std::string_view &	name,
		embvm::DriverBase *	driver
	)

inlinestaticnoexceptinherited

Platform-level API for registering a new device driver.

Register a device driver with the platform's driver registry.

This call forwards the information to the DriverRegistry instance.

Parameters

name	The name (used as a key) the driver will be registered under.
driver	Pointer to the embvm::DriverBase object. A pointer is used because there are any number of potential derived classes which will be tracked. To prevent slicing, a pointer to the base class is stored.

◆ signal()

void embvm::PlatformEventManagement< PlatformEventCenter >::signal ( event_sig_t sig )

inlinenoexceptinherited

Forwards a signal to the event manager.

Parameters

sig	The signal to raise to the platform event manager.

◆ subscribeToEvent() [1/2]

auto embvm::PlatformEventManagement< PlatformEventCenter >::subscribeToEvent	(	event_sig_t	sig,
		const event_cb_t &	cb
	)

inlinenoexceptinherited

Subscribe to an event.

Parameters

sig	The signal to subscribe to.
cb	The callback function to invoke when the signal is raised.

Returns: A handle to the event subscription. The handle must remain within scope for the subscription to be valid. Whent he handle leaves scope, the

◆ subscribeToEvent() [2/2]

auto embvm::PlatformEventManagement< PlatformEventCenter >::subscribeToEvent	(	event_sig_t	sig,
		event_cb_t &&	cb
	)

inlinenoexceptinherited

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ unregisterDriver()

static void embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::unregisterDriver	(	const std::string_view &	name,
		embvm::DriverBase *	driver
	)

inlinestaticnoexceptinherited

Platform-level API for unregistering a new device driver.

Unregister a device driver with the platform's driver registry.

This call forwards the information to the DriverRegistry instance.

Parameters

name	The name of the driver to remove.
driver	Pointer to the embvm::DriverBase object being removed.

◆ unsubscribeFromEvent()

void embvm::PlatformEventManagement< PlatformEventCenter >::unsubscribeFromEvent ( typename PlatformEventCenter ::EventHandle & handle )

inlinenoexceptinherited

Unsubscribe from an event.

Parameters

handle The event handle to unsubscribe.

Member Data Documentation

◆ dispatch_queue_

PlatformDispatchQueue embvm::PlatformDispatcher< PlatformDispatchQueue >::dispatch_queue_

protectedinherited

◆ event_manager_

PlatformEventCenter embvm::PlatformEventManagement< PlatformEventCenter >::event_manager_

protectedinherited

The instance of the event manager that belongs to the platform.

◆ hw_platform_

UnitTestHWPlatform UnitTestPlatform::hw_platform_

private

Referenced by hwPlatformName(), hwPlatformName_cstr(), initHWPlatform_(), and initProcessor_().

◆ name_

const std::string_view embvm::VirtualPlatformBase< UnitTestPlatform , PlatformDriverRegistry >::name_

protectedinherited

The documentation for this class was generated from the following file:

src/platforms/unit_test/platform.hpp

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

◆ VirtualPlatform

Constructor & Destructor Documentation

◆ UnitTestPlatform() [1/4]

◆ UnitTestPlatform() [2/4]

◆ UnitTestPlatform() [3/4]

◆ UnitTestPlatform() [4/4]

◆ ~UnitTestPlatform()

Member Function Documentation

◆ dispatch() [1/2]

◆ dispatch() [2/2]

◆ driverCount()

◆ earlyInitHook()

◆ earlyInitHook_()

◆ findAllDrivers() [1/2]

◆ findAllDrivers() [2/2]

◆ findDriver() [1/4]

◆ findDriver() [2/4]

◆ findDriver() [3/4]

◆ findDriver() [4/4]

◆ getBoundDispatch()

◆ getBoundMoveDispatch()

◆ hwPlatformName()

◆ hwPlatformName_cstr()

◆ init()

◆ init_()

◆ initHWPlatform()

◆ initHWPlatform_()

◆ initOS() [1/2]

◆ initOS() [2/2]

◆ initProcessor()

◆ initProcessor_()

◆ inst()

◆ name()

◆ name_cstr()

◆ publishEvent()

◆ registerDriver()

◆ signal()

◆ subscribeToEvent() [1/2]

◆ subscribeToEvent() [2/2]

◆ unregisterDriver()

◆ unsubscribeFromEvent()

Member Data Documentation

◆ dispatch_queue_

◆ event_manager_

◆ hw_platform_

◆ name_
