UnitTestHWPlatform Class Reference

Unit Test (Simulated) hardware platform. More...

#include <unittest_hw_platform.hpp>

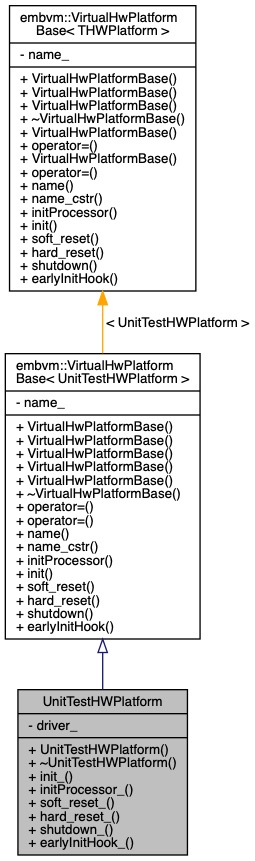

Inheritance diagram for UnitTestHWPlatform:

Public Member Functions
	UnitTestHWPlatform () noexcept
	Default Constructor. More...
	~UnitTestHWPlatform ()=default
	Default Destructor. More...
void	init_ () noexcept
void	initProcessor_ () noexcept
void	soft_reset_ () noexcept
void	hard_reset_ () noexcept
void	shutdown_ () noexcept
constexpr const std::string_view &	name () const noexcept
	Returns the Virtual HW Platform's name. More...
constexpr const char *	name_cstr () const noexcept
	Returns the platform name as a cstring for C API compatibility. More...
void	initProcessor () noexcept
	Initialize the processor. More...
void	init () noexcept
	Initialize the hardware platform. More...
void	soft_reset () noexcept
	Perform a soft reset of the system (chip reset) More...
void	hard_reset () noexcept
	Perform a hard reset of the system (power cycle) More...
void	shutdown () noexcept
	Shutdown the system. More...

Static Public Member Functions
static void	earlyInitHook_ () noexcept
static void	earlyInitHook () noexcept
	Perform any special initialization steps. More...

Private Attributes
test::TestDriverBase	driver_ = test::TestDriverBase("Undefined test driver")
	We declare a single test driver to exercise the framework. More...

Detailed Description

Unit Test (Simulated) hardware platform.

This hardware platform exists to exercise the framework during the unit testing process. This class should not be used directly for any other purpose.

Constructor & Destructor Documentation

UnitTestHWPlatform()

UnitTestHWPlatform::UnitTestHWPlatform ( )

inlinenoexcept

Default Constructor.

~UnitTestHWPlatform()

UnitTestHWPlatform::~UnitTestHWPlatform ( )

default

Default Destructor.

Member Function Documentation

earlyInitHook()

static void embvm::VirtualHwPlatformBase< UnitTestHWPlatform >::earlyInitHook ( )

inlinestaticnoexceptinherited

Perform any special initialization steps.

The earlyInitHook_() function must be implemented by the derived class as a static function.

These functions run before the C Run-time setup functions are called, and normal functionality (e.g. OS concepts) are not available.

Early initialization steps represent any super early code that needs to execute. For example, DRAM might need to be initialized before the boot process can relocate memory to its proper location in memory.

These functions are declared static to prevent you from easily using drivers within their confines

earlyInitHook_()

static void UnitTestHWPlatform::earlyInitHook_ ( )

inlinestaticnoexcept

hard_reset()

void embvm::VirtualHwPlatformBase< UnitTestHWPlatform >::hard_reset ( )

inlinenoexceptinherited

Perform a hard reset of the system (power cycle)

The hard_reset_() function must be implemented by the derived class.

A hard reset is intended to perform a full power cycle of the system.

Platforms which do not support a hard reset should default to calling soft_reset().

hard_reset_()

void UnitTestHWPlatform::hard_reset_ ( )

inlinenoexcept

References soft_reset_().

init()

void embvm::VirtualHwPlatformBase< UnitTestHWPlatform >::init ( )

inlinenoexceptinherited

Initialize the hardware platform.

The init_() function must be implemented by the derived class.

Perform any hardware platform initialization steps, such as preparing peripherals for use, setting up callbacks, etc.

init_()

void UnitTestHWPlatform::init_ ( )

inlinenoexcept

initProcessor()

void embvm::VirtualHwPlatformBase< UnitTestHWPlatform >::initProcessor ( )

inlinenoexceptinherited

Initialize the processor.

The initProcessor_() function must be implemented by the derived class.

Perform any steps necessary for initializing the processor & processor peripheral devices for use.

Note that this is only intended to be processor initialization. Platform initialization nis handled by the init() function.

This function will likely invoke the VirtualProcessor::init() function, but the order and actual initialization process is left to the derived class.

initProcessor_()

void UnitTestHWPlatform::initProcessor_ ( )

inlinenoexcept

name()

constexpr const std::string_view& embvm::VirtualHwPlatformBase< UnitTestHWPlatform >::name ( ) const

inlinenoexceptinherited

Returns the Virtual HW Platform's name.

name_cstr()

constexpr const char* embvm::VirtualHwPlatformBase< UnitTestHWPlatform >::name_cstr ( ) const

inlinenoexceptinherited

Returns the platform name as a cstring for C API compatibility.

shutdown()

void embvm::VirtualHwPlatformBase< UnitTestHWPlatform >::shutdown ( )

inlinenoexceptinherited

Shutdown the system.

The shutdown_() function must be implemented by the derived class.

If your platform supports shutdown capability, take the proper steps to initiate a shutdown.

If the platform does not support shutdown capability, implement your shutdown_() function as an assert to notify users trying to call this API. You could also leave the shutdown_() function undefined. Anyone who calls the shutdown() function on a platform with an undefined shutdown_() function will encounter a compiler error.

The shutdown function is not expected to return.

shutdown_()

void UnitTestHWPlatform::shutdown_ ( )

inlinenoexcept

References assert.

soft_reset()

void embvm::VirtualHwPlatformBase< UnitTestHWPlatform >::soft_reset ( )

inlinenoexceptinherited

Perform a soft reset of the system (chip reset)

The soft_reset_() function must be implemnted by the derived class.

A soft reset is intended to reset the program to the beginning without performing a full power cycle.

A good strategy is to just call virtual processor's reset() function, if one is provided.

soft_reset_()

void UnitTestHWPlatform::soft_reset_ ( )

inlinenoexcept

Referenced by hard_reset_().

Member Data Documentation

driver_

test::TestDriverBase UnitTestHWPlatform::driver_ = test::TestDriverBase("Undefined test driver")

private

We declare a single test driver to exercise the framework.

---

The documentation for this class was generated from the following file:

• src/hw_platforms/unit_test/unittest_hw_platform.hpp
