Group of worker threads that enables asynchronous processing. More...

Collaboration diagram for Dispatch Queues:

Classes
class	embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >
	Base class for dispatch queues. More...

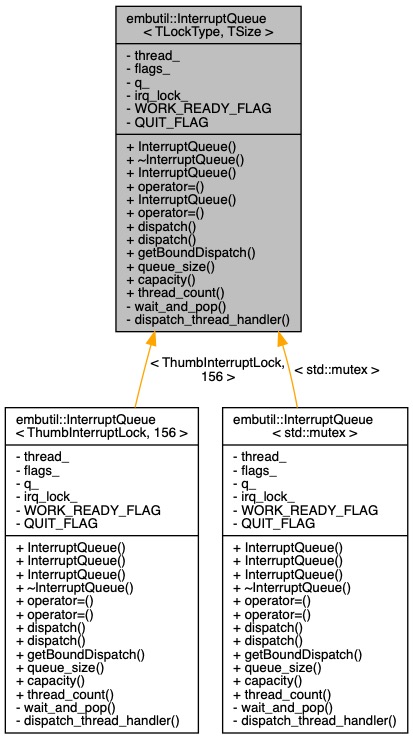

class	embutil::InterruptQueue< TLockType, TSize >
	IRQ safe dispatch queue (For running application-level (bottom-half) interrupt handlers) More...

Typedefs
template<typename TFunc = std::function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>
using	embutil::DynamicDispatchQueue = DispatchQueue_Base< 0, 0, TFunc, TLock, TCond >
	Dispatch queue class supporting dynamic sizes and dynamic memory allocation. More...

template<const size_t TSize, const size_t TThreadCount = 1, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>
using	embutil::StaticDispatchQueue = DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >
	Dispatch queue specializatoin using only static memory allocation. More...

using	embutil::IRQBottomHalfOp_t = stdext::inplace_function< void(), 96 >

using	embutil::IRQDispatcherFunc_t = stdext::inplace_function< void(const IRQBottomHalfOp_t &)>

Detailed Description

Group of worker threads that enables asynchronous processing.

Class Documentation

◆ embutil::DispatchQueue_Base

class embutil::DispatchQueue_Base

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>
class embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >

Base class for dispatch queues.

This templated base class supports both static and dynamic dispatch queue implementations.

This class is not intended to be used directly in a dispatch queue declaration. Instead, use one of the specializations:

DynamicDispatchQueue
StaticDispatchQueue

Using a Dispatch Queue

Users interact with a dispatch queue using the dispatch() APIs. The dispatch queue can accept any functor: functions, function pointers, lambdas. The client passes a functor to the dispatch() operation, which returns immediately to the client. The functor will be executed asynchronously on the next available dispatch thread.

static void increment(void)
{
    count++;
}
embutil::DynamicDispatchQueue<> q(num_threads);
q.dispatch(count);
q.dispatch([] { printf("Hello from a lambda!\n"); });

Dispatch queues are used when an operation needs to run on a separate thread, but you don't want to use explicit thread management. They support asynchronous processing models. A common usage mode is to have the operation call dispatch() to carry out the next step in a processing chain.

Dispatch queues cannot be copied or moved.

Template Parameters

TSize	The size of the storage queue. When TSize is 0, dynamic memory allocation will be used. Otherwise static memory types are used and the maximum number of operations is limited to TSize.
TThreadCount	The number of threads to use with the dispatch queue.
TFunc	The type representing a dispatch function prototype. Defaults to any functor which can be represented by `void(void)`.
TLock	Type to use for the lock. Can be overriden if a custom mutex/lock should be used.
TCond	Type to use for the condition variable. Can be overridden if a custom condition variable implementation should be used.

Public Types
using	DispatchFunc_t = TFunc
	Public alias for the dispatch functor type. More...

Public Member Functions
	DispatchQueue_Base (size_t thread_count=1) noexcept
	Create an unnamed dispatch queue. More...

	DispatchQueue_Base (const char *name, size_t thread_count=1) noexcept
	Create a dispatch queue with a C-string name. More...

	DispatchQueue_Base (const std::string &name, size_t thread_count=1) noexcept
	Create a dispatch queue with a std::string name. More...

	DispatchQueue_Base (const std::string_view &name, size_t thread_count=1) noexcept
	Create a dispatch queue with a std::string name. More...

	~DispatchQueue_Base () noexcept
	Default destructor. More...

	DispatchQueue_Base (const DispatchQueue_Base &)=delete
	Deleted copy constructor. More...

const DispatchQueue_Base &	operator= (const DispatchQueue_Base &)=delete
	Deleted copy assignment operator. More...

	DispatchQueue_Base (DispatchQueue_Base &&)=delete
	Deleted move constructor. More...

DispatchQueue_Base &	operator= (DispatchQueue_Base &&)=delete
	Deleted move assignment operator. More...

void	dispatch (const TFunc &op) noexcept
	Dispatch an operation. More...

void	dispatch (TFunc &&op) noexcept

auto	getBoundDispatch () noexcept
	Get a std::bind object for the instance's dispatch(const&) function. More...

auto	getBoundMoveDispatch () noexcept
	Get a std::bind object for the instance's dispatch(&&) function. More...

size_t	queue_size () const noexcept
	Get the current size of the operation queue. More...

constexpr size_t	capacity () const noexcept
	Get the capacity of the operation queue. More...

constexpr size_t	thread_count () const noexcept
	Get the number of threads used by this dispatch queue. More...

Private Types
using	TVecType = typename std::conditional<(TSize==0), std::vector< std::thread >, etl::vector< std::thread, TThreadCount > >::type
	Type definition for the thread storage vector. More...

using	TQueueType = typename std::conditional<(TSize==0), std::queue< TFunc >, embutil::StaticFunctionQueue< TSize > >::type
	Type definition for the operation storage queue. More...

Private Member Functions
void	dispatch_thread_handler () noexcept
	Worker thread handler. More...

Private Attributes
const std::string_view	name_
	Name of the dispatch queue. More...

TLock	lock_
	Instance of the lock used to protect the operation queue. More...

TVecType	threads_
	Vector of threads which handle dispatch operations. More...

TQueueType	q_
	The operation queue instance. More...

TCond	cv_
	The condition variable which is used to notify dispatch threads. More...

std::atomic< bool >	quit_ = false
	Flag used to signal to threads that it is time to shutdown the queue. More...

Member Typedef Documentation

◆ DispatchFunc_t

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

using embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::DispatchFunc_t = TFunc

Public alias for the dispatch functor type.

◆ TQueueType

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

using embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::TQueueType = typename std::conditional<(TSize == 0), std::queue<TFunc>, embutil::StaticFunctionQueue<TSize> >::type

private

Type definition for the operation storage queue.

If TSize is 0, std::queue will be used (dynamic memory mode). Otherwise a StaticFunctionQueue of size TSize is used.

◆ TVecType

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

using embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::TVecType = typename std::conditional<(TSize == 0), std::vector<std::thread>, etl::vector<std::thread, TThreadCount> >::type

private

Type definition for the thread storage vector.

If TSize is 0, std::vector will be used (dynamic memory mode). Otherwise an etl::vector of size TSize is used.

Constructor & Destructor Documentation

◆ DispatchQueue_Base() [1/6]

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::DispatchQueue_Base ( size_t thread_count = 1 )

inlineexplicitnoexcept

Create an unnamed dispatch queue.

Constucts a dispatch queue with a generic name.

Parameters

thread_count Optional parameter that determines the number of threads associated with this queue. thread_count cannot exceed TThreadCount.

References embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch_thread_handler(), embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::thread_count(), and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::threads_.

◆ DispatchQueue_Base() [2/6]

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::DispatchQueue_Base	(	const char *	name,
		size_t	thread_count = `1`
	)

inlineexplicitnoexcept

Create a dispatch queue with a C-string name.

Parameters

thread_count	Optional parameter that determines the number of threads associated with this queue. thread_count cannot exceed TThreadCount.
name	The name of the dispatch queue.

References embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch_thread_handler(), embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::thread_count(), and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::threads_.

◆ DispatchQueue_Base() [3/6]

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::DispatchQueue_Base	(	const std::string &	name,
		size_t	thread_count = `1`
	)

inlineexplicitnoexcept

Create a dispatch queue with a std::string name.

Parameters

name	The name of the dispatch queue.

Note: DispatchQueue_Base() uses a std::string_view, so a std::string input must remain valid.

Parameters

thread_count Optional parameter that determines the number of threads associated with this queue. thread_count cannot exceed TThreadCount.

References embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch_thread_handler(), embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::thread_count(), and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::threads_.

◆ DispatchQueue_Base() [4/6]

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::DispatchQueue_Base	(	const std::string_view &	name,
		size_t	thread_count = `1`
	)

inlineexplicitnoexcept

Create a dispatch queue with a std::string name.

Parameters

name	The name of the dispatch queue.

Note: DispatchQueue_Base() uses a std::string_view, so the original std::string must remain valid.

Parameters

thread_count Optional parameter that determines the number of threads associated with this queue. thread_count cannot exceed TThreadCount.

References embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch_thread_handler(), embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::thread_count(), and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::threads_.

◆ ~DispatchQueue_Base()

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::~DispatchQueue_Base ( )

inlinenoexcept

Default destructor.

The destructor notifies dispatch threads that it is time to quit. We must wait for threads to exit before destroying the class to prevent race conditions and memory faults. Once all threads are joined, the object is destructed.

This function is marked noexcept because we want the program to terminate if an exception results from this call.

References embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::cv_, embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::lock_, embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::quit_, and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::threads_.

◆ DispatchQueue_Base() [5/6]

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::DispatchQueue_Base ( const DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond > & )

delete

Deleted copy constructor.

◆ DispatchQueue_Base() [6/6]

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::DispatchQueue_Base ( DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond > && )

delete

Deleted move constructor.

Member Function Documentation

◆ capacity()

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

constexpr size_t embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::capacity ( ) const

inlinenoexcept

Get the capacity of the operation queue.

Returns: the capacity of the queue

References embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::q_.

◆ dispatch() [1/2]

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

void embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch ( const TFunc & op )

inlinenoexcept

Dispatch an operation.

This call adds the operation to the function queue and notifies worker threads that new work is available.

The dispatch call returns immediately. Processing happens asynchronously whenever a worker thread is available for processing the operation.

This function is marked noexcept because we want the program to terminate if an exception results from this call. It's possible that the queue might throw on push(), for example.

Parameters

op	The operation to dispatch to a worker thread.

References assert, embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::cv_, embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::lock_, and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::q_.

Referenced by embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::getBoundDispatch(), and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::getBoundMoveDispatch().

◆ dispatch() [2/2]

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

void embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch ( TFunc && op )

inlinenoexcept

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

References assert, embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::cv_, embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::lock_, and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::q_.

◆ dispatch_thread_handler()

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

void embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch_thread_handler ( )

inlineprivatenoexcept

Worker thread handler.

Worker threads all utilize the same operational flow:

This function is marked noexcept because we want the program to terminate if an exception results from this call. We can't guarantee that ops or the queue won't have exceptions.

Threads sleep until there is work in the queue (or quit_ is set)
Whenever work is available, an operation is popped from the queue and processed locally by the worker thread.
When there is no longer any work available, the worker thread sleeps until notified

References embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::cv_, embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::lock_, embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::q_, and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::quit_.

Referenced by embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::DispatchQueue_Base().

◆ getBoundDispatch()

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

auto embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::getBoundDispatch ( )

inlinenoexcept

Get a std::bind object for the instance's dispatch(const&) function.

If you need to get the dispatch(const&) variant for another class, use this function to avoid making your code messy with an insane std::bind call.

Returns: std::bind construct which will map to the the dispatch(const&) function for this queue instance.

References embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch().

◆ getBoundMoveDispatch()

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

auto embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::getBoundMoveDispatch ( )

inlinenoexcept

Get a std::bind object for the instance's dispatch(&&) function.

If you need to get the dispatch(&&) variant for another class, use this function to avoid making your code messy with a stupid std::bind call.

Returns: std::bind construct which will map to the the dispatch(&&) function for this queue instance.

References embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch().

◆ operator=() [1/2]

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

const DispatchQueue_Base& embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::operator= ( const DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond > & )

delete

Deleted copy assignment operator.

◆ operator=() [2/2]

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

DispatchQueue_Base& embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::operator= ( DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond > && )

delete

Deleted move assignment operator.

◆ queue_size()

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

size_t embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::queue_size ( ) const

inlinenoexcept

Get the current size of the operation queue.

Returns: the current number of enqueued operations.

References embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::q_.

◆ thread_count()

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

constexpr size_t embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::thread_count ( ) const

inlinenoexcept

Get the number of threads used by this dispatch queue.

Returns: the number of threads associated with this dispatch queue

References embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::threads_.

Referenced by embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::DispatchQueue_Base().

Member Data Documentation

◆ cv_

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

TCond embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::cv_

private

The condition variable which is used to notify dispatch threads.

Referenced by embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch(), embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch_thread_handler(), and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::~DispatchQueue_Base().

◆ lock_

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

TLock embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::lock_

private

Instance of the lock used to protect the operation queue.

Referenced by embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch(), embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch_thread_handler(), and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::~DispatchQueue_Base().

◆ name_

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

const std::string_view embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::name_

private

Name of the dispatch queue.

◆ q_

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

TQueueType embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::q_

private

The operation queue instance.

Referenced by embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::capacity(), embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch(), embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch_thread_handler(), and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::queue_size().

◆ quit_

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

std::atomic<bool> embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::quit_ = false

private

Flag used to signal to threads that it is time to shutdown the queue.

Referenced by embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::dispatch_thread_handler(), and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::~DispatchQueue_Base().

◆ threads_

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

TVecType embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::threads_

private

Vector of threads which handle dispatch operations.

Referenced by embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::DispatchQueue_Base(), embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::thread_count(), and embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >::~DispatchQueue_Base().

◆ embutil::InterruptQueue

class embutil::InterruptQueue

template<typename TLockType, const size_t TSize = 32>
class embutil::InterruptQueue< TLockType, TSize >

IRQ safe dispatch queue (For running application-level (bottom-half) interrupt handlers)

This dispatch queue can queue operations from a context which cannot acquire a mutex The function queue is fully serial, so each operation will execute in order.

This queue uses only static memory to avoid the potential for dynamic memory allocations in an IRQ context

This queue represents the bottom-half handler of an IRQ system. To avoid operations impacting the IRQ latency, this queue forwards interrupt operations to a standard dispatch queue for execution.

TDisableOp and TEnableOp are functions which enable/disable interrupts. TDisableOp must be an operation which returns a value that can be passed into TEnableOp. TDisableOp's return is used to restore the proper value once interrupts are re-enabled.

Template Parameters

TLockType	The type of lock to use for protecting the queue. Must meet the requirements of a basic lockable type.
TSize	The maximum number of operations to store in the queue.

Inheritance diagram for embutil::InterruptQueue< TLockType, TSize >:

Public Member Functions
	InterruptQueue () noexcept

	~InterruptQueue () noexcept
	Destroy an interupt queue and kill the thread. More...

	InterruptQueue (const InterruptQueue &)=delete
	Deleted copy constructor. More...

const InterruptQueue &	operator= (const InterruptQueue &)=delete
	Deleted copy assignment operator. More...

	InterruptQueue (InterruptQueue &&)=delete
	Deleted move constructor. More...

InterruptQueue &	operator= (InterruptQueue &&)=delete
	Deleted move assignment operator. More...

void	dispatch (const IRQBottomHalfOp_t &op) noexcept
	Dispatch an operation to the thread via copy Adds the operation to the queue. More...

void	dispatch (IRQBottomHalfOp_t &&op) noexcept
	Dispatch an operation to the thread via move Adds the operation to the queue. More...

auto	getBoundDispatch () noexcept

size_t	queue_size () const noexcept
	Return the current number of enqueued operations. More...

constexpr size_t	capacity () const noexcept
	Return the capacity of the queue. More...

constexpr size_t	thread_count () const noexcept
	Return the number of threads associated with the interrupt queue (always 1) More...

Private Member Functions
bool	wait_and_pop (IRQBottomHalfOp_t &op) noexcept
	Convenience function which waits for the queue and pops off of it without requiring excessive locks/unlocks. More...

void	dispatch_thread_handler (void) noexcept
	Thread handler for dispatch queue threads Sleeps until there is an operation in the thread (or quit_ is set) Processes operations from queue. More...

Private Attributes
std::thread	thread_

embvm::VirtualEventFlag *	flags_

etl::queue< IRQBottomHalfOp_t, TSize >	q_

TLockType	irq_lock_

Static Private Attributes
static constexpr uint32_t	WORK_READY_FLAG = (1 << 0)

static constexpr uint32_t	QUIT_FLAG = (1 << 1)

Constructor & Destructor Documentation

◆ InterruptQueue() [1/3]

template<typename TLockType, const size_t TSize = 32>

embutil::InterruptQueue< TLockType, TSize >::InterruptQueue ( )

inlineexplicitnoexcept

◆ ~InterruptQueue()

template<typename TLockType, const size_t TSize = 32>

embutil::InterruptQueue< TLockType, TSize >::~InterruptQueue ( )

inlinenoexcept

Destroy an interupt queue and kill the thread.

This function is marked noexcept because we want the program to terminate if an exception results from this call.

◆ InterruptQueue() [2/3]

template<typename TLockType, const size_t TSize = 32>

embutil::InterruptQueue< TLockType, TSize >::InterruptQueue ( const InterruptQueue< TLockType, TSize > & )

delete

Deleted copy constructor.

◆ InterruptQueue() [3/3]

template<typename TLockType, const size_t TSize = 32>

embutil::InterruptQueue< TLockType, TSize >::InterruptQueue ( InterruptQueue< TLockType, TSize > && )

delete

Deleted move constructor.

Member Function Documentation

◆ capacity()

template<typename TLockType, const size_t TSize = 32>

constexpr size_t embutil::InterruptQueue< TLockType, TSize >::capacity ( ) const

inlinenoexcept

Return the capacity of the queue.

◆ dispatch() [1/2]

template<typename TLockType, const size_t TSize = 32>

void embutil::InterruptQueue< TLockType, TSize >::dispatch ( const IRQBottomHalfOp_t & op )

inlinenoexcept

Dispatch an operation to the thread via copy Adds the operation to the queue.

This function is marked noexcept because we want the program to terminate if an exception results from this call. It's possible that pushing to the queue would trigger an exception depending on the underlying type, for example.

Referenced by embutil::InterruptQueue< std::mutex >::getBoundDispatch().

◆ dispatch() [2/2]

template<typename TLockType, const size_t TSize = 32>

void embutil::InterruptQueue< TLockType, TSize >::dispatch ( IRQBottomHalfOp_t && op )

inlinenoexcept

Dispatch an operation to the thread via move Adds the operation to the queue.

This function is marked noexcept because we want the program to terminate if an exception results from this call. It's possible that pushing to the queue would trigger an exception depending on the underlying type, for example.

◆ dispatch_thread_handler()

template<typename TLockType, const size_t TSize = 32>

void embutil::InterruptQueue< TLockType, TSize >::dispatch_thread_handler ( void )

inlineprivatenoexcept

Thread handler for dispatch queue threads Sleeps until there is an operation in the thread (or quit_ is set) Processes operations from queue.

This function is marked noexcept because we want the program to terminate if an exception results from this call.

Referenced by embutil::InterruptQueue< std::mutex >::InterruptQueue().

◆ getBoundDispatch()

template<typename TLockType, const size_t TSize = 32>

auto embutil::InterruptQueue< TLockType, TSize >::getBoundDispatch ( )

inlinenoexcept

Referenced by BlinkySimulatorHWPlatform::init_(), and FWDemoSimulatorHWPlatform::init_().

◆ operator=() [1/2]

template<typename TLockType, const size_t TSize = 32>

const InterruptQueue& embutil::InterruptQueue< TLockType, TSize >::operator= ( const InterruptQueue< TLockType, TSize > & )

delete

Deleted copy assignment operator.

◆ operator=() [2/2]

template<typename TLockType, const size_t TSize = 32>

InterruptQueue& embutil::InterruptQueue< TLockType, TSize >::operator= ( InterruptQueue< TLockType, TSize > && )

delete

Deleted move assignment operator.

◆ queue_size()

template<typename TLockType, const size_t TSize = 32>

size_t embutil::InterruptQueue< TLockType, TSize >::queue_size ( ) const

inlinenoexcept

Return the current number of enqueued operations.

◆ thread_count()

template<typename TLockType, const size_t TSize = 32>

constexpr size_t embutil::InterruptQueue< TLockType, TSize >::thread_count ( ) const

inlinenoexcept

Return the number of threads associated with the interrupt queue (always 1)

◆ wait_and_pop()

template<typename TLockType, const size_t TSize = 32>

bool embutil::InterruptQueue< TLockType, TSize >::wait_and_pop ( IRQBottomHalfOp_t & op )

inlineprivatenoexcept

Convenience function which waits for the queue and pops off of it without requiring excessive locks/unlocks.

Using a reference parameter to receive the result is used to transfer ownership out of the queue in order to avoid the exception safety issues of returning data by-value: if the copy constructor of a by-value return throws, then the data has been removed from the queue, but is lost, whereas with this approach, the potentially problematic copy is performed prior to modifying the queue (see Herb Sutter's Guru Of The Week #8 for a discussion of the issues).4

This function is marked noexcept because we want the program to terminate if an exception results from this call.

Returns: false if the thread should exit, true otherwise

Referenced by embutil::InterruptQueue< std::mutex >::dispatch_thread_handler().

Member Data Documentation

◆ flags_

template<typename TLockType, const size_t TSize = 32>

embvm::VirtualEventFlag* embutil::InterruptQueue< TLockType, TSize >::flags_

private

Referenced by embutil::InterruptQueue< std::mutex >::dispatch(), embutil::InterruptQueue< std::mutex >::InterruptQueue(), embutil::InterruptQueue< std::mutex >::wait_and_pop(), and embutil::InterruptQueue< std::mutex >::~InterruptQueue().

◆ irq_lock_

template<typename TLockType, const size_t TSize = 32>

TLockType embutil::InterruptQueue< TLockType, TSize >::irq_lock_

private

Referenced by embutil::InterruptQueue< std::mutex >::dispatch(), and embutil::InterruptQueue< std::mutex >::wait_and_pop().

◆ q_

template<typename TLockType, const size_t TSize = 32>

etl::queue<IRQBottomHalfOp_t, TSize> embutil::InterruptQueue< TLockType, TSize >::q_

private

Referenced by embutil::InterruptQueue< std::mutex >::capacity(), embutil::InterruptQueue< std::mutex >::dispatch(), embutil::InterruptQueue< std::mutex >::queue_size(), and embutil::InterruptQueue< std::mutex >::wait_and_pop().

◆ QUIT_FLAG

template<typename TLockType, const size_t TSize = 32>

constexpr uint32_t embutil::InterruptQueue< TLockType, TSize >::QUIT_FLAG = (1 << 1)

staticprivate

Referenced by embutil::InterruptQueue< std::mutex >::wait_and_pop(), and embutil::InterruptQueue< std::mutex >::~InterruptQueue().

◆ thread_

template<typename TLockType, const size_t TSize = 32>

std::thread embutil::InterruptQueue< TLockType, TSize >::thread_

private

Referenced by embutil::InterruptQueue< std::mutex >::InterruptQueue(), and embutil::InterruptQueue< std::mutex >::~InterruptQueue().

◆ WORK_READY_FLAG

template<typename TLockType, const size_t TSize = 32>

constexpr uint32_t embutil::InterruptQueue< TLockType, TSize >::WORK_READY_FLAG = (1 << 0)

staticprivate

Referenced by embutil::InterruptQueue< std::mutex >::dispatch(), and embutil::InterruptQueue< std::mutex >::wait_and_pop().

Typedef Documentation

◆ DynamicDispatchQueue

template<typename TFunc = std::function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

using embutil::DynamicDispatchQueue = typedef DispatchQueue_Base<0, 0, TFunc, TLock, TCond>

Dispatch queue class supporting dynamic sizes and dynamic memory allocation.

This dispatch queue contains a dynamicly sized queue and configurable thread count. The function queue is fully serial, so each operation will execute in order.

To use this queue as a serial queue, use a thread count of 1. With multiple threads, operations will be executed as soon as a thread is available.

Note: This queue is only safe to call from contexts which can aquire mutexes.; To instantiate with default TFunc type, use DynamicDispatchQueue<>.

Template Parameters

TFunc	The type representing a dispatch function prototype. Defaults to any functor which can be represented by `void(void)`.
TLock	Type to use for the lock. Can be overriden if a custom mutex/lock should be used.
TCond	Type to use for the condition variable. Can be overridden if a custom condition variable implementation should be used.

◆ IRQBottomHalfOp_t

using embutil::IRQBottomHalfOp_t = typedef stdext::inplace_function<void(), 96>

◆ IRQDispatcherFunc_t

using embutil::IRQDispatcherFunc_t = typedef stdext::inplace_function<void(const IRQBottomHalfOp_t&)>

◆ StaticDispatchQueue

template<const size_t TSize, const size_t TThreadCount = 1, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>

using embutil::StaticDispatchQueue = typedef DispatchQueue_Base<TSize, TThreadCount, TFunc, TLock, TCond>

Dispatch queue specializatoin using only static memory allocation.

This dispatch queue type uses a staticly sized queue and configurable thread count. The function queue is fully serial, so each operation will execute in order.

To use this queue as a serial queue, use a thread count of 1. With multiple threads, operations will be executed as soon as a thread is available.

TSize = size of the underlying queue in bytes

Note: This queue is only safe to call from contexts which can aquire mutexes.

Template Parameters

TSize	The size of the storage queue. When TSize is 0, dynamic memory allocation will be used. Otherwise static memory types are used and the maximum number of operations is limited to TSize.
TThreadCount	The number of threads to use with the dispatch queue.
TFunc	The type representing a dispatch function prototype. Defaults to any functor which can be represented by `void(void)`.
TLock	Type to use for the lock. Can be overriden if a custom mutex/lock should be used.
TCond	Type to use for the condition variable. Can be overridden if a custom condition variable implementation should be used.

Classes

Typedefs

Detailed Description

Class Documentation

◆ embutil::DispatchQueue_Base

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable> class embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >

Using a Dispatch Queue

Public Types

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Member Typedef Documentation

◆ DispatchFunc_t

◆ TQueueType

◆ TVecType

Constructor & Destructor Documentation

◆ DispatchQueue_Base() [1/6]

◆ DispatchQueue_Base() [2/6]

◆ DispatchQueue_Base() [3/6]

◆ DispatchQueue_Base() [4/6]

◆ ~DispatchQueue_Base()

◆ DispatchQueue_Base() [5/6]

◆ DispatchQueue_Base() [6/6]

Member Function Documentation

◆ capacity()

◆ dispatch() [1/2]

◆ dispatch() [2/2]

◆ dispatch_thread_handler()

◆ getBoundDispatch()

◆ getBoundMoveDispatch()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ queue_size()

◆ thread_count()

Member Data Documentation

◆ cv_

◆ lock_

◆ name_

◆ q_

◆ quit_

◆ threads_

◆ embutil::InterruptQueue

template<typename TLockType, const size_t TSize = 32> class embutil::InterruptQueue< TLockType, TSize >

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Constructor & Destructor Documentation

◆ InterruptQueue() [1/3]

◆ ~InterruptQueue()

◆ InterruptQueue() [2/3]

◆ InterruptQueue() [3/3]

Member Function Documentation

◆ capacity()

◆ dispatch() [1/2]

◆ dispatch() [2/2]

◆ dispatch_thread_handler()

◆ getBoundDispatch()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ queue_size()

◆ thread_count()

◆ wait_and_pop()

Member Data Documentation

◆ flags_

◆ irq_lock_

◆ q_

◆ QUIT_FLAG

◆ thread_

◆ WORK_READY_FLAG

Typedef Documentation

◆ DynamicDispatchQueue

◆ IRQBottomHalfOp_t

◆ IRQDispatcherFunc_t

◆ StaticDispatchQueue

template<const size_t TSize, const size_t TThreadCount, typename TFunc = stdext::inplace_function<void()>, typename TLock = std::mutex, typename TCond = std::condition_variable>
class embutil::DispatchQueue_Base< TSize, TThreadCount, TFunc, TLock, TCond >

template<typename TLockType, const size_t TSize = 32>
class embutil::InterruptQueue< TLockType, TSize >
