embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond > Class Template Reference

#include <active_object.hpp>

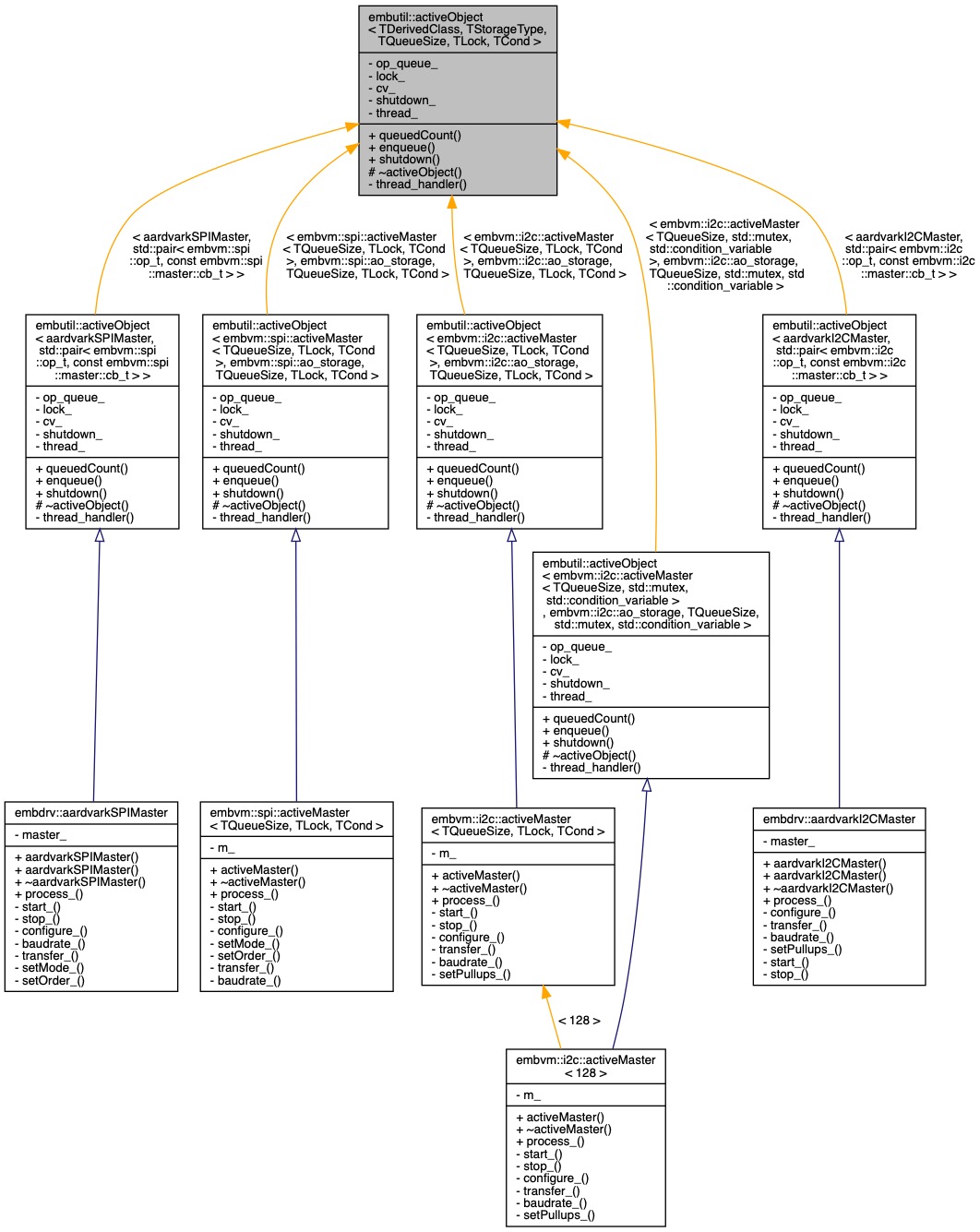

Inheritance diagram for embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond >:

Public Member Functions
size_t	queuedCount () const noexcept
	Get the number of operations in the queue. More...
bool	enqueue (TStorageType t) noexcept
	Add an operation to the queue. More...
void	shutdown () noexcept
	Shutdown the active object. More...

Protected Member Functions
	~activeObject () noexcept
	Default destructor. More...

Private Types
using	TQueueType = typename std::conditional<(TQueueSize==0), std::queue< TStorageType >, etl::queue< TStorageType, TQueueSize > >::type
	Queue type definition. More...

Private Member Functions
void	thread_handler () noexcept
	Active object thread function. More...

Private Attributes
TQueueType	op_queue_
	Queue storage instance. More...
TLock	lock_
	Active object lock instance. More...
TCond	cv_
	Active object condition variable instance. More...
std::atomic< bool >	shutdown_ = false
	Flag indicating that the active object should shutdown. More...
std::thread	thread_ = std::thread(&activeObject::thread_handler, this)
	Active object thread declaration. More...

Member Typedef Documentation

TQueueType

template<class TDerivedClass, typename TStorageType, size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

using embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond >::TQueueType = typename std::conditional<(TQueueSize == 0), std::queue<TStorageType>, etl::queue<TStorageType, TQueueSize> >::type

private

Queue type definition.

The queue is statically allocated when TQueueSize > 0, and dynamically allocated when TQueueSize == 0.

Constructor & Destructor Documentation

~activeObject()

template<class TDerivedClass, typename TStorageType, size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond >::~activeObject ( )

inlineprotectednoexcept

Default destructor.

When the active object is destroyed, the thread is shutdown to prevent any race conditions during destruction.

Member Function Documentation

enqueue()

template<class TDerivedClass, typename TStorageType, size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

bool embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond >::enqueue ( TStorageType  t )

inlinenoexcept

Add an operation to the queue.

This function can be called directly, or by functions internal to the activeObject. For example, the "transfer" API enqueues transfer operations.

This function is marked noexcept because we want the program to terminate if an exception results from this call. For example, the underlying queue may throw on push.

Parameters

t	The operation data object to enqueue for later processing.

Referenced by embvm::i2c::activeMaster< 128 >::transfer_(), and embvm::spi::activeMaster< TQueueSize, TLock, TCond >::transfer_().

queuedCount()

template<class TDerivedClass, typename TStorageType, size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

size_t embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond >::queuedCount ( ) const

inlinenoexcept

Get the number of operations in the queue.

Returns

the number of queued operations.

shutdown()

template<class TDerivedClass, typename TStorageType, size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

void embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond >::shutdown ( )

inlinenoexcept

Shutdown the active object.

Call this function in the parent class destructor to stop the AO thread operation before destroying the parent class. This will prevent memory access problems due to race conidtions during destruction.

This function is marked noexcept because we want the program to terminate if an exception results from this call.

The shutdown process is permanent and cannot be reversed without recreating the object.

Referenced by embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::~activeObject().

thread_handler()

template<class TDerivedClass, typename TStorageType, size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

void embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond >::thread_handler ( )

inlineprivatenoexcept

Active object thread function.

This function monitors the queue and sleeps until new operations are added (or shutdown_ is set). Once a new item is added to the queue, the thread wakes, pops the op off the queue, and calls the derived class's process_() function.

This function is marked noexcept because we want the program to terminate if an exception results from this call. The underlying queue may throw on pop, for instance.

Member Data Documentation

cv_

template<class TDerivedClass, typename TStorageType, size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

TCond embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond >::cv_

private

Active object condition variable instance.

Referenced by embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::enqueue(), embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::shutdown(), and embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::thread_handler().

lock_

template<class TDerivedClass, typename TStorageType, size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

TLock embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond >::lock_

private

Active object lock instance.

Referenced by embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::enqueue(), embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::shutdown(), and embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::thread_handler().

op_queue_

template<class TDerivedClass, typename TStorageType, size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

TQueueType embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond >::op_queue_

private

Queue storage instance.

Referenced by embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::enqueue(), embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::queuedCount(), and embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::thread_handler().

shutdown_

template<class TDerivedClass, typename TStorageType, size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

std::atomic<bool> embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond >::shutdown_ = false

private

Flag indicating that the active object should shutdown.

Referenced by embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::shutdown(), embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::thread_handler(), and embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::~activeObject().

thread_

template<class TDerivedClass, typename TStorageType, size_t TQueueSize = 0, typename TLock = std::mutex, typename TCond = std::condition_variable>

std::thread embutil::activeObject< TDerivedClass, TStorageType, TQueueSize, TLock, TCond >::thread_ = std::thread(&activeObject::thread_handler, this)

private

Active object thread declaration.

Referenced by embutil::activeObject< aardvarkI2CMaster, std::pair< embvm::i2c::op_t, const embvm::i2c::master::cb_t > >::shutdown().

---

The documentation for this class was generated from the following file:

• src/utilities/active_object/active_object.hpp
