embvm::gpio::base< TDir > Class Template Reference

This class defines the common GPIO interfaces. More...

#include <gpio.hpp>

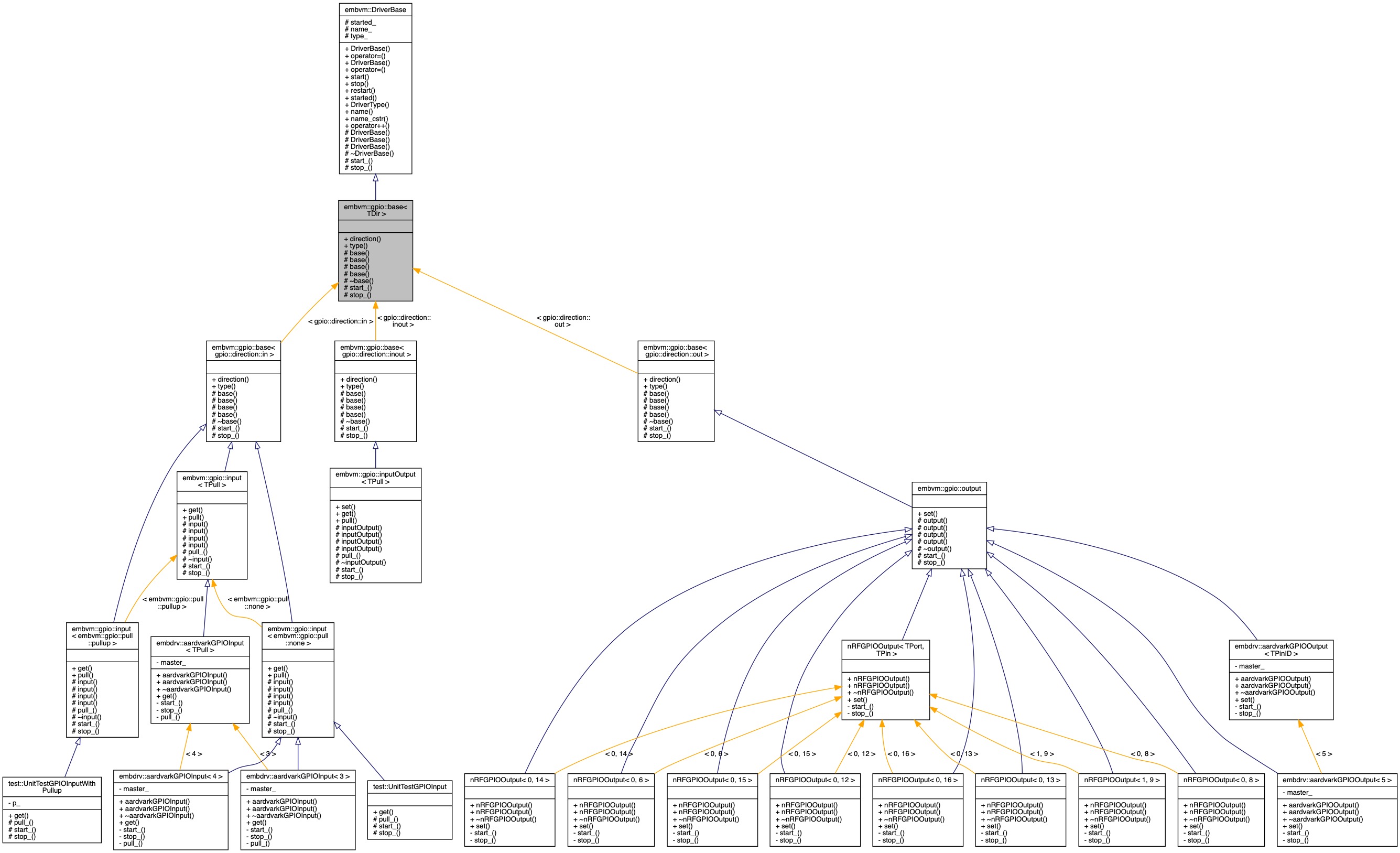

Inheritance diagram for embvm::gpio::base< TDir >:

Public Member Functions
gpio::direction	direction () const noexcept
	Check the direction of the GPIO pin. More...
void	start () noexcept
	Start the driver. More...
void	stop () noexcept
	Stop the driver. More...
void	restart () noexcept
	Restart the driver. More...
type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...
constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...
constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...
constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...
virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	GPIO Driver Type ID. More...

Protected Member Functions
	base () noexcept
	Default constructor. More...
	base (const char *name) noexcept
	Construct an gpio::base with a C-string name. More...
	base (const std::string &name) noexcept
	Construct an gpio::base with a std::string name. More...
	base (const std::string_view &name) noexcept
	Construct an gpio::base with a std::string_view name. More...
	~base () noexcept override=default
	Default destructor. More...
void	start_ () noexcept override=0
	Derived classes override the start_ method to control driver-specific startup behavior. More...
void	stop_ () noexcept override=0
	Derived classes override the start_ method to control driver-specific startup behavior. More...

Protected Attributes
type_safe::boolean	started_ = false
	Tracks the driver state. More...
const std::string_view	name_
	Name of the driver instance. More...
const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Detailed Description

template<gpio::direction TDir>
class embvm::gpio::base< TDir >

This class defines the common GPIO interfaces.

The gpio::base class defines interfaces which are common to all GPIO objects. This class is not intended to be used directly for implementing GPIO drivers. Instead, additional specializations are provided:

• gpio::input
• gpio::output
• gpio::inputOutput

Derived classes must implement pure virtual embvm::DriverBase functions:

• start_()
• stop_()

Template Parameters

TDir	The direction of the GPIO pin (e.g. input, output).
TPull	The pull setting for the GPIO pin.

Constructor & Destructor Documentation

base() [1/4]

template<gpio::direction TDir>

embvm::gpio::base< TDir >::base ( )

inlineprotectednoexcept

Default constructor.

Initializes the gpio::base instance with a generic name.

base() [2/4]

template<gpio::direction TDir>

embvm::gpio::base< TDir >::base ( const char *  name )

inlineexplicitprotectednoexcept

Construct an gpio::base with a C-string name.

Initializes the gpio::base instance with a name.

Parameters

name	The name of the GPIO instance.

base() [3/4]

template<gpio::direction TDir>

embvm::gpio::base< TDir >::base ( const std::string &  name )

inlineexplicitprotectednoexcept

Construct an gpio::base with a std::string name.

Initializes the gpio::base instance with a name.

Parameters

name	The name of the GPIO instance. gpio::base() uses a std::string_view, so the std::string must remain valid

base() [4/4]

template<gpio::direction TDir>

embvm::gpio::base< TDir >::base ( const std::string_view &  name )

inlineexplicitprotectednoexcept

Construct an gpio::base with a std::string_view name.

Initializes the gpio::base instance with a name.

Parameters

name	The name of the GPIO instance.

~base()

template<gpio::direction TDir>

embvm::gpio::base< TDir >::~base ( )

overrideprotecteddefaultnoexcept

Default destructor.

Member Function Documentation

direction()

template<gpio::direction TDir>

gpio::direction embvm::gpio::base< TDir >::direction ( ) const

inlinenoexcept

Check the direction of the GPIO pin.

Returns

The configured direction of this GPIO pin.

DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns

the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns

std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns

c-string containing the driver name

References embvm::DriverBase::name_.

operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

start_()

template<gpio::direction TDir>

void embvm::gpio::base< TDir >::start_ ( )

overrideprotectedpure virtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::DriverBase.

Implemented in embvm::gpio::inputOutput< TPull >, embvm::gpio::output, embvm::gpio::input< TPull >, embvm::gpio::input< embvm::gpio::pull::pullup >, embvm::gpio::input< embvm::gpio::pull::none >, embdrv::aardvarkGPIOOutput< TPinID >, embdrv::aardvarkGPIOOutput< 5 >, embdrv::aardvarkGPIOInput< TPinID, TPull >, embdrv::aardvarkGPIOInput< 3 >, embdrv::aardvarkGPIOInput< 4 >, nRFGPIOOutput< TPort, TPin >, nRFGPIOOutput< 1, 9 >, nRFGPIOOutput< 0, 16 >, nRFGPIOOutput< 0, 8 >, nRFGPIOOutput< 0, 14 >, nRFGPIOOutput< 0, 6 >, nRFGPIOOutput< 0, 15 >, nRFGPIOOutput< 0, 12 >, nRFGPIOOutput< 0, 13 >, test::UnitTestGPIOInputWithPullup, and test::UnitTestGPIOInput.

started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns

true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

stop_()

template<gpio::direction TDir>

void embvm::gpio::base< TDir >::stop_ ( )

overrideprotectedpure virtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::DriverBase.

Implemented in embvm::gpio::inputOutput< TPull >, embvm::gpio::output, embvm::gpio::input< TPull >, embvm::gpio::input< embvm::gpio::pull::pullup >, embvm::gpio::input< embvm::gpio::pull::none >, embdrv::aardvarkGPIOOutput< TPinID >, embdrv::aardvarkGPIOOutput< 5 >, embdrv::aardvarkGPIOInput< TPinID, TPull >, embdrv::aardvarkGPIOInput< 3 >, embdrv::aardvarkGPIOInput< 4 >, nRFGPIOOutput< TPort, TPin >, nRFGPIOOutput< 1, 9 >, nRFGPIOOutput< 0, 16 >, nRFGPIOOutput< 0, 8 >, nRFGPIOOutput< 0, 14 >, nRFGPIOOutput< 0, 6 >, nRFGPIOOutput< 0, 15 >, nRFGPIOOutput< 0, 12 >, nRFGPIOOutput< 0, 13 >, test::UnitTestGPIOInputWithPullup, and test::UnitTestGPIOInput.

type()

template<gpio::direction TDir>

static constexpr embvm::DriverType embvm::gpio::base< TDir >::type ( )

inlinestaticnoexcept

GPIO Driver Type ID.

Returns

GPIO type ID.

Member Data Documentation

name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

---

The documentation for this class was generated from the following file:

• src/core/driver/gpio.hpp
