This class defines a GPIO input/output interface. More...

#include <gpio.hpp>

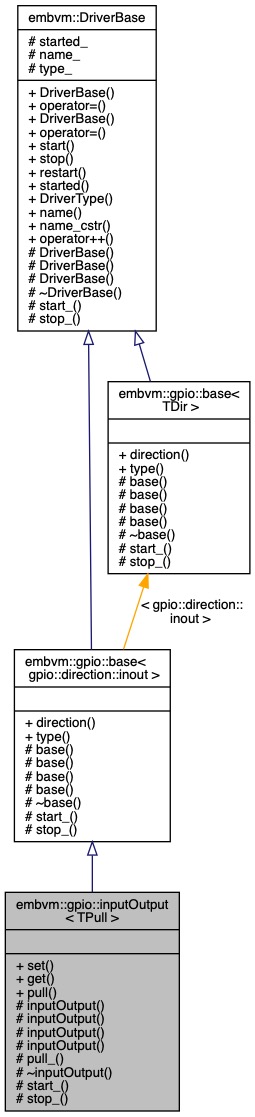

Inheritance diagram for embvm::gpio::inputOutput< TPull >:

Public Member Functions
virtual void	set (bool v) noexcept=0
	Set the current GPIO pin state. More...

virtual bool	get () noexcept=0
	Get the current GPIO pin state. More...

gpio::pull	pull () const noexcept
	Get the current pull configuration. More...

gpio::direction	direction () const noexcept
	Check the direction of the GPIO pin. More...

void	start () noexcept
	Start the driver. More...

void	stop () noexcept
	Stop the driver. More...

void	restart () noexcept
	Restart the driver. More...

type_safe::boolean	started () const noexcept
	Check if the driver has been started. More...

constexpr embvm::DriverType_t	DriverType () const noexcept
	Returns the registered type ID of the driver. More...

constexpr const std::string_view &	name () const noexcept
	Provides a string_view reference of the driver name. More...

constexpr const char *	name_cstr () const noexcept
	Provides a c-string version of the driver name. More...

virtual DriverBase &	operator++ () noexcept
	Increment operator is a no-op, but is used for iterator compatibility. More...

Static Public Member Functions
static constexpr embvm::DriverType	type () noexcept
	GPIO Driver Type ID. More...

Protected Member Functions
	inputOutput () noexcept
	Default constructor. More...

	inputOutput (const char *name) noexcept
	Construct an gpio::inputOutput with a C-string name. More...

	inputOutput (const std::string &name) noexcept
	Construct an gpio::inputOutput with a std::string name. More...

	inputOutput (const std::string_view &name) noexcept
	Construct an gpio::inputOutput with a std::string_view name. More...

virtual gpio::pull	pull_ (gpio::pull p) noexcept=0
	Set the pull configuration in hardware. More...

	~inputOutput () noexcept override=default
	Default destructor. More...

void	start_ () noexcept override=0
	Derived classes override the start_ method to control driver-specific startup behavior. More...

void	stop_ () noexcept override=0
	Derived classes override the start_ method to control driver-specific startup behavior. More...

Protected Attributes
type_safe::boolean	started_ = false
	Tracks the driver state. More...

const std::string_view	name_
	Name of the driver instance. More...

const embvm::DriverType_t	type_
	Type ID of the driver instance. More...

Private Types
using	gpio_base = base< gpio::direction::inout >
	Convenience alias for the associated gpio::base definition. More...

Detailed Description

template<gpio::pull TPull = gpio::pull::none>
class embvm::gpio::inputOutput< TPull >

This class defines a GPIO input/output interface.

The gpio::inputOutput class defines interfaces which are common to all GPIO input/output objects.

To implement a GPIO input/output driver, derive from this class:

template<uint8_t TPinID, gpio::pull TPull = gpio::pull::none>
class aardvarkGPIOinputOutput final : public gpio::inputOutput<TPull>
{...};

Derived classes must implement the following functions:

Derived class start_() must call the pull_() function to set the pull-up/pull-down appropriately.

Derived classes must implement pure virtual embvm::DriverBase functions:

Template Parameters

TPull The pull setting for the GPIO pin.

Member Typedef Documentation

◆ gpio_base

template<gpio::pull TPull = gpio::pull::none>

using embvm::gpio::inputOutput< TPull >::gpio_base = base<gpio::direction::inout>

private

Convenience alias for the associated gpio::base definition.

Constructor & Destructor Documentation

◆ inputOutput() [1/4]

template<gpio::pull TPull = gpio::pull::none>

embvm::gpio::inputOutput< TPull >::inputOutput ( )

inlineprotectednoexcept

Default constructor.

Initializes the gpio::inputOutput instance with a generic name.

◆ inputOutput() [2/4]

template<gpio::pull TPull = gpio::pull::none>

embvm::gpio::inputOutput< TPull >::inputOutput ( const char * name )

inlineexplicitprotectednoexcept

Construct an gpio::inputOutput with a C-string name.

Initializes the gpio::inputOutput instance with a name.

Parameters

name	The name of the GPIO instance.

◆ inputOutput() [3/4]

template<gpio::pull TPull = gpio::pull::none>

embvm::gpio::inputOutput< TPull >::inputOutput ( const std::string & name )

inlineexplicitprotectednoexcept

Construct an gpio::inputOutput with a std::string name.

Initializes the gpio::inputOutput instance with a name.

Parameters

name	The name of the GPIO instance. gpio::inputOutput() uses a std::string_view, so the std::string must remain valid

◆ inputOutput() [4/4]

template<gpio::pull TPull = gpio::pull::none>

embvm::gpio::inputOutput< TPull >::inputOutput ( const std::string_view & name )

inlineexplicitprotectednoexcept

Construct an gpio::inputOutput with a std::string_view name.

Initializes the gpio::inputOutput instance with a name.

Parameters

name	The name of the GPIO instance.

◆ ~inputOutput()

template<gpio::pull TPull = gpio::pull::none>

embvm::gpio::inputOutput< TPull >::~inputOutput ( )

overrideprotecteddefaultnoexcept

Default destructor.

Member Function Documentation

◆ direction()

gpio::direction embvm::gpio::base< TDir >::direction ( ) const

inlinenoexceptinherited

Check the direction of the GPIO pin.

Returns: The configured direction of this GPIO pin.

◆ DriverType()

constexpr embvm::DriverType_t embvm::DriverBase::DriverType ( ) const

inlinenoexceptinherited

Returns the registered type ID of the driver.

When using DriverBase interfaces, clients can retrieve the registered driver type in order to up-cast to the correct interface.

The type is returned as a embvm::DriverType_t rather than a embvm::DriverType enum to work with custom user-defined types. Enforcing a embvm::DriverType return value would prevent clients from defining and using their own custom types.

Returns: the registered driver type as a embvm::DriverType_t value

References embvm::DriverBase::type_.

◆ get()

template<gpio::pull TPull = gpio::pull::none>

virtual bool embvm::gpio::inputOutput< TPull >::get ( )

pure virtualnoexcept

Get the current GPIO pin state.

Derived classes must implement the get() function.

Returns: true if the GPIO is set (logic 1), false otherwise (logic 0).

◆ name()

constexpr const std::string_view& embvm::DriverBase::name ( ) const

inlinenoexceptinherited

Provides a string_view reference of the driver name.

Returns: std::string_view ref containing the driver name.

References embvm::DriverBase::name_.

◆ name_cstr()

constexpr const char* embvm::DriverBase::name_cstr ( ) const

inlinenoexceptinherited

Provides a c-string version of the driver name.

Returns: c-string containing the driver name

References embvm::DriverBase::name_.

◆ operator++()

virtual DriverBase& embvm::DriverBase::operator++ ( )

inlinevirtualnoexceptinherited

Increment operator is a no-op, but is used for iterator compatibility.

◆ pull()

template<gpio::pull TPull = gpio::pull::none>

gpio::pull embvm::gpio::inputOutput< TPull >::pull ( ) const

inlinenoexcept

Get the current pull configuration.

Returns: The currently configured GPIO pull setting.

◆ pull_()

template<gpio::pull TPull = gpio::pull::none>

virtual gpio::pull embvm::gpio::inputOutput< TPull >::pull_ ( gpio::pull p )

protectedpure virtualnoexcept

Set the pull configuration in hardware.

Derived classes must implement the pull_() function.

Returns: The currently configured GPIO pull setting.

◆ restart()

void embvm::DriverBase::restart ( )

inlinenoexceptinherited

Restart the driver.

Calls stop() and then start() on the driver. If the driver is not started, then it will be started after the start() function is invoked.

References embvm::DriverBase::start(), and embvm::DriverBase::stop().

◆ set()

template<gpio::pull TPull = gpio::pull::none>

virtual void embvm::gpio::inputOutput< TPull >::set ( bool v )

pure virtualnoexcept

Set the current GPIO pin state.

Derived classes must implement the set() function.

Parameters

v	The desired GPIO state. True for logic 1, false for logic 0.

◆ start()

void embvm::DriverBase::start ( )

inlinenoexceptinherited

Start the driver.

If the driver is not started, call the start_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::start_(), and embvm::DriverBase::started_.

Referenced by NRF52DongleHWPlatform::init_(), NRF52DKHWPlatform::init_(), BlinkySimulatorHWPlatform::init_(), FWDemoSimulatorHWPlatform::init_(), FrameworkDemoSimPlatform::initHWPlatform_(), embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::start_(), embvm::i2c::activeMaster< 128 >::start_(), embdrv::aardvarkSPIMaster::start_(), embdrv::aardvarkI2CMaster::start_(), embdrv::aardvarkGPIOInput< 4 >::start_(), embdrv::vl53l1x::start_(), embdrv::aardvarkGPIOOutput< 5 >::start_(), BlinkySimulatorHWPlatform::startBlink(), and FWDemoSimulatorHWPlatform::startLEDTimer().

◆ start_()

template<gpio::pull TPull = gpio::pull::none>

void embvm::gpio::inputOutput< TPull >::start_ ( )

overrideprotectedpure virtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::gpio::base< gpio::direction::inout >.

◆ started()

type_safe::boolean embvm::DriverBase::started ( ) const

inlinenoexceptinherited

Check if the driver has been started.

Returns: true if the driver is running (started), false if not running (stopped).

References embvm::DriverBase::started_.

Referenced by embdrv::aardvarkSPIMaster::configure_(), embdrv::aardvarkGPIOInput< 4 >::get(), embdrv::aardvarkGPIOOutput< 5 >::set(), embdrv::vl53l1x::start_(), embdrv::aardvarkAdapter::start_(), and embdrv::aardvarkAdapter::stop_().

◆ stop()

void embvm::DriverBase::stop ( )

inlinenoexceptinherited

Stop the driver.

If the driver has been started, call the stop_() function defined by the derived class. (Template Method Pattern)

References embvm::DriverBase::started_, and embvm::DriverBase::stop_().

Referenced by embvm::DriverBase::restart(), embvm::timer::Timer::restart(), embvm::spi::activeMaster< TQueueSize, TLock, TCond >::stop_(), embvm::i2c::activeMaster< 128 >::stop_(), embdrv::aardvarkSPIMaster::stop_(), embdrv::aardvarkI2CMaster::stop_(), embdrv::aardvarkGPIOInput< 4 >::stop_(), embdrv::aardvarkGPIOOutput< 5 >::stop_(), FWDemoSimulatorHWPlatform::~FWDemoSimulatorHWPlatform(), and embdrv::SimulatorTimer::~SimulatorTimer().

◆ stop_()

template<gpio::pull TPull = gpio::pull::none>

void embvm::gpio::inputOutput< TPull >::stop_ ( )

overrideprotectedpure virtualnoexcept

Derived classes override the start_ method to control driver-specific startup behavior.

(Template Method Pattern)

Implements embvm::gpio::base< gpio::direction::inout >.

◆ type()

static constexpr embvm::DriverType embvm::gpio::base< TDir >::type ( )

inlinestaticnoexceptinherited

GPIO Driver Type ID.

Returns: GPIO type ID.

Member Data Documentation

◆ name_

const std::string_view embvm::DriverBase::name_

protectedinherited

Name of the driver instance.

Referenced by embvm::DriverBase::name(), and embvm::DriverBase::name_cstr().

◆ started_

type_safe::boolean embvm::DriverBase::started_ = false

protectedinherited

Tracks the driver state.

True if the driver has been started, false if it has been stopped or not yet started.

Referenced by embvm::DriverBase::start(), embvm::DriverBase::started(), and embvm::DriverBase::stop().

◆ type_

const embvm::DriverType_t embvm::DriverBase::type_

protectedinherited

Type ID of the driver instance.

Referenced by embvm::DriverBase::DriverType().

The documentation for this class was generated from the following file:

src/core/driver/gpio.hpp
