aardvark.h File Reference

#include <stdint.h>

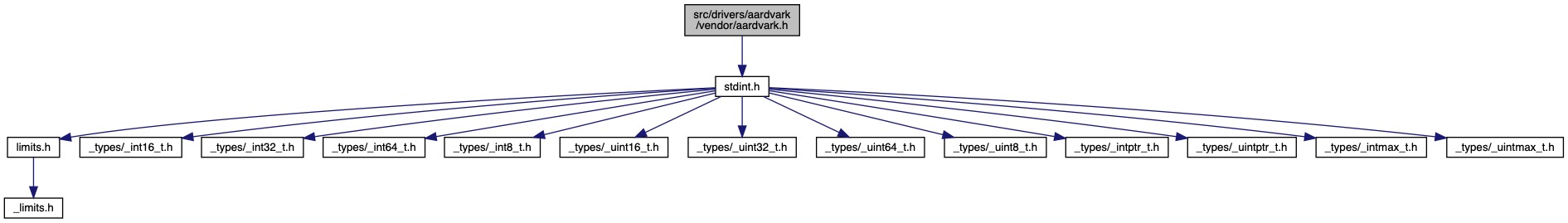

Include dependency graph for aardvark.h:

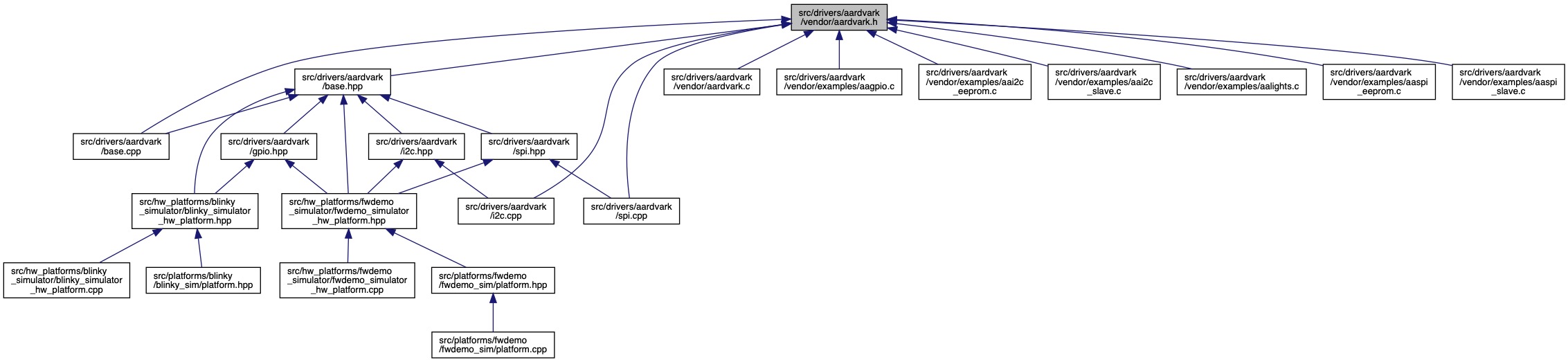

This graph shows which files directly or indirectly include this file:

Classes
struct	AardvarkVersion
struct	AardvarkExt

Macros
#define	TOTALPHASE_DATA_TYPES
#define	AA_DEBUG   0
#define	AA_HEADER_VERSION   0x050a /* v5.10 */
#define	AA_PORT_NOT_FREE   0x8000
#define	AA_FEATURE_SPI   0x00000001
#define	AA_FEATURE_I2C   0x00000002
#define	AA_FEATURE_GPIO   0x00000008
#define	AA_FEATURE_I2C_MONITOR   0x00000010
#define	AA_LOG_STDOUT   1
#define	AA_LOG_STDERR   2
#define	AA_CONFIG_SPI_MASK   0x00000001
#define	AA_CONFIG_I2C_MASK   0x00000002
#define	AA_TARGET_POWER_NONE   0x00
#define	AA_TARGET_POWER_BOTH   0x03
#define	AA_TARGET_POWER_QUERY   0x80
#define	AA_ASYNC_NO_DATA   0x00000000
#define	AA_ASYNC_I2C_READ   0x00000001
#define	AA_ASYNC_I2C_WRITE   0x00000002
#define	AA_ASYNC_SPI   0x00000004
#define	AA_ASYNC_I2C_MONITOR   0x00000008
#define	AA_I2C_MONITOR_DATA   0x00ff
#define	AA_I2C_MONITOR_NACK   0x0100
#define	AA_I2C_MONITOR_CMD_START   0xff00
#define	AA_I2C_MONITOR_CMD_STOP   0xff01
#define	AA_I2C_PULLUP_NONE   0x00
#define	AA_I2C_PULLUP_BOTH   0x03
#define	AA_I2C_PULLUP_QUERY   0x80
#define	AA_GPIO_DIR_INPUT   0
#define	AA_GPIO_DIR_OUTPUT   1
#define	AA_GPIO_PULLUP_OFF   0
#define	AA_GPIO_PULLUP_ON   1

Typedefs
typedef uint8_t	u08
typedef uint16_t	u16
typedef uint32_t	u32
typedef uint64_t	u64
typedef int8_t	s08
typedef int16_t	s16
typedef int32_t	s32
typedef int64_t	s64
typedef float	f32
typedef double	f64
typedef enum AardvarkStatus	AardvarkStatus
typedef int	Aardvark
typedef u08	aa_u08
typedef u16	aa_u16
typedef u32	aa_u32
typedef s08	aa_s08
typedef s16	aa_s16
typedef s32	aa_s32
typedef struct AardvarkVersion	AardvarkVersion
typedef struct AardvarkExt	AardvarkExt
typedef enum AardvarkConfig	AardvarkConfig
typedef enum AardvarkI2cFlags	AardvarkI2cFlags
typedef enum AardvarkI2cStatus	AardvarkI2cStatus
typedef enum AardvarkSpiPolarity	AardvarkSpiPolarity
typedef enum AardvarkSpiPhase	AardvarkSpiPhase
typedef enum AardvarkSpiBitorder	AardvarkSpiBitorder
typedef enum AardvarkSpiSSPolarity	AardvarkSpiSSPolarity
typedef enum AardvarkGpioBits	AardvarkGpioBits

Enumerations
enum	AardvarkStatus {   AA_OK = 0, AA_UNABLE_TO_LOAD_LIBRARY = -1, AA_UNABLE_TO_LOAD_DRIVER = -2, AA_UNABLE_TO_LOAD_FUNCTION = -3,   AA_INCOMPATIBLE_LIBRARY = -4, AA_INCOMPATIBLE_DEVICE = -5, AA_COMMUNICATION_ERROR = -6, AA_UNABLE_TO_OPEN = -7,   AA_UNABLE_TO_CLOSE = -8, AA_INVALID_HANDLE = -9, AA_CONFIG_ERROR = -10, AA_I2C_NOT_AVAILABLE = -100,   AA_I2C_NOT_ENABLED = -101, AA_I2C_READ_ERROR = -102, AA_I2C_WRITE_ERROR = -103, AA_I2C_SLAVE_BAD_CONFIG = -104,   AA_I2C_SLAVE_READ_ERROR = -105, AA_I2C_SLAVE_TIMEOUT = -106, AA_I2C_DROPPED_EXCESS_BYTES = -107, AA_I2C_BUS_ALREADY_FREE = -108,   AA_SPI_NOT_AVAILABLE = -200, AA_SPI_NOT_ENABLED = -201, AA_SPI_WRITE_ERROR = -202, AA_SPI_SLAVE_READ_ERROR = -203,   AA_SPI_SLAVE_TIMEOUT = -204, AA_SPI_DROPPED_EXCESS_BYTES = -205, AA_GPIO_NOT_AVAILABLE = -400, AA_I2C_MONITOR_NOT_AVAILABLE = -500,   AA_I2C_MONITOR_NOT_ENABLED = -501 }
enum	AardvarkConfig {   AA_CONFIG_GPIO_ONLY = 0x00, AA_CONFIG_SPI_GPIO = 0x01, AA_CONFIG_GPIO_I2C = 0x02, AA_CONFIG_SPI_I2C = 0x03,   AA_CONFIG_QUERY = 0x80 }
enum	AardvarkI2cFlags {   AA_I2C_NO_FLAGS = 0x00, AA_I2C_10_BIT_ADDR = 0x01, AA_I2C_COMBINED_FMT = 0x02, AA_I2C_NO_STOP = 0x04,   AA_I2C_SIZED_READ = 0x10, AA_I2C_SIZED_READ_EXTRA1 = 0x20 }
enum	AardvarkI2cStatus {   AA_I2C_STATUS_OK = 0, AA_I2C_STATUS_BUS_ERROR = 1, AA_I2C_STATUS_SLA_ACK = 2, AA_I2C_STATUS_SLA_NACK = 3,   AA_I2C_STATUS_DATA_NACK = 4, AA_I2C_STATUS_ARB_LOST = 5, AA_I2C_STATUS_BUS_LOCKED = 6, AA_I2C_STATUS_LAST_DATA_ACK = 7 }
enum	AardvarkSpiPolarity { AA_SPI_POL_RISING_FALLING = 0, AA_SPI_POL_FALLING_RISING = 1 }
enum	AardvarkSpiPhase { AA_SPI_PHASE_SAMPLE_SETUP = 0, AA_SPI_PHASE_SETUP_SAMPLE = 1 }
enum	AardvarkSpiBitorder { AA_SPI_BITORDER_MSB = 0, AA_SPI_BITORDER_LSB = 1 }
enum	AardvarkSpiSSPolarity { AA_SPI_SS_ACTIVE_LOW = 0, AA_SPI_SS_ACTIVE_HIGH = 1 }
enum	AardvarkGpioBits {   AA_GPIO_SCL = 0x01, AA_GPIO_SDA = 0x02, AA_GPIO_MISO = 0x04, AA_GPIO_SCK = 0x08,   AA_GPIO_MOSI = 0x10, AA_GPIO_SS = 0x20 }

Functions
int	aa_find_devices (int num_devices, u16 *devices)
int	aa_find_devices_ext (int num_devices, u16 *devices, int num_ids, u32 *unique_ids)
Aardvark	aa_open (int port_number)
Aardvark	aa_open_ext (int port_number, AardvarkExt *aa_ext)
int	aa_close (Aardvark aardvark)
int	aa_port (Aardvark aardvark)
int	aa_features (Aardvark aardvark)
u32	aa_unique_id (Aardvark aardvark)
const char *	aa_status_string (int status)
int	aa_log (Aardvark aardvark, int level, int handle)
int	aa_version (Aardvark aardvark, AardvarkVersion *version)
int	aa_configure (Aardvark aardvark, AardvarkConfig config)
int	aa_target_power (Aardvark aardvark, u08 power_mask)
u32	aa_sleep_ms (u32 milliseconds)
int	aa_async_poll (Aardvark aardvark, int timeout)
int	aa_i2c_free_bus (Aardvark aardvark)
int	aa_i2c_bitrate (Aardvark aardvark, int bitrate_khz)
int	aa_i2c_bus_timeout (Aardvark aardvark, u16 timeout_ms)
int	aa_i2c_read (Aardvark aardvark, u16 slave_addr, AardvarkI2cFlags flags, u16 num_bytes, u08 *data_in)
int	aa_i2c_read_ext (Aardvark aardvark, u16 slave_addr, AardvarkI2cFlags flags, u16 num_bytes, u08 *data_in, u16 *num_read)
int	aa_i2c_write (Aardvark aardvark, u16 slave_addr, AardvarkI2cFlags flags, u16 num_bytes, const u08 *data_out)
int	aa_i2c_write_ext (Aardvark aardvark, u16 slave_addr, AardvarkI2cFlags flags, u16 num_bytes, const u08 *data_out, u16 *num_written)
int	aa_i2c_write_read (Aardvark aardvark, u16 slave_addr, AardvarkI2cFlags flags, u16 out_num_bytes, const u08 *out_data, u16 *num_written, u16 in_num_bytes, u08 *in_data, u16 *num_read)
int	aa_i2c_slave_enable (Aardvark aardvark, u08 addr, u16 maxTxBytes, u16 maxRxBytes)
int	aa_i2c_slave_disable (Aardvark aardvark)
int	aa_i2c_slave_set_response (Aardvark aardvark, u08 num_bytes, const u08 *data_out)
int	aa_i2c_slave_write_stats (Aardvark aardvark)
int	aa_i2c_slave_read (Aardvark aardvark, u08 *addr, u16 num_bytes, u08 *data_in)
int	aa_i2c_slave_write_stats_ext (Aardvark aardvark, u16 *num_written)
int	aa_i2c_slave_read_ext (Aardvark aardvark, u08 *addr, u16 num_bytes, u08 *data_in, u16 *num_read)
int	aa_i2c_monitor_enable (Aardvark aardvark)
int	aa_i2c_monitor_disable (Aardvark aardvark)
int	aa_i2c_monitor_read (Aardvark aardvark, u16 num_bytes, u16 *data)
int	aa_i2c_pullup (Aardvark aardvark, u08 pullup_mask)
int	aa_spi_bitrate (Aardvark aardvark, int bitrate_khz)
int	aa_spi_configure (Aardvark aardvark, AardvarkSpiPolarity polarity, AardvarkSpiPhase phase, AardvarkSpiBitorder bitorder)
int	aa_spi_write (Aardvark aardvark, u16 out_num_bytes, const u08 *data_out, u16 in_num_bytes, u08 *data_in)
int	aa_spi_slave_enable (Aardvark aardvark)
int	aa_spi_slave_disable (Aardvark aardvark)
int	aa_spi_slave_set_response (Aardvark aardvark, u08 num_bytes, const u08 *data_out)
int	aa_spi_slave_read (Aardvark aardvark, u16 num_bytes, u08 *data_in)
int	aa_spi_master_ss_polarity (Aardvark aardvark, AardvarkSpiSSPolarity polarity)
int	aa_gpio_direction (Aardvark aardvark, u08 direction_mask)
int	aa_gpio_pullup (Aardvark aardvark, u08 pullup_mask)
int	aa_gpio_get (Aardvark aardvark)
int	aa_gpio_set (Aardvark aardvark, u08 value)
int	aa_gpio_change (Aardvark aardvark, u16 timeout)

---

Class Documentation

AardvarkVersion

struct AardvarkVersion

Class Members
u16	api_req_by_sw
u16	firmware
u16	fw_req_by_sw
u16	hardware
u16	software
u16	sw_req_by_fw

AardvarkExt

struct AardvarkExt

Class Members
int	features
AardvarkVersion	version

Macro Definition Documentation

AA_ASYNC_I2C_MONITOR

#define AA_ASYNC_I2C_MONITOR   0x00000008

AA_ASYNC_I2C_READ

#define AA_ASYNC_I2C_READ   0x00000001

AA_ASYNC_I2C_WRITE

#define AA_ASYNC_I2C_WRITE   0x00000002

AA_ASYNC_NO_DATA

#define AA_ASYNC_NO_DATA   0x00000000

AA_ASYNC_SPI

#define AA_ASYNC_SPI   0x00000004

AA_CONFIG_I2C_MASK

#define AA_CONFIG_I2C_MASK   0x00000002

AA_CONFIG_SPI_MASK

#define AA_CONFIG_SPI_MASK   0x00000001

AA_DEBUG

#define AA_DEBUG   0

AA_FEATURE_GPIO

#define AA_FEATURE_GPIO   0x00000008

AA_FEATURE_I2C

#define AA_FEATURE_I2C   0x00000002

AA_FEATURE_I2C_MONITOR

#define AA_FEATURE_I2C_MONITOR   0x00000010

AA_FEATURE_SPI

#define AA_FEATURE_SPI   0x00000001

AA_GPIO_DIR_INPUT

#define AA_GPIO_DIR_INPUT   0

AA_GPIO_DIR_OUTPUT

#define AA_GPIO_DIR_OUTPUT   1

AA_GPIO_PULLUP_OFF

#define AA_GPIO_PULLUP_OFF   0

AA_GPIO_PULLUP_ON

#define AA_GPIO_PULLUP_ON   1

AA_HEADER_VERSION

#define AA_HEADER_VERSION   0x050a /* v5.10 */

AA_I2C_MONITOR_CMD_START

#define AA_I2C_MONITOR_CMD_START   0xff00

AA_I2C_MONITOR_CMD_STOP

#define AA_I2C_MONITOR_CMD_STOP   0xff01

AA_I2C_MONITOR_DATA

#define AA_I2C_MONITOR_DATA   0x00ff

AA_I2C_MONITOR_NACK

#define AA_I2C_MONITOR_NACK   0x0100

AA_I2C_PULLUP_BOTH

#define AA_I2C_PULLUP_BOTH   0x03

AA_I2C_PULLUP_NONE

#define AA_I2C_PULLUP_NONE   0x00

AA_I2C_PULLUP_QUERY

#define AA_I2C_PULLUP_QUERY   0x80

AA_LOG_STDERR

#define AA_LOG_STDERR   2

AA_LOG_STDOUT

#define AA_LOG_STDOUT   1

AA_PORT_NOT_FREE

#define AA_PORT_NOT_FREE   0x8000

AA_TARGET_POWER_BOTH

#define AA_TARGET_POWER_BOTH   0x03

AA_TARGET_POWER_NONE

#define AA_TARGET_POWER_NONE   0x00

AA_TARGET_POWER_QUERY

#define AA_TARGET_POWER_QUERY   0x80

TOTALPHASE_DATA_TYPES

#define TOTALPHASE_DATA_TYPES

Typedef Documentation

aa_s08

typedef s08 aa_s08

aa_s16

typedef s16 aa_s16

aa_s32

typedef s32 aa_s32

aa_u08

typedef u08 aa_u08

aa_u16

typedef u16 aa_u16

aa_u32

typedef u32 aa_u32

Aardvark

typedef int Aardvark

AardvarkConfig

typedef enum AardvarkConfig AardvarkConfig

AardvarkExt

typedef struct AardvarkExt AardvarkExt

AardvarkGpioBits

typedef enum AardvarkGpioBits AardvarkGpioBits

AardvarkI2cFlags

typedef enum AardvarkI2cFlags AardvarkI2cFlags

AardvarkI2cStatus

typedef enum AardvarkI2cStatus AardvarkI2cStatus

AardvarkSpiBitorder

typedef enum AardvarkSpiBitorder AardvarkSpiBitorder

AardvarkSpiPhase

typedef enum AardvarkSpiPhase AardvarkSpiPhase

AardvarkSpiPolarity

typedef enum AardvarkSpiPolarity AardvarkSpiPolarity

AardvarkSpiSSPolarity

typedef enum AardvarkSpiSSPolarity AardvarkSpiSSPolarity

AardvarkStatus

typedef enum AardvarkStatus AardvarkStatus

AardvarkVersion

typedef struct AardvarkVersion AardvarkVersion

f32

typedef float f32

f64

typedef double f64

s08

typedef int8_t s08

s16

typedef int16_t s16

s32

typedef int32_t s32

s64

typedef int64_t s64

u08

typedef uint8_t u08

u16

typedef uint16_t u16

u32

typedef uint32_t u32

u64

typedef uint64_t u64

Enumeration Type Documentation

AardvarkConfig

enum AardvarkConfig

Enumerator
AA_CONFIG_GPIO_ONLY
AA_CONFIG_SPI_GPIO
AA_CONFIG_GPIO_I2C
AA_CONFIG_SPI_I2C
AA_CONFIG_QUERY

AardvarkGpioBits

enum AardvarkGpioBits

Enumerator
AA_GPIO_SCL
AA_GPIO_SDA
AA_GPIO_MISO
AA_GPIO_SCK
AA_GPIO_MOSI
AA_GPIO_SS

AardvarkI2cFlags

enum AardvarkI2cFlags

Enumerator
AA_I2C_NO_FLAGS
AA_I2C_10_BIT_ADDR
AA_I2C_COMBINED_FMT
AA_I2C_NO_STOP
AA_I2C_SIZED_READ
AA_I2C_SIZED_READ_EXTRA1

AardvarkI2cStatus

enum AardvarkI2cStatus

Enumerator
AA_I2C_STATUS_OK
AA_I2C_STATUS_BUS_ERROR
AA_I2C_STATUS_SLA_ACK
AA_I2C_STATUS_SLA_NACK
AA_I2C_STATUS_DATA_NACK
AA_I2C_STATUS_ARB_LOST
AA_I2C_STATUS_BUS_LOCKED
AA_I2C_STATUS_LAST_DATA_ACK

AardvarkSpiBitorder

enum AardvarkSpiBitorder

Enumerator
AA_SPI_BITORDER_MSB
AA_SPI_BITORDER_LSB

AardvarkSpiPhase

enum AardvarkSpiPhase

Enumerator
AA_SPI_PHASE_SAMPLE_SETUP
AA_SPI_PHASE_SETUP_SAMPLE

AardvarkSpiPolarity

enum AardvarkSpiPolarity

Enumerator
AA_SPI_POL_RISING_FALLING
AA_SPI_POL_FALLING_RISING

AardvarkSpiSSPolarity

enum AardvarkSpiSSPolarity

Enumerator
AA_SPI_SS_ACTIVE_LOW
AA_SPI_SS_ACTIVE_HIGH

AardvarkStatus

enum AardvarkStatus

Enumerator
AA_OK
AA_UNABLE_TO_LOAD_LIBRARY
AA_UNABLE_TO_LOAD_DRIVER
AA_UNABLE_TO_LOAD_FUNCTION
AA_INCOMPATIBLE_LIBRARY
AA_INCOMPATIBLE_DEVICE
AA_COMMUNICATION_ERROR
AA_UNABLE_TO_OPEN
AA_UNABLE_TO_CLOSE
AA_INVALID_HANDLE
AA_CONFIG_ERROR
AA_I2C_NOT_AVAILABLE
AA_I2C_NOT_ENABLED
AA_I2C_READ_ERROR
AA_I2C_WRITE_ERROR
AA_I2C_SLAVE_BAD_CONFIG
AA_I2C_SLAVE_READ_ERROR
AA_I2C_SLAVE_TIMEOUT
AA_I2C_DROPPED_EXCESS_BYTES
AA_I2C_BUS_ALREADY_FREE
AA_SPI_NOT_AVAILABLE
AA_SPI_NOT_ENABLED
AA_SPI_WRITE_ERROR
AA_SPI_SLAVE_READ_ERROR
AA_SPI_SLAVE_TIMEOUT
AA_SPI_DROPPED_EXCESS_BYTES
AA_GPIO_NOT_AVAILABLE
AA_I2C_MONITOR_NOT_AVAILABLE
AA_I2C_MONITOR_NOT_ENABLED

Function Documentation

aa_async_poll()

int aa_async_poll	(	Aardvark	aardvark,
		int	timeout
	)

References _loadFunction(), and c_aa_async_poll.

Referenced by dump().

Here is the caller graph for this function:

aa_close()

int aa_close

(

Aardvark

aardvark

)

References _loadFunction(), and c_aa_close.

Referenced by main(), and embdrv::aardvarkAdapter::stop_().

Here is the caller graph for this function:

aa_configure()

int aa_configure	(	Aardvark	aardvark,
		AardvarkConfig	config
	)

References _loadFunction(), and c_aa_configure.

Referenced by main(), and embdrv::aardvarkAdapter::mode().

Here is the caller graph for this function:

aa_features()

int aa_features

(

Aardvark

aardvark

)

References _loadFunction(), and c_aa_features.

aa_find_devices()

int aa_find_devices	(	int	num_devices,
		u16 *	devices
	)

References _loadFunction(), and c_aa_find_devices.

aa_find_devices_ext()

int aa_find_devices_ext	(	int	num_devices,
		u16 *	devices,
		int	num_ids,
		u32 *	unique_ids
	)

References _loadFunction(), and c_aa_find_devices_ext.

aa_gpio_change()

int aa_gpio_change	(	Aardvark	aardvark,
		u16	timeout
	)

References _loadFunction(), and c_aa_gpio_change.

Referenced by main().

Here is the caller graph for this function:

aa_gpio_direction()

int aa_gpio_direction	(	Aardvark	aardvark,
		u08	direction_mask
	)

References _loadFunction(), and c_aa_gpio_direction.

Referenced by main(), and embdrv::aardvarkGPIOOutput< 5 >::start_().

Here is the caller graph for this function:

aa_gpio_get()

int aa_gpio_get

(

Aardvark

aardvark

)

References _loadFunction(), and c_aa_gpio_get.

Referenced by embdrv::aardvarkGPIOInput< 4 >::get(), and main().

Here is the caller graph for this function:

aa_gpio_pullup()

int aa_gpio_pullup	(	Aardvark	aardvark,
		u08	pullup_mask
	)

References _loadFunction(), and c_aa_gpio_pullup.

Referenced by main(), and embdrv::aardvarkAdapter::pullup().

Here is the caller graph for this function:

aa_gpio_set()

int aa_gpio_set	(	Aardvark	aardvark,
		u08	value
	)

References _loadFunction(), and c_aa_gpio_set.

Referenced by main(), and embdrv::aardvarkGPIOOutput< 5 >::set().

Here is the caller graph for this function:

aa_i2c_bitrate()

int aa_i2c_bitrate	(	Aardvark	aardvark,
		int	bitrate_khz
	)

References _loadFunction(), and c_aa_i2c_bitrate.

Referenced by embdrv::aardvarkI2CMaster::baudrate_(), and main().

Here is the caller graph for this function:

aa_i2c_bus_timeout()

int aa_i2c_bus_timeout	(	Aardvark	aardvark,
		u16	timeout_ms
	)

References _loadFunction(), and c_aa_i2c_bus_timeout.

Referenced by embdrv::aardvarkI2CMaster::configure_(), and main().

Here is the caller graph for this function:

aa_i2c_free_bus()

int aa_i2c_free_bus

(

Aardvark

aardvark

)

References _loadFunction(), and c_aa_i2c_free_bus.

Referenced by embdrv::aardvarkI2CMaster::process_().

Here is the caller graph for this function:

aa_i2c_monitor_disable()

int aa_i2c_monitor_disable

(

Aardvark

aardvark

)

References _loadFunction(), and c_aa_i2c_monitor_disable.

aa_i2c_monitor_enable()

int aa_i2c_monitor_enable

(

Aardvark

aardvark

)

References _loadFunction(), and c_aa_i2c_monitor_enable.

aa_i2c_monitor_read()

int aa_i2c_monitor_read	(	Aardvark	aardvark,
		u16	num_bytes,
		u16 *	data
	)

References _loadFunction(), and c_aa_i2c_monitor_read.

aa_i2c_pullup()

int aa_i2c_pullup	(	Aardvark	aardvark,
		u08	pullup_mask
	)

References _loadFunction(), and c_aa_i2c_pullup.

Referenced by embdrv::aardvarkAdapter::i2cPullups(), main(), and embdrv::aardvarkAdapter::targetPower().

Here is the caller graph for this function:

aa_i2c_read()

int aa_i2c_read	(	Aardvark	aardvark,
		u16	slave_addr,
		AardvarkI2cFlags	flags,
		u16	num_bytes,
		u08 *	data_in
	)

References _loadFunction(), c_aa_i2c_read, and data_in.

Referenced by _readMemory().

Here is the caller graph for this function:

aa_i2c_read_ext()

int aa_i2c_read_ext	(	Aardvark	aardvark,
		u16	slave_addr,
		AardvarkI2cFlags	flags,
		u16	num_bytes,
		u08 *	data_in,
		u16 *	num_read
	)

References _loadFunction(), c_aa_i2c_read_ext, and data_in.

Referenced by embdrv::aardvarkI2CMaster::process_().

Here is the caller graph for this function:

aa_i2c_slave_disable()

int aa_i2c_slave_disable

(

Aardvark

aardvark

)

References _loadFunction(), and c_aa_i2c_slave_disable.

Referenced by main().

Here is the caller graph for this function:

aa_i2c_slave_enable()

int aa_i2c_slave_enable	(	Aardvark	aardvark,
		u08	addr,
		u16	maxTxBytes,
		u16	maxRxBytes
	)

References _loadFunction(), and c_aa_i2c_slave_enable.

Referenced by main().

Here is the caller graph for this function:

aa_i2c_slave_read()

int aa_i2c_slave_read	(	Aardvark	aardvark,
		u08 *	addr,
		u16	num_bytes,
		u08 *	data_in
	)

References _loadFunction(), c_aa_i2c_slave_read, and data_in.

Referenced by dump().

Here is the caller graph for this function:

aa_i2c_slave_read_ext()

int aa_i2c_slave_read_ext	(	Aardvark	aardvark,
		u08 *	addr,
		u16	num_bytes,
		u08 *	data_in,
		u16 *	num_read
	)

References _loadFunction(), c_aa_i2c_slave_read_ext, and data_in.

aa_i2c_slave_set_response()

int aa_i2c_slave_set_response	(	Aardvark	aardvark,
		u08	num_bytes,
		const u08 *	data_out
	)

References _loadFunction(), and c_aa_i2c_slave_set_response.

Referenced by main().

Here is the caller graph for this function:

aa_i2c_slave_write_stats()

int aa_i2c_slave_write_stats

(

Aardvark

aardvark

)

References _loadFunction(), and c_aa_i2c_slave_write_stats.

Referenced by dump().

Here is the caller graph for this function:

aa_i2c_slave_write_stats_ext()

int aa_i2c_slave_write_stats_ext	(	Aardvark	aardvark,
		u16 *	num_written
	)

References _loadFunction(), and c_aa_i2c_slave_write_stats_ext.

aa_i2c_write()

int aa_i2c_write	(	Aardvark	aardvark,
		u16	slave_addr,
		AardvarkI2cFlags	flags,
		u16	num_bytes,
		const u08 *	data_out
	)

References _loadFunction(), and c_aa_i2c_write.

Referenced by _readMemory(), _writeMemory(), and flash_lights().

Here is the caller graph for this function:

aa_i2c_write_ext()

int aa_i2c_write_ext	(	Aardvark	aardvark,
		u16	slave_addr,
		AardvarkI2cFlags	flags,
		u16	num_bytes,
		const u08 *	data_out,
		u16 *	num_written
	)

References _loadFunction(), and c_aa_i2c_write_ext.

Referenced by embdrv::aardvarkI2CMaster::process_().

Here is the caller graph for this function:

aa_i2c_write_read()

int aa_i2c_write_read	(	Aardvark	aardvark,
		u16	slave_addr,
		AardvarkI2cFlags	flags,
		u16	out_num_bytes,
		const u08 *	out_data,
		u16 *	num_written,
		u16	in_num_bytes,
		u08 *	in_data,
		u16 *	num_read
	)

References _loadFunction(), and c_aa_i2c_write_read.

Referenced by embdrv::aardvarkI2CMaster::process_().

Here is the caller graph for this function:

aa_log()

int aa_log	(	Aardvark	aardvark,
		int	level,
		int	handle
	)

References _loadFunction(), and c_aa_log.

Referenced by main().

Here is the caller graph for this function:

aa_open()

Aardvark aa_open

(

int

port_number

)

References _loadFunction(), and c_aa_open.

Referenced by main(), and embdrv::aardvarkAdapter::start_().

Here is the caller graph for this function:

aa_open_ext()

Aardvark aa_open_ext	(	int	port_number,
		AardvarkExt *	aa_ext
	)

References _loadFunction(), and c_aa_open_ext.

Referenced by main().

Here is the caller graph for this function:

aa_port()

int aa_port

(

Aardvark

aardvark

)

References _loadFunction(), and c_aa_port.

aa_sleep_ms()

u32 aa_sleep_ms

(

u32

milliseconds

)

References _loadFunction(), and c_aa_sleep_ms.

Referenced by _writeMemory(), and flash_lights().

Here is the caller graph for this function:

aa_spi_bitrate()

int aa_spi_bitrate	(	Aardvark	aardvark,
		int	bitrate_khz
	)

References _loadFunction(), and c_aa_spi_bitrate.

Referenced by embdrv::aardvarkSPIMaster::baudrate_(), and main().

Here is the caller graph for this function:

aa_spi_configure()

int aa_spi_configure	(	Aardvark	aardvark,
		AardvarkSpiPolarity	polarity,
		AardvarkSpiPhase	phase,
		AardvarkSpiBitorder	bitorder
	)

References _loadFunction(), and c_aa_spi_configure.

Referenced by embdrv::aardvarkSPIMaster::configure_(), and main().

Here is the caller graph for this function:

aa_spi_master_ss_polarity()

int aa_spi_master_ss_polarity	(	Aardvark	aardvark,
		AardvarkSpiSSPolarity	polarity
	)

References _loadFunction(), and c_aa_spi_master_ss_polarity.

aa_spi_slave_disable()

int aa_spi_slave_disable

(

Aardvark

aardvark

)

References _loadFunction(), and c_aa_spi_slave_disable.

Referenced by main().

Here is the caller graph for this function:

aa_spi_slave_enable()

int aa_spi_slave_enable

(

Aardvark

aardvark

)

References _loadFunction(), and c_aa_spi_slave_enable.

Referenced by main().

Here is the caller graph for this function:

aa_spi_slave_read()

int aa_spi_slave_read	(	Aardvark	aardvark,
		u16	num_bytes,
		u08 *	data_in
	)

References _loadFunction(), c_aa_spi_slave_read, and data_in.

Referenced by dump().

Here is the caller graph for this function:

aa_spi_slave_set_response()

int aa_spi_slave_set_response	(	Aardvark	aardvark,
		u08	num_bytes,
		const u08 *	data_out
	)

References _loadFunction(), and c_aa_spi_slave_set_response.

Referenced by main().

Here is the caller graph for this function:

aa_spi_write()

int aa_spi_write	(	Aardvark	aardvark,
		u16	out_num_bytes,
		const u08 *	data_out,
		u16	in_num_bytes,
		u08 *	data_in
	)

References _loadFunction(), c_aa_spi_write, and data_in.

Referenced by _readMemory(), _writeMemory(), and embdrv::aardvarkSPIMaster::process_().

Here is the caller graph for this function:

aa_status_string()

const char* aa_status_string

(

int

status

)

References _loadFunction(), and c_aa_status_string.

Referenced by _readMemory(), dump(), and main().

Here is the caller graph for this function:

aa_target_power()

int aa_target_power	(	Aardvark	aardvark,
		u08	power_mask
	)

References _loadFunction(), and c_aa_target_power.

Referenced by main(), and embdrv::aardvarkAdapter::targetPower().

Here is the caller graph for this function:

aa_unique_id()

u32 aa_unique_id

(

Aardvark

aardvark

)

References _loadFunction(), and c_aa_unique_id.

aa_version()

int aa_version	(	Aardvark	aardvark,
		AardvarkVersion *	version
	)

References _loadFunction(), and c_aa_version.
