test Namespace Reference

Classes
class	i2cTestDriver
	I2C Master Unit Test Driver. More...
struct	out_fct_wrap_type
class	spiTestDriver
	SPI Master Unit Test Driver. More...
class	TestDriverBase
	Test driver that enables testing DriverBase. More...
class	UnitTestGPIOInput
	Unit Test GPIO Input Driver. More...
class	UnitTestGPIOInputWithPullup
	Unit Test GPIO Input Driver, with a pullup. More...

Typedefs
typedef __builtin_va_list	va_list
typedef __builtin_va_list	__isoc_va_list
typedef long	ptrdiff_t
typedef unsigned long	size_t
typedef long	ssize_t
typedef _Bool	bool
	Expands to _Bool. More...
typedef short	int16_t
typedef int	int32_t
typedef long long	int64_t
typedef signed char	int8_t
typedef unsigned short	uint16_t
typedef unsigned int	uint32_t
typedef unsigned long long	uint64_t
typedef unsigned char	uint8_t
typedef int8_t	int_least8_t
typedef int16_t	int_least16_t
typedef int32_t	int_least32_t
typedef int64_t	int_least64_t
typedef uint8_t	uint_least8_t
typedef uint16_t	uint_least16_t
typedef uint32_t	uint_least32_t
typedef uint64_t	uint_least64_t
typedef int8_t	int_fast8_t
typedef int32_t	int_fast16_t
typedef int32_t	int_fast32_t
typedef int64_t	int_fast64_t
typedef uint8_t	uint_fast8_t
typedef uint32_t	uint_fast16_t
typedef uint32_t	uint_fast32_t
typedef uint64_t	uint_fast64_t
typedef long	intptr_t
typedef unsigned long	uintptr_t
typedef long int	intmax_t
typedef unsigned long long	uintmax_t
typedef void(*	out_fct_type) (char character, void *buffer, size_t idx, size_t maxlen)

Functions
void	_putchar (char character)
	Output a character to a custom device like UART, used by the printf() function This function is declared here only. More...
int	printf_ (const char *format,...)
int	sprintf_ (char *buffer, const char *format,...)
int	snprintf_ (char *buffer, size_t count, const char *format,...)
int	vsnprintf_ (char *buffer, size_t count, const char *format, va_list va)
int	vprintf_ (const char *format, va_list va)
int	fctprintf (void(*out)(char character, void *arg), void *arg, const char *format,...)
	printf with output function You may use this as dynamic alternative to printf() with its fixed _putchar() output More...
static void	_out_buffer (char character, void *buffer, size_t idx, size_t maxlen)
static void	_out_null (char character, void *buffer, size_t idx, size_t maxlen)
static void	_out_char (char character, void *buffer, size_t idx, size_t maxlen)
static void	_out_fct (char character, void *buffer, size_t idx, size_t maxlen)
static unsigned int	_strnlen_s (const char *str, size_t maxsize)
static bool	_is_digit (char ch)
static unsigned int	_atoi (const char **str)
static size_t	_out_rev (out_fct_type out, char *buffer, size_t idx, size_t maxlen, const char *buf, size_t len, unsigned int width, unsigned int flags)
static size_t	_ntoa_format (out_fct_type out, char *buffer, size_t idx, size_t maxlen, char *buf, size_t len, bool negative, unsigned int base, unsigned int prec, unsigned int width, unsigned int flags)
static size_t	_ntoa_long (out_fct_type out, char *buffer, size_t idx, size_t maxlen, unsigned long value, bool negative, unsigned long base, unsigned int prec, unsigned int width, unsigned int flags)
static size_t	_ntoa_long_long (out_fct_type out, char *buffer, size_t idx, size_t maxlen, unsigned long long value, bool negative, unsigned long long base, unsigned int prec, unsigned int width, unsigned int flags)
static size_t	_etoa (out_fct_type out, char *buffer, size_t idx, size_t maxlen, double value, unsigned int prec, unsigned int width, unsigned int flags)
static size_t	_ftoa (out_fct_type out, char *buffer, size_t idx, size_t maxlen, double value, unsigned int prec, unsigned int width, unsigned int flags)
static int	_vsnprintf (out_fct_type out, char *buffer, const size_t maxlen, const char *format, va_list va)

Typedef Documentation

__isoc_va_list

typedef __builtin_va_list test::__isoc_va_list

bool

typedef _Bool test::bool

Expands to _Bool.

int16_t

typedef short test::int16_t

int32_t

typedef int test::int32_t

int64_t

typedef long long test::int64_t

int8_t

typedef signed char test::int8_t

int_fast16_t

typedef int32_t test::int_fast16_t

fastest signed integer type with width of at least 16

int_fast32_t

typedef int32_t test::int_fast32_t

fastest signed integer type with width of at least 32

int_fast64_t

typedef int64_t test::int_fast64_t

fastest signed integer type with width of at least 64

int_fast8_t

typedef int8_t test::int_fast8_t

fastest signed integer type with width of at least 8

int_least16_t

typedef int16_t test::int_least16_t

smallest signed integer type with width of at least 16

int_least32_t

typedef int32_t test::int_least32_t

smallest signed integer type with width of at least 32

int_least64_t

typedef int64_t test::int_least64_t

smallest signed integer type with width of at least 64

int_least8_t

typedef int8_t test::int_least8_t

smallest signed integer type with width of at least 8

intmax_t

typedef long int test::intmax_t

intptr_t

typedef long test::intptr_t

out_fct_type

typedef void(* test::out_fct_type) (char character, void *buffer, size_t idx, size_t maxlen)

ptrdiff_t

typedef long test::ptrdiff_t

size_t

typedef unsigned long test::size_t

ssize_t

typedef long test::ssize_t

uint16_t

typedef unsigned short test::uint16_t

uint32_t

typedef unsigned int test::uint32_t

uint64_t

typedef unsigned long long test::uint64_t

uint8_t

typedef unsigned char test::uint8_t

uint_fast16_t

typedef uint32_t test::uint_fast16_t

fastest unsigned integer type with width of at least 16

uint_fast32_t

typedef uint32_t test::uint_fast32_t

fastest unsigned integer type with width of at least 32

uint_fast64_t

typedef uint64_t test::uint_fast64_t

fastest unsigned integer type with width of at least 64

uint_fast8_t

typedef uint8_t test::uint_fast8_t

fastest unsigned integer type with width of at least 8

uint_least16_t

typedef uint16_t test::uint_least16_t

smallest unsigned integer type with width of at least 16

uint_least32_t

typedef uint32_t test::uint_least32_t

smallest unsigned integer type with width of at least 32

uint_least64_t

typedef uint64_t test::uint_least64_t

smallest unsigned integer type with width of at least 64

uint_least8_t

typedef uint8_t test::uint_least8_t

smallest unsigned integer type with width of at least 8

uintmax_t

typedef unsigned long long test::uintmax_t

uintptr_t

typedef unsigned long test::uintptr_t

va_list

typedef __builtin_va_list test::va_list

Function Documentation

_atoi()

static unsigned int test::_atoi ( const char **  str )

static

_etoa()

static size_t test::_etoa ( out_fct_type  out, char *  buffer, size_t  idx, size_t  maxlen, double  value, unsigned int  prec, unsigned int  width, unsigned int  flags  )

static

_ftoa()

static size_t test::_ftoa ( out_fct_type  out, char *  buffer, size_t  idx, size_t  maxlen, double  value, unsigned int  prec, unsigned int  width, unsigned int  flags  )

static

_is_digit()

static bool test::_is_digit ( char  ch )

inlinestatic

_ntoa_format()

static size_t test::_ntoa_format ( out_fct_type  out, char *  buffer, size_t  idx, size_t  maxlen, char *  buf, size_t  len, bool  negative, unsigned int  base, unsigned int  prec, unsigned int  width, unsigned int  flags  )

static

_ntoa_long()

static size_t test::_ntoa_long ( out_fct_type  out, char *  buffer, size_t  idx, size_t  maxlen, unsigned long  value, bool  negative, unsigned long  base, unsigned int  prec, unsigned int  width, unsigned int  flags  )

static

_ntoa_long_long()

static size_t test::_ntoa_long_long ( out_fct_type  out, char *  buffer, size_t  idx, size_t  maxlen, unsigned long long  value, bool  negative, unsigned long long  base, unsigned int  prec, unsigned int  width, unsigned int  flags  )

static

_out_buffer()

static void test::_out_buffer ( char  character, void *  buffer, size_t  idx, size_t  maxlen  )

inlinestatic

_out_char()

static void test::_out_char ( char  character, void *  buffer, size_t  idx, size_t  maxlen  )

inlinestatic

_out_fct()

static void test::_out_fct ( char  character, void *  buffer, size_t  idx, size_t  maxlen  )

inlinestatic

_out_null()

static void test::_out_null ( char  character, void *  buffer, size_t  idx, size_t  maxlen  )

inlinestatic

_out_rev()

static size_t test::_out_rev ( out_fct_type  out, char *  buffer, size_t  idx, size_t  maxlen, const char *  buf, size_t  len, unsigned int  width, unsigned int  flags  )

static

_putchar()

void test::_putchar

(

char

character

)

Output a character to a custom device like UART, used by the printf() function This function is declared here only.

You have to write your custom implementation somewhere

Parameters

character

Character to output

References write().

Referenced by _out_char(), embvm::CircularLogBufferLogger< TBufferSize, TLock >::dump(), and putchar().

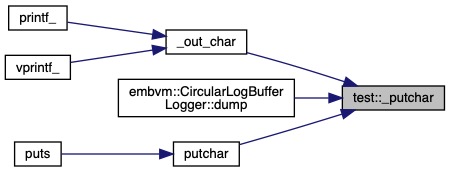

Here is the caller graph for this function:

_strnlen_s()

static unsigned int test::_strnlen_s ( const char *  str, size_t  maxsize  )

inlinestatic

_vsnprintf()

static int test::_vsnprintf ( out_fct_type  out, char *  buffer, const size_t  maxlen, const char *  format, va_list  va  )

static

fctprintf()

int test::fctprintf	(	void(*)(char character, void *arg)	out,
		void *	arg,
		const char *	format,
			...
	)

printf with output function You may use this as dynamic alternative to printf() with its fixed _putchar() output

Parameters

out	An output function which takes one character and an argument pointer
arg	An argument pointer for user data passed to output function
format	A string that specifies the format of the output

Returns

The number of characters that are sent to the output function, not counting the terminating null character

References _out_fct(), _vsnprintf(), va_end, and va_start.

printf_()

int test::printf_	(	const char *	format,
			...
	)

References _out_char(), _vsnprintf(), va_end, and va_start.

snprintf_()

int test::snprintf_	(	char *	buffer,
		size_t	count,
		const char *	format,
			...
	)

References _out_buffer(), _vsnprintf(), va_end, and va_start.

sprintf_()

int test::sprintf_	(	char *	buffer,
		const char *	format,
			...
	)

References _out_buffer(), _vsnprintf(), va_end, and va_start.

vprintf_()

int test::vprintf_	(	const char *	format,
		va_list	va
	)

References _out_char(), and _vsnprintf().

vsnprintf_()

int test::vsnprintf_	(	char *	buffer,
		size_t	count,
		const char *	format,
		va_list	va
	)

References _out_buffer(), and _vsnprintf().
