Virtual OS implementation for POSIX systems. More...

Collaboration diagram for POSIX OS Types:

Classes
class	os::posix::posixOSFactory_impl
	Implementation of the POSIX OS Factory For API documentation, see embvm::embvm::VirtualOSFactory. More...

class	os::posix::EventFlag
	POSIX Event Flag Implementation. More...

class	os::posix::MessageQueue< TType >
	Posix Message Queue implementation for Linux. More...

class	os::posix::Mutex
	POSIX Mutex Implementation. More...

class	os::posix::Semaphore
	Create a POSIX semaphore (OSX variant) More...

class	os::posix::Thread
	Create a POSIX thread. More...

Enumerations
enum	os::posix::pthread_priority : uint8_t { os::posix::pthread_priority::panic = 99, os::posix::pthread_priority::interrupt = 99, os::posix::pthread_priority::realtime = 99, os::posix::pthread_priority::veryHigh = 50, os::posix::pthread_priority::high = 40, os::posix::pthread_priority::aboveNormal = 30, os::posix::pthread_priority::normal = 20, os::posix::pthread_priority::belowNormal = 10, os::posix::pthread_priority::low = 5, os::posix::pthread_priority::lowest = 1, os::posix::pthread_priority::idle = 0 }
	PThread priority values. More...

Functions
constexpr posix::pthread_priority	os::posix::convert_to_pthread_priority (embvm::thread::priority p) noexcept
	Convert between framework thread priorities and PThread priorities. More...

Detailed Description

Virtual OS implementation for POSIX systems.

Class Documentation

◆ os::posix::posixOSFactory_impl

class os::posix::posixOSFactory_impl

Implementation of the POSIX OS Factory For API documentation, see embvm::embvm::VirtualOSFactory.

Public Member Functions
	posixOSFactory_impl ()=default

	~posixOSFactory_impl ()=default

Static Public Member Functions
static embvm::VirtualConditionVariable *	createConditionVariable_impl () noexcept

static embvm::VirtualThread *	createThread_impl (std::string_view name, embvm::thread::func_t f, embvm::thread::input_t input, embvm::thread::priority p, size_t stack_size, void *stack_ptr) noexcept

static embvm::VirtualMutex *	createMutex_impl (embvm::mutex::type type=embvm::mutex::type::defaultType, embvm::mutex::mode mode=embvm::mutex::mode::defaultMode) noexcept

static embvm::VirtualSemaphore *	createSemaphore_impl (embvm::semaphore::mode mode, embvm::semaphore::count_t ceiling, embvm::semaphore::count_t initial_count) noexcept

template<typename TType >
static embvm::VirtualMessageQueue< TType > *	createMessageQueue_impl (size_t queue_length) noexcept

static embvm::VirtualEventFlag *	createEventFlag_impl () noexcept

static void	destroy_impl (embvm::VirtualThread *item) noexcept

static void	destroy_impl (embvm::VirtualMutex *item) noexcept

static void	destroy_impl (embvm::VirtualSemaphore *item) noexcept

static void	destroy_impl (embvm::VirtualEventFlag *item) noexcept

static void	destroy_impl (embvm::VirtualConditionVariable *item) noexcept

Constructor & Destructor Documentation

◆ posixOSFactory_impl()

os::posix::posixOSFactory_impl::posixOSFactory_impl ( )

default

◆ ~posixOSFactory_impl()

os::posix::posixOSFactory_impl::~posixOSFactory_impl ( )

default

Member Function Documentation

◆ createConditionVariable_impl()

static embvm::VirtualConditionVariable* os::posix::posixOSFactory_impl::createConditionVariable_impl ( )

inlinestaticnoexcept

◆ createEventFlag_impl()

static embvm::VirtualEventFlag* os::posix::posixOSFactory_impl::createEventFlag_impl ( )

inlinestaticnoexcept

◆ createMessageQueue_impl()

template<typename TType >

static embvm::VirtualMessageQueue<TType>* os::posix::posixOSFactory_impl::createMessageQueue_impl ( size_t queue_length )

inlinestaticnoexcept

◆ createMutex_impl()

static embvm::VirtualMutex* os::posix::posixOSFactory_impl::createMutex_impl	(	embvm::mutex::type	type = `embvm::mutex::type::defaultType`,
		embvm::mutex::mode	mode = `embvm::mutex::mode::defaultMode`
	)

inlinestaticnoexcept

References type.

◆ createSemaphore_impl()

static embvm::VirtualSemaphore* os::posix::posixOSFactory_impl::createSemaphore_impl	(	embvm::semaphore::mode	mode,
		embvm::semaphore::count_t	ceiling,
		embvm::semaphore::count_t	initial_count
	)

inlinestaticnoexcept

◆ createThread_impl()

static embvm::VirtualThread* os::posix::posixOSFactory_impl::createThread_impl	(	std::string_view	name,
		embvm::thread::func_t	f,
		embvm::thread::input_t	input,
		embvm::thread::priority	p,
		size_t	stack_size,
		void *	stack_ptr
	)

inlinestaticnoexcept

References p.

◆ destroy_impl() [1/5]

static void os::posix::posixOSFactory_impl::destroy_impl ( embvm::VirtualThread * item )

inlinestaticnoexcept

◆ destroy_impl() [2/5]

static void os::posix::posixOSFactory_impl::destroy_impl ( embvm::VirtualMutex * item )

inlinestaticnoexcept

◆ destroy_impl() [3/5]

static void os::posix::posixOSFactory_impl::destroy_impl ( embvm::VirtualSemaphore * item )

inlinestaticnoexcept

◆ destroy_impl() [4/5]

static void os::posix::posixOSFactory_impl::destroy_impl ( embvm::VirtualEventFlag * item )

inlinestaticnoexcept

◆ destroy_impl() [5/5]

static void os::posix::posixOSFactory_impl::destroy_impl ( embvm::VirtualConditionVariable * item )

inlinestaticnoexcept

◆ os::posix::EventFlag

class os::posix::EventFlag

POSIX Event Flag Implementation.

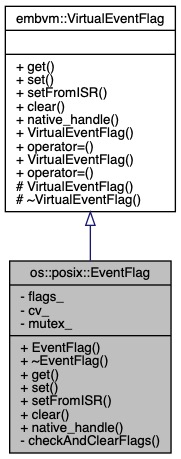

Inheritance diagram for os::posix::EventFlag:

Public Member Functions
	EventFlag ()=default

	~EventFlag () noexcept
	Default destructor which cleans up the event flag group. More...

embvm::eventflag::flag_t	get (embvm::eventflag::flag_t bits_wait, embvm::eventflag::option opt=embvm::eventflag::option::OR, bool clearOnExit=true, const embvm::os_timeout_t &timeout=embvm::OS_WAIT_FOREVER) noexcept final
	Get (or wait for) event flags. More...

void	set (embvm::eventflag::flag_t bits) noexcept final
	Set event flags. More...

void	setFromISR (embvm::eventflag::flag_t bits) noexcept final
	Set event flags from an ISR. More...

void	clear () noexcept final
	Clear all event flag bits. More...

embvm::eventflag::handle_t	native_handle () const noexcept final
	Get the native handle for the event flags group object. More...

Private Member Functions
embvm::eventflag::flag_t	checkAndClearFlags (embvm::eventflag::flag_t bits_wait, embvm::eventflag::option opt, bool clearOnExit) noexcept
	Helper function which evaluates flags and returns the matching value. More...

Private Attributes
std::atomic< embvm::eventflag::flag_t >	flags_ = 0
	The storage type for the event flag group's flags. More...

posix::ConditionVariable	cv_
	Condition variable which is used to wake threads waiting on this group. More...

posix::Mutex	mutex_
	Mutex which protects the flags. More...

Constructor & Destructor Documentation

◆ EventFlag()

os::posix::EventFlag::EventFlag ( )

default

◆ ~EventFlag()

EventFlag::~EventFlag ( )

noexcept

Default destructor which cleans up the event flag group.

Member Function Documentation

◆ checkAndClearFlags()

embvm::eventflag::flag_t os::posix::EventFlag::checkAndClearFlags	(	embvm::eventflag::flag_t	bits_wait,
		embvm::eventflag::option	opt,
		bool	clearOnExit
	)

inlineprivatenoexcept

Helper function which evaluates flags and returns the matching value.

Parameters

bits_wait	The bits the caller is waiting for, specified as a bitmask
opt	The comparison option (AND or OR)
clearOnExit	If true, matching flags will be cleared from flag_ when the function exits

Returns: the resulting event flag bits, compared to bits_wait and with the selected option (opt).

Postcondition

If clearOnExit is true:

All flags set in bits_wait will be cleared from flag_ if AND option is used.
Flags set in both btis_wait and flags_ will be cleared from flag_ if OR option is used.

References flags_, and embvm::eventflag::OR.

Referenced by get().

◆ clear()

void os::posix::EventFlag::clear ( )

inlinefinalvirtualnoexcept

Clear all event flag bits.

Postcondition: Event flag group value is reset to '0'.

Implements embvm::VirtualEventFlag.

References flags_, os::posix::Mutex::lock(), mutex_, and os::posix::Mutex::unlock().

◆ get()

embvm::eventflag::flag_t os::posix::EventFlag::get	(	embvm::eventflag::flag_t	bits_wait,
		embvm::eventflag::option	opt = `embvm::eventflag::option::OR`,
		bool	clearOnExit = `true`,
		const embvm::os_timeout_t &	timeout = `embvm::OS_WAIT_FOREVER`
	)

inlinefinalvirtualnoexcept

Get (or wait for) event flags.

Get the event flag bits. If the required event flags are not set, this function will block the calling thread until the flags are set or the timeout expires.

To see all bits currently set, set bits_wait to ~0 and timeout_t to the minimal value (timeout_t(1)).

Parameters

bits_wait	A bitmask of bits to wait for in the event flags group.
opt	The wait option, which is combined with bits_wait to control the behavior of get(). embvm::eventflag::option::OR will return once any of the bits specified in bits_wait are set in the event flag group. embvm::eventflag::option::AND will only return once ALL of the bits specified in bits_wait are set in the event flag group.
clearOnExit	If true, all event flags that were specified in bits_wait and set in the event flag group will be set to 0. If false, event flag bits will not be modified.
timeout	Specify a timeout for the get operation. If OS_WAIT_FOREVER is supplied, this call will block until the event flags are set. Otherwise, the function will timeout after the elapsed time if flags are not set.

Returns: 0 if timeout, or flags that were currently set according to bits_wait

Implements embvm::VirtualEventFlag.

References checkAndClearFlags(), cv_, os::posix::Mutex::lock(), mutex_, os::posix::Mutex::unlock(), and os::posix::ConditionVariable::wait().

◆ native_handle()

embvm::eventflag::handle_t os::posix::EventFlag::native_handle ( ) const

inlinefinalvirtualnoexcept

Get the native handle for the event flags group object.

Returns: the native handle for this event flags object. The handle will always return the handle_t and it must be cast to the native handle type by the user.

Implements embvm::VirtualEventFlag.

◆ set()

void os::posix::EventFlag::set ( embvm::eventflag::flag_t bits )

inlinefinalvirtualnoexcept

Set event flags.

Set event flags from a threaded context. Threads waiting on event flags (via get()) will be notified.

Parameters

bits	A bitmask representing the bits to set in the event flag group.

Implements embvm::VirtualEventFlag.

References os::posix::ConditionVariable::broadcast(), cv_, flags_, os::posix::Mutex::lock(), mutex_, and os::posix::Mutex::unlock().

◆ setFromISR()

void os::posix::EventFlag::setFromISR ( embvm::eventflag::flag_t bits )

inlinefinalvirtualnoexcept

Set event flags from an ISR.

Set event flags from an interrupt context. This call must not use a lock. Threads waiting on event flags (via get()) will be notified.

Parameters

bits	A bitmask representing the bits to set in the event flag group.

Implements embvm::VirtualEventFlag.

References os::posix::ConditionVariable::broadcast(), cv_, flags_, os::posix::Mutex::lock(), mutex_, and os::posix::Mutex::unlock().

Member Data Documentation

◆ cv_

posix::ConditionVariable os::posix::EventFlag::cv_

private

Condition variable which is used to wake threads waiting on this group.

Referenced by get(), set(), and setFromISR().

◆ flags_

std::atomic<embvm::eventflag::flag_t> os::posix::EventFlag::flags_ = 0

private

The storage type for the event flag group's flags.

Referenced by checkAndClearFlags(), clear(), set(), and setFromISR().

◆ mutex_

posix::Mutex os::posix::EventFlag::mutex_

private

Mutex which protects the flags.

Referenced by clear(), get(), set(), and setFromISR().

◆ os::posix::MessageQueue

class os::posix::MessageQueue

template<typename TType>
class os::posix::MessageQueue< TType >

Posix Message Queue implementation for Linux.

Template Parameters

TType The type of data to be stored in the message queue

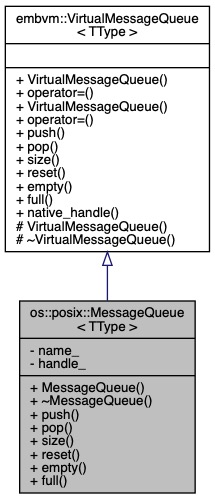

Inheritance diagram for os::posix::MessageQueue< TType >:

Public Member Functions
	MessageQueue (std::string_view name, size_t queue_length) noexcept
	Construct a message queue with name and length. More...

	~MessageQueue () noexcept
	Default destructor. More...

bool	push (TType val, embvm::os_timeout_t timeout=embvm::OS_WAIT_FOREVER) noexcept final
	Post a message to the queue. More...

TType	pop (embvm::os_timeout_t timeout=embvm::OS_WAIT_FOREVER) noexcept final
	Retrieve a message from the queue. More...

size_t	size () const noexcept final
	Get the current size of the message queue. More...

void	reset () noexcept final
	Reset the message queue to an empty state. More...

bool	empty () const noexcept final
	Check if the message queue is empty. More...

bool	full () const noexcept final
	Check if the message queue is full. More...

virtual embvm::msgqueue::handle_t	native_handle () const noexcept=0
	Get the native handle for the message queue object. More...

Private Attributes
std::string_view	name_
	The name of this message queue instance. More...

mqd_t	handle_
	The message queue instance handle. More...

Constructor & Destructor Documentation

◆ MessageQueue()

template<typename TType >

os::posix::MessageQueue< TType >::MessageQueue	(	std::string_view	name,
		size_t	queue_length
	)

inlineexplicitnoexcept

Construct a message queue with name and length.

Parameters

name	The name associated with the message queue.

Note: A std::string input must remain valid for the lifetime of this object, since std::string_view is used to store the name.

Parameters

queue_length The maximum size of the message queue.

References assert, os::posix::MessageQueue< TType >::handle_, and os::posix::MessageQueue< TType >::name_.

◆ ~MessageQueue()

template<typename TType >

os::posix::MessageQueue< TType >::~MessageQueue ( )

inlinenoexcept

Default destructor.

References os::posix::MessageQueue< TType >::handle_.

Member Function Documentation

◆ empty()

template<typename TType >

bool os::posix::MessageQueue< TType >::empty ( ) const

inlinefinalvirtualnoexcept

Check if the message queue is empty.

Returns: true if the queue is empty, false otherwise.

Implements embvm::VirtualMessageQueue< TType >.

References assert, os::posix::MessageQueue< TType >::handle_, and r.

◆ full()

template<typename TType >

bool os::posix::MessageQueue< TType >::full ( ) const

inlinefinalvirtualnoexcept

Check if the message queue is full.

Returns: true if the queue is full, false otherwise.

Implements embvm::VirtualMessageQueue< TType >.

References assert, os::posix::MessageQueue< TType >::handle_, and r.

◆ native_handle()

template<typename TType >

virtual embvm::msgqueue::handle_t embvm::VirtualMessageQueue< TType >::native_handle ( ) const

pure virtualnoexceptinherited

Get the native handle for the message queue object.

Returns: the native handle for this message queue object. The handle will always return the handle_t and it must be cast to the native handle type by the user.

Implemented in os::freertos::MessageQueue< TType >.

◆ pop()

template<typename TType >

TType os::posix::MessageQueue< TType >::pop ( embvm::os_timeout_t timeout = embvm::OS_WAIT_FOREVER )

inlinefinalvirtualnoexcept

Retrieve a message from the queue.

Retrieve a message from the queue. This function blocks the calling thread until a message is received (if OS_WAIT_FOREVER is specified as a timeout), or until the timeout expires.

Parameters

timeout The time to wait for a new message. A value of OS_WAIT_FOREVER indicates that the thread should block until a new message is posted.

Returns: an optional value. Use has_value() member function to determine if the value is valid. A valid value is only returned on success.

Implements embvm::VirtualMessageQueue< TType >.

References assert, and os::posix::MessageQueue< TType >::handle_.

◆ push()

template<typename TType >

bool os::posix::MessageQueue< TType >::push	(	TType	val,
		embvm::os_timeout_t	timeout = `embvm::OS_WAIT_FOREVER`
	)

inlinefinalvirtualnoexcept

Post a message to the queue.

Post a message to the queue. This function blocks the calling thread until there is an available slot (if OS_WAIT_FOREVER is specified as a timeout), or until the timeout expires.

Posting a message to the queue will notify all threads waiting on a new message (via pop()).

Parameters

val	The data value to post to the queue.
timeout	The time to wait for a new message. A value of OS_WAIT_FOREVER indicates that the thread should block until a new message is posted.

Returns: true if the message was successfully posted, false otherwise.

Implements embvm::VirtualMessageQueue< TType >.

◆ reset()

template<typename TType >

void os::posix::MessageQueue< TType >::reset ( )

inlinefinalvirtualnoexcept

Reset the message queue to an empty state.

Postcondition: The message queue is emptied, with size 0.

Implements embvm::VirtualMessageQueue< TType >.

References os::posix::MessageQueue< TType >::handle_.

◆ size()

template<typename TType >

size_t os::posix::MessageQueue< TType >::size ( ) const

inlinefinalvirtualnoexcept

Get the current size of the message queue.

Size represents the number of elements stored, rather than the maximum size (aka capacity).

Returns: the current number of elements stored in the message queue.

Implements embvm::VirtualMessageQueue< TType >.

References assert, os::posix::MessageQueue< TType >::handle_, and r.

Member Data Documentation

◆ handle_

template<typename TType >

mqd_t os::posix::MessageQueue< TType >::handle_

private

The message queue instance handle.

Referenced by os::posix::MessageQueue< TType >::empty(), os::posix::MessageQueue< TType >::full(), os::posix::MessageQueue< TType >::MessageQueue(), os::posix::MessageQueue< TType >::pop(), os::posix::MessageQueue< TType >::reset(), os::posix::MessageQueue< TType >::size(), and os::posix::MessageQueue< TType >::~MessageQueue().

◆ name_

template<typename TType >

std::string_view os::posix::MessageQueue< TType >::name_

private

The name of this message queue instance.

Referenced by os::posix::MessageQueue< TType >::MessageQueue().

◆ os::posix::Mutex

class os::posix::Mutex

POSIX Mutex Implementation.

Useful reference documentation:

posix mutex API: https://docs.oracle.com/cd/E19455-01/806-5257/6je9h032o/index.html
- posix mutex attributes: https://docs.oracle.com/cd/E19683-01/806-6867/6jfpgdcnf/index.html

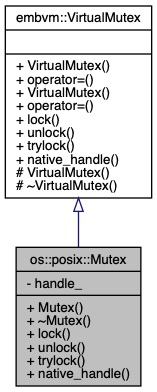

Inheritance diagram for os::posix::Mutex:

Public Member Functions
	Mutex (embvm::mutex::type type=embvm::mutex::type::defaultType, embvm::mutex::mode mode=embvm::mutex::mode::defaultMode) noexcept
	Construct a POSIX mutex. More...

	~Mutex () noexcept
	Default destructor. More...

void	lock () noexcept final
	Lock the mutex. More...

void	unlock () noexcept final
	Unlock the mutex. More...

bool	trylock () noexcept final
	Try to lock the mutex. More...

embvm::mutex::handle_t	native_handle () const noexcept final

Private Attributes
pthread_mutex_t	handle_
	The pthread handle associated with this mutex;. More...

Constructor & Destructor Documentation

◆ Mutex()

os::posix::Mutex::Mutex	(	embvm::mutex::type	type = `embvm::mutex::type::defaultType`,
		embvm::mutex::mode	mode = `embvm::mutex::mode::defaultMode`
	)

inlineexplicitnoexcept

Construct a POSIX mutex.

Parameters

type	The mutex type to create (normal, recursive)
mode	The mutex poperating mode, which controls priority inheritance behaviors.

References assert, handle_, embvm::mutex::none, embvm::mutex::normal, embvm::mutex::priorityInherit, embvm::mutex::protect, r, embvm::mutex::recursive, and type.

◆ ~Mutex()

Mutex::~Mutex ( )

noexcept

Default destructor.

References assert, handle_, and r.

Member Function Documentation

◆ lock()

void os::posix::Mutex::lock ( )

inlinefinalvirtualnoexcept

Lock the mutex.

Attempts to lock the mutex. If successful, the function returns with the calling thread owning the lock. If the lock is already owned, the calling thread will block until the lock is available.

Postcondition: The mutex is locked and owned by the calling thread.

Implements embvm::VirtualMutex.

References assert, handle_, and r.

Referenced by os::posix::EventFlag::clear(), os::posix::EventFlag::get(), os::posix::EventFlag::set(), and os::posix::EventFlag::setFromISR().

◆ native_handle()

embvm::mutex::handle_t os::posix::Mutex::native_handle ( ) const

inlinefinalvirtualnoexcept

Implements embvm::VirtualMutex.

References handle_.

◆ trylock()

bool os::posix::Mutex::trylock ( )

inlinefinalvirtualnoexcept

Try to lock the mutex.

Try to lock the mutex, but don't block the thread if the mutex is already owned.

Postcondition: If the mutex is unowned, the mutex will be locked and owned by the calling thread.

Returns: true if the mutex is successfully locked, false if another thread owns the mutex.

Implements embvm::VirtualMutex.

References assert, EBUSY, handle_, and r.

◆ unlock()

void os::posix::Mutex::unlock ( )

inlinefinalvirtualnoexcept

Unlock the mutex.

Precondition: The mutex is locked and owned by the calling thread.

Postcondition: The mutex is unlocked.

Implements embvm::VirtualMutex.

References assert, handle_, and r.

Referenced by os::posix::EventFlag::clear(), os::posix::EventFlag::get(), os::posix::EventFlag::set(), and os::posix::EventFlag::setFromISR().

Member Data Documentation

◆ handle_

pthread_mutex_t os::posix::Mutex::handle_

private

The pthread handle associated with this mutex;.

Referenced by lock(), Mutex(), native_handle(), trylock(), unlock(), and ~Mutex().

◆ os::posix::Semaphore

class os::posix::Semaphore

Create a POSIX semaphore (OSX variant)

Useful reference documenation:

POSIX semaphore APIs: https://docs.oracle.com/cd/E19120-01/open.solaris/817-4415/svipc-75667/index.html

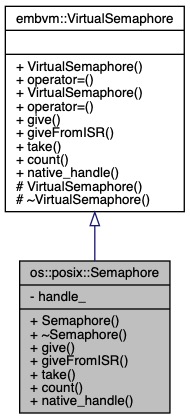

Inheritance diagram for os::posix::Semaphore:

Public Member Functions
	Semaphore (embvm::semaphore::mode mode=embvm::semaphore::mode::counting, embvm::semaphore::count_t ceiling=1, embvm::semaphore::count_t initial_count=-1) noexcept

	~Semaphore ()

void	give () noexcept final
	Increment count Return a resource to the semaphore, incrementing the count. More...

void	giveFromISR () noexcept final
	Increment count from an ISR Return a resource to the semaphore, incrementing the count. More...

bool	take (embvm::os_timeout_t timeout=embvm::OS_WAIT_FOREVER) noexcept final

embvm::semaphore::count_t	count () noexcept final

embvm::semaphore::handle_t	native_handle () const noexcept final

virtual bool	take (const embvm::os_timeout_t &timeout=embvm::OS_WAIT_FOREVER) noexcept=0
	Decrement count Take a resource from the semaphore, decrementing the count. More...

virtual embvm::semaphore::count_t	count () const noexcept=0
	Check the count of the semaphore. More...

Private Attributes
sem_t	handle_

Constructor & Destructor Documentation

◆ Semaphore()

os::posix::Semaphore::Semaphore	(	embvm::semaphore::mode	mode = `embvm::semaphore::mode::counting`,
		embvm::semaphore::count_t	ceiling = `1`,
		embvm::semaphore::count_t	initial_count = `-1`
	)

inlineexplicitnoexcept

References assert, embvm::semaphore::binary, handle_, r, and take().

◆ ~Semaphore()

Semaphore::~Semaphore ( )

noexcept

References assert, handle_, and r.

Member Function Documentation

◆ count() [1/2]

virtual embvm::semaphore::count_t embvm::VirtualSemaphore::count ( ) const

pure virtualnoexceptinherited

Check the count of the semaphore.

Returns: The current semaphore count.

Implemented in os::freertos::Semaphore.

◆ count() [2/2]

embvm::semaphore::count_t os::posix::Semaphore::count ( )

inlinefinalnoexcept

References assert, handle_, and r.

◆ give()

void os::posix::Semaphore::give ( )

inlinefinalvirtualnoexcept

Increment count Return a resource to the semaphore, incrementing the count.

Implements embvm::VirtualSemaphore.

References assert, handle_, and r.

◆ giveFromISR()

void os::posix::Semaphore::giveFromISR ( )

inlinefinalvirtualnoexcept

Increment count from an ISR Return a resource to the semaphore, incrementing the count.

This function variant is safe to call from an interrupt routine. No locking can be used inside this variant.

Implements embvm::VirtualSemaphore.

References assert, handle_, and r.

◆ native_handle()

embvm::semaphore::handle_t os::posix::Semaphore::native_handle ( ) const

inlinefinalvirtualnoexcept

Implements embvm::VirtualSemaphore.

References handle_.

◆ take() [1/2]

virtual bool embvm::VirtualSemaphore::take ( const embvm::os_timeout_t & timeout = embvm::OS_WAIT_FOREVER )

pure virtualnoexceptinherited

Decrement count Take a resource from the semaphore, decrementing the count.

Parameters

timeout The time to wait for a semaphore resource. A value of WAIT_FOREVER indicates that the thread should block until the semaphore can be acquired.

Returns: true if take was successful, false if a timeout occurred.

Implemented in os::freertos::Semaphore.

◆ take() [2/2]

bool os::posix::Semaphore::take ( embvm::os_timeout_t timeout = embvm::OS_WAIT_FOREVER )

inlinefinalnoexcept

References assert, handle_, and r.

Referenced by Semaphore().

Member Data Documentation

◆ handle_

sem_t os::posix::Semaphore::handle_

private

Referenced by count(), give(), giveFromISR(), native_handle(), Semaphore(), take(), and ~Semaphore().

◆ os::posix::Thread

class os::posix::Thread

Create a POSIX thread.

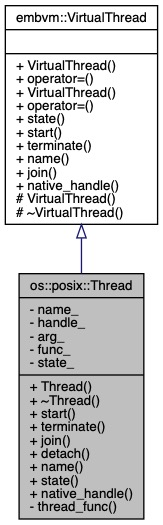

Inheritance diagram for os::posix::Thread:

Public Member Functions
	Thread (std::string_view name, embvm::thread::func_t func, embvm::thread::input_t arg, embvm::thread::priority p=embvm::thread::priority::normal, size_t stack_size=PTHREAD_STACK_MIN, void *stack_ptr=nullptr) noexcept
	Construct a POSIX thread. More...

	~Thread () noexcept
	Default destructor, cleans up thread on deletion. More...

void	start () noexcept final
	Start the thread, if it is not auto-started. More...

void	terminate () noexcept final
	Terminate a running thread. More...

void	join () noexcept final
	Join a running thread. More...

int	detach () noexcept

std::string_view	name () const noexcept final
	View the thread's name. More...

embvm::thread::state	state () const noexcept final
	Get the thread state. More...

embvm::thread::handle_t	native_handle () const noexcept final
	Get the native handle for the thread. More...

Private Member Functions
void *	thread_func () noexcept
	Thread handling wrapper to support thread canceling. More...

Private Attributes
std::string_view	name_
	THe name of this thread instance. More...

pthread_t	handle_
	The pthread handle corresponding to this thread instance. More...

embvm::thread::input_t	arg_
	Thread input arguments. More...

embvm::thread::func_t	func_
	The functor which will be invokd by the thread. More...

std::atomic< embvm::thread::state >	state_ = embvm::thread::state::ready

Constructor & Destructor Documentation

◆ Thread()

os::posix::Thread::Thread	(	std::string_view	name,
		embvm::thread::func_t	func,
		embvm::thread::input_t	arg,
		embvm::thread::priority	p = `embvm::thread::priority::normal`,
		size_t	stack_size = `PTHREAD_STACK_MIN`,
		void *	stack_ptr = `nullptr`
	)

inlineexplicitnoexcept

Construct a POSIX thread.

Parameters

name	The name associated with the mutex.

Note: A std::string input must remain valid for the lifetime of this object, since std::string_view is used to store the name.

Parameters

func	The thread function to execute; can be any functor type.
arg	The thread's optional input argument. This value is passed to the thread when it is created.
p	The thread priority setting.
stack_size	The thread stack size.
stack_ptr	The thread stack pointer. If stack_ptr is nullptr, then memory will be allocated by the pthread library.

References assert, BOUNCE, os::posix::convert_to_pthread_priority(), handle_, embutil::is_aligned(), NULL, p, PTHREAD_STACK_MIN, r, embvm::thread::ready, state_, and thread_func().

◆ ~Thread()

Thread::~Thread ( )

noexcept

Default destructor, cleans up thread on deletion.

References embvm::thread::completed, join(), state_, terminate(), and embvm::thread::terminated.

Member Function Documentation

◆ detach()

int os::posix::Thread::detach ( )

inlinenoexcept

References handle_.

◆ join()

void os::posix::Thread::join ( )

inlinefinalvirtualnoexcept

Join a running thread.

Joins a running thread, blocking the calling thread until the joined thread completes.

Precondition: The thread has not exited.

Postcondition: The thread has exited.

Implements embvm::VirtualThread.

References assert, EDEADLK, EINVAL, handle_, and r.

Referenced by ~Thread().

◆ name()

std::string_view os::posix::Thread::name ( ) const

inlinefinalvirtualnoexcept

View the thread's name.

Storage for the thread name is implementation defined. For example, the name may be stored in the RTOS memory, or it may require internal object storage.

Returns: The thread object's name.

Implements embvm::VirtualThread.

References name_.

◆ native_handle()

embvm::thread::handle_t os::posix::Thread::native_handle ( ) const

inlinefinalvirtualnoexcept

Get the native handle for the thread.

If custom extensions or behaviors are needed, the thread handle can be retrieved and manipulated directly.

Returns: the native thread object handle as a void*. The user must cast appropriately.

Implements embvm::VirtualThread.

References handle_.

◆ start()

void os::posix::Thread::start ( )

inlinefinalvirtualnoexcept

Start the thread, if it is not auto-started.

Implements embvm::VirtualThread.

◆ state()

embvm::thread::state os::posix::Thread::state ( ) const

inlinefinalvirtualnoexcept

Get the thread state.

Returns: The state of the thread.

Implements embvm::VirtualThread.

References state_.

◆ terminate()

void os::posix::Thread::terminate ( )

inlinefinalvirtualnoexcept

Terminate a running thread.

Precondition: The thread is running.

Postcondition: The thread is aborted.

Implements embvm::VirtualThread.

References assert, handle_, r, state_, and embvm::thread::terminated.

Referenced by ~Thread().

◆ thread_func()

void* os::posix::Thread::thread_func ( )

inlineprivatenoexcept

Thread handling wrapper to support thread canceling.

We wrap the thread to enable canceling, and so we can gracefully tell if the thread has completed successfully

References arg_, assert, embvm::thread::completed, embvm::thread::executing, func_, r, and state_.

Referenced by Thread().

Member Data Documentation

◆ arg_

embvm::thread::input_t os::posix::Thread::arg_

private

Thread input arguments.

Referenced by thread_func().

◆ func_

embvm::thread::func_t os::posix::Thread::func_

private

The functor which will be invokd by the thread.

Referenced by thread_func().

◆ handle_

pthread_t os::posix::Thread::handle_

private

The pthread handle corresponding to this thread instance.

Referenced by detach(), join(), native_handle(), terminate(), and Thread().

◆ name_

std::string_view os::posix::Thread::name_

private

THe name of this thread instance.

Referenced by name().

◆ state_

std::atomic<embvm::thread::state> os::posix::Thread::state_ = embvm::thread::state::ready

private

Referenced by state(), terminate(), Thread(), thread_func(), and ~Thread().

Enumeration Type Documentation

◆ pthread_priority

enum os::posix::pthread_priority : uint8_t

strong

PThread priority values.

Note: For PThreads: higher number = higher priority

Enumerator
panic
interrupt
realtime
veryHigh
high
aboveNormal
normal
belowNormal
low
lowest
idle

Function Documentation

◆ convert_to_pthread_priority()

constexpr posix::pthread_priority os::posix::convert_to_pthread_priority ( embvm::thread::priority p )

noexcept

Convert between framework thread priorities and PThread priorities.

References os::posix::aboveNormal, embvm::thread::aboveNormal, assert, os::posix::belowNormal, embvm::thread::belowNormal, os::posix::high, embvm::thread::high, os::posix::idle, embvm::thread::idle, os::posix::interrupt, embvm::thread::interrupt, os::posix::low, embvm::thread::low, os::posix::lowest, embvm::thread::lowest, os::posix::normal, embvm::thread::normal, p, os::posix::panic, embvm::thread::panic, os::posix::realtime, embvm::thread::realtime, os::posix::veryHigh, and embvm::thread::veryHigh.

Referenced by os::posix::Thread::Thread().

Classes

Enumerations

Functions

Detailed Description

Class Documentation

◆ os::posix::posixOSFactory_impl

Public Member Functions

Static Public Member Functions

Constructor & Destructor Documentation

◆ posixOSFactory_impl()

◆ ~posixOSFactory_impl()

Member Function Documentation

◆ createConditionVariable_impl()

◆ createEventFlag_impl()

◆ createMessageQueue_impl()

◆ createMutex_impl()

◆ createSemaphore_impl()

◆ createThread_impl()

◆ destroy_impl() [1/5]

◆ destroy_impl() [2/5]

◆ destroy_impl() [3/5]

◆ destroy_impl() [4/5]

◆ destroy_impl() [5/5]

◆ os::posix::EventFlag

Public Member Functions

Private Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ EventFlag()

◆ ~EventFlag()

Member Function Documentation

◆ checkAndClearFlags()

◆ clear()

◆ get()

◆ native_handle()

◆ set()

◆ setFromISR()

Member Data Documentation

◆ cv_

◆ flags_

◆ mutex_

◆ os::posix::MessageQueue

template<typename TType> class os::posix::MessageQueue< TType >

Public Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ MessageQueue()

◆ ~MessageQueue()

Member Function Documentation

◆ empty()

◆ full()

◆ native_handle()

◆ pop()

◆ push()

◆ reset()

◆ size()

Member Data Documentation

◆ handle_

◆ name_

◆ os::posix::Mutex

Public Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ Mutex()

◆ ~Mutex()

Member Function Documentation

◆ lock()

◆ native_handle()

◆ trylock()

◆ unlock()

Member Data Documentation

◆ handle_

◆ os::posix::Semaphore

Public Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ Semaphore()

◆ ~Semaphore()

Member Function Documentation

◆ count() [1/2]

template<typename TType>
class os::posix::MessageQueue< TType >
