#include "driver.hpp"
#include <cstdint>
#include <driver/communication_bus.hpp>
#include <etl/vector.h>
#include <inplace_function/inplace_function.hpp>

Include dependency graph for i2c.hpp:

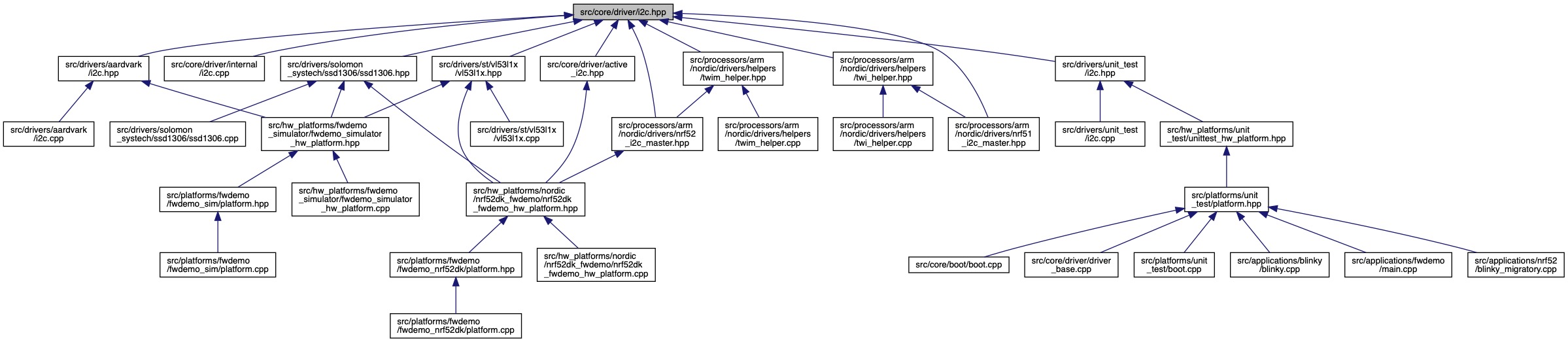

This graph shows which files directly or indirectly include this file:

Classes
struct	embvm::i2c::op_t
	I2C operation definition. More...

class	embvm::i2c::master
	This class provides the I2C master interface definition. More...

Namespaces
	embvm
	Embedded framework core interfaces, classes, and definitions.

	embvm::i2c
	Definitions, functions, and classes related to I2C communication bus devices.

Typedefs
using	embvm::i2c::addr_t = uint8_t
	I2C address storage type. More...

using	embvm::i2c::commBus = commBus< i2c::op_t, i2c::baud, i2c::I2C_MASTER_REQD_STATIC_FUNCTION_SIZE, i2c::status >
	Convenience alias for the declaration of the I2C commBus. More...

Enumerations
enum	embvm::i2c::operation : uint8_t { embvm::i2c::operation::stop = 0, embvm::i2c::operation::restart, embvm::i2c::operation::write, embvm::i2c::operation::read, embvm::i2c::operation::writeRead, embvm::i2c::operation::writeNoStop, embvm::i2c::operation::continueWriteNoStop, embvm::i2c::operation::continueWriteStop, embvm::i2c::operation::ping }
	I2C operation types. More...

enum	embvm::i2c::state : uint8_t { embvm::i2c::state::idle = 0, embvm::i2c::state::busy, embvm::i2c::state::error }
	Represents the state of the I2C bus. More...

enum	embvm::i2c::status { embvm::i2c::status::ok = 0, embvm::i2c::status::enqueued, embvm::i2c::status::busy, embvm::i2c::status::error, embvm::i2c::status::unknown, embvm::i2c::status::addrNACK, embvm::i2c::status::dataNACK, embvm::i2c::status::bus }
	I2C bus status. More...

enum	embvm::i2c::baud { embvm::i2c::baud::lowSpeed = 10000, embvm::i2c::baud::standard = 100000, embvm::i2c::baud::fast = 400000 }
	Valid I2C bus baudrate options. More...

enum	embvm::i2c::pullups : uint8_t { embvm::i2c::pullups::external = 0, embvm::i2c::pullups::internal }
	Pull-up configuration options for an I2C master device. More...

Variables
static constexpr size_t	embvm::i2c::I2C_MASTER_REQD_STATIC_FUNCTION_SIZE = 96
	Maximum size of the I2C master callback functor object. More...

static constexpr uint8_t	embvm::i2c::ReadBit = 0x01
	Added to slave address to indicate a read command. More...

Class Documentation

◆ embvm::i2c::op_t

struct embvm::i2c::op_t

I2C operation definition.

The I2C bus operates in half-duplex mode, meaning that reads and writes do not occur simultaneously. The operation type represents a variety of operations which can be performed by an I2C device. The transmit options (tx_buffer and tx_size) are required by any operations using "write". The receive options (rx_buffer and rx_size) are required by any operations using "read".

Class Members
uint8_t	address	Slave device address (7-bit).
operation	op	Operation to perform.
uint8_t *	rx_buffer	Pointer to the receive buffer. Does not need to be specified for write-only commands.
size_t	rx_size	Number of bytes to receive. Does not need to be specified for write-only commands.
const uint8_t *	tx_buffer	Pointer to the transmit buffer. Does not need to be specified for read-only commands.
size_t	tx_size	Number of bytes to transmit. Does not need to be specified for read-only commands.
