spi.hpp File Reference

#include "driver.hpp"
#include <cstdint>
#include <driver/communication_bus.hpp>
#include <inplace_function/inplace_function.hpp>

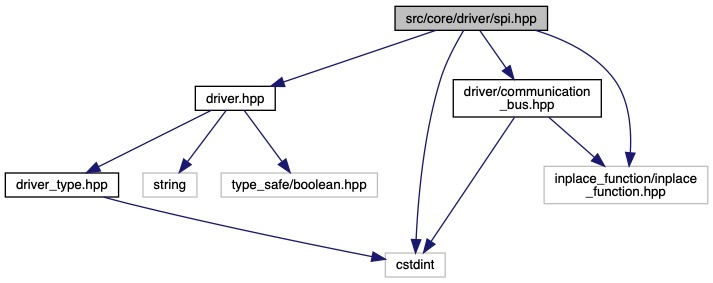

Include dependency graph for spi.hpp:

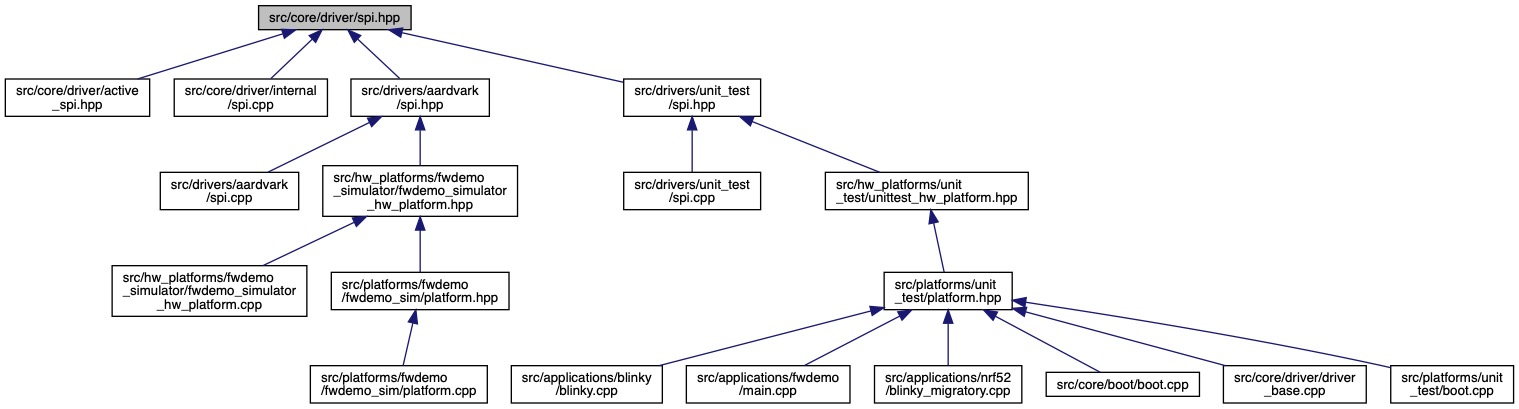

This graph shows which files directly or indirectly include this file:

Classes
struct	embvm::spi::op_t
	SPI operation definition. More...
class	embvm::spi::master
	This class provides the SPI master interface definition. More...

Namespaces
	embvm
	Embedded framework core interfaces, classes, and definitions.
	embvm::spi
	Definitions, functions, and classes related to SPI communication bus devices.

Typedefs
using	embvm::spi::baud_t = uint32_t
	SPI baudrate is specified as an integral value with units Hz. More...
using	embvm::spi::status = embvm::comm::status
using	embvm::spi::commBus = commBus< spi::op_t, spi::baud_t, spi::SPI_MASTER_REQD_STATIC_FUNCTION_SIZE >
	Convenience alias for the declaration of the SPI commBus. More...

Enumerations
enum	embvm::spi::mode : uint8_t { embvm::spi::mode::mode0 = 0, embvm::spi::mode::mode1 = 1, embvm::spi::mode::mode2 = 2, embvm::spi::mode::mode3 = 3 }
	SPI bus operational modes. More...
enum	embvm::spi::order : uint8_t { embvm::spi::order::msbFirst = 0, embvm::spi::order::lsbFirst }
	SPI bus transmission order options. More...

Variables
static constexpr size_t	embvm::spi::SPI_MASTER_REQD_STATIC_FUNCTION_SIZE = 80
	Maximum size of the SPI master callback functor object. More...
static constexpr spi::baud_t	embvm::spi::DEFAULT_SPI_BAUD = UINT32_C(125000)
	Default baudrate, which is used in the default constructor. More...

---

Class Documentation

embvm::spi::op_t

struct embvm::spi::op_t

SPI operation definition.

The SPI bus is full-duplex and always transmits and receives simultaneously.

A TX operation involves a valid tx_buffer pointer with rx_buffer set to nullptr.

An RX operation involves a valid rx_buffer pointer with tx_buffer set to nullptr. When tx_buffer is set to nullptr, the driver should clock out empty bytes.

An equal number of bytes are transmitted and received during a SPI transaction. The transfer size is controlled by the length argument.

Class Members
size_t	length	Number of bytes to transfer over the bus.
uint8_t *	rx_buffer	Pointer to buffer holding receive bytes. Can be set to nullptr to ignore reception.
uint8_t *	tx_buffer	Pointer to buffer holding transmit bytes. Can be set to nullptr to transmit empty bytes.
